2010 Honda Accord Serpentine Belt Diagram and Routing Guide
For a smooth-running engine in your 2010 Honda Accord, check the serpentine belt regularly. This belt drives multiple key components like the alternator, power steering pump, and air conditioning compressor. A clear understanding of its routing is crucial for both maintenance and repair tasks. Refer to the accurate serpentine belt diagram for your engine type, whether it’s a 4-cylinder or V6, to ensure proper installation and function.
The diagram for the 4-cylinder engine shows a straightforward path that connects the alternator, water pump, power steering pump, and air conditioning compressor. On the V6, the belt routing is more complex, including additional components. If the belt shows signs of wear, like cracks or fraying, replace it immediately to avoid further engine problems.
When replacing the serpentine belt, always use a tensioner tool to ensure the right belt tension. Be sure to align the belt correctly with each pulley, following the diagram exactly. Taking these steps will keep your engine running efficiently and avoid unnecessary repairs down the road.

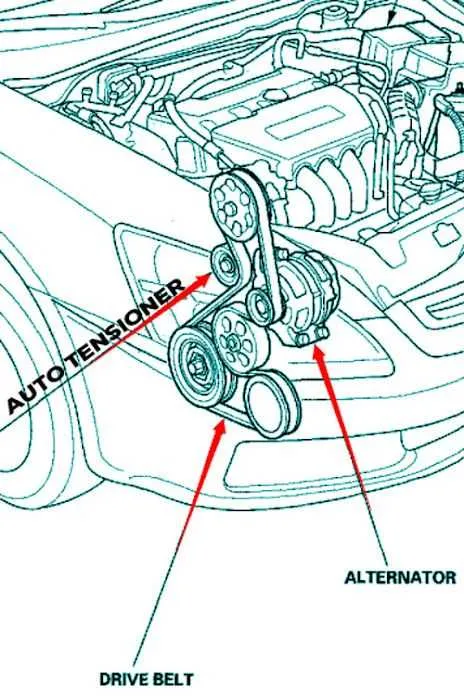

2010 Honda Accord Serpentine Belt Diagram
To replace or inspect the serpentine belt on your 2010 Honda Accord, follow the diagram for proper routing. The serpentine belt is a key component that powers several engine accessories, including the alternator, power steering pump, and air conditioning compressor. Ensure the belt is properly aligned and tensioned to avoid damage or malfunction of these systems.
The 2010 Honda Accord’s serpentine belt routing includes the following key components: the crankshaft pulley, alternator, power steering pump, water pump, and A/C compressor. The belt wraps around each pulley in a specific pattern, ensuring that all accessories run smoothly. Refer to the vehicle’s service manual or a labeled diagram for the exact routing, as minor variations can exist between trim levels.
Before replacing the belt, use a wrench to loosen the tensioner pulley. Once the tension is relieved, remove the old belt, inspect the pulleys for wear or damage, and install the new serpentine belt by following the routing diagram closely. Double-check that the belt is seated correctly on all pulleys and that it has proper tension before starting the engine.
If you’re experiencing squealing noises or loss of power to accessories, it could indicate that the serpentine belt is worn or improperly tensioned. Regular inspection can help prevent these issues.
How to Identify the Correct Serpentine Belt Routing for 2010 Honda Accord
To identify the correct serpentine belt routing for your 2010 Honda Accord, follow these steps:
- Locate the Diagram: The first step is to find the serpentine belt routing diagram. It’s usually located on a sticker near the engine compartment, often on the radiator support or under the hood. If the diagram is missing or unclear, you can consult the vehicle’s manual.
- Understand the Belt Path: The serpentine belt in the 2010 Honda Accord drives multiple accessories, including the alternator, power steering pump, water pump, and air conditioning compressor. Pay attention to the layout of the pulleys in the engine bay, including the tensioner and idler pulleys, as these will guide the belt’s path.
- Note the Tensioner Pulley Position: The tensioner pulley is spring-loaded and helps maintain the correct tension on the belt. Make sure it’s correctly positioned in the diagram. If the belt has been removed, manually rotate the tensioner to loosen it, allowing for easier placement of the new serpentine belt.
- Check Pulley Sizes: Pulley sizes will determine the correct positioning of the belt. Compare the pulleys visually and ensure the belt fits snugly around them without slipping off.
- Verify Routing with a Reference: Once the belt is installed, turn the engine by hand and verify the belt is running smoothly without slipping. The tensioner should maintain consistent tension, and the belt should stay on all pulleys without misalignment.
If you’re unsure, consider referencing an online repair guide or video specific to the 2010 Honda Accord for further clarity. Having a clear understanding of the routing diagram is key to ensuring proper function and longevity of the serpentine belt system.
Common Issues with the Serpentine Belt in 2010 Honda Accord and How to Diagnose Them
If the serpentine belt on your 2010 Honda Accord starts to wear out or malfunction, you may notice symptoms like squeaking noises or loss of power in key components like the alternator or air conditioning. Here are some common issues and ways to diagnose them.
1. Cracks or Fraying on the Belt
Inspect the belt for visible cracks, fraying, or significant wear. These signs often indicate that the belt is nearing the end of its life. A worn-out belt can slip off or break, causing the engine’s accessories to stop working. Look for surface cracks or areas where the material seems to be fraying.
2. Squealing Noises
If you hear high-pitched squeals when starting the engine or while driving, it’s usually a sign that the belt is slipping. This can occur due to improper tension, dirt, or moisture accumulation. Check if the belt is too loose or if there’s any debris stuck to it.
3. Belt Tension Problems
The serpentine belt should be tight enough to turn all the pulleys without slipping but not so tight that it causes excessive stress. Use a belt tension gauge to check for proper tension. If the belt feels too loose or too tight, the tensioner pulley might need adjustment or replacement.
4. Glazed or Shiny Belt
A shiny, glazed belt surface indicates overheating or excessive friction. This is often caused by misalignment of pulleys or improper tension. The belt surface should be matte, not shiny. Inspect the alignment of pulleys and the condition of the tensioner pulley.
5. Failure of Components Driven by the Belt
If you experience issues with accessories like the power steering, alternator, or air conditioning not working, the serpentine belt might be slipping or broken. Check for any loss of power in these components. If one or more of them are not functioning, it’s a clear sign that the belt is no longer properly connected or functioning.
How to Diagnose
Start by visually inspecting the belt. If it’s in poor condition or there’s any noticeable damage, it’s time to replace it. Check for tightness by pressing on the belt with your finger. If you can press it down more than ½ inch, the tension is likely too loose. Additionally, using a stethoscope can help you isolate any noise coming from the belt to confirm a slipping issue.
If there are no visible signs of damage but the belt is still causing issues, the tensioner pulley or the belt alignment may be at fault. In this case, using a pulley alignment tool can help detect misalignment or wear in the pulley system.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Honda Accord
Before starting, ensure your engine is off and cool. Gather the necessary tools: a serpentine belt, a socket wrench, a ratchet, and a belt tensioner tool.
1. Locate the Serpentine Belt
The serpentine belt runs across the front of the engine. It connects various components such as the alternator, power steering pump, and air conditioning compressor. Familiarize yourself with the routing diagram, usually found under the hood or in the owner’s manual.
2. Release the Tension
To remove the belt, you first need to relieve tension on the belt. Use a belt tensioner tool or a socket wrench to rotate the tensioner pulley clockwise. This will slacken the belt and allow you to remove it from the pulleys.
3. Remove the Old Belt
Once the tension is released, slide the belt off the pulleys. Pay attention to the path it follows around each pulley, as you will need to install the new belt in the same manner.
4. Inspect the Components
Check all pulleys and components that the serpentine belt runs over. Look for wear, cracks, or signs of damage. If any components seem faulty, replace them before installing the new belt.
5. Install the New Belt
Begin threading the new serpentine belt around the pulleys according to the diagram. Make sure the belt is seated properly in the grooves of each pulley. Pay attention to any specific routing instructions, such as over or under certain pulleys.
6. Tighten the Tensioner
Once the belt is in place, use the tensioner tool to rotate the tensioner pulley again and apply tension to the new belt. Ensure the belt is tight and properly aligned on all pulleys.
7. Verify Installation
Check that the belt is running smoothly on all pulleys and that it doesn’t slip or show signs of misalignment. Start the engine briefly to observe the belt in action and ensure everything is functioning correctly.
8. Recheck Tension
After a short drive, recheck the belt tension to ensure it’s still properly tightened. If the belt has slackened, adjust the tensioner once more.
