Diagram and Layout of the Serpentine Belt for 2010 Toyota Tundra Engine Systems
Locate the serpentine belt routing clearly by following this detailed diagram for the 2010 Toyota Tundra. Correct belt installation ensures smooth operation of critical components such as the alternator, power steering pump, and air conditioning compressor. Avoid engine damage and premature belt wear by aligning the belt precisely with each pulley as shown.
Consult the diagram before attempting any replacement or adjustment. The belt wraps around multiple pulleys in a specific path that maintains proper tension and prevents slippage. Use the diagram as a reference to identify tensioner location and routing direction, ensuring a secure fit that keeps the engine running reliably.
Keep in mind that the 2010 Toyota Tundra serpentine belt uses a single continuous belt driving several accessories. Follow the diagram step-by-step to avoid confusion during installation. A correctly routed belt optimizes engine performance and extends component lifespan, saving time and repair costs in the long run.
2010 Toyota Tundra Serpentine Belt Diagram

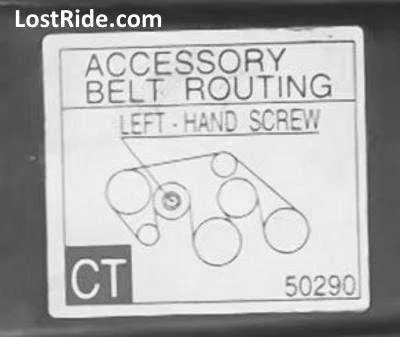

Locate the serpentine belt routing by referring to the under-hood sticker on the driver’s side; it clearly outlines the belt path around the pulleys for the 2010 Toyota Tundra. The belt wraps around the crankshaft pulley, alternator, power steering pump, water pump, and the tensioner. This configuration applies to both 4.0L V6 and 4.7L V8 engines, with minor variations depending on the engine size.
When replacing the serpentine belt, release tension by rotating the tensioner pulley clockwise using a 14mm wrench or a serpentine belt tool. This action loosens the belt, allowing removal and installation along the exact routing shown on the diagram. Ensure the belt sits fully in each pulley groove to prevent slipping or premature wear.
Check the condition of the tensioner and idler pulleys while the belt is off. Replace any components that exhibit excessive play or noise. Proper tension and alignment extend belt life and maintain accessory performance, such as the alternator and air conditioning compressor.
Keep a clear photo or printout of the belt diagram handy before starting the job. The routing can be complex and varies slightly by engine and trim level. Following the precise path guarantees correct installation and avoids common issues like belt squeal or misalignment.
Locating and Identifying Components in the Serpentine Belt System
Begin by opening the hood and locating the serpentine belt on the front side of the 2010 Toyota Tundra’s engine. The belt wraps around several key components arranged in a specific path. Identify the crankshaft pulley at the bottom center–this drives the belt’s movement.
Next, find the alternator pulley, usually positioned on the upper side near the engine’s front. This pulley charges the battery and powers electrical systems. Adjacent to it, spot the power steering pump pulley, which controls steering assistance.
Locate the water pump pulley near the center of the engine; it circulates coolant to regulate engine temperature. The tensioner pulley, often spring-loaded, maintains proper belt tension and usually appears smaller than other pulleys. It is crucial for preventing belt slippage.
Additionally, identify the idler pulleys, which guide the belt and keep its routing tight and precise. They don’t drive any components but maintain belt alignment. These pulleys are mounted on brackets around the engine block.
Refer to the vehicle-specific serpentine belt diagram printed on the radiator support or under the hood for exact pulley placement and belt routing. This visual aid confirms pulley positions and the belt’s correct path, helping to avoid mistakes during inspection or replacement.
Step-by-Step Guide to Removing and Replacing the Serpentine Belt
Locate the serpentine belt routing diagram, typically found on a sticker under the hood or in the owner’s manual. This ensures correct placement when reinstalling the belt.
Use a wrench or serpentine belt tool to rotate the tensioner pulley clockwise, relieving tension on the belt. Carefully slide the belt off the pulleys while maintaining tension on the tool to avoid sudden release.
Remove the belt completely, noting the path it took around each pulley. Compare the old belt with the new one to confirm matching length and rib configuration.
Route the new belt around the pulleys following the diagram exactly, leaving the tensioner pulley for last. This pulley maintains proper tension, so do not place the belt over it prematurely.
Rotate the tensioner pulley again to create slack, slip the belt over it, then slowly release the tensioner to apply tension. Inspect the belt to confirm it sits correctly in all pulley grooves without twists or misalignment.
Start the engine and observe the belt’s operation. Listen for unusual noises and watch for smooth rotation. Recheck belt tension after a few minutes of running and adjust if necessary.
| Step | Action | Tools Needed |
|---|---|---|
| 1 | Locate belt routing diagram | None |
| 2 | Release tensioner using wrench or belt tool | Wrench or serpentine belt tool |
| 3 | Remove old belt | None |
| 4 | Compare old and new belts | None |
| 5 | Route new belt around pulleys except tensioner | None |
| 6 | Release tensioner, install belt on tensioner pulley | Wrench or serpentine belt tool |
| 7 | Check belt alignment and tension | Visual inspection |
| 8 | Start engine and verify operation | None |
Troubleshooting Common Serpentine Belt Issues on a 2010 Toyota Tundra
Inspect the serpentine belt for cracks, fraying, or glazing immediately if you hear squealing noises or notice accessory failures. Replace the belt at the first sign of visible wear to avoid breakdowns.
Check the belt tension by pressing down on the belt midway between pulleys. The deflection should be about 1/2 inch under moderate pressure. Too loose or too tight tension leads to premature wear and noise.
- Squealing Noise: Usually caused by a slipping belt or worn tensioner. Replace the tensioner or adjust the belt if tension is incorrect.
- Cracks or Frays: Replace the belt immediately to prevent sudden failure.
- Glazing (shiny surface): Indicates the belt is slipping. Clean the pulleys and replace the belt if needed.
- Accessory Malfunction: If the alternator, power steering, or AC stops working properly, check the belt condition and tension first.
Use the 2010 Toyota Tundra serpentine belt diagram to verify correct belt routing before reinstalling or replacing the belt. Incorrect routing leads to malfunction and damage.
Replace the belt every 60,000 to 90,000 miles, depending on driving conditions. Regularly inspect during oil changes to catch wear early.
