Cub Cadet RT65 Belt Diagram and Maintenance Guide

If you’re facing issues with your Cub Cadet RT65 mower’s belt, or if you’re planning to replace it, having a clear belt diagram is key. This diagram shows the correct routing and placement of the belt to ensure your mower runs smoothly. Take a look at your manual first for the most accurate version, but here’s an outline that can guide you in the right direction.

Start by examining the two primary belts on the Cub Cadet RT65: one that drives the transmission and another that powers the mower’s blades. Both belts need to be in good condition and properly aligned for optimal performance. When replacing, make sure to compare the new belt with the old one to verify the correct length and width.

Once you have the belt and diagram in front of you, follow these steps to ensure proper installation. First, remove any obstacles or debris from the mower’s deck area. Next, loosely position the belt around the appropriate pulleys without tightening it completely. Adjust the tension once everything is in place to avoid premature wear and ensure smooth operation.

Having this diagram on hand saves you time and helps avoid errors during the replacement process. Regular maintenance of your Cub Cadet RT65’s belts can also prolong the lifespan of the mower and improve its performance during use.

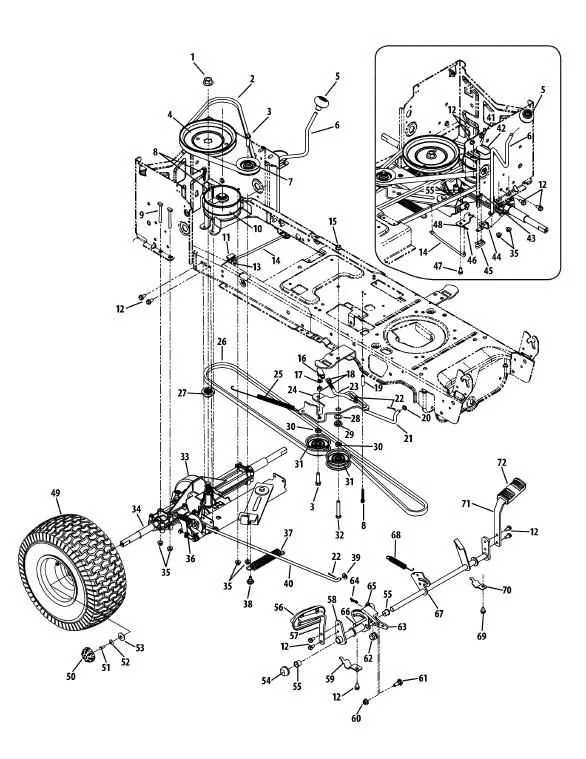

Cub Cadet RT65 Belt Diagram

If you’re looking to replace or adjust the drive belt on your Cub Cadet RT65, it’s crucial to follow the belt routing accurately to ensure optimal performance. Below is a clear breakdown of how to properly route the belt based on the Cub Cadet RT65 belt diagram.

• The drive belt connects the engine pulley to the transmission pulley. It runs through several key components, including the idler pulley and the deck pulleys.
• Start by detaching the spark plug wire to prevent accidental starting while working on the machine.
• Lift the mower deck to access the drive system. Depending on your model, the deck can usually be raised using a lever located near the front.
• Remove the old belt by releasing any tension from the idler pulley and sliding the belt off the pulleys. Carefully note how the belt is routed for easier installation of the new one.
• Install the new belt by routing it over the engine pulley, making sure it fits into the groove correctly. Follow the diagram closely to avoid any misrouting.
• Check the alignment of the belt to ensure it sits properly on all pulleys. The belt should not be twisted or slack.
• After the belt is in place, tighten the idler pulley to restore proper tension. Ensure the belt has adequate tension, but isn’t overly tight.
• Once everything is securely in place, reconnect the spark plug wire and test the mower to verify the belt functions correctly.

Regularly check the belt for wear and replace it if necessary to maintain optimal mower function.

How to Identify and Replace the Drive Belt on the Cub Cadet RT65

Inspect the drive belt on your Cub Cadet RT65 by first checking for visible signs of wear like cracks, fraying, or glazing. A damaged belt will often cause the mower to lose power or operate erratically. If the belt is loose or worn, it’s time for a replacement.

To replace the drive belt, begin by disconnecting the spark plug to avoid accidental starts. Lift the mower to access the underside, and remove any protective covers or panels. Locate the belt routing diagram on the frame for guidance.

Release the tension by loosening the belt idler pulley or any other tensioning mechanisms. Carefully remove the old belt, ensuring not to damage surrounding components. Compare the old belt with the new one to ensure proper fit. Install the new belt by following the routing diagram exactly, making sure it’s aligned with pulleys and tensioners.

Reassemble any removed parts, reconnect the spark plug, and test the mower to confirm smooth operation. If the mower still struggles to engage or the belt is loose, double-check the belt tension and routing.

Step-by-Step Guide to Understanding the Cub Cadet RT65 Belt Routing

First, locate the belt diagram for your Cub Cadet RT65. This can typically be found in the owner’s manual or on a decal on the mower itself. Knowing the exact layout of the belt system is key for smooth operation.

To begin, remove the mower deck. This gives you better access to the entire belt assembly. Most Cub Cadet RT65 models have a few bolts that secure the deck to the mower. After loosening them, carefully lift the deck off the machine.

Next, check the belt for any signs of wear or damage. If you’re replacing the belt, ensure the new one matches the specifications in the manual. It should be the correct length and width for your model.

Start routing the belt from the engine pulley. This is usually the main driving force behind the mower’s motion. Ensure the belt loops over this pulley in the correct direction. Pay attention to the belt’s path as it moves toward the deck pulleys.

Next, route the belt through the deck pulleys. You’ll need to pass it around each pulley in a specific order to ensure the blades turn correctly. Make sure the belt is snug but not too tight around the pulleys, as this can affect performance.

Once the belt is properly routed around the pulleys, check its alignment. The belt should be centered on each pulley groove. Misalignment can cause the belt to slip off or wear prematurely.

Lastly, test the tension on the belt. The tensioner pulley helps regulate the belt’s tightness. Adjust the tensioner to ensure the belt is neither too loose nor too tight. This ensures optimal performance while preventing unnecessary wear.

Reassemble the mower deck, making sure all bolts are secured. Test the system by running the mower briefly to ensure the belt operates smoothly. If you notice any issues, revisit the routing process and check for any misaligned or worn parts.

Troubleshooting Common Belt Issues on Cub Cadet RT65 Models

If the belt on your Cub Cadet RT65 is slipping, it’s likely caused by a worn or misaligned belt. Check the belt for any visible signs of wear, such as fraying or cracking. If these are present, replacing the belt should resolve the issue.

Next, inspect the tension. A loose belt can cause slipping and reduced performance. Tighten the tension by adjusting the tensioner pulley. Ensure that the pulley is aligned correctly with the belt path, as misalignment can lead to premature wear or even belt failure.

Examine the pulleys for damage or debris. Dirty or corroded pulleys can cause the belt to slip. Clean them thoroughly and check for any misalignment or wobbling. If a pulley is worn or damaged, it should be replaced immediately.

If the belt continues to slip or is too tight even after adjustments, it could be due to improper installation. Verify that the belt is routed correctly according to the manufacturer’s diagram. Misrouting can cause excessive strain on the system, leading to premature wear.

For unusual noises or difficulty in operating, inspect the clutch mechanism. A malfunctioning clutch can cause the belt to not engage properly. If needed, replace or repair the clutch assembly to restore optimal function.
