2004 Honda Accord Belt Diagram and Routing Guide for Proper Installation
For those working on a 2004 Honda Accord, a clear and accurate belt diagram is key for maintaining the proper function of your engine components. This diagram shows the routing of the serpentine belt, which drives critical systems like the alternator, power steering pump, air conditioning compressor, and water pump. Incorrect installation can lead to damage or a complete breakdown of these systems, so it’s important to follow the diagram precisely.
The 2004 Honda Accord uses a specific belt layout, with the serpentine belt passing over various pulleys and tensioners. One of the first things to check before replacing the belt is the condition of the tensioner and idler pulleys. Worn-out components can cause premature wear on the new belt and reduce its lifespan.
Ensure the correct belt size is used based on the engine variant, as there are slight differences in belt length and routing between the 4-cylinder and V6 models. The tension should be checked after installation, as a belt that is too tight or too loose can lead to engine performance issues.
Before you start, familiarize yourself with the diagram specific to your vehicle, either from the owner’s manual or a trusted resource. It will provide a clear path for each belt, ensuring a smooth and trouble-free installation process.
2004 Honda Accord Belt Diagram
The 2004 Honda Accord uses multiple belts to drive components like the alternator, power steering, air conditioning, and more. To understand how these belts function, it’s crucial to follow the correct routing in the diagram.
The primary belt is the serpentine belt, which powers several accessories from a single belt. It is routed through various pulleys connected to the engine, with tension provided by an automatic tensioner. The tensioner adjusts the belt to maintain proper tension as the belt stretches over time.

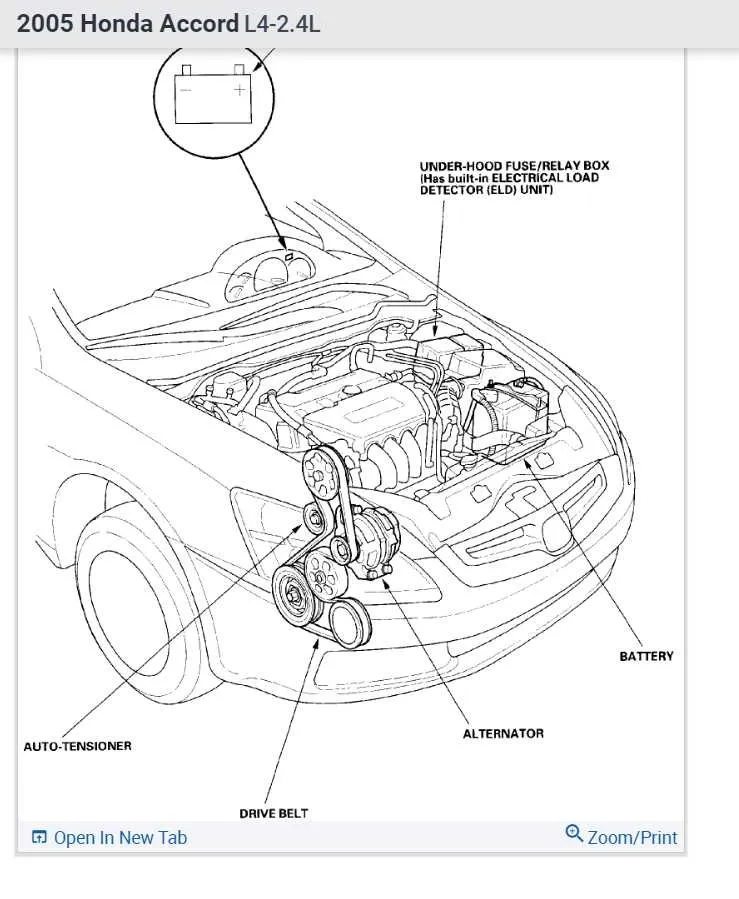

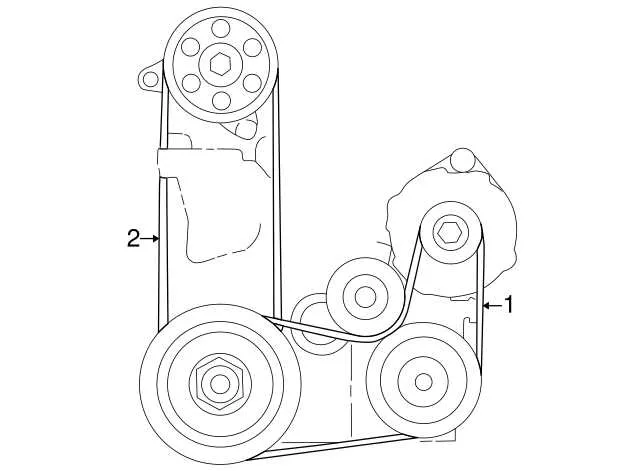

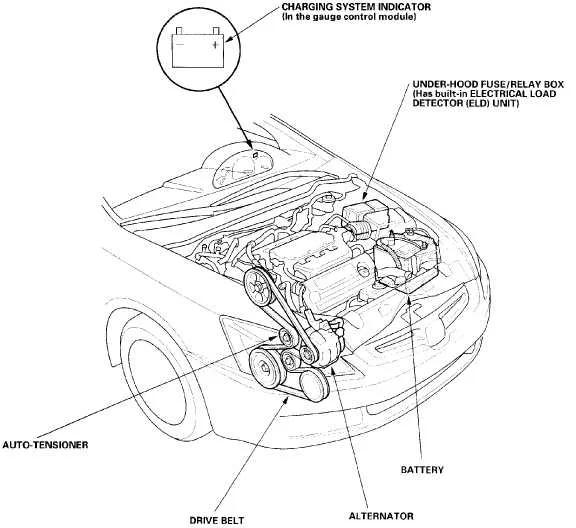

Start by ensuring the belt is properly aligned on each pulley. The diagram shows the path for the serpentine belt across the engine components, from the crankshaft pulley to the alternator, power steering pump, and air conditioning compressor. Pay close attention to the direction of the belt’s routing, as the pulleys must be engaged in the right order for optimal performance.
Check the belt for signs of wear, such as cracks, fraying, or glazing. If any issues are spotted, replacing the belt is necessary to prevent potential engine damage. Make sure to follow the manufacturer’s specifications for the correct tension when installing a new belt.

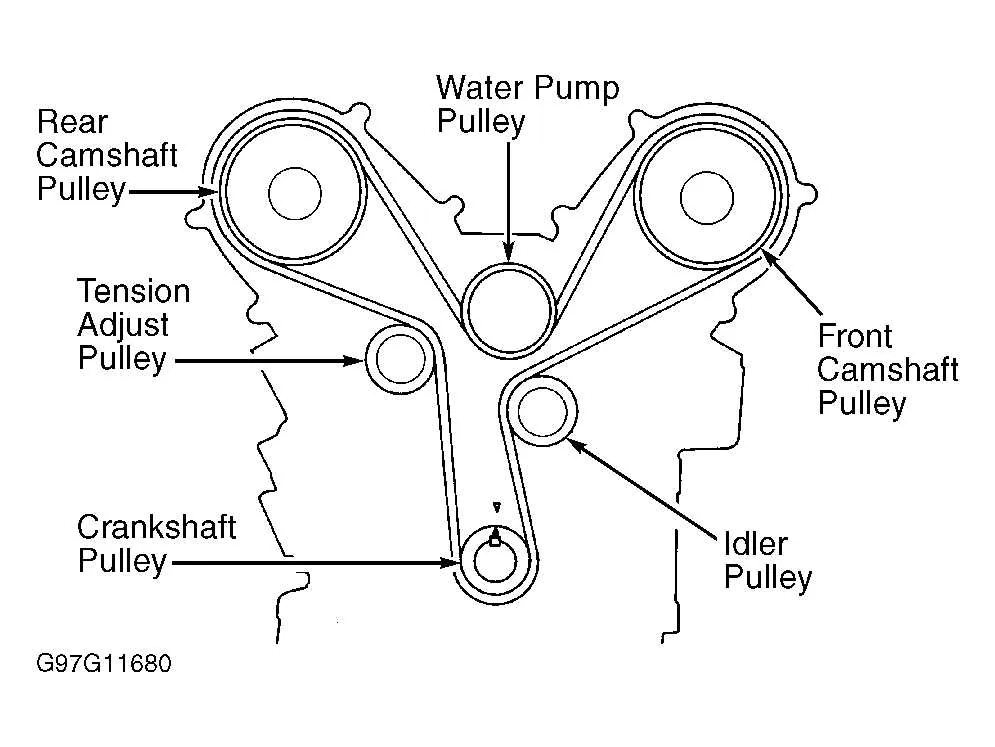

For the timing belt, which controls the camshaft and crankshaft synchronization, refer to a separate diagram that shows its position. This belt requires more attention and should be replaced at regular intervals to avoid engine misfires or severe damage.
Use the 2004 Honda Accord belt diagram as a reference when performing maintenance or replacing belts. A clear understanding of the belt layout helps ensure everything is properly installed and functions smoothly.
How to Identify the Correct Belt Routing for Your 2004 Honda Accord
Check the belt routing diagram located on the engine bay. This diagram is usually found on the radiator support or near the engine’s front cover. It provides a clear visual guide to how each belt should be arranged around the pulleys.
If the diagram is missing or hard to read, refer to the 2004 Honda Accord service manual for a detailed diagram. This will show you how to route the serpentine or timing belts, depending on the engine type (4-cylinder or V6).
Inspect the belt tensioner. The tensioner helps maintain proper belt tension. If the tensioner is worn or misaligned, it can affect the belt’s routing and performance. Replace the tensioner if necessary to avoid future complications.
When replacing the belt, ensure it’s routed correctly before tightening. Misrouting the belt can lead to premature wear or damage to engine components. Pay attention to the direction of the grooves on the belt to match them with the pulleys properly.
If you are uncertain, double-check with a Honda-certified mechanic to ensure the belt routing is correct before starting the engine. Incorrect routing could lead to engine performance issues or even serious damage.
Common Belt-Related Issues and How to Troubleshoot Them in the 2004 Honda Accord
If your 2004 Honda Accord’s belt system starts making unusual noises or causes performance issues, the first step is checking for visible signs of wear or damage. Look for cracks, fraying, or glazing on the belts. These could indicate the need for a replacement or adjustment.
The most common belt-related problems include:
- Worn-Out or Cracked Belts: Over time, belts deteriorate due to heat and friction. If you notice squeaking or squealing sounds, inspect the belts for any signs of cracking or stretching. A worn-out belt should be replaced immediately to avoid engine damage.
- Loose Belts: If the belt feels loose and can be moved by hand, the tensioner might be malfunctioning. A loose belt can slip, leading to poor performance of engine accessories. Adjust the tensioner or replace it if necessary.
- Misaligned Pulleys: Misaligned pulleys can cause the belt to wear unevenly, leading to performance issues like overheating or loss of power. Align or replace the pulley to fix the issue.
- Belt Squeal: A high-pitched squeal usually indicates that the belt is slipping on the pulley. This could be caused by dirt or oil buildup on the belt or pulleys. Clean both parts thoroughly or replace the belt if cleaning doesn’t resolve the noise.
To troubleshoot, follow these steps:
- Inspect the belt visually for signs of wear and damage.
- Check the tension by pressing on the belt midway between pulleys. If it gives more than half an inch, the tension is too loose.
- Look for any fluid leaks (coolant or oil) near the belt system. These can cause slippage and wear.
- Examine the pulleys for alignment issues, corrosion, or signs of damage.
- Listen for any squeaks or squeals during engine start-up, as this can help identify issues with the belt or pulleys.
Once you identify the problem, address it by either replacing the damaged belt or adjusting the tension. Regular belt inspections can prevent larger, more costly issues down the line.
Step-by-Step Guide to Replacing Belts on a 2004 Honda Accord
First, gather all the necessary tools: a socket wrench set, a belt tensioner tool, a flashlight, and a new belt or belts. You’ll be working with the serpentine belt and possibly the timing belt, depending on the model. Make sure your engine is cool before starting.
Begin by locating the serpentine belt. You can find the belt diagram under the hood, near the radiator or on the top of the engine bay. The diagram will show you how the belt should be routed around the pulleys.
Next, remove the negative battery cable to avoid electrical hazards. Use a socket wrench to release tension from the serpentine belt by adjusting the belt tensioner. Once the tension is released, carefully remove the belt from the pulleys.
If replacing the timing belt, you’ll need to remove several components, including the timing cover, crankshaft pulley, and other belts. It’s important to align the timing marks correctly when replacing this belt to ensure the engine’s timing remains accurate.
Install the new serpentine belt by following the diagram closely. Ensure the belt is seated properly in each pulley groove. For the timing belt, align the camshaft and crankshaft marks, and then carefully install the new belt over these components, making sure it fits snugly.
After installing the belts, rotate the crankshaft manually to check the alignment. This ensures the belts are properly positioned. Reattach any components you had to remove and replace the negative battery cable.
Finally, start the engine to check if the belts are running smoothly and no unusual sounds or vibrations are present. If everything runs as expected, you’ve successfully replaced the belts!
