2008 Ford Focus Serpentine Belt Diagram and Installation Guide

For optimal performance, it’s crucial to have a clear understanding of the serpentine belt system in the 2008 Ford Focus. The serpentine belt plays a key role in transferring power from the engine to various components like the alternator, air conditioning compressor, and power steering pump. A broken or worn belt can lead to engine failure or other mechanical issues.

To begin, check the diagram to locate the proper belt routing. This will ensure that the belt runs smoothly and maintains the correct tension. Replace the serpentine belt at recommended intervals to avoid wear that can lead to sudden breakdowns. Always double-check the belt’s alignment and condition before installation to avoid unnecessary damage to engine components.

Understanding the belt routing and proper installation is straightforward. Consult the diagram for your 08 Ford Focus to confirm the correct configuration. Each pulley plays a specific role in the system, and installing the belt correctly will ensure that each component operates as intended. Pay attention to any wear on the pulleys themselves, as damaged pulleys can contribute to premature belt wear.

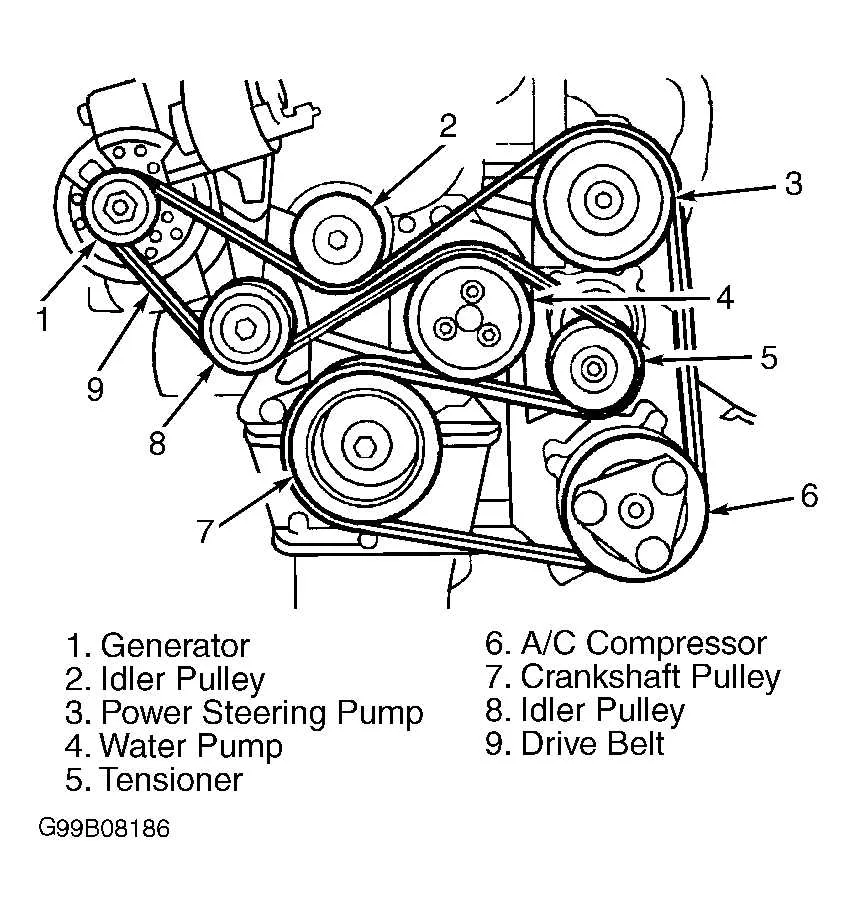

08 Ford Focus Serpentine Belt Diagram

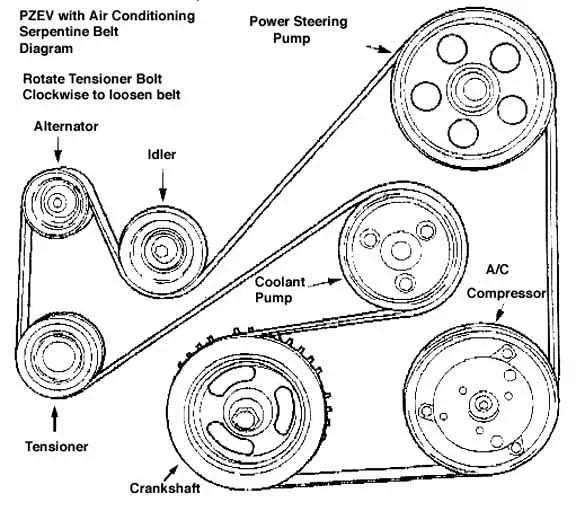

To replace or inspect the serpentine belt on a 2008 Ford Focus, start by identifying the correct routing path for the belt. This diagram shows the essential components: the crankshaft pulley, alternator, power steering pump, and air conditioning compressor. Ensure the belt follows the correct path to avoid malfunction or damage.

The tensioner pulley plays a crucial role in maintaining proper belt tension. If it’s worn or damaged, it could affect belt performance and lead to slippage. Always inspect the condition of the tensioner and idler pulleys when replacing the serpentine belt.

When replacing the serpentine belt, use the diagram as a guide for routing. The belt should be installed with proper tension, ensuring it is tight but not overly stretched. After installation, rotate the belt manually to check for correct alignment and smooth operation.

How to Identify the Correct Serpentine Belt for a 2008 Ford Focus

To choose the correct serpentine belt for a 2008 Ford Focus, follow these key steps:

• Check the vehicle’s engine model. The 2008 Ford Focus may have different engine variants, such as a 2.0L or a 2.0L Duratec engine. Ensure that the serpentine belt matches the engine type.
• Refer to the owner’s manual for the correct belt specifications. The manual typically includes the exact part number and size for the serpentine belt.
• Verify the belt length and width. A belt that is too long or too short can cause issues with belt tension and performance. Measure the belt’s length and width before purchasing a replacement.
• Inspect the routing diagram. The correct routing for the serpentine belt is crucial for its proper function. Check the engine bay for a belt routing diagram, which shows how the belt should be installed around the pulleys.
• Ensure the part is designed for your specific vehicle. Different models or trims of the 2008 Ford Focus may have slight variations that require different serpentine belts.

When in doubt, visit an auto parts store with the vehicle’s VIN. This will allow the store to cross-reference and ensure compatibility with the correct serpentine belt for your 2008 Ford Focus.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2008 Ford Focus

First, lift the vehicle using a jack and secure it with jack stands. Ensure the car is stable before proceeding. Locate the serpentine belt in the engine bay, running around various pulleys and components.

Next, use a serpentine belt tool or a wrench to relieve tension on the belt tensioner. The tensioner is usually located near the center of the belt assembly. Rotate the tensioner clockwise to loosen the belt.

Once the tension is released, remove the old serpentine belt by sliding it off the pulleys. Take note of the routing of the belt before removal, as this will be critical when installing the new belt. It’s helpful to take a photo or refer to the vehicle’s manual for the proper routing diagram.

Prepare the new serpentine belt by ensuring it matches the length and width of the old one. Check for any visible signs of wear or damage on the new belt before installation.

Begin threading the new belt through the pulleys, following the same routing as the old belt. Make sure it sits securely in each groove of the pulleys to avoid slipping once the engine is running.

After the belt is in place, use the serpentine belt tool or a wrench to move the tensioner back into position, applying the correct tension to the belt. Ensure that the belt is tight, but not overly strained.

Finally, start the engine and observe the belt’s operation. Listen for any unusual noises and verify that the belt is moving smoothly across all pulleys without slipping. If everything appears correct, lower the vehicle and remove the jack stands.

Common Issues with the Serpentine Belt on a 2008 Ford Focus and How to Fix Them

A worn or damaged serpentine belt can cause a range of issues in the 2008 Ford Focus. If you notice squealing noises, poor performance of accessories like the air conditioning or power steering, or even a warning light, it could indicate a problem with the belt.

One common issue is belt slippage, which can occur if the belt has stretched over time. This causes the belt to lose tension and slip on pulleys, leading to inconsistent power delivery. To fix this, inspect the belt for signs of wear such as cracks or fraying. If the belt is damaged, replacing it is the most effective solution.

Another issue is misalignment of the pulleys. Over time, pulleys can become misaligned due to worn bearings or a damaged tensioner. This can cause the serpentine belt to wear unevenly. To resolve this, check the alignment of the pulleys and replace any faulty components like the tensioner or idler pulleys.

A third problem is belt glazing, which occurs when the belt becomes shiny and smooth due to overheating. This reduces the belt’s grip on the pulleys, leading to slippage and inefficiency. If the belt is glazed, it should be replaced, and the cause of overheating, such as a malfunctioning tensioner, should be addressed.

Finally, squealing or chirping sounds can indicate an improperly tensioned belt. If the belt is too loose, it may slip and create noise. Adjusting the tensioner to the correct setting or replacing a worn tensioner can eliminate this issue and restore smooth operation.
