Ford Focus Serpentine Belt Diagram and Routing Guide
The serpentine belt on your Ford Focus is a key component driving essential accessories like the alternator, power steering pump, and air conditioning compressor. A clear understanding of how the belt routes can save you time and effort when diagnosing or replacing it.
Refer to the diagram for a precise illustration of the serpentine belt’s path. This will guide you in identifying the correct alignment of pulleys and ensuring the belt is properly tensioned. Incorrect routing can lead to performance issues or premature wear on other components.
Ensure the belt’s condition is checked regularly to prevent sudden breakdowns. If you notice any signs of wear such as cracks, fraying, or unusual noises, replacing the belt before it fails is highly recommended. The diagram provides a visual reference to help avoid any mistakes during installation.

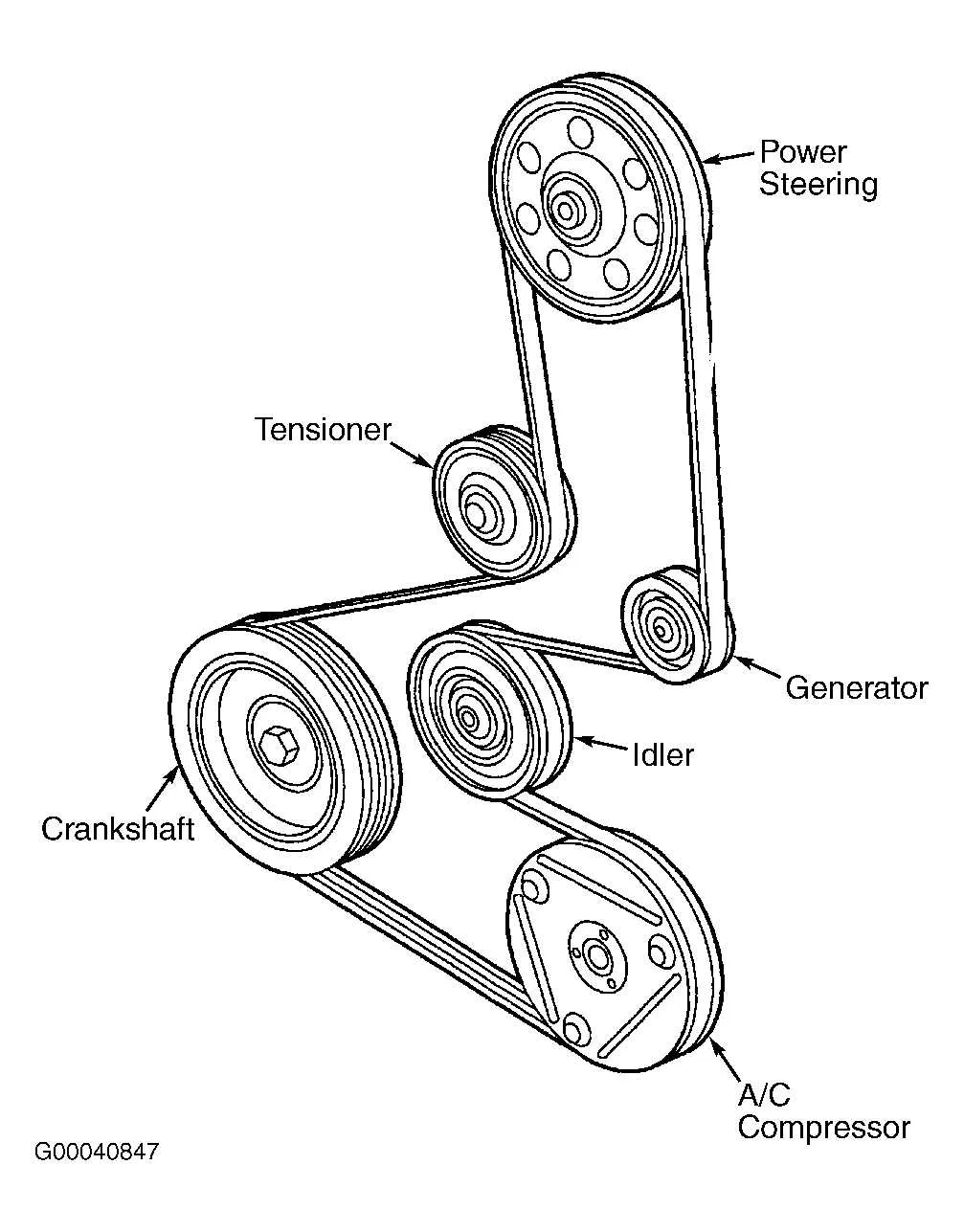

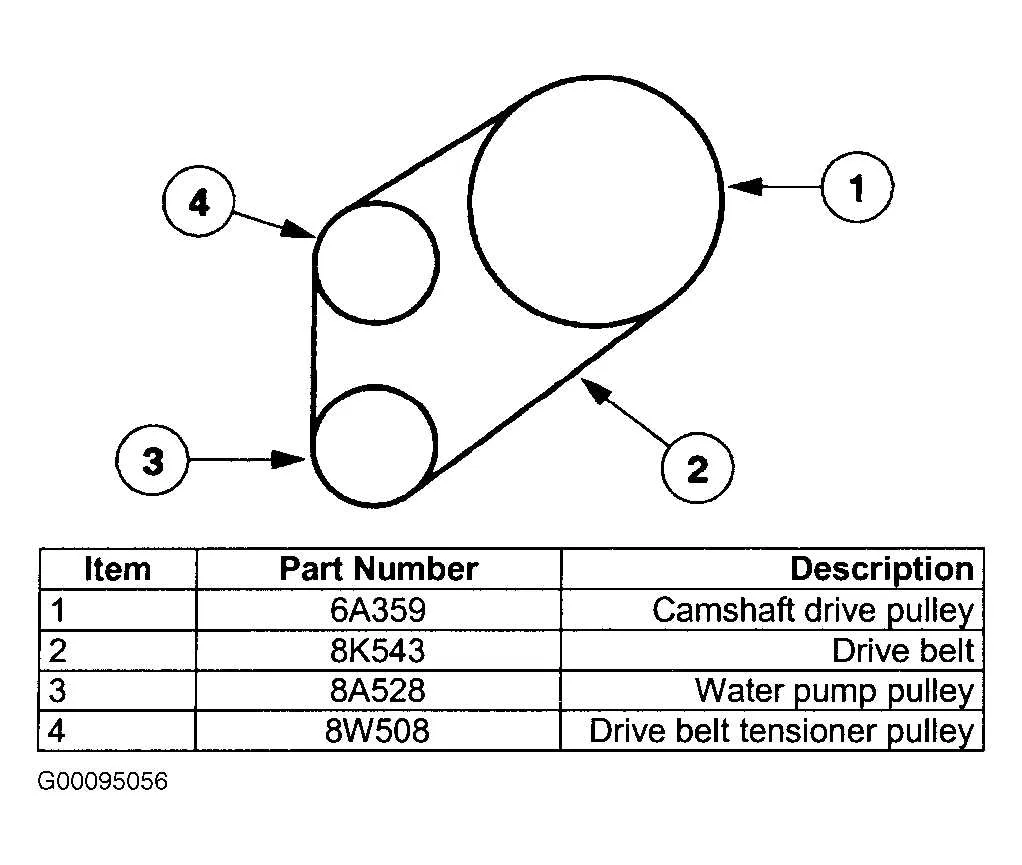

Ford Focus Serpentine Belt Diagram
Check the serpentine belt routing diagram for your Ford Focus before replacing or inspecting the belt. The correct belt placement ensures that all engine components work smoothly, such as the alternator, power steering, air conditioning, and water pump.
The diagram typically shows the position of the belt relative to each pulley. Start by identifying the pulleys for the alternator, AC compressor, tensioner, and crankshaft. The belt usually loops around these pulleys, with a tensioner pulley providing the correct amount of tension. Use the diagram to confirm the correct path and ensure the belt is not twisted or misaligned.
Inspect the belt for wear every 30,000 miles or as recommended in your owner’s manual. If the belt appears cracked or frayed, replace it immediately. Following the diagram accurately helps avoid unnecessary wear on components, preventing costly repairs.
For accurate installation, use a serpentine belt tool to release tension from the tensioner pulley. Once the belt is loosened, remove it and replace it with the new belt. After installation, check the belt’s alignment and tension to ensure it runs properly.
How to Locate the Serpentine Belt on a Ford Focus
To find the serpentine belt on a Ford Focus, open the hood and locate the engine bay. The serpentine belt is usually positioned at the front of the engine, running along the side. It wraps around various pulleys, such as the alternator, power steering pump, and air conditioning compressor. It is a long, continuous belt and is often made of rubber with grooves on the inner side.
Next, look for a belt diagram sticker in the engine bay. This diagram usually appears near the radiator or on the engine cover. It shows the exact routing of the serpentine belt, which can help you confirm the belt’s path and where it sits among the components.
In some models, you might need to use a tool to loosen the tensioner pulley before removing or inspecting the belt. This pulley is located on the side of the engine and is used to maintain the belt’s tension. Use a wrench or socket to release the tension, allowing you to carefully slide the belt off the pulleys.
Step-by-Step Guide to Replacing the Serpentine Belt
To replace the serpentine belt on your Ford Focus, follow these steps for a smooth and straightforward process.
- Gather Tools and Parts: You’ll need a new serpentine belt, a ratchet wrench, a socket set, and a serpentine belt tool or breaker bar.
- Locate the Serpentine Belt: Open the hood and locate the serpentine belt at the front of the engine. It wraps around various pulleys and is typically visible near the alternator and power steering pump.
- Release Tension: Use the serpentine belt tool or a breaker bar to relieve tension from the belt. Locate the tensioner pulley, place the tool in the slot, and rotate it counterclockwise to release the tension.
- Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Pay attention to how the belt is routed to ensure proper installation of the new one.
- Inspect Components: Check all pulleys, the tensioner, and the idler pulley for wear or damage. If any components are worn out, replace them before installing the new belt.
- Install the New Belt: Route the new serpentine belt according to the diagram. Ensure that it sits properly on all pulleys, especially the tensioner and idler pulleys.
- Reapply Tension: Use the serpentine belt tool to rotate the tensioner back into place, tightening the belt. The belt should be snug but not overly tight.
- Check the Belt: Inspect the new belt to make sure it’s seated correctly on all pulleys and there’s no slack. Rotate the engine by hand (if possible) to ensure the belt is properly aligned.
- Test Drive: Start the engine and observe the belt’s movement. Listen for any unusual noises and check for proper operation. If the belt is functioning smoothly, you’re done!
Replacing the serpentine belt on your Ford Focus is straightforward with the right tools and attention to detail. Following these steps ensures a smooth replacement, keeping your vehicle running reliably.
Common Issues with the Ford Focus Serpentine Belt and How to Identify Them
A worn serpentine belt can lead to various engine problems, affecting multiple components like the alternator, power steering pump, and air conditioning. Listen for squealing or chirping noises, especially during cold starts, which often indicate that the belt is slipping or becoming loose.
If you notice engine performance issues or dimming lights while driving, check the serpentine belt. A loose or broken belt can prevent the alternator from charging the battery properly, leading to electrical problems.
Another common issue is visible cracking or fraying along the length of the belt. This is usually a sign of age or damage from excessive heat. Inspect the belt regularly for any signs of wear, especially if the car has high mileage.
Misalignment of the belt is another problem to look out for. If the belt moves off-center or seems to shift during operation, the pulleys may be misaligned. This can cause uneven wear on the belt and lead to more severe damage if not addressed quickly.
When the belt becomes too tight, it can cause strain on the components it drives, potentially damaging the water pump or tensioner. On the other hand, if the belt is too loose, it can slip off or cause squeaks and vibrations.
Finally, inspect the tensioner regularly. A failing tensioner can lead to improper belt tension, increasing the likelihood of slipping or snapping. If the tensioner seems weak or unable to maintain the belt’s correct tension, it may need to be replaced.
