Cub Cadet RZT 54 Drive Belt Layout and Step by Step Diagram Guide

Check the drive belt routing carefully before attempting any replacement on the Cub Cadet RZT 54. A correctly positioned belt ensures smooth transmission from the engine to the mower deck, preventing slipping or premature wear. The belt wraps around multiple pulleys, including the engine crankshaft, idler, and deck spindles, each following a specific path that must be maintained.

Identify each pulley by size and position to avoid misalignment. The engine crankshaft pulley sits at the front, the idler pulley adjusts tension in the middle, and the deck spindles drive the blades. Following the manufacturer’s diagram helps maintain correct tension, reducing stress on both the belt and the pulleys.

Maintain tension during installation by using the spring-loaded idler correctly. The belt should sit squarely in each pulley groove without twisting or rubbing against edges. Misrouting can cause uneven blade rotation, motor strain, or rapid belt degradation.

Regularly inspect the belt for cracks, fraying, or glazing. Even a minor imperfection can reduce cutting performance or lead to sudden failure. Refer to the Cub Cadet RZT 54 drive belt diagram for exact routing whenever performing maintenance, ensuring long-term reliability and smooth operation of the mower deck.

Cub Cadet RZT 54 Drive Belt Diagram

Follow the drive belt routing carefully to prevent slippage and ensure smooth operation of your Cub Cadet RZT 54. The belt connects the engine pulley, deck pulleys, and idler pulleys in a specific sequence that maintains proper tension.

The correct configuration positions the main engine pulley at the center, with the belt wrapping around the idler pulleys to the mower deck spindles. This creates the tension required for cutting and driving simultaneously.

• Start by looping the belt around the engine crankshaft pulley.
• Guide the belt under the idler pulleys located near the frame.
• Wrap the belt around each mower deck spindle pulley, following the exact routing indicated in the manufacturer’s diagram.
• Ensure the belt is seated fully in each pulley groove and avoids twisting.
• Finish by looping the belt over the tensioner pulley and securing it properly.

Check alignment visually after installation. Misaligned belts cause uneven wear, reduced cutting performance, and may damage pulleys.

Lubricate the idler pulleys if necessary to reduce friction. Inspect the belt for cracks or fraying before each season to maintain reliable operation. Replace any damaged belts immediately using the OEM part number specific to the RZT 54 model.

Consult the diagram for exact routing, as reversing the belt or skipping pulleys can cause engine strain and mower malfunction.

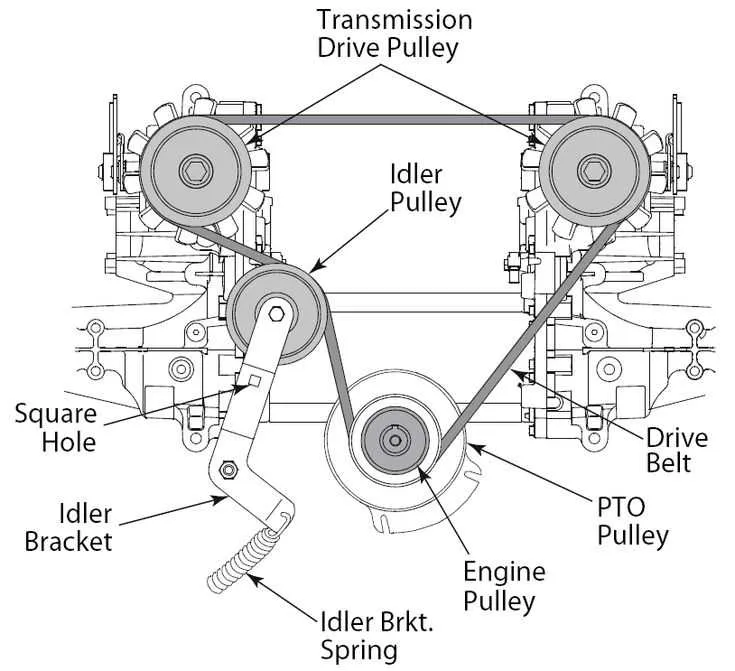

Locating and Identifying the Drive Belt Components

Check the mower deck to locate the primary drive belt, which loops around the engine pulley, idler pulleys, and transmission pulley. Ensure the engine is off and the key is removed for safety. Identify the engine pulley at the front center of the mower deck, usually larger and connected directly to the crankshaft.

Next, follow the belt to the idler pulleys. These are smaller, mounted on spring-loaded brackets, and guide the belt along the correct path. One idler controls tension to prevent slipping, while others maintain alignment between pulleys.

Locate the transmission pulley beneath the operator platform. It connects the belt to the rear wheels and usually has a metal guard or cover. Trace the belt path from the engine pulley through the idlers to this transmission pulley, noting any twists or directional markings on the belt surface.

Examine the belt for part numbers and directional arrows to confirm correct orientation. Keep a diagram handy, either from the owner’s manual or a reliable online source, to match each pulley and idler accurately. Marking each component with tape or a removable marker can simplify reassembly and prevent misrouting.

Inspect mounting points for wear or misalignment. Loose bolts or bent idler arms can cause premature belt wear or slippage. Confirm that the belt sits securely in all pulley grooves before proceeding with tension adjustment or replacement.

Step-by-Step Belt Routing for Maintenance or Replacement

Position the mower on a flat surface and engage the parking brake. Remove the deck and locate the tensioner pulley near the engine.

Release tension by pulling the tensioner arm away from the belt path. Slide the old belt off the pulleys, starting with the idler pulleys and then the engine and transmission pulleys.

Compare the new belt with the old one to confirm correct length and rib alignment. Route the belt around the engine pulley first, then follow the idler pulleys in the sequence indicated on the deck diagram.

Ensure the belt sits fully in the grooves of each pulley. Loop it around the transmission pulley last, keeping slight slack to allow engagement with the tensioner.

Pull the tensioner arm back into place carefully, applying pressure to seat the belt properly. Rotate the engine pulley by hand to verify smooth movement and proper tracking across all pulleys.

Reinstall the deck and double-check that the belt follows the routing exactly as in the diagram. Test the drive system slowly before normal operation to confirm correct installation.

Troubleshooting Common Drive Belt Issues

Replace the belt immediately if you notice visible cracks, fraying, or missing chunks along the edges. A worn belt reduces traction and can slip off pulleys under load, causing uneven cutting or engine strain.

Check belt tension by pressing down midway between the pulleys. The deflection should be approximately 1/2 inch for a Cub Cadet RZT 54. Adjust the tensioner if the belt sags or feels overly tight, as improper tension accelerates wear and affects performance.

Inspect pulleys for debris, rust, or damage. Small stones or accumulated grass can interfere with the belt path, producing squealing noises or premature wear. Clean all pulley grooves thoroughly before reinstalling the belt.

Examine alignment between the drive belt and pulleys. Misalignment causes uneven wear on the belt edges and may trigger slipping. Realign the pulleys using the adjustment bolts provided on the deck and engine mounts.

Listen for unusual noises during operation. Squealing or chirping indicates slippage, which often results from oil or grease contamination on the belt. Wipe the belt and pulleys with a clean cloth and inspect for leaks from the engine or transmission that could deposit fluid on the belt.

Monitor belt temperature after prolonged use. Overheating can signal excessive friction caused by a damaged tensioner or worn pulley bearings. Replace faulty components to prevent belt failure and protect surrounding engine parts.
