Drive Belt Diagram for Husqvarna RZ4623 and its Components
The drive belt in your Husqvarna RZ4623 is a key component for smooth operation. If you notice any slipping or difficulty in movement, checking the belt’s condition and alignment is a good place to start.
Diagram Breakdown: The diagram of the drive belt for the Husqvarna RZ4623 illustrates the precise routing and attachment points. Understanding this layout will help in both diagnosing issues and replacing the belt when necessary. Ensure that the belt follows the correct path around the pulleys to prevent unnecessary wear and avoid damage.
Make sure to verify the belt’s tension regularly. A loose or overly tight belt can lead to premature wear and affect the performance of your mower. If the belt shows signs of fraying or excessive wear, it should be replaced promptly to maintain efficiency and prevent further complications.
For proper installation, refer to the diagram to ensure the belt is seated correctly in all pulley grooves. This will help maintain the correct tension and reduce stress on the engine and transmission components. Regularly inspect the diagram to spot any misalignments or issues before they become major problems.

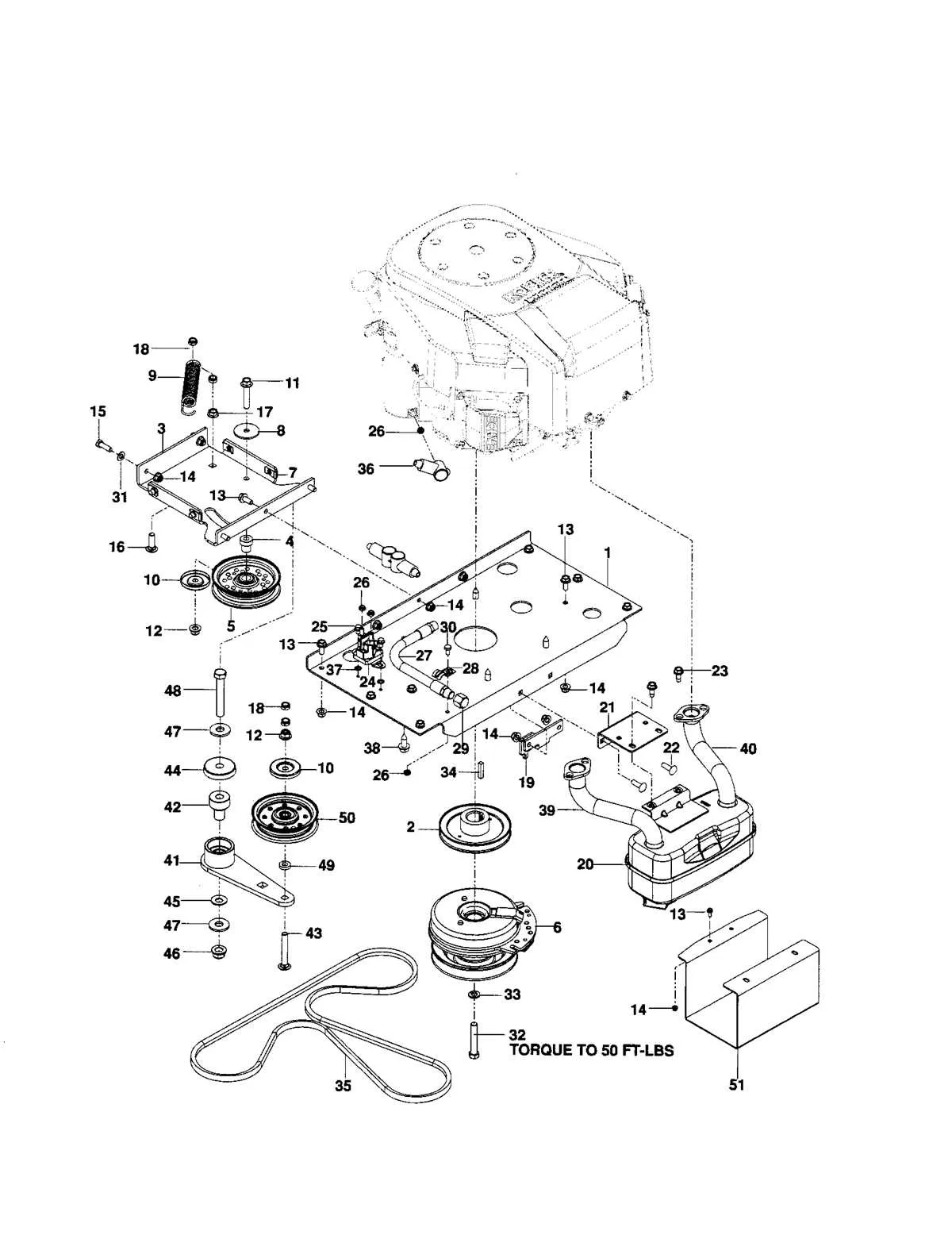

Diagram of Drive Belt for Husqvarna RZ4623
The drive belt on your Husqvarna RZ4623 is an integral part of the mower’s functionality, ensuring power is efficiently transferred to the wheels for smooth operation. To maintain optimal performance, it’s important to understand the layout and placement of the drive belt in the system.
Start by identifying the location of the drive belt within the system. It runs from the engine’s drive pulley to the rear axle pulley. This belt must be installed correctly to prevent slippage or wear. Ensure the belt is properly tensioned according to manufacturer specifications, as excessive slack can lead to inefficient power transfer.
Refer to the drive belt diagram for the RZ4623 to guide your installation or replacement. The diagram typically shows the exact routing of the belt, the direction of the pulleys, and any critical components such as the tensioner. Follow the diagram closely to ensure that each pulley is aligned and the belt runs smoothly along its intended path.
If you’re replacing the belt, it’s important to check the condition of the pulleys. Look for signs of wear, corrosion, or any obstructions that could interfere with the belt’s operation. When installing the new belt, ensure it’s properly seated on each pulley and tensioned according to the manufacturer’s guidelines.
For a detailed diagram, refer to the owner’s manual or seek online resources from Husqvarna, where you can find a step-by-step visual guide for belt installation and maintenance.
Identifying the Correct Drive Belt Size for Husqvarna RZ4623
The correct drive belt size for the Husqvarna RZ4623 is part number 532 19 48-60. This belt is specifically designed to fit the mower’s drive system and ensure smooth operation. If you need to replace the belt, make sure to match the size and part number accurately for the best results.
The drive belt typically measures 89 inches in length and 1/2 inch in width. Double-check these measurements if you’re replacing an old belt. A slight deviation in size can affect performance and cause the belt to wear out prematurely. For precise fitting, always compare your existing belt’s size with the specifications listed in the manual or consult Husqvarna’s customer service.
Use a Kevlar-reinforced belt for durability. This material offers extra resistance to wear and ensures longer-lasting performance. If you’re uncertain about the correct replacement, a local Husqvarna dealer can help verify the proper belt for your model.
Step-by-Step Guide to Replacing the Drive Belt on a Husqvarna RZ4623
Replace the drive belt on your Husqvarna RZ4623 to ensure smooth operation. Follow these steps to complete the task correctly.
- Prepare the Area: Park the mower on a flat surface, and engage the parking brake. Remove the key from the ignition to prevent accidental starts.
- Lift the Mower Deck: Use a jack or lift to raise the mower deck. Secure it with jack stands to keep it in place during the replacement process.
- Remove the Deck Belt: Locate the tension spring and disconnect it from the deck. Use a wrench to loosen the pulley bolt and remove the belt from the pulleys.
- Access the Drive Belt: Underneath the mower, locate the drive belt. Use a socket wrench to remove the bolts holding the belt covers in place. Remove the covers to expose the belt and pulleys.
- Remove the Old Belt: Release the tension on the belt by loosening the tensioner pulley. Slide the old belt off the pulleys, noting the routing for reinstallation.
- Install the New Belt: Position the new belt around the pulleys, matching the routing to the old one. Ensure the belt is seated correctly on each pulley, and check for proper tension.
- Reassemble the Components: Reattach the belt covers and secure them with bolts. Reconnect the tension spring and tighten any remaining bolts.
- Test the Mower: Start the mower and test the new drive belt. Ensure the belt moves smoothly without slipping or making unusual noises.
By following these steps, you will replace the drive belt on your Husqvarna RZ4623 efficiently and safely.
Common Issues with the Drive Belt on Husqvarna RZ4623 and How to Fix Them
If the drive belt on your Husqvarna RZ4623 is slipping or breaking, it’s likely due to wear, misalignment, or improper tension. The belt can wear down over time or become damaged from debris, improper handling, or excessive load. Start by inspecting the belt for any visible signs of wear or cracks. If you notice any damage, it’s time to replace the belt. Follow these steps to address common issues:
1. Belt Slipping
If the drive belt is slipping, it may be too loose. Check the tension by inspecting the spring tensioner. If the tension is too low, adjust the spring or replace the tensioner spring. Ensure the belt is properly aligned with the pulleys. A misaligned belt may cause it to slip and lose efficiency.
2. Broken or Frayed Belt
A frayed or broken belt requires immediate replacement. Ensure you purchase the correct belt for the Husqvarna RZ4623 model. When replacing, make sure the new belt is routed exactly as the old one was, following the manufacturer’s guidelines. Double-check the pulleys for any sharp edges that could damage the new belt.
3. Belt Too Tight
If the belt feels tight or is making squeaking noises, it might be under excessive tension. This can strain the belt and other components, leading to premature wear. Adjust the tension by loosening the tensioner spring or replacing it if needed. Ensure the belt has enough slack to move freely without excessive tightness.
4. Pulleys and Idler Wheels
5. Debris and Dirt Build-up
Over time, grass clippings and debris can accumulate on the belt or pulleys, causing friction and excessive wear. Regularly clean the area around the belt and pulleys to ensure smooth operation. A buildup of dirt can also cause the belt to overheat and fail prematurely.
By addressing these common issues with the drive belt, you can extend the lifespan of your Husqvarna RZ4623 and keep it running smoothly.
