2011 Ford Fusion 2.5 serpentine belt routing diagram with pulley layout

Check the belt routing on the 2011 Ford Fusion 2.5 by locating the path across the crankshaft pulley, alternator, water pump, power steering pump, and A/C compressor. The tensioner keeps the belt tight, so mark its position before releasing it to avoid misalignment during reinstallation.

Use a 15 mm wrench on the tensioner arm to release pressure and remove the belt. Place the new serpentine belt according to the diagram, starting from the crankshaft pulley and working around each accessory. Always finish by sliding the belt onto the smooth pulley connected to the tensioner, since it is easier to guide last.

Inspect pulleys for wear or wobble before fitting the replacement. A misaligned pulley or damaged bearing can cause squeaking, slipping, or premature belt wear. Following the diagram ensures the correct routing, steady accessory operation, and consistent engine performance.

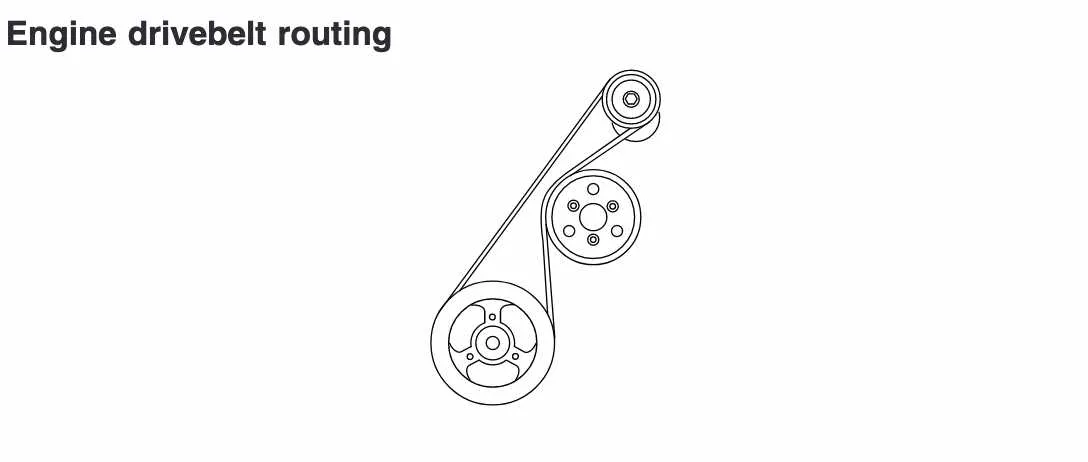

2011 Ford Fusion 2.5 Belt Diagram

Follow the factory routing to position the serpentine belt correctly around the pulleys on the 2011 Ford Fusion 2.5. Place the belt around the crankshaft pulley first, then guide it over the alternator, power steering pump, and water pump. Keep the smooth side of the belt aligned with smooth pulleys and the ribbed side aligned with grooved pulleys.

Check the belt routing against the under-hood sticker or service manual to confirm accuracy before tightening. Use a 3/8-inch drive ratchet or serpentine belt tool to rotate the tensioner, then slip the belt over the idler pulley last. Release the tensioner slowly to avoid damaging the spring mechanism.

After installation, inspect the alignment on every pulley and make sure the ribs sit evenly in the grooves. Start the engine and observe the belt path for vibration or noise. Recheck the tensioner movement to ensure it maintains proper pressure, preventing premature wear or slipping.

Step-by-Step Routing Guide for the 2011 Ford Fusion 2.5 Serpentine Belt

Place the new serpentine belt around the crankshaft pulley first, making sure it seats evenly in the grooves. Keep steady tension on the belt while routing it to the next pulley.

Loop the belt over the water pump pulley, then guide it around the alternator. Check alignment visually to avoid twisting or misplacement during this step.

Continue by routing the belt under the idler pulley, followed by wrapping it around the power steering pump. Maintain consistent pressure to prevent slack.

Slide the belt around the air conditioning compressor pulley, ensuring it fits snugly into the grooves. Do not let the belt ride on the pulley edges.

Finish the routing by threading the belt under the tensioner pulley. Use a ratchet or breaker bar to rotate the tensioner and allow the belt to slip into place.

Release the tensioner slowly so it applies pressure to the belt. Double-check each pulley to confirm the belt sits squarely in all grooves without misalignment.

Tools and Parts Required for Replacing the Serpentine Belt

Gather the necessary tools and parts before beginning work on the 2011 Ford Fusion 2.5 serpentine belt to avoid interruptions during the replacement process.

• Replacement serpentine belt: Choose a belt that matches OEM specifications for the 2.5L engine. Common part numbers include Motorcraft JK6884A or equivalent aftermarket options.
• Socket set and ratchet: A 3/8-inch drive ratchet with a 15mm socket fits the tensioner pulley bolt.
• Breaker bar or serpentine belt tool: Provides the leverage needed to rotate the tensioner and release belt tension.
• Torque wrench: Ensures bolts are tightened to factory specifications during reassembly.
• Gloves and safety glasses: Protect hands from sharp edges and eyes from debris while working in the engine bay.
• Flashlight or work light: Helps illuminate the pulley system and routing path in low visibility areas.

Keep the new belt, tools, and safety equipment within reach. Lay out the socket and breaker bar near the tensioner side of the engine for quick access, reducing the time needed to hold the tensioner under load.

Common Belt Routing Problems on the 2011 Ford Fusion 2.5 and How to Fix Them

Check the tensioner first if the serpentine belt slips or squeals after installation. A weak spring or worn pivot can reduce tension, causing the belt to ride unevenly on pulleys. Replace the tensioner assembly if the belt cannot stay centered despite proper routing.

Inspect the idler pulley if you notice misalignment or belt fraying along the edges. A damaged bearing or bent bracket shifts the belt off track, leading to premature wear. Swap the pulley with an OEM or quality aftermarket unit to restore proper alignment.

Verify the routing path carefully if the belt does not seat correctly on all pulleys. Misplacing the belt over the wrong groove of the crankshaft or alternator pulley is a common mistake. Compare the installation with the factory routing diagram and re-thread the belt correctly.

Check the accessory pulleys for rough rotation if the new belt squeaks immediately. Power steering, alternator, or A/C pulleys with worn bearings add resistance and stress the belt. Replace any pulley that produces grinding noises or uneven spin before reinstalling the belt.

Replace the belt if you see glazing, cracks, or missing ribs during inspection. Even with correct routing and tension, a degraded belt will not perform reliably. Install a new belt that matches the factory length and rib count for the 2.5 engine to avoid fitment issues.
