Husqvarna YTH2348 belt diagram with routing details for mower deck and drive system

To maintain optimal performance and longevity of your Husqvarna YTH2348, understanding the belt diagram is crucial. This diagram provides a clear visual reference for correctly routing the belts, ensuring smooth operation of your lawn mower’s drive system.

The YTH2348 uses two primary belts: the drive belt and the deck belt. The drive belt connects the engine to the transmission, transferring power from the engine to the wheels. The deck belt drives the mower deck blades. Both belts must be routed correctly to avoid damage and ensure efficient power transmission.

Start by inspecting the belt routing diagram located on the deck or in the user manual. Make sure the belts are installed with the correct tension. Incorrect belt routing can lead to premature wear, slippage, or even complete failure of the belts.

When replacing the belts, check for any signs of wear, such as fraying or cracking. If the belts appear damaged, it’s best to replace them promptly to prevent further damage to the mower’s components.

Maintaining the belt system in your Husqvarna YTH2348 is key to extending its life and keeping it running efficiently. Regular inspections and proper belt routing will save you time and money in the long run.

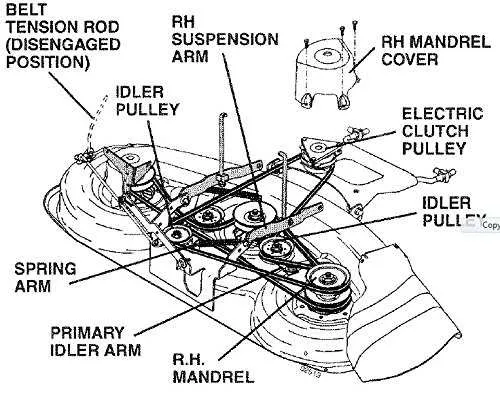

Belt Diagram for Husqvarna YTH2348

The Husqvarna YTH2348 lawn tractor uses a belt system to drive various components, including the transmission and cutting deck. Knowing how to route and replace the belts can save time during maintenance. The belt diagram for this model is a key reference for anyone working on the mower.

Here’s a step-by-step guide to understanding the belt routing for your Husqvarna YTH2348:

• Locate the cutting deck drive belt on the right side of the mower. This belt connects the engine pulley to the cutting deck pulley.
• Remove the mower deck to access the transmission belt. The transmission belt runs from the engine pulley to the transaxle pulley.
• Ensure the belt is properly tensioned. The tensioner pulley should maintain the correct tension on both belts to avoid slippage or wear.
• Check for any wear signs on the belts, such as fraying, cracking, or splitting. Replace the belts if you find any damage.

The belt diagram for the YTH2348 shows the specific routing pattern and which pulleys to connect. Ensure that each belt is properly seated on its respective pulley. Pay attention to the direction of rotation for each pulley and align the belts accordingly.

If you’re having difficulty identifying the belt paths, consult your mower’s owner’s manual for a detailed diagram. A clear understanding of how each belt functions will make repairs and replacements smoother.

Location of Drive and Deck Belts on Husqvarna YTH2348

The drive belt on the Husqvarna YTH2348 is located between the engine and the rear axle. It transfers power from the engine to the wheels, allowing the mower to move. You can access it by lifting the mower’s front end and removing the protective cover beneath the engine. This will expose the belt running from the engine pulley to the rear axle.

The deck belt, which drives the mower’s blades, is located on the underside of the lawn tractor. It runs between the engine pulley and the deck pulleys. To inspect or replace the deck belt, you’ll need to lift the mower deck and remove the belt from the deck pulleys. This may require detaching the deck from the frame, depending on your model and setup.

Both belts are essential for the proper functioning of the Husqvarna YTH2348. Ensure they are not worn or damaged during maintenance. Regularly check for slack, cracks, or fraying to avoid performance issues.

Step-by-step routing of the mower deck belt

Begin by removing the mower deck to gain easy access to the belt. Lower the deck to its lowest position using the height adjustment lever, then disconnect the belt from the mower deck pulleys. Place the deck on a flat surface, ensuring the belt is not tangled or damaged during removal.

Next, locate the two main pulleys: the engine pulley and the deck pulleys. The engine pulley drives the belt, and it should be routed through the pulleys that control the mower blades. Follow the existing routing pattern, ensuring the belt travels over the engine pulley first, and then around the deck pulleys, following the path of the previous belt. Pay attention to the direction in which the belt spins and confirm the belt is tensioned correctly once in place.

Make sure the belt runs in a straight line, without any twists or bends. As you route the belt over the pulleys, check the alignment of each pulley, ensuring they rotate freely without any obstructions. For easier access, you might need to move the deck or pulleys slightly to adjust the belt placement.

Once the belt is properly routed, reconnect it to the mower deck pulleys and ensure it is seated securely. Test the belt by manually turning the engine pulley and checking that the belt rotates smoothly without any slack or tight spots. Reassemble the deck and perform a quick test run to confirm proper operation.

Common Mistakes When Installing the Belt Diagram

Incorrect Belt Routing: One of the most frequent mistakes is failing to follow the correct routing order for the belts. The belt diagram provides a specific path that must be adhered to, as an incorrect routing can cause the belt to slip or wear out prematurely. Always check the diagram and double-check each step before tightening any bolts.

Misplacing Tension: Another common issue is improper belt tension. Too tight, and the belt may stretch or break. Too loose, and it could slip off during operation. Use a tension gauge to ensure the correct tension, and refer to the manual for manufacturer-recommended settings.

Forgetting to Check Pulleys: Before reinstalling the belts, inspect the pulleys for wear and debris. A worn-out pulley can cause the belt to misalign, leading to further issues. Clean and replace any faulty pulleys to avoid future problems.

Skipping the Alignment Check: After installing the belt, always verify the alignment of all components. Misalignment can cause uneven wear and may even damage the engine or drive system. Ensure that all pulleys are properly aligned according to the diagram.

Using the Wrong Belt Size: Double-check the belt size against the specifications in the user manual. Using the wrong belt size can lead to improper operation and premature wear. Measure the belt length and width before installation, and ensure it matches the model-specific requirements.

Not Securing the Belt Properly: Failure to secure the belt properly during installation can lead to slipping or even detachment. Always ensure that the belt is positioned correctly within the grooves of the pulleys and that it’s not twisted or misplaced.

Overlooking Safety Precautions: Always disconnect the battery before starting any repair work. Failing to do so could result in injury or damage to the equipment. Safety gear, such as gloves and eye protection, should be worn to avoid any accidents while handling belts and pulleys.
