2013 Hyundai Elantra Serpentine Belt Diagram and Installation Guide
Replace or inspect the serpentine belt immediately if you notice squealing noises, visible cracks, or fraying along the edges. The 2013 Hyundai Elantra uses a single serpentine belt that drives the alternator, power steering pump, water pump, and air conditioning compressor, making correct routing critical for engine performance.
Refer to the specific belt diagram for your engine type before removing the old belt. On the 2.0L 4-cylinder engine, the belt loops around the crankshaft pulley, tensioner, and accessory pulleys in a precise pattern. Misalignment can cause premature wear or accessory failure.
Use a tensioner tool to release and reinstall the belt with proper tension. Too loose can lead to slippage and overheating; too tight can damage bearings. Check the pulleys for smooth rotation and alignment before final installation.
Maintain a log of belt inspections every 15,000 miles or annually. Early detection of wear allows replacement before belt failure, which can prevent breakdowns and expensive repairs. Always follow torque specifications and pulley positions indicated in the manufacturer’s diagram.
2013 Hyundai Elantra Serpentine Belt Diagram Detailed Guide for Maintenance and Replacement

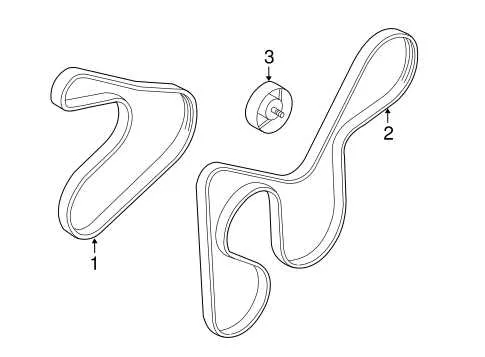

Locate the serpentine belt routing diagram on the engine compartment sticker or consult the service manual to ensure correct alignment of the belt. Misalignment can damage the alternator, power steering pump, or air conditioning compressor.
Inspect the belt for cracks, fraying, or glazing along the ribbed surface. A worn belt reduces grip and may slip, causing accessory malfunctions. Replace the belt every 60,000 to 100,000 miles or sooner if visible wear appears.
Release tension by using a wrench on the belt tensioner. Rotate the tensioner clockwise to free the belt from pulleys. Carefully remove the old belt and check all pulleys for smooth rotation and noise before installing the new belt.
Install the new belt following the exact routing diagram, ensuring ribs align with pulley grooves. Verify the belt sits fully in all grooves and the tensioner returns to its resting position. Turn the crankshaft manually two full rotations to confirm correct tracking.
After installation, start the engine and observe belt movement. Look for squealing, slipping, or misalignment. Adjust tension if necessary and double-check that all pulleys rotate without resistance. Routine inspection every 5,000 miles helps prevent sudden belt failure and maintains accessory performance.
Locating and Identifying Components in the 2013 Hyundai Elantra Serpentine Belt System

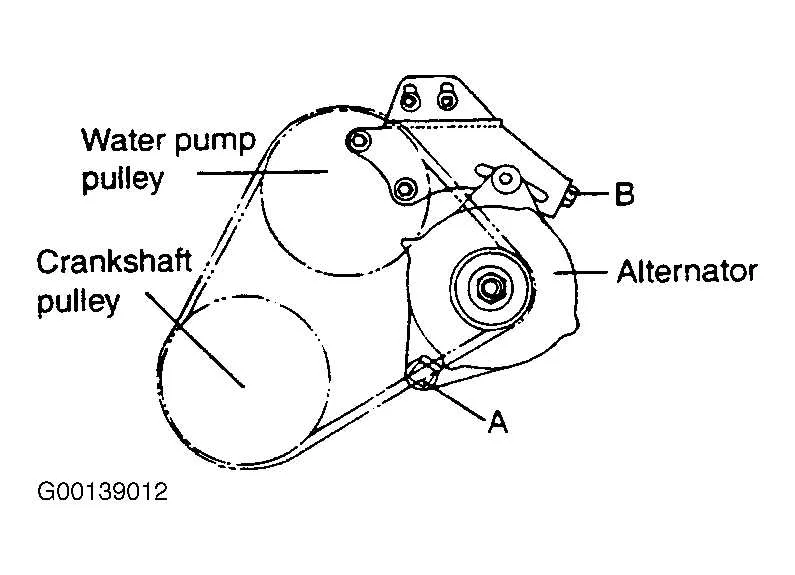

Begin by locating the serpentine belt on the front of the engine. It wraps around multiple pulleys, including the crankshaft, alternator, power steering pump, and air conditioning compressor. The crankshaft pulley sits at the bottom center and drives the entire system.
The alternator is positioned on the upper left side of the engine bay. Identify it by its distinct vented housing and electrical connections. The power steering pump pulley is typically located on the right side, near the engine block, and is connected to the reservoir with visible fluid lines.
The air conditioning compressor is mounted lower on the left or front side, distinguishable by its clutch assembly and refrigerant lines. The tensioner pulley, usually spring-loaded, maintains proper belt tension and is found near the center or slightly offset toward the front.

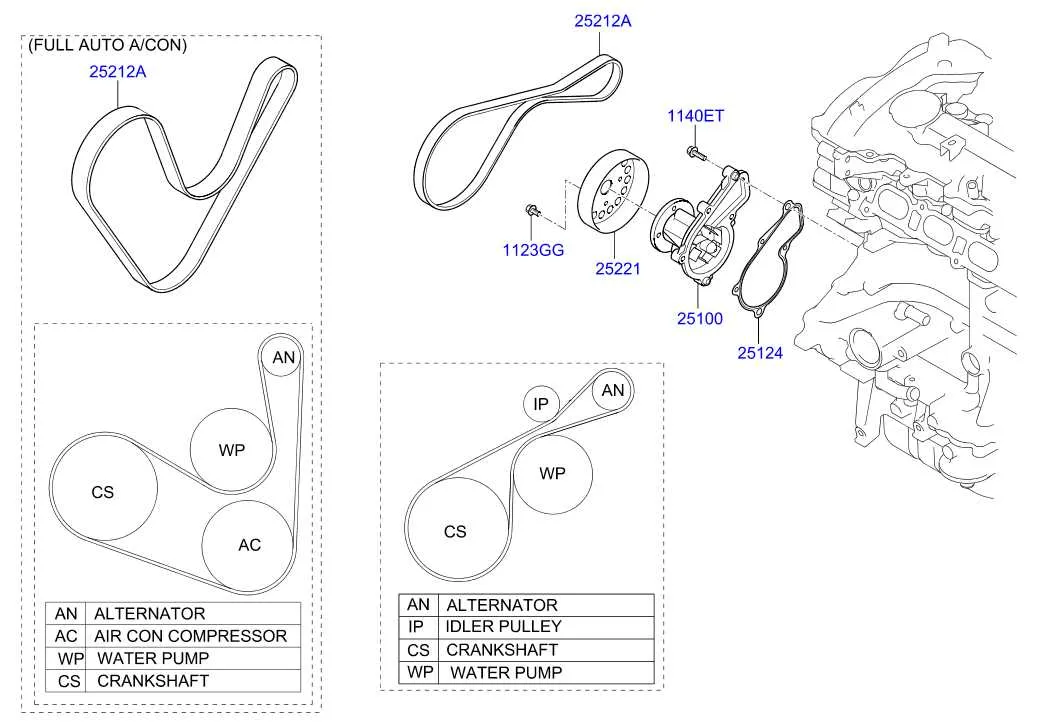

Check the idler pulleys, which guide the belt along its correct path. They appear as smooth, free-spinning wheels without any direct mechanical attachments beyond their mounting bolts. Use a diagram specific to the 2013 Hyundai Elantra to confirm the exact routing and ensure each component matches the belt path.
For identification, note any markings or shapes unique to each pulley. The crankshaft pulley is largest, alternator and AC compressor pulleys have grooves aligned with the belt, and the tensioner has a pivot point for adjustment. Correctly recognizing each part simplifies maintenance, belt replacement, and troubleshooting of noise or wear issues.
Step-by-Step Instructions for Removing and Installing the Serpentine Belt
Locate the serpentine belt routing diagram on the engine cover or under the hood. Confirm the belt path around the alternator, power steering pump, air conditioning compressor, and crankshaft pulley.
Place a wrench or serpentine belt tool on the tensioner pulley. Rotate the tensioner clockwise to relieve tension on the belt. Carefully slide the belt off one pulley while holding the tensioner in position.
Once the belt is free, inspect all pulleys for wear, damage, or misalignment. Replace any worn components before installing the new belt.
Compare the new belt with the old one to ensure matching length and rib configuration. Follow the routing diagram and loop the belt around the pulleys, leaving the tensioner pulley for last.
Rotate the tensioner again to allow the belt to slide over it. Slowly release the tensioner, making sure the belt seats properly in all pulley grooves. Verify that the belt aligns correctly on each pulley and that no ribs are misaligned.
Manually rotate the engine using a socket on the crankshaft pulley for two full revolutions. Check the belt tracking and ensure consistent tension across all pulleys. Adjust if necessary.
Troubleshooting Common Issues and Preventing Premature Belt Wear
Inspect the serpentine belt for cracks, fraying, or glazing every 12,000 miles. Small cracks along the ribs indicate aging and can lead to slippage.
Check belt tension regularly. A loose belt can cause squealing noises and underperforming accessories, while an over-tightened belt increases stress on pulleys and bearings.
- Use a belt tension gauge to measure tension within the manufacturer’s specified range for the 2013 Hyundai Elantra.
- Ensure the tensioner pulley moves smoothly and returns without sticking.
Monitor pulley alignment. Misaligned pulleys accelerate wear and may damage the belt. Inspect pulleys for wobble, uneven surfaces, or metal shavings.
Prevent contamination from oil or coolant leaks. Even minor fluid exposure softens the rubber, causing glazing and slipping. Clean surrounding areas and repair leaks promptly.
- Inspect belt routing against the 2013 Elantra serpentine belt diagram before removal.
- Replace worn tensioners or idler pulleys; they often outlast the belt itself.
- Apply a small amount of dielectric grease to pulley shafts if recommended by Hyundai to reduce friction.
Replace the belt at the first sign of excessive wear. Hyundai recommends inspecting it at each oil change and replacing it approximately every 60,000 miles, depending on driving conditions.
Listen for unusual noises such as squeaks or chirps, which indicate misalignment, contamination, or improper tension. Address issues immediately to prevent sudden belt failure.
