2004 Ford Focus Serpentine Belt Routing Diagram and Replacement Guide

If you need to replace or troubleshoot the serpentine belt on a 2004 Ford Focus, understanding its layout is key to a smooth repair. The serpentine belt drives multiple engine components like the alternator, power steering pump, and air conditioning compressor. An incorrect routing can lead to poor performance or even cause damage to the engine. The diagram ensures you install the belt in the correct sequence, saving you time and effort.

To correctly route the serpentine belt, follow the specific diagram for your vehicle model. For the 2004 Ford Focus, the diagram includes clear paths showing which pulleys the belt needs to go over and under. This layout avoids confusion and ensures that every component gets power as intended. Pay special attention to the tensioner pulley, as it helps maintain the proper belt tension to avoid slippage or damage.

Before replacing the belt, it’s also wise to inspect the tensioner and pulleys. A worn tensioner can affect the belt’s performance, leading to premature wear. By consulting the diagram, you can also ensure that the belt’s routing is done correctly from the start. Always make sure the belt has the right amount of tension, too tight or too loose can lead to further issues down the line.

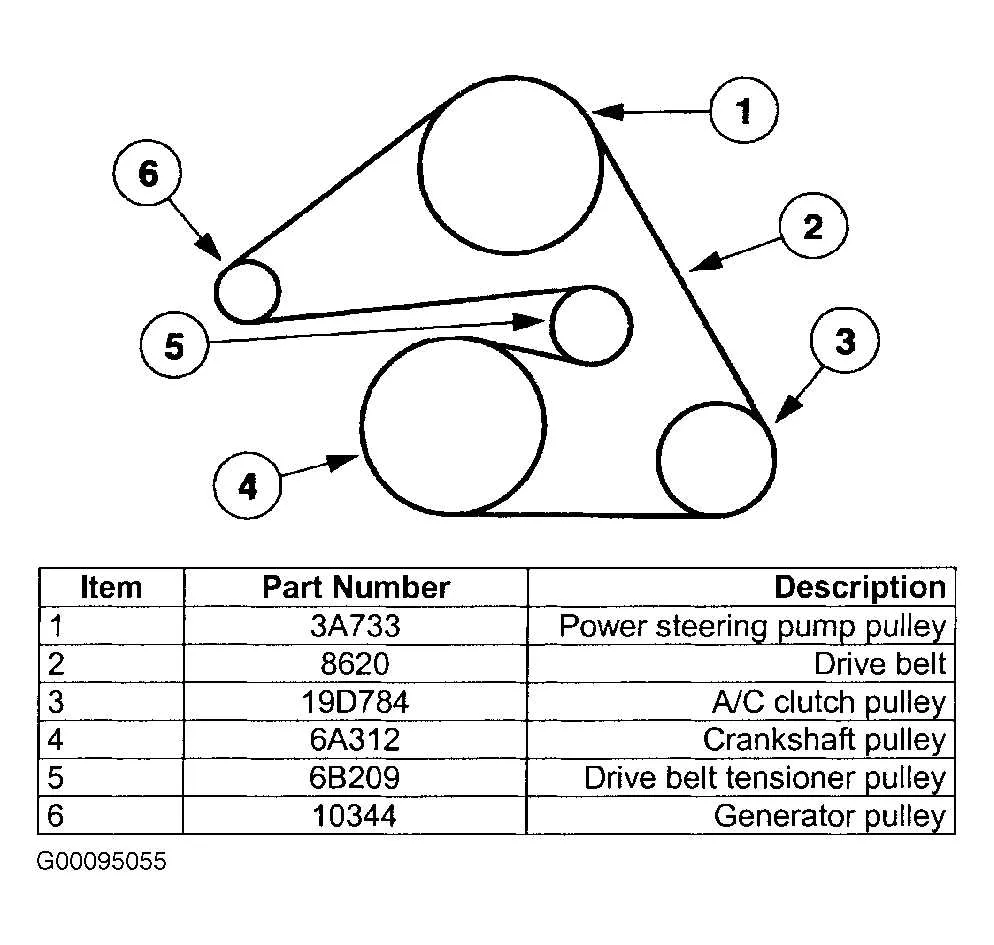

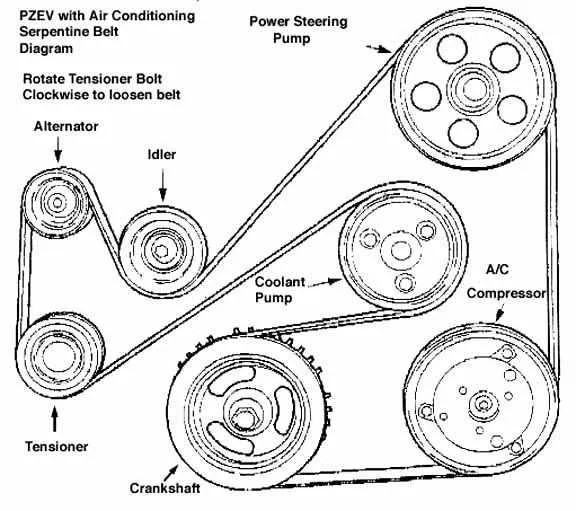

2004 Ford Focus Serpentine Belt Diagram

The 2004 Ford Focus uses a single serpentine belt to drive multiple components like the alternator, power steering pump, water pump, and air conditioning compressor. Understanding the serpentine belt diagram helps when replacing or inspecting the belt for wear. Below is a breakdown of how the serpentine belt should be routed on your 2004 Ford Focus engine.

Start by positioning the belt around the crankshaft pulley. The belt then runs along the tensioner pulley, bypassing the power steering pump pulley. Next, it wraps around the alternator and moves towards the water pump pulley. Finally, the belt runs over the air conditioning compressor pulley and back to the crankshaft pulley, completing the loop.

Ensure the belt tensioner is functioning properly. The tensioner maintains the correct amount of tension on the belt to prevent slipping or misalignment. If the tensioner is damaged or worn, it may affect the overall performance of the serpentine belt system.

Consult the vehicle’s repair manual for any specific diagrams or instructions, especially if additional components, such as an idler pulley, are present in your specific model.

Checking the belt periodically for cracks, fraying, or excessive wear is important to avoid sudden failure. A well-maintained serpentine belt ensures all related engine accessories operate smoothly.

Understanding the Layout of the 2004 Ford Focus Serpentine Belt

The 2004 Ford Focus serpentine belt follows a clear path to power various engine components such as the alternator, power steering pump, and air conditioning compressor. Ensure the belt runs smoothly through all pulleys without slipping, which can lead to component failure or belt wear.

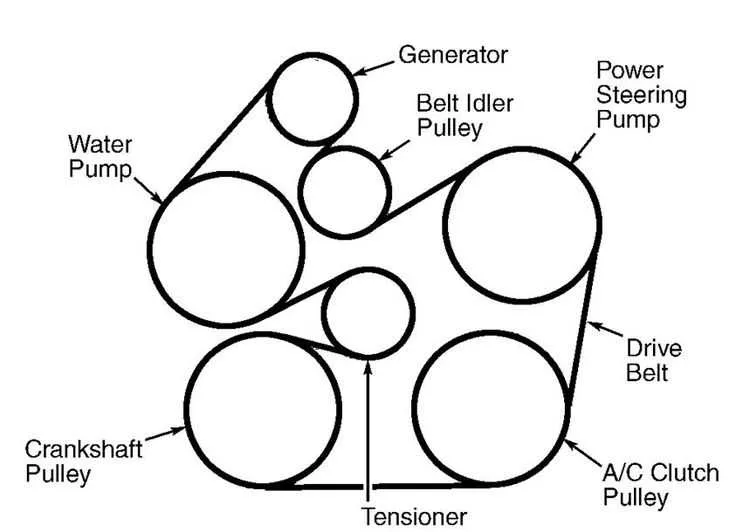

The diagram shows the belt routing from the crankshaft pulley to the accessories, moving across the tensioner pulley, idler pulleys, and the alternator. It’s crucial that the belt passes around the alternator in a precise direction to maintain proper electrical output.

When replacing the serpentine belt, inspect the belt for signs of wear such as cracks, fraying, or glazing. A worn belt will not perform efficiently, leading to engine misfires or overheating. If the belt appears stretched or loose, it’s time to replace it.

Use a belt tension gauge to ensure the correct tension after installation. Too much slack can cause slipping, while too much tension can damage the pulleys or bearings. Double-check the belt’s alignment after installation to avoid any misrouting issues.

If replacing the belt yourself, start by loosening the tensioner pulley using a socket wrench. Remove the old belt carefully and then route the new one following the diagram closely. Test the new belt’s alignment by rotating the engine by hand to ensure it fits snugly into all grooves.

Step-by-Step Guide to Replacing the Serpentine Belt on Your 2004 Ford Focus

Start by loosening the tension on the serpentine belt. Use a 3/8-inch drive ratchet to move the tensioner pulley counterclockwise. This releases pressure, allowing you to remove the belt easily.

Once the tension is released, carefully slide the belt off the pulleys. Take note of the belt’s routing around the various pulleys; it’s helpful to take a picture for reference or follow the diagram under the hood.

Next, inspect the old serpentine belt. Look for any visible damage like cracks, frays, or worn-out areas. If the belt shows any signs of wear, replace it with a new one of the same size and specification.

Now, install the new belt. Follow the same path as the old belt, making sure it sits correctly on each pulley. Ensure the belt is properly aligned with the grooves of the pulleys to avoid slipping or premature wear.

Once the belt is in place, use the ratchet to move the tensioner pulley back into position, applying tension to the belt. Double-check that the belt is tight and correctly aligned on all pulleys.

Finally, start the engine and observe the belt in motion. Listen for any unusual noises and check if the belt runs smoothly over the pulleys. If everything looks good, the replacement is complete.

Troubleshooting Common Issues with the Serpentine Belt System in the 2004 Ford Focus

If you hear squealing noises from the engine bay, the serpentine belt could be worn or loose. Start by checking the belt tension. A loose belt causes slippage, resulting in noise and reduced performance of the accessories driven by the belt. Use a tension gauge to measure the tension. If the belt shows signs of wear, cracks, or fraying, it’s time to replace it.

Another issue might be the failure of the tensioner. A malfunctioning tensioner can lead to improper belt tension, causing poor performance. To check it, observe the movement of the tensioner while the engine is running. A wobbling or jerky motion indicates a problem. In such cases, replacing the tensioner is the solution.

Misalignment of the belt can also cause issues like excessive wear and squealing. Check the pulleys for any signs of misalignment or wear. Pulleys should run smoothly with no wobble. If you find any damaged or worn pulleys, replace them to avoid further damage to the belt.

Sometimes, the belt system may also suffer from overheating. This is usually caused by a failed or underperforming water pump, which can make the serpentine belt slip. Ensure the cooling system is functioning properly, and check the water pump for leaks or unusual noises.

• Inspect the belt for visible damage.
• Ensure the tensioner is properly functioning.
• Check the alignment of the pulleys.
• Monitor the cooling system for overheating issues.

Addressing these issues early will extend the lifespan of your serpentine belt and prevent unexpected breakdowns. If you’re not comfortable with these repairs, consult a mechanic for a detailed inspection.
