2007 Mazda 6 Serpentine Belt Diagram and Routing Guide

To ensure your 2007 Mazda 6 operates smoothly, it’s crucial to understand the serpentine belt routing and components. The serpentine belt plays a key role in powering various engine accessories, including the alternator, power steering pump, and air conditioning compressor.

When replacing or inspecting the serpentine belt, follow the diagram closely. The correct belt routing ensures proper tension and alignment, preventing damage to other engine components. Start by locating the tensioner pulley, as it adjusts the belt’s tightness. If you’re replacing the belt, double-check the pulley configuration before installation to avoid misalignment.

If you notice squeaking or difficulty starting your engine, the serpentine belt might be worn or misaligned. Always inspect the belt for signs of cracking, fraying, or glazing. If any of these issues are present, replacement is necessary to maintain engine performance and avoid costly repairs.

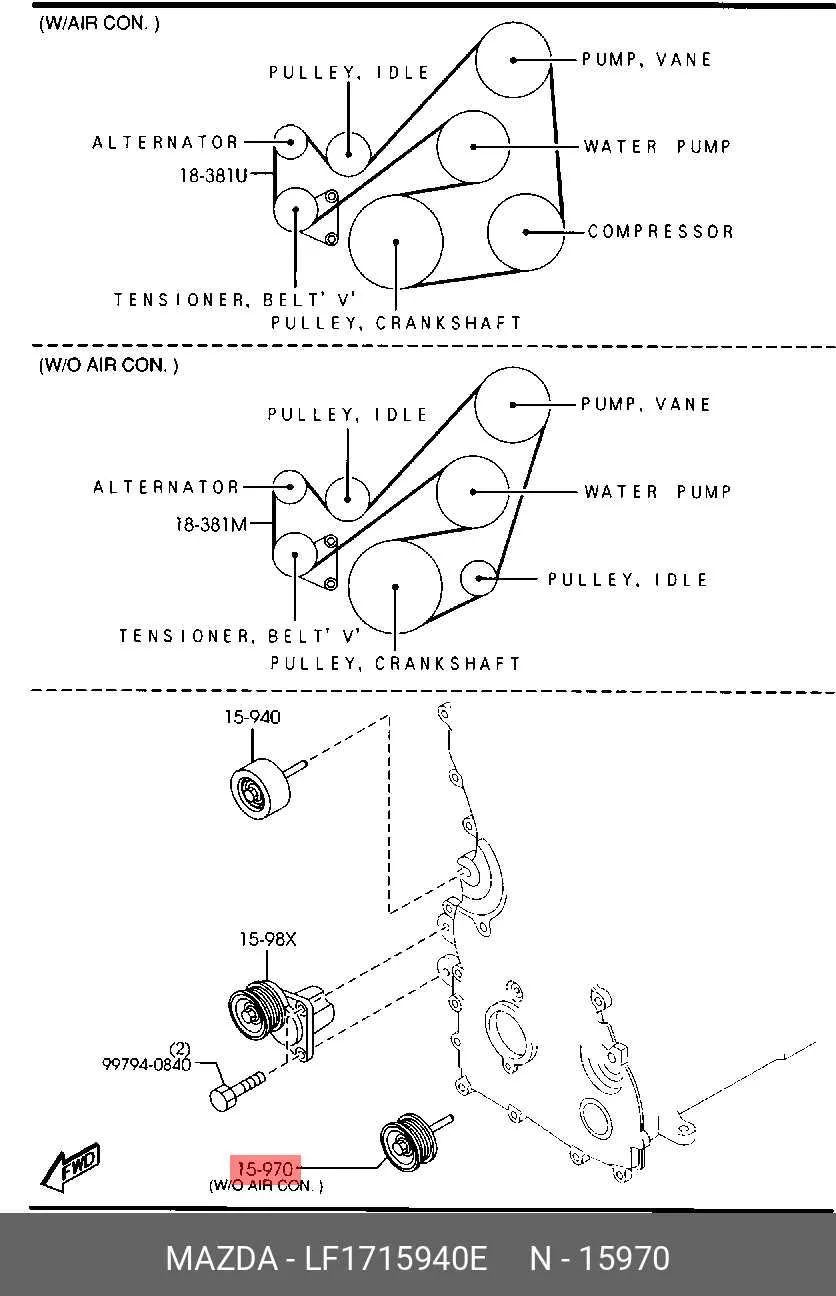

2007 Mazda 6 Serpentine Belt Diagram

To properly identify and replace the serpentine belt on the 2007 Mazda 6, it’s crucial to understand its routing and components. The serpentine belt connects the engine accessories like the alternator, power steering pump, and air conditioning compressor. Follow the belt routing diagram to avoid misplacement and ensure correct functionality of these components.

The serpentine belt on the 2007 Mazda 6 should follow a specific path to maintain the correct tension and alignment. Refer to the manufacturer’s diagram for exact routing and installation steps. The belt should be routed around the crankshaft pulley, alternator, and other components without crossing any pulleys.

Ensure that the tensioner is properly adjusted before securing the belt in place. If the belt is too loose, it could slip off during operation. Tighten the tensioner until the belt is snug but still has slight flexibility. Regular checks on the belt’s condition can prevent unexpected failures. Replace the belt if it shows signs of wear, cracks, or glazing.

For the 2007 Mazda 6, the serpentine belt replacement interval is typically around 60,000 miles. However, inspect the belt regularly for any signs of damage to avoid potential issues. If you’re unsure about replacing the serpentine belt yourself, seek professional help to ensure that the job is done accurately and safely.

How to Read the Serpentine Belt Diagram for 2007 Mazda 6

To read the serpentine belt diagram for the 2007 Mazda 6, locate the diagram in the engine bay or refer to the owner’s manual. It provides a clear guide on how the belt routes around various components such as the alternator, power steering pump, and air conditioning compressor.

• Check the tensioner position: The diagram will show the placement of the belt tensioner. This is the component responsible for keeping the belt tight. It often has a specific marking or arrow indicating the correct direction for adjustment.
• Identify key components: The diagram marks critical components such as the alternator, water pump, AC compressor, and power steering pump. Understanding where each component is located on the diagram will help you troubleshoot any issues related to the belt’s routing.
• Follow the belt routing path: The diagram illustrates how the belt loops around the pulleys. Pay attention to the belt’s twists, as improper routing can lead to belt wear or failure.
• Note the belt’s direction: Some diagrams include arrows indicating the belt’s direction of movement. This ensures that the belt follows the correct path for smooth operation.

For accurate installation or maintenance, compare the diagram with the actual engine setup. Verify the alignment of pulleys and tensioner, and ensure the belt is routed exactly as shown in the diagram.

Common Issues with the Serpentine Belt in 2007 Mazda 6

The serpentine belt in the 2007 Mazda 6 is prone to wear and tear, especially if not properly maintained. One common issue is belt slippage, which can occur due to a worn-out or loose belt. This can lead to reduced performance in the engine’s accessories, such as the alternator, power steering pump, and air conditioning compressor.

Another frequent problem is belt cracking. Over time, exposure to heat, friction, and environmental factors causes the rubber belt to develop visible cracks. If ignored, these cracks can eventually cause the belt to snap, resulting in a complete loss of power to critical engine components.

Misalignment of the serpentine belt is also a common issue. This often happens when pulleys are not aligned correctly or when the tensioner is faulty. Misalignment can lead to increased friction, premature wear, and the possibility of the belt jumping off the pulleys.

Overheating is another issue to be aware of. If the belt is too tight or the tensioner is faulty, it can create excessive heat, leading to premature wear. This can also cause the belt to stretch, lose its grip, and eventually fail.

To avoid these issues, regularly inspect the serpentine belt for signs of wear, such as cracking, fraying, or discoloration. Ensure that the belt is properly tensioned and aligned. If any issues are detected, replace the belt as soon as possible to avoid further damage to the engine’s components.

Step-by-Step Guide to Replacing the Serpentine Belt on 2007 Mazda 6

Start by locating the serpentine belt on the front of the engine. Identify the tensioner pulley, which is used to relieve tension from the belt. Use a ratchet or wrench to rotate the tensioner counterclockwise and release the tension on the belt.

Once the belt is loosened, carefully remove it from the pulleys. Take note of the belt routing by referencing the diagram on the engine bay or the owner’s manual. This ensures proper reinstallation of the new belt.

Check the condition of the pulleys while the belt is removed. Spin them by hand to ensure they rotate smoothly without any grinding or wobbling. Replace any faulty pulleys before proceeding.

Install the new serpentine belt by following the correct routing. Start by threading the belt around the pulleys, making sure it fits snugly in each groove. Pay attention to the belt tensioner, making sure the belt is positioned properly before releasing the tensioner to apply tension.

Once the belt is installed, rotate the engine by hand using a socket wrench on the crankshaft pulley. This helps ensure the belt is seated properly and everything rotates smoothly.

Double-check the belt alignment and tension. If the belt appears misaligned or too loose, adjust the tensioner accordingly. Start the engine and inspect the belt during operation to ensure it’s functioning correctly without any abnormal noises.
