42 Inch Troy Bilt Pony Drive Belt Diagram and Installation Guide

If you’re facing issues with your Troy Bilt Pony lawnmower’s drive belt, understanding its diagram is key to solving the problem. A clear and accurate diagram will guide you through the process of correctly installing or replacing the belt, ensuring optimal performance. Start by locating the drive belt on your machine and identifying any signs of wear or damage.

First, consult the diagram to ensure you’re following the correct path for the belt. This will help you avoid potential issues like incorrect tension or misalignment. The diagram typically includes all the necessary details, such as pulley locations and belt routing. Pay special attention to the position of each pulley and whether the belt should be routed in a specific direction.

Once you’ve got the belt installed according to the diagram, check the tension. A loose belt can result in poor performance, while a tight belt may strain the engine. Adjust the tension as needed by following the manufacturer’s instructions. This simple step can significantly improve the lifespan of your equipment and make mowing easier.

42 Inch Troy Bilt Pony Drive Belt Diagram

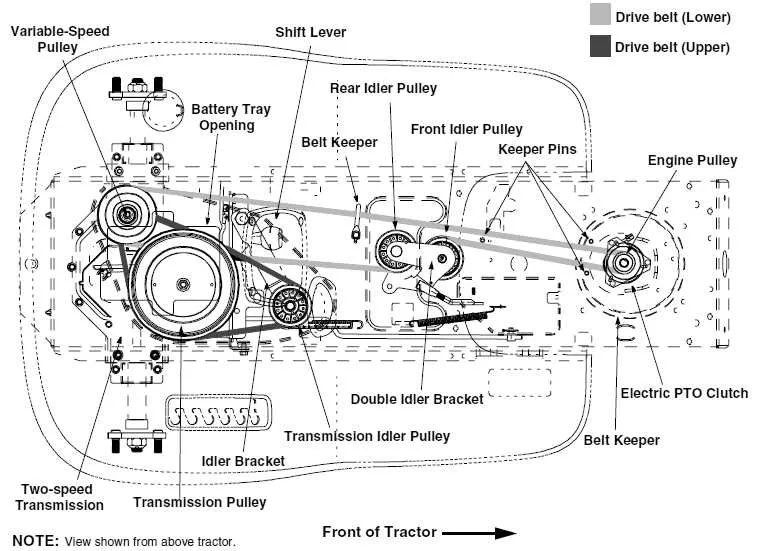

The drive belt of the 42-inch Troy Bilt Pony lawn tractor is a key component that transfers power from the engine to the wheels. To ensure smooth operation, it’s crucial to follow the correct path when installing or replacing the belt. Below is a step-by-step guide on how to read and follow the drive belt diagram for this model.

1. Start by removing the deck from the tractor for easier access to the drive system.

2. Identify the tension pulley, which helps maintain the correct tension in the belt. This pulley is located near the engine and is crucial for proper belt operation.

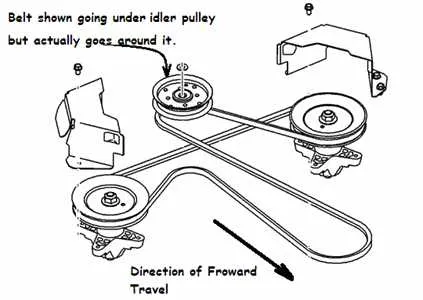

3. Examine the route of the belt through the various pulleys. The belt should loop over the engine pulley, wrap around the idler pulley, and then pass over the drive pulley. Pay close attention to the orientation of each pulley in the diagram.

4. The belt must be positioned securely along the pulleys. If the diagram shows a specific twist or loop, be sure to replicate that exactly to avoid issues with belt wear or slippage.

5. When reinstalling the deck, ensure the belt is properly aligned with the guide pulleys to avoid unnecessary wear and tear.

6. Double-check the tension on the belt after installation. The belt should have some slack, but not be too loose. The tension is key to smooth and efficient operation.

Regularly inspect the belt for signs of wear, cracks, or stretching. If you notice any damage, replace the belt immediately to prevent further damage to the tractor’s drive system.

How to Identify the Correct 42-Inch Drive Belt for Your Troy Bilt Pony

To find the correct 42-inch drive belt for your Troy Bilt Pony, check the model number of your mower first. Look for the tag on the frame or around the engine area, which will have the specific model number listed. Once you have the model, search for the compatible drive belt size using the manufacturer’s guidelines or a reliable parts supplier.

The correct drive belt should match the original in length, width, and material composition. For a 42-inch Troy Bilt Pony, the belt length typically falls between 89 and 94 inches, depending on the specific model year. Ensure that the belt is designed for the right configuration, whether it’s a single or double drive system.

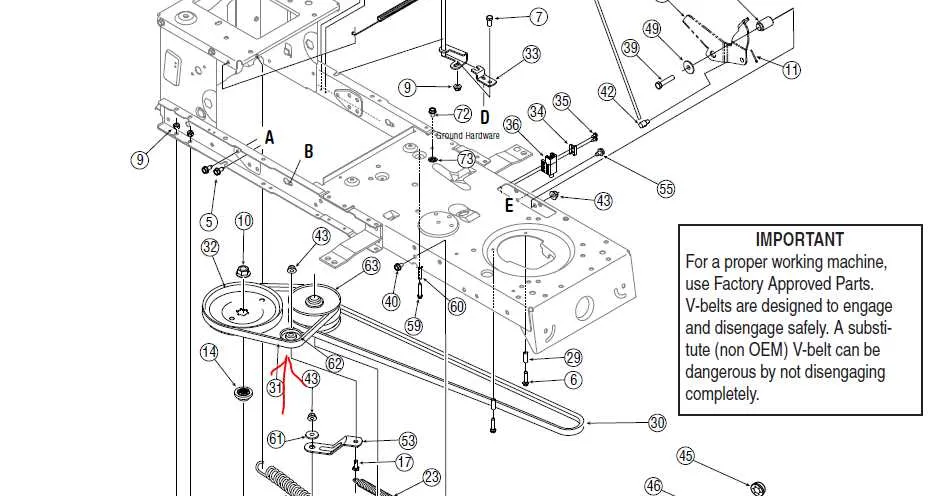

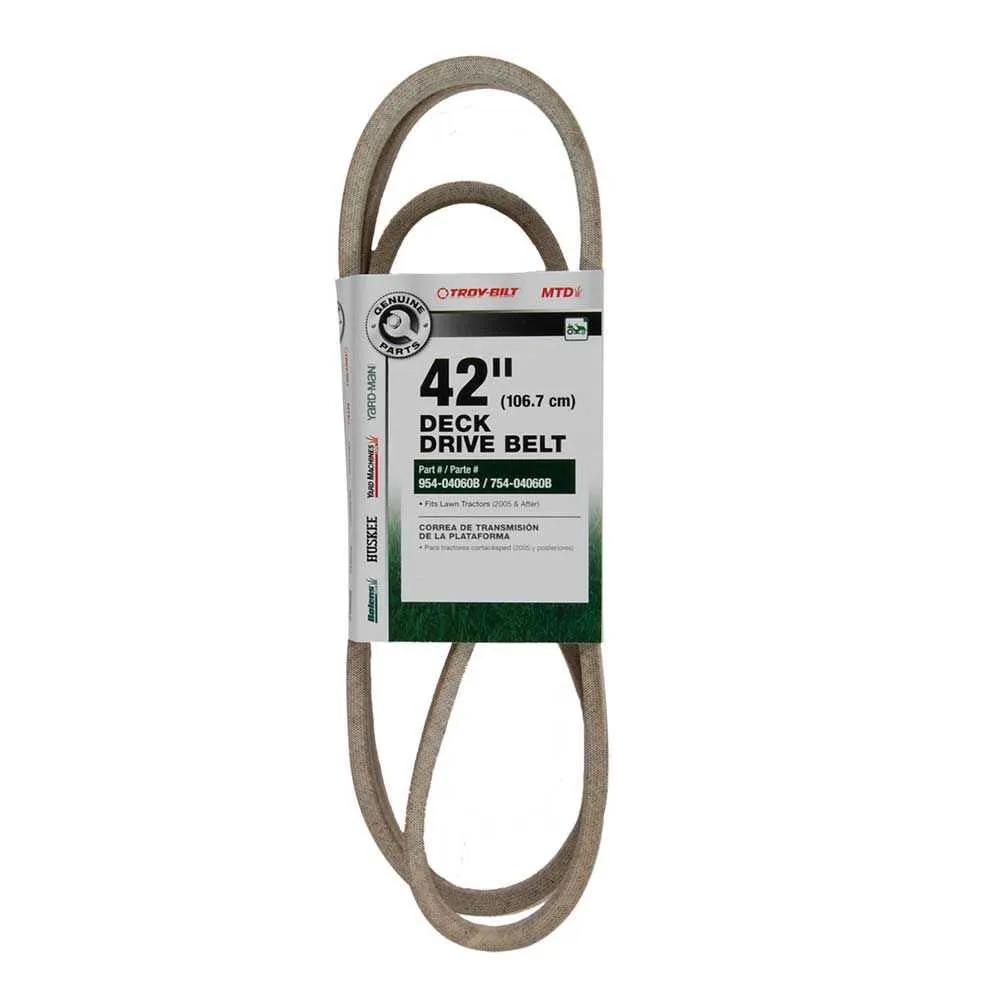

If you’re unsure, cross-reference the part number on your old belt or check the user manual for the exact specification. Replacement belts are often listed by their part numbers, such as Troy Bilt part number 954-04255 or similar variations. Make sure to choose a belt with the proper tension to ensure smooth operation of the mower.

Keep in mind that using a belt that is too short or too long can cause issues with the mower’s performance, including poor traction or slippage. Always inspect the pulleys and other components for wear before installing a new belt to avoid further damage.

For the best fit, stick to original Troy Bilt parts or trusted aftermarket brands that provide equivalent specifications. Avoid generic belts, as they may not deliver the same reliability or durability as the recommended options.

Step-by-Step Guide to Installing the Drive Belt on a Troy Bilt Pony Mower

First, park the mower on a flat surface and engage the parking brake for safety. Turn off the engine and remove the key from the ignition to avoid accidental starting.

Next, remove the mower deck by unscrewing the bolts that secure it to the mower frame. This will give you access to the drive belt system. Carefully slide the deck out from under the mower.

Locate the drive belt on the mower. You’ll see it running between the engine pulley and the transmission pulley. Pay close attention to the belt’s routing; this will be useful when you install the new belt.

Remove the old drive belt by loosening the tension on the idler pulley. Use a socket wrench to remove any bolts securing the idler pulley in place, then slide the old belt off the pulleys. Take a moment to check the pulleys for wear and debris. Clean them as needed to ensure smooth operation.

Now, take the new 42-inch Troy Bilt Pony drive belt and position it on the engine pulley. Carefully follow the belt’s path as it was previously installed, making sure it runs smoothly around each pulley. Double-check the belt’s alignment before continuing.

Reinstall the idler pulley to apply tension to the belt. Tighten all bolts securely to prevent slippage during operation. Be sure the belt sits properly in the grooves of each pulley, as misalignment can cause premature wear.

Once the belt is in place, reattach the mower deck to the frame. Align the deck and fasten it with the screws you removed earlier. Tighten everything to ensure the deck is secure.

Finally, test the mower by starting the engine and engaging the drive system. Watch the belt in action to confirm it is running smoothly. If you notice any slipping or strange noises, double-check the belt’s routing and tension.

Common Issues and Troubleshooting Tips for 42-Inch Drive Belt Problems

If your Troy-Bilt Pony’s 42-inch drive belt isn’t functioning properly, the issue might stem from a few common areas. First, check for visible wear on the belt. Cracks, fraying, or missing teeth are signs that the belt needs replacing. If the belt looks intact but is still slipping, it could be due to incorrect tension or misalignment.

Another frequent issue is debris buildup on the pulleys. Grass, dirt, or other materials can cause the belt to slip or wear unevenly. Regularly clean the pulleys to ensure smooth operation. Additionally, ensure that the pulleys are free of rust or damage that could impact performance.

If the belt is misaligned or making a squealing noise, this typically indicates an issue with the tension system. Check the tension spring and adjust it according to the manufacturer’s specifications. An overly loose or tight belt can lead to poor performance or even breakage.

Inspect the idler pulley and drive pulley for any signs of wear. These components need to rotate smoothly, so replace them if they’re worn out or damaged. If the pulleys are in good condition, but the belt still struggles, the drive belt may not be the right size or may have been incorrectly installed.

Finally, check the mower’s drive system for any obstructions that may prevent the belt from moving freely. A stuck object or a blocked path can place excessive stress on the belt and cause premature failure. Clear any obstructions to prevent damage to the belt and related components.
