2003 Ford Focus Fan Belt Diagram with Pulley Routing and Tensioner Location
If you’re experiencing issues with your 2003 Ford Focus fan belt, understanding its routing can save you time and frustration. The diagram for the fan belt’s layout is straightforward and critical for proper engine cooling and accessory operation.
The main components driven by the fan belt in the 2003 Focus include the alternator, power steering pump, and air conditioning compressor. A proper alignment ensures each part operates smoothly without unnecessary wear. Make sure the belt’s tension is correct to avoid slippage or premature failure, as either can cause engine overheating or electrical issues.
Refer to the factory manual or a reliable online diagram for accurate routing. Be cautious of the belt’s wear patterns as they often show if the alignment is off or if components like pulleys need maintenance. Keep an eye on any signs of fraying or cracking, which could indicate it’s time for a replacement.

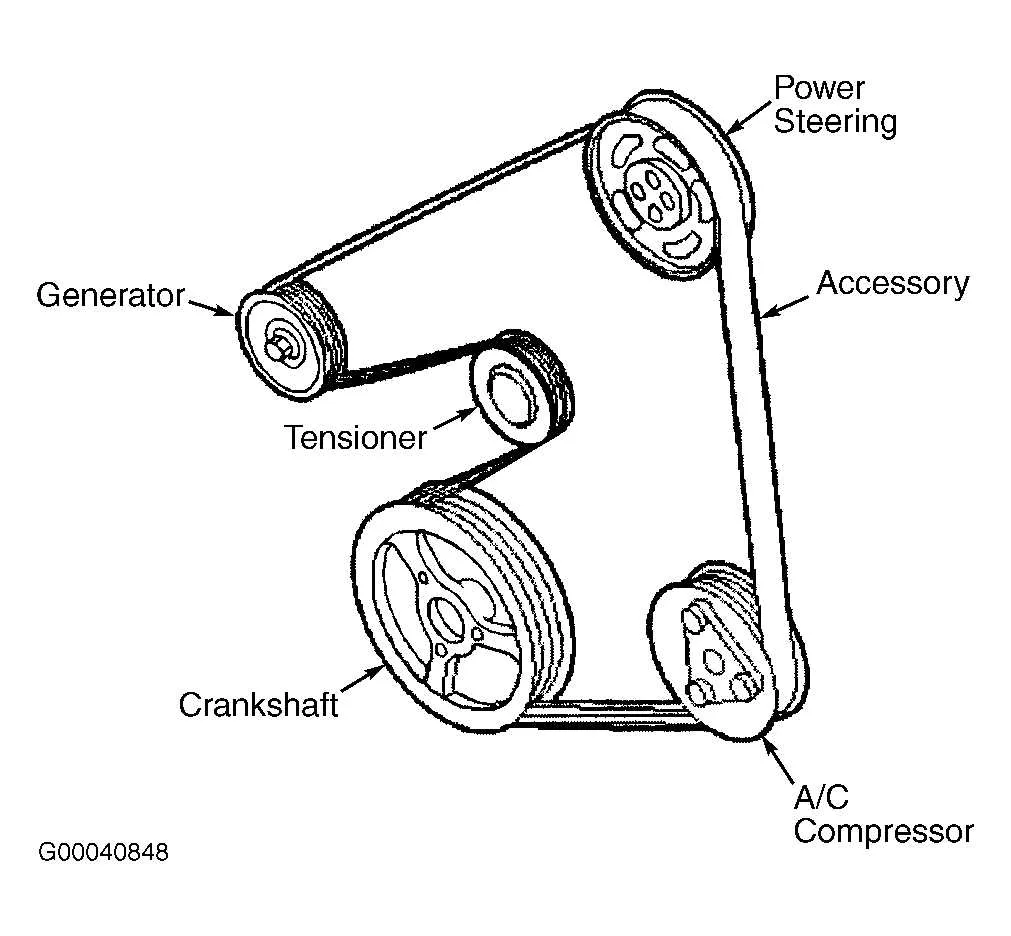

2003 Ford Focus Fan Belt Diagram
To replace or inspect the fan belt on a 2003 Ford Focus, follow this detailed diagram. The fan belt is responsible for powering key engine components like the alternator, water pump, and air conditioning compressor. Getting the routing right is essential for smooth operation.
- The diagram consists of a serpentine belt that loops through multiple pulleys. It starts at the crankshaft pulley and follows through the tensioner, alternator, power steering pump, and air conditioning compressor.
- The belt is routed in a specific order to ensure proper tension and alignment with each pulley. If misaligned, it can cause undue stress on components, leading to premature wear or failure.
- Make sure the belt is properly tensioned. If it’s too loose, it can slip, reducing efficiency. If it’s too tight, it can strain engine parts, affecting performance.
For replacement, refer to the following key steps:
- Locate the tensioner pulley and use a wrench to relieve the tension on the fan belt.
- Remove the old belt, taking note of its routing based on the diagram.
- Install the new belt by following the same path, ensuring it sits snugly on each pulley.
- Re-engage the tensioner and check the belt’s tightness and alignment.
By carefully following the correct fan belt routing and ensuring proper tension, you’ll maintain the optimal performance of your 2003 Ford Focus engine system.
How to Locate and Identify the Fan Belt on a 2003 Ford Focus
To locate the fan belt on a 2003 Ford Focus, first open the hood and secure it in place. The fan belt, also called the serpentine belt, is positioned in the engine bay, typically running along the front of the engine. It is attached to various pulleys and components such as the alternator, power steering pump, and air conditioning compressor.
The fan belt is located near the front of the engine, directly behind the radiator. To clearly see it, you may need to remove the plastic engine cover, if present. Look for a long, continuous rubber belt that loops around the pulleys. This belt should be tightly secured with minimal slack. Pay attention to any visible wear such as cracks, frays, or glazing, which indicate that it may need replacement.
If you’re having trouble spotting the belt, refer to the engine’s diagram, which can typically be found on the underside of the hood. The diagram shows the routing of the serpentine belt around the pulleys and tensioner. This will help you track the belt’s exact position and ensure you’re looking at the right component.
Once you’ve located the belt, inspect the tensioner. The tensioner keeps the belt tight and prevents slipping. If it seems loose or if the belt appears misaligned, it may indicate an issue that requires attention. For further confirmation, gently press on the belt with your fingers. A properly functioning belt will have very little give.
Finally, if you’re unsure, take a photo of the belt layout or make a note of its routing before removing or replacing the belt. This will help you reinstall it correctly, ensuring proper operation of the engine’s vital systems.
Step-by-Step Instructions for Removing the Fan Belt Safely
First, disconnect the negative terminal of the battery to avoid any electrical issues while working on the engine.
Next, locate the fan belt. You’ll typically find it running between the alternator, power steering pump, water pump, and the crankshaft pulley. Use a flashlight if necessary to get a clearer view.
Loosen the tensioner pulley. This is usually done with a ratchet or a wrench. Turn it clockwise or counterclockwise, depending on your vehicle model, to release tension from the belt. Keep the tensioner in place to prevent it from snapping back.
Once the tension is released, carefully slide the fan belt off the pulleys, starting from the component with the most slack. Take note of the belt’s routing to ensure you can install the new belt correctly.
If the belt is difficult to remove, check for any obstructions or additional tension from other components. Sometimes, it helps to rotate the engine slightly to loosen the belt further.
Inspect the old belt for any damage before discarding it. This helps identify potential issues with other components that may have caused wear.

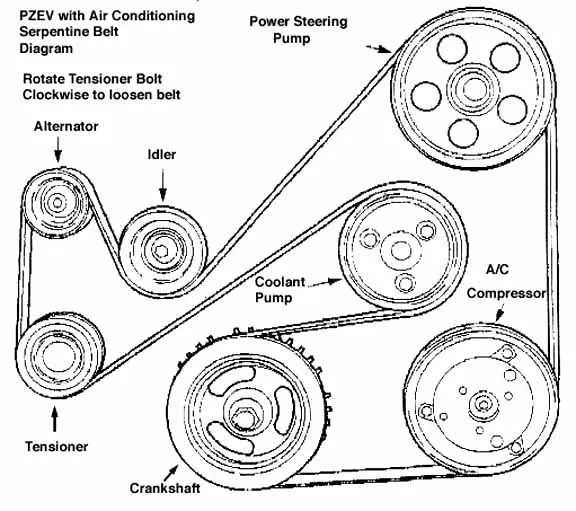

Understanding the Belt Routing Path for Correct Installation
The correct belt routing path ensures the fan belt operates smoothly and efficiently. For the 2003 Ford Focus, the path is designed to provide optimal tension and rotation for all components like the alternator, power steering pump, and water pump. Pay close attention to the sequence in which the belt moves around the pulleys. Incorrect routing may lead to slippage, excessive wear, or even belt failure.
Start by placing the belt around the crankshaft pulley first. From there, route it to the air conditioning compressor pulley. Ensure the belt loops around the idler pulley and then to the power steering pump. The next step is positioning the belt around the alternator pulley, followed by the water pump pulley. The belt should be taut but not overly tight to avoid unnecessary strain on the components.
After installation, check for alignment. The belt should sit evenly on each pulley, and the tension should allow it to move without slack. Using a belt tension gauge can help ensure the proper tightness. If you notice any misalignment or unusual noise after installation, double-check the routing path and pulley conditions.
Always refer to the vehicle’s specific diagram to confirm the routing path before installation. Small differences in the arrangement can lead to significant mechanical issues over time. A well-installed fan belt will improve the performance and lifespan of your engine components.
