2018 Ram 1500 5.7 Serpentine Belt Diagram and Routing Guide

Ensure the serpentine belt is properly routed for optimal engine performance. The 2018 Ram 1500 5.7-liter engine uses a serpentine belt system to drive multiple accessories. This belt needs to be correctly positioned for the proper function of components such as the alternator, power steering pump, and air conditioning compressor.

Consult the belt diagram before beginning any maintenance. The diagram provides a clear visual representation of the correct routing, helping you avoid costly mistakes. Pay close attention to the tensioner pulley and idler pulleys, as these often cause issues if misaligned.

Check the belt for wear and replace it if necessary. Regular inspection of the serpentine belt can prevent overheating and failure of critical engine parts. If the belt appears cracked, frayed, or glazed, replace it immediately to maintain vehicle efficiency and safety.

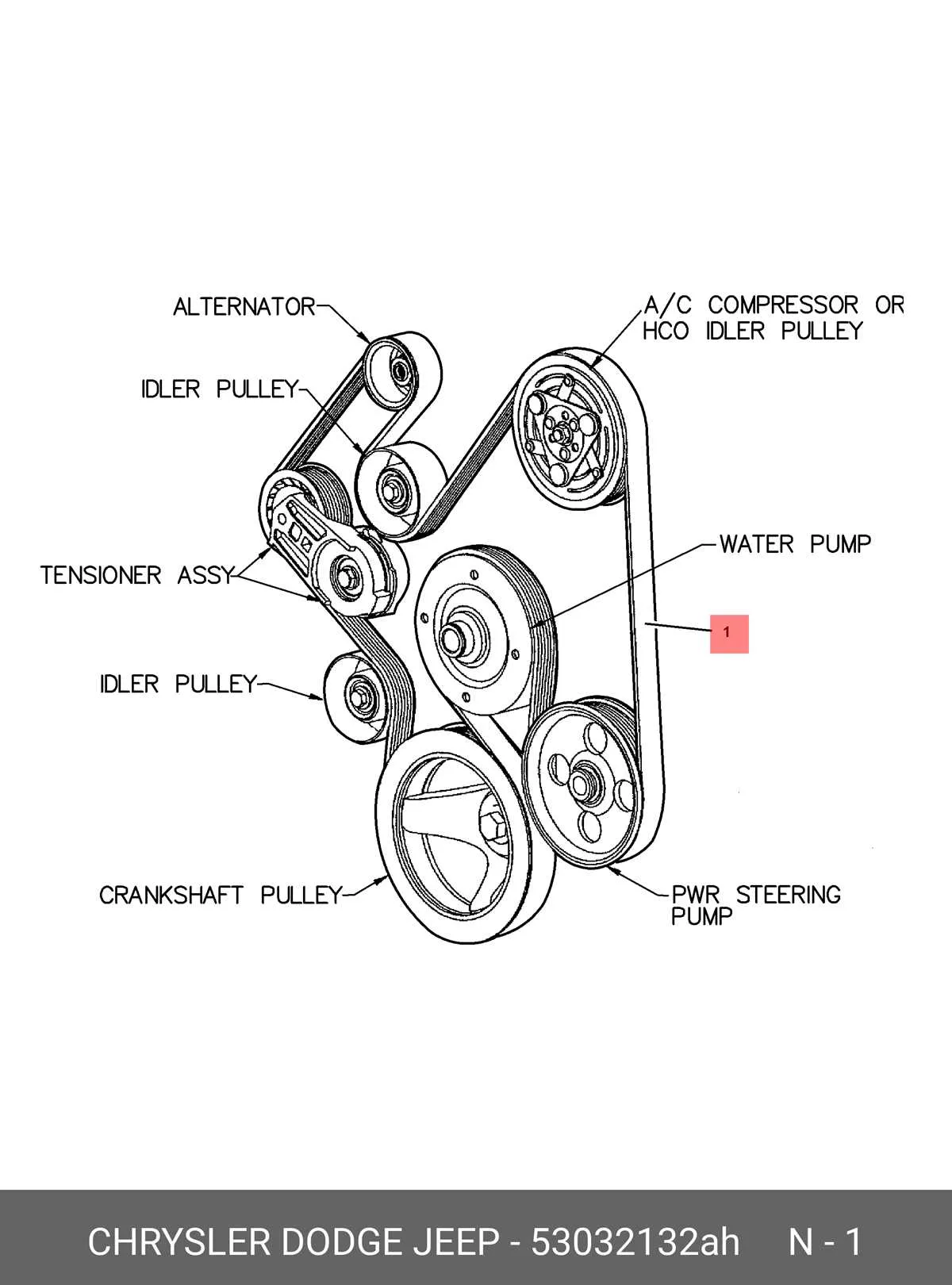

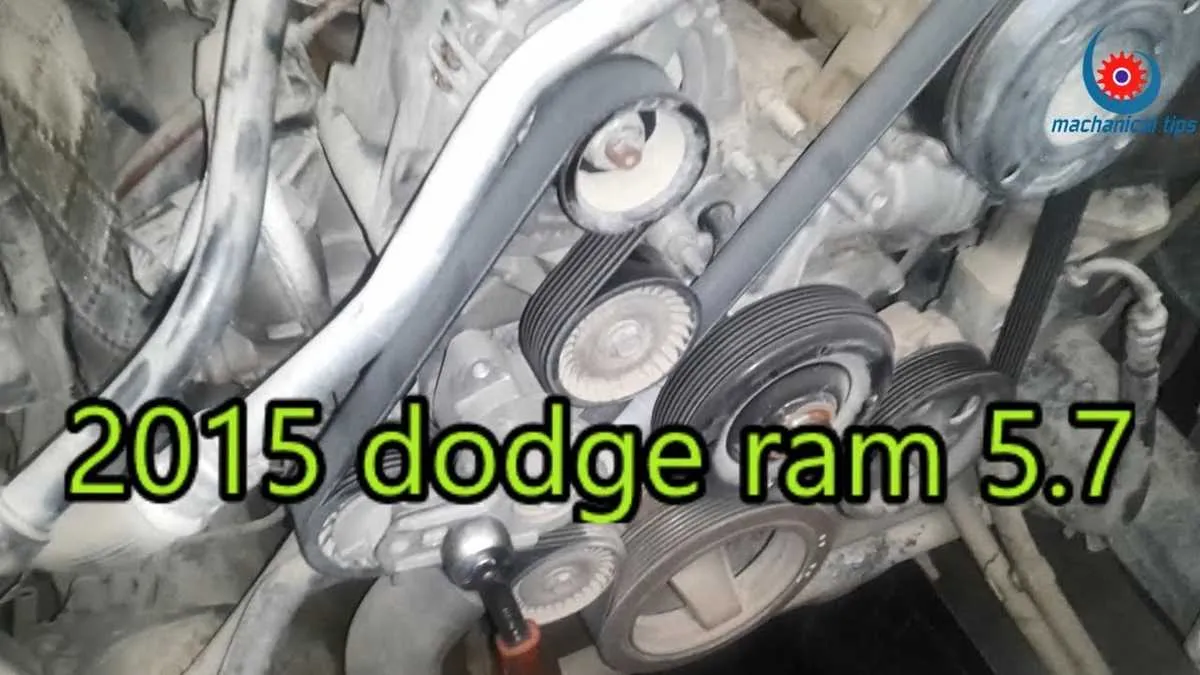

2018 Ram 1500 5.7 Belt Diagram

The serpentine belt in the 2018 Ram 1500 5.7 ensures smooth operation of key components like the alternator, power steering pump, and air conditioning compressor. To maintain the truck’s reliability, refer to the specific routing diagram for proper installation and tensioning.

Begin by identifying the belt routing path. Ensure that the belt loops correctly over the crankshaft pulley, runs over the idler pulleys, and connects the alternator and other accessories as shown in the diagram. The diagram for the 5.7 engine is specifically designed to minimize friction and optimize efficiency. Pay close attention to any changes in pulley configurations if you are replacing the belt or components.

Before installing the new belt, double-check the condition of the pulleys. Replace any worn or damaged pulleys to avoid future issues. After placing the belt, apply the correct tension according to the manufacturer’s specifications. This ensures that the belt functions without slipping or undue wear, extending the lifespan of both the belt and engine components.

If you notice unusual noise or performance issues after installation, verify the belt routing and tension. Incorrect installation can cause premature wear, leading to failures that are costly to repair. Regularly inspect the belt for signs of cracking or fraying to prevent unexpected breakdowns.

How to Identify the Serpentine Belt Layout for 2018 Ram 1500 5.7

To correctly identify the serpentine belt layout for the 2018 Ram 1500 5.7, follow these steps:

• Locate the engine’s accessory drive system. It will typically be on the front of the engine, near the alternator, power steering pump, and air conditioning compressor.
• Check the belt routing diagram, which is usually found on a sticker near the radiator or under the hood. This diagram provides a clear visual of the correct belt path.
• If the diagram is missing, search for it in the owner’s manual. This guide will include all necessary details for belt routing specific to your model.
• If the manual is unavailable, online resources and forums for the 2018 Ram 1500 5.7 may offer belt routing diagrams uploaded by other vehicle owners.

It is crucial to ensure the serpentine belt follows the proper path, as an incorrect routing can damage components like the alternator or air conditioning system. Double-check that the belt is aligned with all pulleys and tensioners.

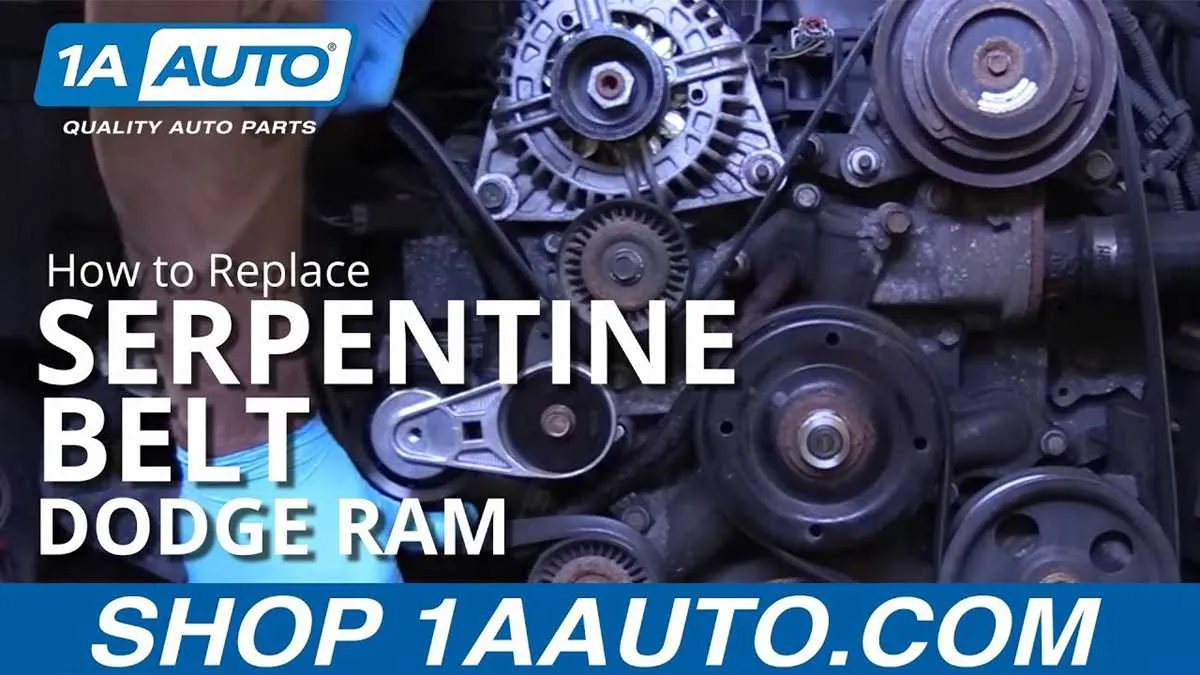

Steps for Replacing the Serpentine Belt in 2018 Ram 1500 5.7

First, locate the serpentine belt tensioner. You will need a wrench or ratchet to relieve tension on the belt. Rotate the tensioner clockwise to loosen the belt and carefully remove it from the pulleys.

Next, inspect the new serpentine belt. Ensure the part number matches the specifications for your 2018 Ram 1500 5.7 engine. Lay the new belt in place, following the correct routing as shown in the belt diagram for your vehicle.

Now, start placing the belt around the pulleys, making sure it sits securely in each groove. Pay close attention to the tensioner pulley, ensuring that the belt is positioned correctly around it.

Once the belt is in place, rotate the tensioner again to allow the belt to tighten. Double-check the alignment of the belt across all pulleys to confirm it is seated properly.

Finally, start the engine to verify that the belt runs smoothly without any noise or misalignment. If everything is functioning correctly, shut off the engine and replace any covers or components removed during the process.

Common Issues with the Serpentine Belt on 2018 Ram 1500 5.7

The serpentine belt on the 2018 Ram 1500 5.7 is a critical component for driving various engine accessories. One common issue is wear and tear, which leads to cracks and fraying. Regular inspection can help catch these signs early, preventing sudden failures.

Another issue is misalignment. If the serpentine belt runs off track or experiences uneven wear, it often indicates a problem with the pulleys or tensioner. A misaligned belt can lead to excessive friction, causing further damage to both the belt and engine components.

A slipping serpentine belt is another problem. This can happen if the tensioner fails to apply proper pressure, leading to reduced performance of accessories like the alternator or air conditioning. If you notice a squealing sound, it’s worth checking the tensioner and belt condition.

Contamination from oil or coolant leaks can also degrade the serpentine belt. Exposure to these fluids causes the rubber to weaken, resulting in cracking and premature failure. Regular maintenance can help detect leaks before they reach the belt.
