Complete 42 Inch Murray 42 Deck Belt Diagram for Accurate Installation and Maintenance
Check your deck belt routing against the Murray 42-inch diagram before replacing or adjusting any components. Misalignment can cause uneven wear, slipping, or premature failure. The belt typically loops around the engine pulley, deck spindles, and idler pulleys in a specific pattern that ensures proper tension and smooth blade operation.
Identify each pulley by comparing your mower’s deck to the diagram. The engine pulley usually sits closest to the mower’s center, while the idler pulleys maintain tension across the belt. Spindle pulleys connected to the blades require precise alignment; any deviation can reduce cutting performance and increase strain on the belt.
When installing a new belt, route it according to the diagram and check tension at every point. The belt should sit firmly in each pulley groove without excessive slack. Inspect for fraying or glazing, especially along tight bends and tension points, as these are common wear areas that reduce lifespan.
Regular maintenance includes cleaning the pulleys and removing debris that can interfere with the belt’s path. Lubricate the idler arms and ensure spindles rotate freely. Following the diagram for both installation and periodic checks prevents belt slipping and maintains even cutting across the deck.
Keep the diagram accessible during adjustments or replacements. Using it as a reference minimizes errors and protects the mower’s drive system. A correctly routed belt extends the life of both the belt and pulleys, ensuring consistent mowing performance.

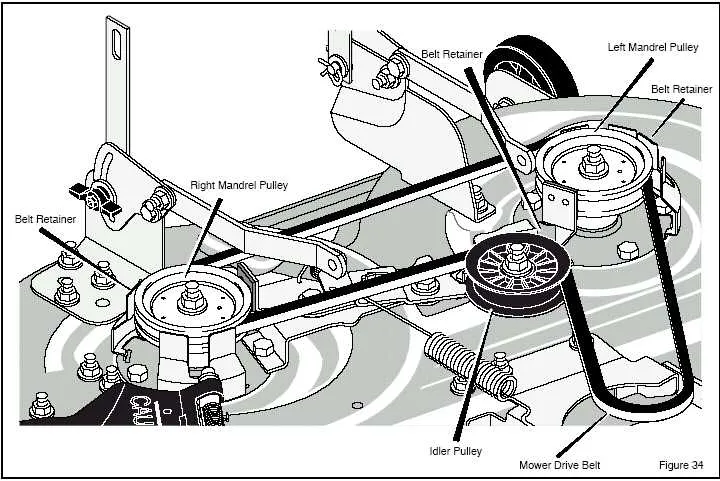

42 Inch Murray 42 Deck Belt Diagram
Use the correct belt routing to prevent slippage and maintain cutting performance on a 42 Inch Murray deck. The belt runs from the engine pulley to the deck spindles, forming a clear path that maintains tension throughout the system.
Follow this sequence for installation:
- Place the belt around the engine pulley, ensuring the ribbed side contacts the pulley.
- Guide the belt through the deck idler pulleys, keeping it aligned with each spindle.
- Loop the belt around the main deck spindles, maintaining proper orientation as shown in diagrams specific to the Murray 42 deck.
- Adjust the tension using the deck tensioner, making sure the belt sits snug without twisting.
Check these points to ensure smooth operation:
- Idler pulleys should rotate freely without wobble.
- Belt edges must not rub against deck edges or chassis components.
- Replace any worn or cracked belt to avoid sudden failure during mowing.
- Keep the belt clean from grass buildup to maintain grip on pulleys.
Following this layout minimizes downtime and ensures even blade engagement. Always consult the diagram specific to your 42 Inch Murray deck model to confirm pulley positions and routing variations.
Identifying the Correct Belt Routing for a 42-Inch Murray Deck
Locate the main drive pulley on the engine and ensure the belt aligns with the transmission pulley directly below it. The belt should wrap around the idler pulleys, maintaining tension without twisting. Route the belt over the front idler pulley first, then loop it under the rear deck spindle pulleys, ensuring each spindle groove receives the belt fully. Check that the belt sits evenly on each pulley, avoiding any slippage or misalignment.
For models with an automatic tensioner, engage the tensioner slowly while keeping the belt aligned on all pulleys. On manual setups, adjust the idler pulley bolts to achieve firm tension, allowing slight movement for smooth rotation. Inspect the belt path from the engine to each spindle, confirming it follows the diagram matching a 42-inch Murray deck. Any deviation can cause uneven cutting or premature belt wear.
Rotate the spindles by hand once the belt is installed to verify correct movement and tension. The belt should rotate all pulleys without jumping off or producing resistance. Recheck the routing after the first mowing session, as new belts may stretch slightly, requiring minor adjustments to maintain proper alignment.
Step-by-Step Replacement of the Deck Belt
Disconnect the battery before handling the mower to prevent accidental starts. Ensure the deck is lowered and the mower is on a flat surface for safe access.
Remove the deck by disengaging the lift arms and sliding the deck out from under the mower. Keep track of all pins, bolts, and washers for reassembly.
Loosen the tensioner by moving the spring or idler pulley away from the belt path. This releases pressure on the old belt and allows it to slide off pulleys easily.
Inspect pulleys for wear or damage. Clean any debris and apply a light layer of lubricant to the pulley bearings if they appear dry or squeaky.
Position the new belt on the engine pulley first, then route it around the idler pulleys following the exact path shown in the belt diagram. Ensure the belt sits correctly in each pulley groove.
Re-engage the tensioner to apply proper tension on the belt. Rotate the pulleys by hand to confirm smooth movement and alignment.
Reattach the deck to the mower by reversing the removal steps. Secure all pins and bolts, then check the deck height and alignment with the mower frame.
Test the mower by engaging the blades briefly. Listen for unusual noises and verify that the belt runs smoothly on all pulleys before full operation.
Troubleshooting Common Belt Alignment Issues
Check the pulleys for wear or damage first. Misaligned or worn pulleys often cause belts to drift off track or squeal. Use a straight edge along the deck and engine pulleys to ensure they are parallel and in line with each other.
Inspect the belt for fraying, cracks, or uneven wear. Replace belts that show significant damage, as damaged belts rarely track properly even after realignment.
Adjust the tensioner correctly. Too tight a belt can strain the bearings, while too loose a belt can slip off. Measure the deflection according to the manufacturer’s specifications–usually about 1/2 inch of play at mid-span for a 42-inch deck belt.
Verify that idler pulleys spin freely without wobble. Any resistance or side-to-side movement can push the belt off track. Lubricate or replace pulleys that are stiff or noisy.
Check that the deck is level from side to side. An uneven deck can pull the belt toward one side, causing misalignment and uneven blade wear. Adjust the lift arms or deck hangers to achieve a level position.
Examine mounting bolts on pulleys and tensioners. Loose bolts allow components to shift during operation, which misaligns the belt. Tighten all fasteners to the torque recommended in the Murray 42 deck manual.
After adjustments, run the mower briefly and observe the belt path. Make small corrections to tension and alignment while the deck is moving slowly. This helps identify subtle issues that static measurements might miss.
