2013 Dodge Avenger 3.6 Engine Belt Diagram and Routing Instructions
To replace or inspect the serpentine belt on your 2013 Dodge Avenger with a 3.6L engine, it’s crucial to have a clear understanding of the belt routing. The serpentine belt drives multiple components such as the alternator, power steering pump, and air conditioning compressor. If you are having issues with any of these systems, or if the belt shows signs of wear, it’s time to refer to the proper belt diagram for your specific model.
The diagram for the 2013 Dodge Avenger 3.6L ensures that the belt is routed correctly over pulleys and tensioners, maintaining optimal performance. Before starting, ensure the engine is turned off and cool. It’s also a good idea to inspect the pulleys for any damage or misalignment, as they can cause the belt to wear prematurely or even fail.
For easy reference, you can typically find the belt diagram under the hood on a sticker located near the engine bay. If it’s missing or unreadable, use the reference diagrams available online or in repair manuals. Replacing the belt can be straightforward with the right tools, but always double-check that the belt is aligned correctly after installation. Misalignment can lead to severe engine issues.

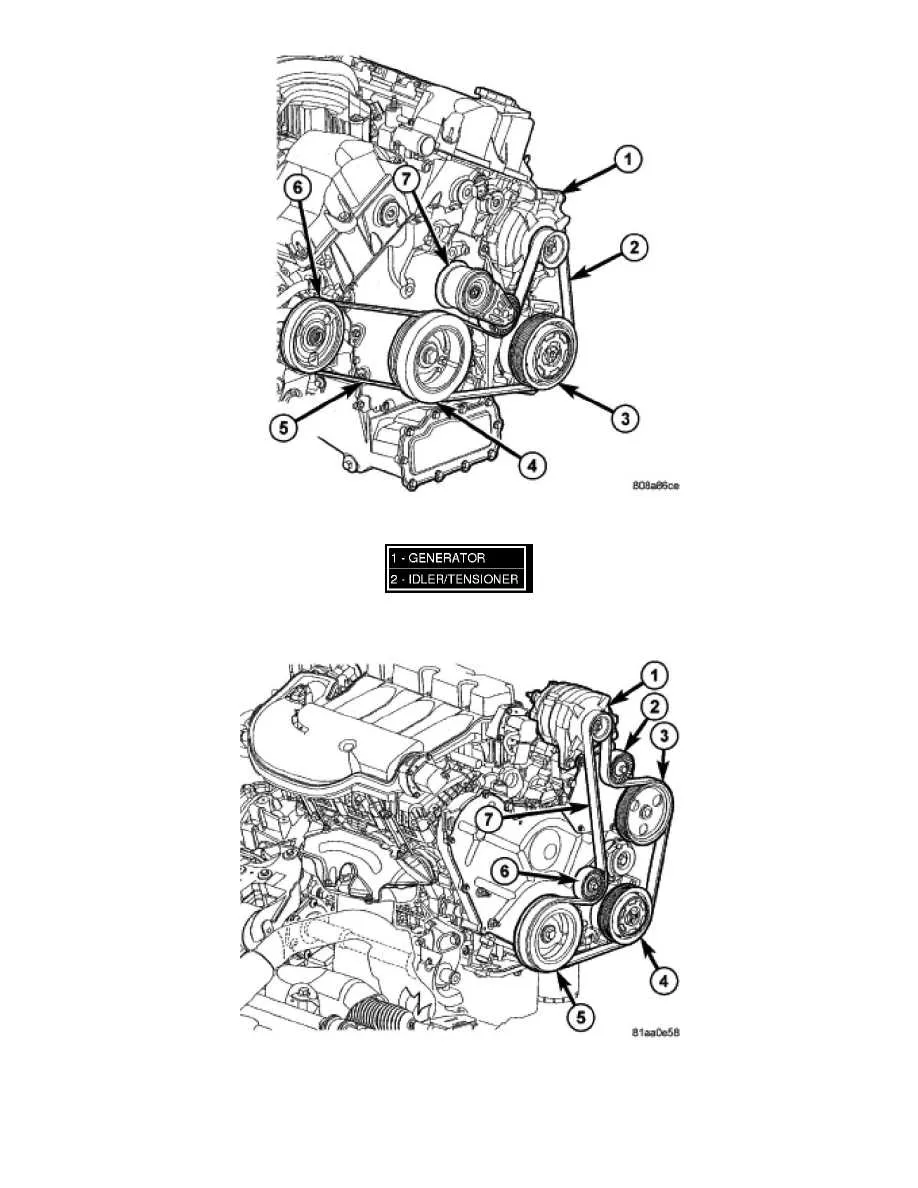

2013 Dodge Avenger 3.6 Belt Diagram
The serpentine belt system in the 2013 Dodge Avenger 3.6 is crucial for driving various engine components like the alternator, power steering pump, and air conditioning compressor. To replace or inspect the belt, refer to the following layout:
The main drive belt routes around the crankshaft pulley, the tensioner, the alternator, the power steering pump, and the AC compressor. The tensioner is responsible for maintaining the correct belt tension. Ensure that the belt is routed properly to avoid misalignment, which can cause excessive wear or failure.
The diagram shows the belt passing over the crankshaft pulley, then looping around the alternator, followed by the power steering pump, and ending at the AC compressor. Always verify the routing with the diagram before installing the new belt, as incorrect routing could damage the components or cause them to malfunction.
If you are replacing the belt, make sure to check the condition of the pulleys and tensioner. Worn-out components can cause slipping or noise, which may indicate a need for further replacement. Make sure the new belt is the correct size and type, as specified for the 2013 Dodge Avenger 3.6.
Step-by-Step Guide to Understanding the Belt Routing for the 2013 Dodge Avenger 3.6
Begin by locating the serpentine belt routing diagram, usually found on the radiator support or under the hood. This diagram serves as a reference to ensure the correct belt placement. For the 2013 Dodge Avenger 3.6, the serpentine belt runs through several components, including the alternator, power steering pump, water pump, and air conditioning compressor.
To remove the old belt, use a socket wrench to rotate the tensioner pulley counterclockwise, relieving tension on the belt. Carefully slide the belt off the pulleys while keeping track of its routing path.
Before installing the new belt, double-check the routing. Start by placing the belt around the crankshaft pulley, ensuring it wraps around each component according to the diagram. The belt should fit snugly over the pulleys but should not be overtightened. Once in position, rotate the tensioner again and slide the belt over the tensioner pulley.
After installation, rotate the crankshaft pulley by hand to ensure the belt moves smoothly over all components without slipping. Recheck the belt’s alignment and tension. The belt should be tight but still have some give when pressed with a finger. If the belt does not maintain tension, consider replacing the tensioner or pulleys.
Finally, start the engine and visually inspect the belt while it’s running to confirm it operates smoothly and without any unusual noise. If everything checks out, the replacement is complete and you’re good to go!
Troubleshooting Common Belt Issues on the 2013 Dodge Avenger 3.6
If you notice unusual noises or performance issues, the serpentine belt may be the culprit. The 2013 Dodge Avenger 3.6’s belt system drives key components like the alternator, power steering pump, and air conditioning compressor. A worn, misaligned, or loose belt can affect the entire system. Here’s how to address common belt problems:
1. Belt Slipping
If you hear squealing sounds, the belt may be slipping. This can be caused by wear or a loose tensioner. Check the tensioner for proper tension; if it’s worn or damaged, it won’t apply enough pressure to keep the belt in place. Adjust or replace the tensioner as needed. Also, inspect the belt for wear or glazing–replace it if there are signs of cracking or smooth, shiny spots.
2. Misalignment
Misalignment between pulleys can cause belt wear and slippage. Check the pulleys to ensure they are aligned. If a pulley is damaged or misaligned, replace it to prevent excessive wear on the belt. A visual inspection of the pulleys should show smooth rotation and no wobbling.
3. Cracked or Worn Belt
A cracked or worn belt can lead to sudden failures. Inspect the belt for visible signs of wear such as cracks, fraying, or missing ribs. If you spot any damage, replace the belt immediately. It’s recommended to replace the belt every 60,000 to 100,000 miles to prevent failure.
4. Tension Issues
Incorrect tension can lead to slipping or excessive wear. If the belt is too loose, it may fail to drive the accessories properly. If it’s too tight, it can strain the components and cause premature failure. Use a tension gauge to verify correct belt tension, and adjust it according to the manufacturer’s specifications.
5. Belt Noise
Rattling or chirping noises can signal that the belt is out of alignment or that the tensioner is failing. Inspect the tensioner spring and pulley for damage. If the tensioner isn’t holding the correct pressure, replace it to restore optimal belt function.
Regular inspection of the belt and related components ensures that your 2013 Dodge Avenger 3.6 operates smoothly. If you’re unable to resolve an issue on your own, consider getting professional assistance for a more thorough diagnosis.
How to Replace the Serpentine Belt on a 2013 Dodge Avenger 3.6
Replacing the serpentine belt on a 2013 Dodge Avenger 3.6 is a straightforward task that you can complete with a few simple tools. Here’s how:
- Prepare Your Tools: Get a 3/8-inch drive ratchet, serpentine belt tool (or breaker bar), and a new serpentine belt that matches your vehicle’s specifications.
- Locate the Belt Tensioner: The tensioner is a spring-loaded pulley that keeps the belt tight. You’ll need to release the tension to remove the belt. It’s located near the front of the engine, easily accessible with the right tools.
- Release the Tension: Use the ratchet or serpentine belt tool to rotate the tensioner pulley clockwise. This will loosen the belt enough to slide it off the pulleys.
- Remove the Old Belt: Carefully remove the serpentine belt from all the pulleys, making sure to note its path. It’s a good idea to take a picture or refer to a belt diagram for reinstallation.
- Install the New Belt: Begin threading the new belt through the pulleys in the same path as the old one. Be sure the belt is seated correctly on each pulley.
- Reapply Tension: Rotate the tensioner again to allow the belt to slip into place. Double-check that the belt is tight and aligned properly.
- Test the Belt: Start the engine and listen for any unusual noises. Ensure that the belt is running smoothly and all components are functioning as they should.
If you notice any issues, double-check the belt’s routing and ensure it’s seated properly on all pulleys. A correctly installed serpentine belt will reduce wear and keep your engine running smoothly.
