Kubota 54 Mower Deck Belt Diagram and Installation Guide
If your Kubota mower is showing signs of belt wear or malfunction, having the correct diagram is crucial for a quick and effective repair. The Kubota 54-inch mower deck belt is a critical part of the system, and understanding its routing can save you time and frustration. To replace the belt, refer to the diagram to ensure everything is positioned correctly for smooth operation.
Start by ensuring the mower is turned off and all moving parts are stopped. The belt should be routed through various pulleys and idlers, each playing a specific role in power transmission from the engine to the deck. By following the diagram step by step, you’ll minimize the chances of misalignment, which could lead to further issues down the line.
It’s also a good idea to check the condition of the other components like the pulleys, idlers, and bearings. If these parts show signs of damage or wear, replace them along with the belt. A worn-out component can reduce the effectiveness of the belt and cause unnecessary strain on the mower’s engine.

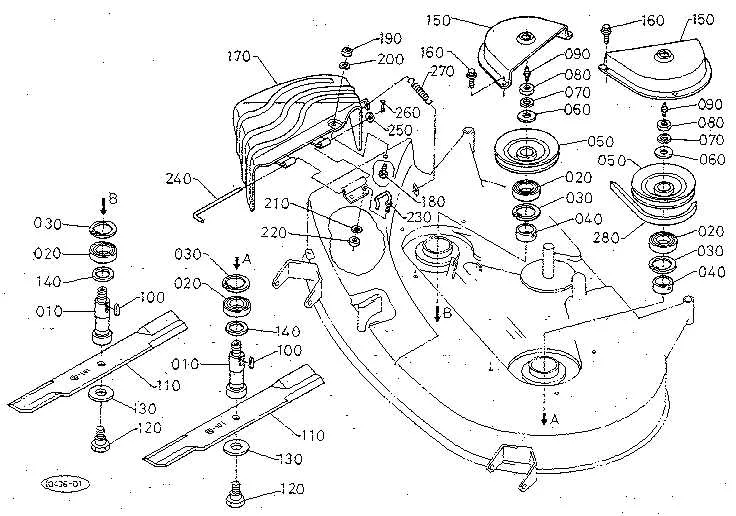

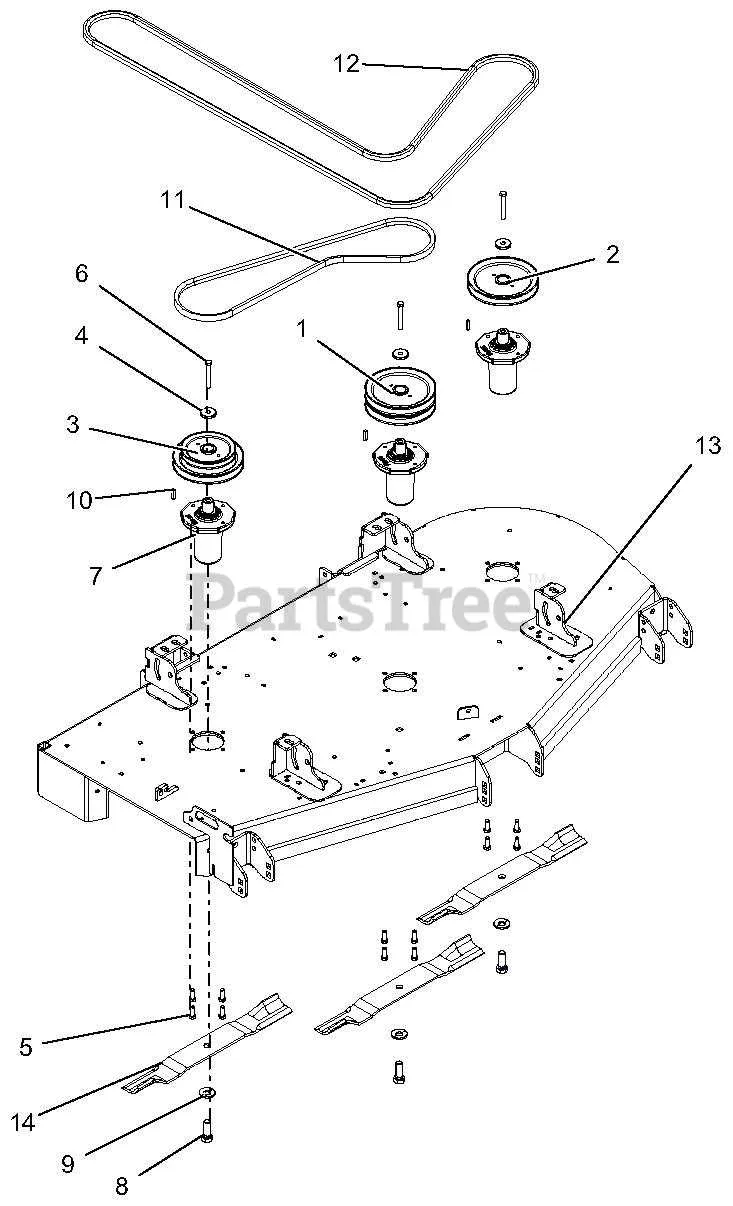

Kubota 54 Mower Deck Belt Diagram
To replace or adjust the belt on your Kubota 54″ mower deck, follow this belt routing diagram carefully. Start by ensuring that the mower is off and the ignition is disconnected. The diagram shows the path of the belt, which drives the blades and ensures proper operation of the deck. It’s important to maintain tension and avoid twisting the belt during installation.
First, remove any covers or guards obstructing access to the belt. This includes the deck housing and any side panels that might block the belt’s route. Once the belt is exposed, note its position relative to the pulleys and idlers. The belt typically runs from the engine pulley to the deck’s main spindle pulleys, passing over tensioner pulleys for proper adjustment.
Take care to follow the belt’s path around each pulley, ensuring it’s seated properly. The diagram will highlight the orientation, showing the belt running under or over pulleys and idlers. Pay special attention to the tensioner pulley. A misaligned belt or incorrect routing can lead to poor performance or premature wear. If the belt is excessively worn, replace it before reassembling the mower deck.
Once the belt is installed, manually rotate the blades to verify correct movement. Check for smooth rotation and ensure there’s no excessive slack or tightness. Tighten the tensioner as needed to maintain the correct belt tension.
Regularly inspect the belt during maintenance intervals to avoid issues that could affect mowing performance. If you notice any wear or slipping, replace the belt promptly to keep the mower running smoothly.
How to Replace the Belt on a Kubota 54 Mower Deck
To replace the belt on a Kubota 54 mower deck, follow these steps:
1. Raise the Mower Deck
Lift the mower deck to its highest position using the deck lift lever. Secure the mower by engaging the parking brake to prevent any movement while you work.
2. Remove the Old Belt
Locate the belt tensioner and release the tension by either using a wrench or pulling the spring-loaded tensioner away from the belt. Carefully remove the belt from the pulleys. If needed, use a socket wrench to remove any parts obstructing access to the belt.

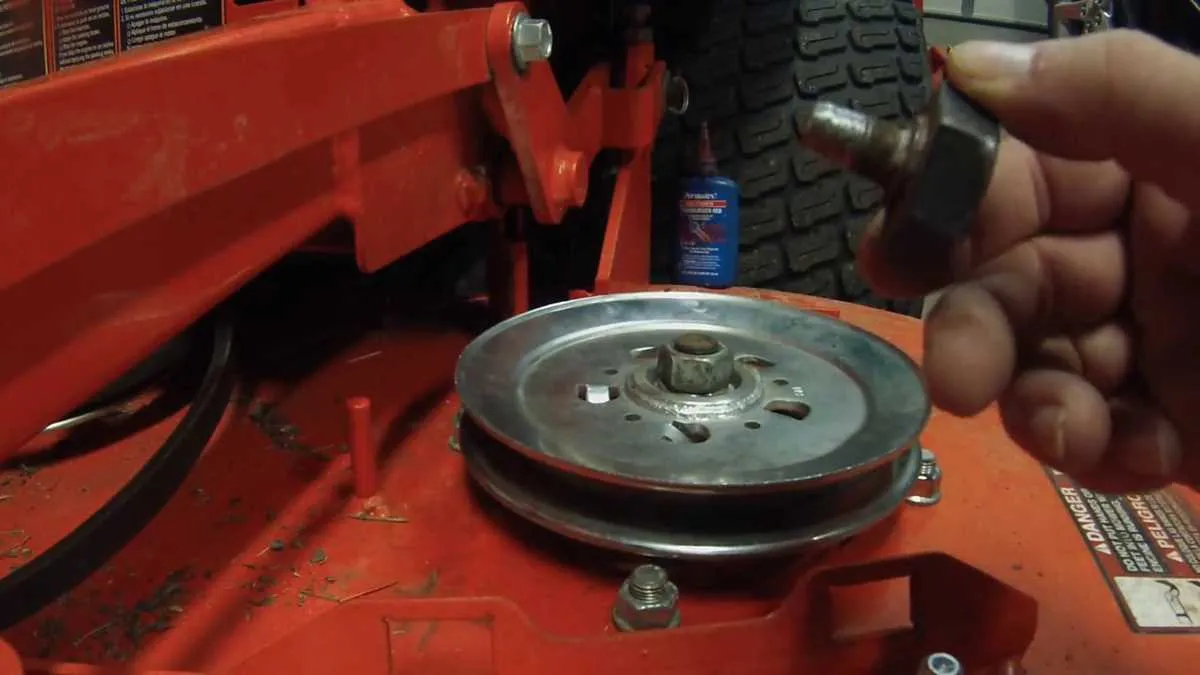

3. Inspect the Pulleys
Check all pulleys for damage or wear. Replace any pulleys showing signs of excessive wear to ensure the new belt runs smoothly.
4. Install the New Belt
Refer to the mower’s diagram to guide you through the correct routing of the new belt. Make sure the belt fits snugly around all pulleys. Ensure it is properly aligned before moving forward.
5. Apply Tension to the Belt
Re-engage the belt tensioner, applying the correct tension to the belt. It should be tight enough to avoid slipping but not so tight that it puts excess strain on the components.
6. Reassemble the Mower
Reattach any parts you may have removed to access the belt. Double-check that everything is secure and correctly positioned.
7. Test the Mower
Start the mower and engage the blades to test if the new belt runs smoothly. If there’s any unusual noise or slippage, recheck the belt installation and tension.
Replacing the belt on a Kubota 54 mower deck is straightforward when you follow these steps. Make sure to regularly check the belt for wear to extend its lifespan and maintain mower performance.
Step-by-Step Guide to Identifying Belt Routing on Kubota 54 Deck
Follow these clear steps to identify and confirm the correct belt routing on your Kubota 54 mower deck:
- Start by lifting the deck to give yourself easy access to the belt and pulleys. Use the deck lift lever to raise it to the highest position.
- Inspect the belt’s current routing. If the belt is damaged or needs replacement, remove it carefully by loosening the tension and detaching it from the pulleys.
- Refer to the belt diagram, typically found on a decal located on the mower deck or in the owner’s manual. This diagram shows the specific path the belt should follow around the pulleys.
- Align the new belt, ensuring it’s routed through all the necessary pulleys, following the diagram closely. Check that the belt fits snugly around the pulleys without excessive slack.
- Double-check the routing near the tension pulley to ensure it’s properly engaged, and the belt can move freely without interference.
- Reapply tension by adjusting the tensioning mechanism. The belt should have minimal slack but should not be overly tight. Test the tension by manually rotating the belt.
- Once the belt is in place and correctly tensioned, rotate the pulleys by hand to ensure smooth movement without any binding or skipping.
- Lower the deck and test the mower briefly to confirm that everything is running smoothly. Pay attention to unusual noises or behavior indicating incorrect routing.
By following this process, you’ll ensure your Kubota 54 mower deck operates effectively with proper belt routing. Regular inspection and maintenance will also help extend the life of the belt and related components.
Common Issues with Kubota 54 Mower Deck Belt and How to Fix Them
If your Kubota 54 mower deck belt is slipping or breaking frequently, inspect the belt for wear, misalignment, or tension problems. A worn-out belt can reduce cutting efficiency, so replace it immediately to avoid further damage. If the belt is misaligned, adjust the pulleys to ensure proper tracking.
Belt Slippage
Slippage occurs when the belt doesn’t maintain proper tension, causing it to lose contact with pulleys. This can be due to a stretched or worn-out belt or a misadjusted tensioner. First, check the tensioner spring for any signs of damage or wear. If the spring is functioning correctly but the belt is still slipping, replace the belt with a new one that matches the required specifications. Ensure the tensioner is set to the correct position and tighten the belt to avoid slippage.
Belt Breakage
A broken belt often results from excessive wear, misalignment, or an object jamming the deck. Inspect the belt for cracks, fraying, or other signs of damage. If any issues are found, replace the belt. When reinstalling, make sure the pulleys are properly aligned and there are no obstructions in the mower deck. Regularly clean the deck to prevent grass buildup that may stress the belt.
Belt Wear
Excessive wear on the belt can be caused by poor maintenance, incorrect tension, or exposure to extreme conditions. To fix this, inspect the belt regularly for signs of wear and tear. Replace it if it shows visible damage or if it has lost its original flexibility. Properly tension the belt during installation to prevent it from wearing prematurely. Check pulleys and bearings for wear and replace them if necessary to avoid future damage.
Misalignment
Pulleys that are out of alignment can lead to uneven belt wear and cause slippage or noise. Check that all pulleys are positioned correctly, and the belt runs smoothly over them. Use a level or a measuring tool to ensure proper alignment. If pulleys are damaged or misaligned, replace or adjust them. After any adjustments, retest the mower to ensure smooth operation.
Noisy Operation
If the mower deck is making excessive noise, it may indicate that the belt is too tight or too loose. A tight belt can cause the pulleys to overheat, leading to noise and wear. On the other hand, a loose belt can slip and make a screeching sound. Adjust the tension according to the manufacturer’s specifications, and lubricate the pulleys if needed.
