Cub Cadet XT1 50 Inch Deck Belt Diagram and Replacement Guide
Understanding the correct placement of the deck belt on your Cub Cadet XT1 50-inch mower is key to ensuring optimal performance. Follow the belt diagram precisely to prevent any issues with belt tension, alignment, or wear. Incorrect installation can cause excessive wear on the belt and damage the mower’s components.
Step-by-step belt replacement can be straightforward once you have the proper diagram at hand. Begin by identifying the specific path the belt follows, including all pulleys and the direction of rotation. The diagram clearly outlines these details, helping to avoid any confusion during installation.
For the Cub Cadet XT1 50-inch deck, make sure to double-check the pulley positions and belt tension after installation. Improper tension can cause the belt to slip or stretch prematurely, leading to reduced performance. Always refer to the manufacturer’s specifications for the correct tension settings.

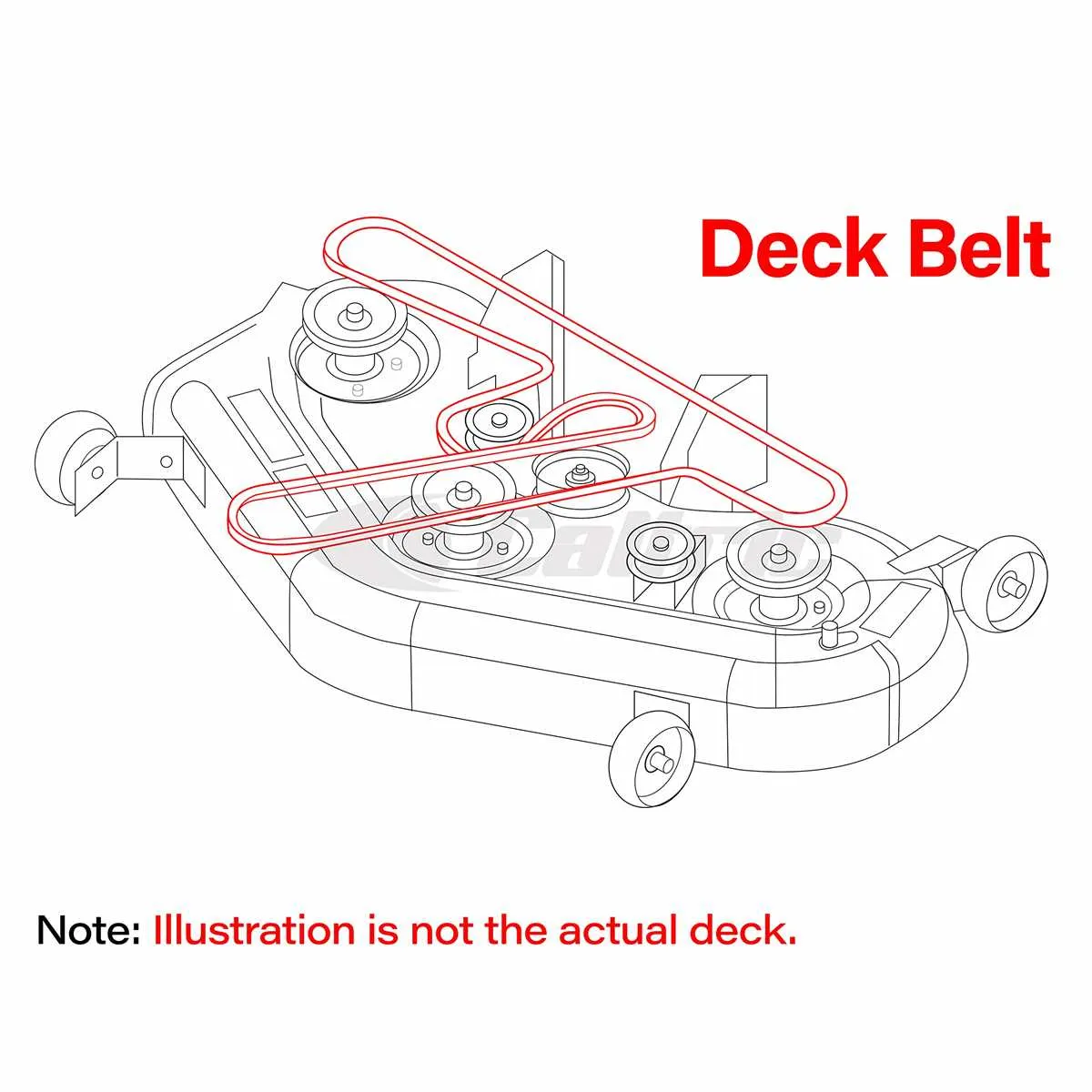

Cub Cadet XT1 50 Inch Deck Belt Diagram
The Cub Cadet XT1 50 inch deck belt is crucial for the proper operation of the mower deck. Refer to the diagram for a clear view of how the belt should be routed. Follow these steps to ensure correct installation:
- Remove the deck from the mower for easier access.
- Start by locating the belt tensioner and loosening it to relieve the tension on the belt.
- Next, remove the old belt by following the routing paths as shown in the diagram.
- Install the new belt by following the same route, ensuring it is positioned correctly on all pulleys.
- Check the belt alignment to prevent slipping and ensure smooth operation.
- Re-tighten the tensioner to ensure the belt is snug, but not too tight.
The belt routing diagram will help guide you through the installation. Make sure to double-check the routing to avoid any operational issues. If the belt appears damaged or shows signs of wear, replace it immediately to maintain optimal mower performance.
Consult the user manual for detailed instructions and part numbers to ensure compatibility with your Cub Cadet XT1 model.
Identifying the Components of the Cub Cadet XT1 Deck Belt System
The Cub Cadet XT1 50-inch deck belt system consists of several key components. The primary part is the deck drive belt, which transfers power from the engine to the cutting deck. It is routed through a series of pulleys, including the engine pulley, the spindle pulleys, and the idler pulleys, all of which guide and support the belt as it operates. The belt’s tension is maintained by the tension spring, which ensures the belt remains taut during operation.
The engine pulley is located at the engine’s output shaft and drives the belt. It plays a crucial role in initiating movement. The spindle pulleys are attached to the cutting blades and control their rotation. These pulleys need to be in good condition to ensure smooth blade operation. The idler pulleys help adjust the belt’s tension, ensuring it stays properly aligned and does not slip during use.
Regular inspection of these components is critical to prevent belt wear or breakage. Check the belt for any signs of cracking or fraying. Also, ensure that the pulleys are free from debris or damage that could cause the belt to malfunction. Proper belt tension is crucial for the system to work efficiently and avoid unnecessary strain on the engine and pulleys.
Step-by-Step Instructions for Replacing the Deck Belt on Cub Cadet XT1
Step 1: Prepare the Tools
Gather the necessary tools: a socket wrench, a new deck belt, gloves, and safety glasses. Ensure the work area is clear and safe.
Step 2: Lift the Deck
Use the deck lift lever to raise the deck to its highest position. This will provide better access to the components.
Step 3: Disconnect the Battery
For safety, disconnect the battery to prevent accidental starts during the repair process.
Step 4: Remove the Deck Belt Guard
Locate and remove the deck belt guard by unscrewing the bolts holding it in place. This will give you clear access to the belt system.
Step 5: Release the Tension from the Belt
Use the socket wrench to loosen the tension on the idler pulley. Carefully slide the belt off the pulleys, ensuring no other parts are obstructed.
Step 6: Remove the Old Belt
Once the belt is loose, remove it from the mower deck by gently pulling it off the remaining pulleys and components.
Step 7: Install the New Deck Belt
Take the new belt and carefully route it around the pulleys according to the Cub Cadet XT1 belt diagram. Ensure the belt is correctly positioned on each pulley.
Step 8: Adjust the Belt Tension
Reinstall the tensioner and adjust the belt tension using the socket wrench. The belt should be tight but not overly stretched.
Step 9: Reassemble the Deck Guard
Once the belt is properly installed, reattach the deck belt guard by securing the bolts back in place.
Step 10: Test the Belt
Reconnect the battery and start the mower. Verify that the belt moves freely and the deck operates smoothly.
Common Issues and Troubleshooting Tips for the Cub Cadet XT1 Belt System
If the Cub Cadet XT1 deck belt is slipping or not functioning properly, check for tension loss. A loose belt can cause it to disengage or lose power. Inspect the tension spring and the idler pulley to ensure they are functioning correctly and not worn out. Replace the spring or pulley if needed.
Another issue could be a misaligned belt. Check the routing diagram to ensure the belt is installed correctly. A misaligned belt may wear unevenly or even snap. If the belt appears to be out of place, re-install it according to the manufacturer’s guidelines.
Excessive wear on the belt is often caused by debris buildup or contact with sharp objects. Clean the area around the belt and check for signs of fraying or damage. If the belt has visible wear or cracks, it’s time to replace it.
Finally, inspect the pulleys for any obstructions or wear. If a pulley is damaged or misaligned, it can cause the belt to slip or fail to rotate the deck blades. Make sure all pulleys are turning freely without any binding, and replace any that are damaged or faulty.
