Detailed Bolens 38 Inch Deck Belt Diagram for Accurate Maintenance and Replacement

If you’re struggling to replace or adjust the deck belt on your Bolens 38-inch mower, the right diagram will make all the difference. Having a clear, accurate belt routing diagram is key to ensuring smooth operation and preventing unnecessary wear on the components.

The Bolens 38-inch deck belt typically follows a straightforward path, but slight variations can exist depending on the mower’s model year. To avoid confusion, carefully follow the belt routing diagram specific to your model. This simple step will save you time, reduce errors, and help maintain proper tension on the belt, which is crucial for the mower’s performance.

Referencing the diagram when replacing the belt ensures you’re installing it in the right position. Pay attention to how the belt interacts with the pulleys and idlers. The right diagram shows not just the path but also the recommended direction of movement, so the belt functions efficiently, and you avoid the risk of it slipping or wearing out prematurely.

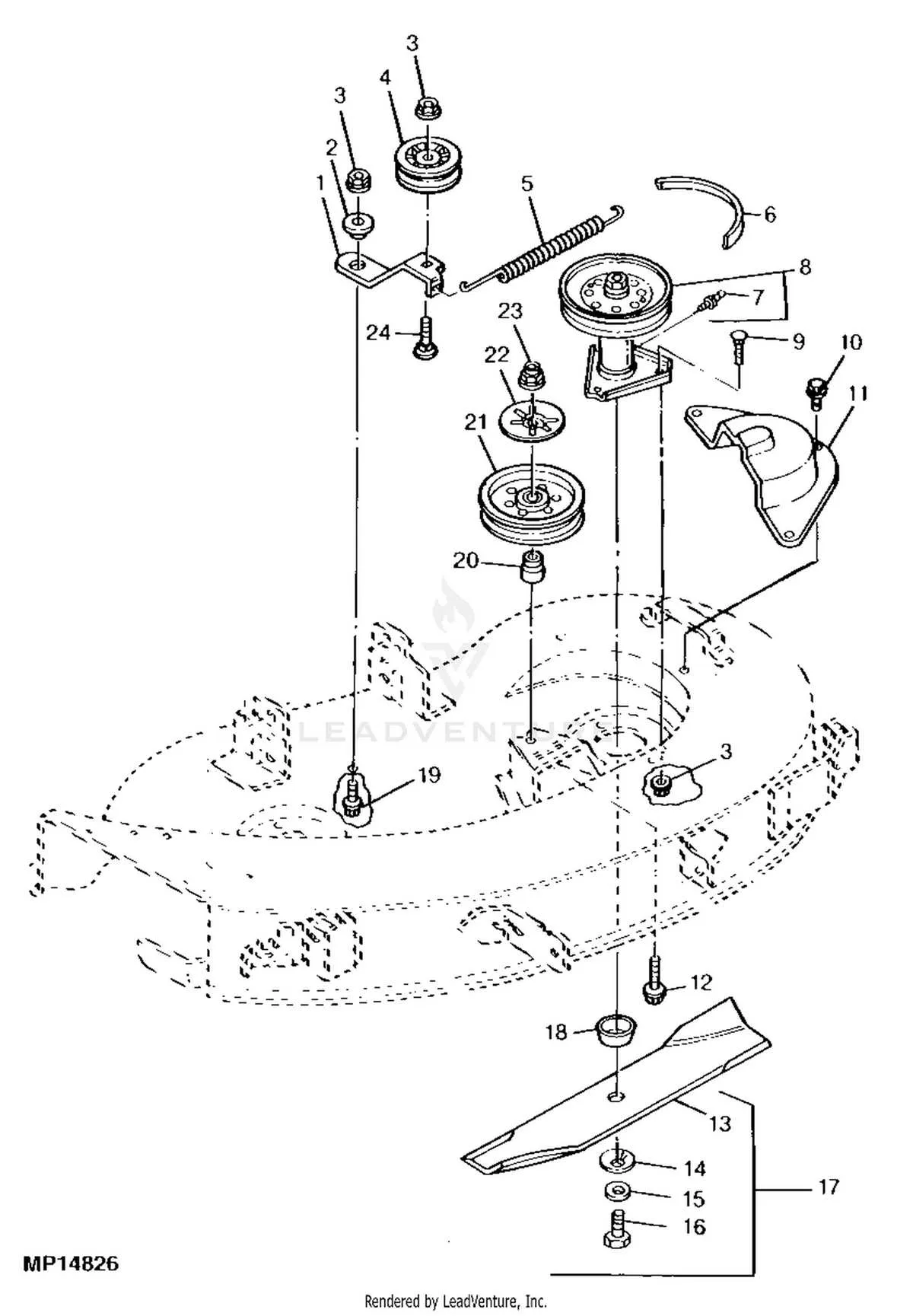

Bolens 38 Inch Deck Belt Diagram

To replace the deck belt on your Bolens 38-inch mower, follow this simple diagram to ensure proper routing. Begin by loosening the tension from the idler pulley and removing the old belt. Take note of how the belt is routed through the pulleys before removal–this is crucial for reinstallation.

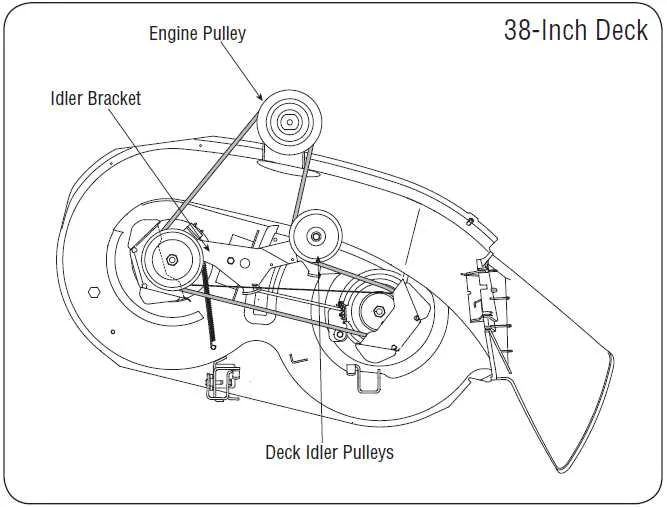

The belt path starts from the engine pulley, looping around the deck’s main drive pulley. Then, it travels around the two spindle pulleys on either side of the deck. Ensure the belt runs over the idler pulley to maintain proper tension. This is key to avoiding slipping and premature wear.

When you replace the belt, ensure it’s positioned correctly on all pulleys. A belt that’s too loose or tight will affect mower performance. Double-check that the belt sits snugly in each groove of the pulleys and that the idler pulley provides adequate tension for smooth operation.

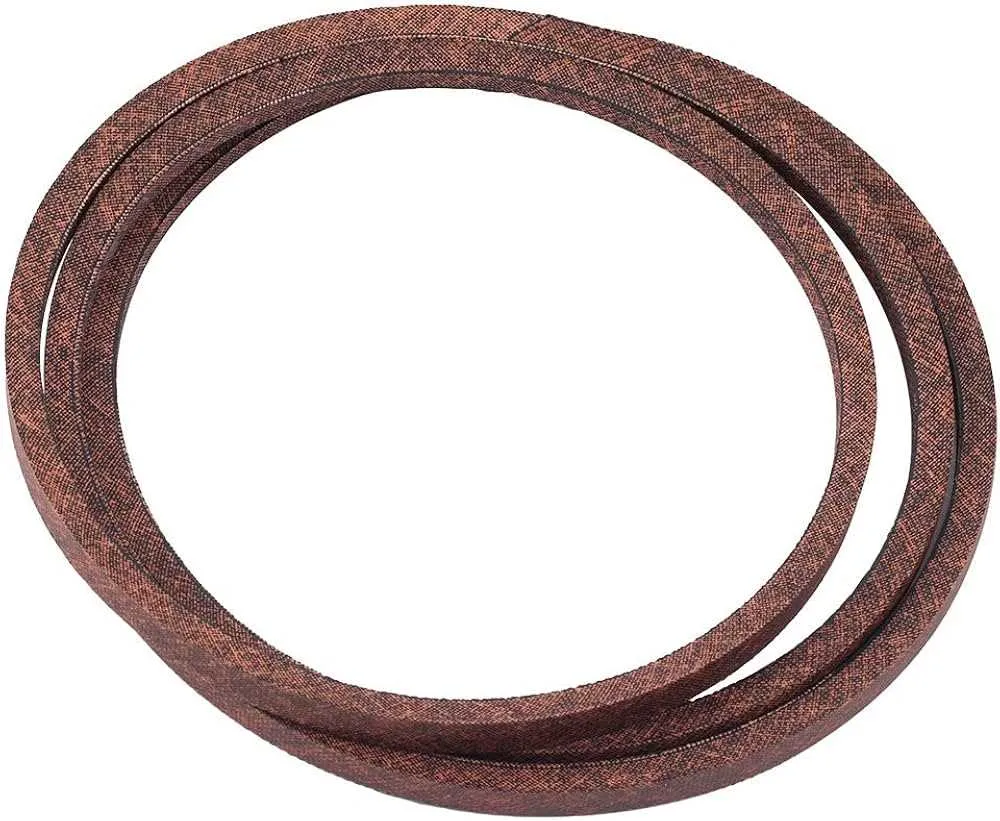

If you’re working with a worn-out deck belt, consider choosing a replacement part that’s identical to the original to ensure proper fit and function. Always refer to the model number for precise part matching.

Identifying Each Belt and Pulley on the 38 Inch Deck

The 38-inch deck on your Bolens mower features a specific set of belts and pulleys that work together to power the blades efficiently. First, locate the drive belt, which runs from the engine pulley to the deck pulleys. This is the main belt responsible for transmitting power from the engine to the blades.

The deck is equipped with two or more idler pulleys that help tension the drive belt. These pulleys are typically mounted on adjustable brackets, allowing for belt tension adjustments. Identifying these will help you determine if the belt is loose or needs replacement.

Next, you’ll find the blade pulleys. These are typically connected to each of the mower’s blades. The blade pulleys are driven by the main drive belt, turning the blades as the belt moves. Ensure that these pulleys are aligned properly and rotate freely without obstruction.

Pay close attention to the spindle pulleys, which are part of the system that supports the blades. These can often become worn or damaged, causing uneven blade movement. Make sure the spindles are in good working order and that the pulleys are not cracked or overly worn.

Finally, check the engine pulley, which is the key component driving the entire belt system. This pulley is attached to the engine crankshaft and is typically located at the front of the engine. If this pulley is damaged or out of alignment, it can cause improper belt movement, leading to operational issues.

Step-by-Step Belt Routing for Replacement or Adjustment

Begin by lifting the mower deck to gain easy access to the belt system. Ensure the machine is turned off and the key is removed to avoid any accidents.

Locate the belt guide on the deck. The belt should loop around several pulleys, including the engine pulley and the idler pulley. Before removing the old belt, note its current position, as this will be useful when routing the new one.

• Start by loosening the tension on the idler pulley. This is typically done by either pulling it back or releasing the spring tension that holds it in place.
• Remove the old belt from the pulleys carefully. Take note of the belt’s path as you do so.
• Begin installing the new belt by threading it over the engine pulley. Ensure that the belt is positioned correctly in the grooves of all pulleys.
• Route the belt over the tensioner pulley and any other necessary pulleys, following the exact path as the previous belt.
• Once the belt is in place, tighten the idler pulley to apply proper tension. The belt should have a slight amount of give when pressed with your fingers.

Check the alignment of the belt. It should run smoothly over all pulleys without any twisting or misalignment. Test the mower briefly to ensure the belt operates properly.

If adjustments are needed, loosen the tensioner slightly and reposition the belt for optimal alignment. Once everything is secure and properly aligned, lower the deck back into place.

Troubleshooting Common Belt Issues and Misalignment

Check for belt tension first. A loose belt can cause slipping and inefficient operation. If you notice that the belt is not tight enough, adjust the tensioner to ensure it has the correct amount of slack. Tighten it gradually until the belt is firm but not over-stretched.

Inspect for wear or cracks. Over time, belts can deteriorate, especially when exposed to harsh conditions. Look for signs of wear such as fraying or cracks. If the belt appears damaged, replace it immediately to avoid further issues.

Examine belt alignment. Misalignment happens when the pulleys or components are out of place. A misaligned belt can cause uneven wear and reduce performance. Check if the pulleys are sitting properly, and realign them if necessary.

Look for debris. Small particles or debris can get trapped in the belt system, causing resistance or blocking the movement. Regularly clean the deck and remove any buildup to keep the belt running smoothly.

Test the pulleys. A worn or damaged pulley can affect belt operation. Spin each pulley by hand to check for smooth rotation. If any pulley feels rough or unbalanced, replace it.

Ensure proper routing. Incorrect routing can lead to unnecessary strain on the belt. Double-check the diagram for the correct belt path and make sure everything matches up as specified.
