2012 Cummins Belt Diagram and Installation Guide
To ensure the proper functioning of your 2012 Cummins engine, refer to the belt diagram to accurately align the serpentine belt. The diagram shows the precise routing and tensioning, crucial for maintaining engine performance.
The serpentine belt drives multiple components, such as the alternator, power steering pump, and air conditioning compressor. Misalignment or damage to the belt can cause serious issues, such as engine overheating or power loss.
Before replacing or adjusting the belt, inspect the pulley system. Look for signs of wear, such as cracks or fraying. Ensure the tensioner is in working condition to avoid belt slippage, which could lead to engine failure.
Use the correct torque specifications when installing the belt. This ensures the belt maintains proper tension and prevents future issues. If you are unsure about the installation process, consulting the service manual can offer additional guidance.

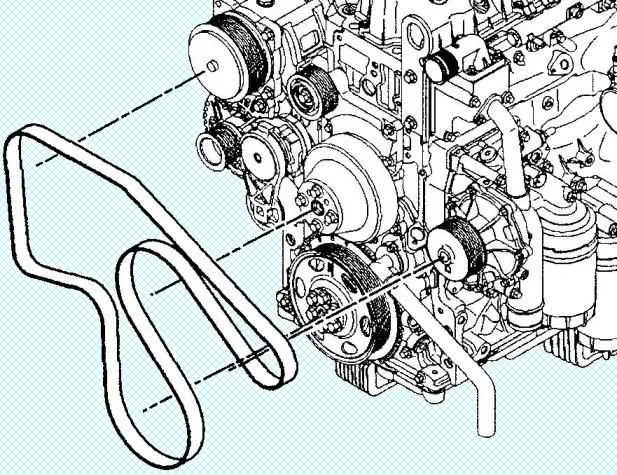

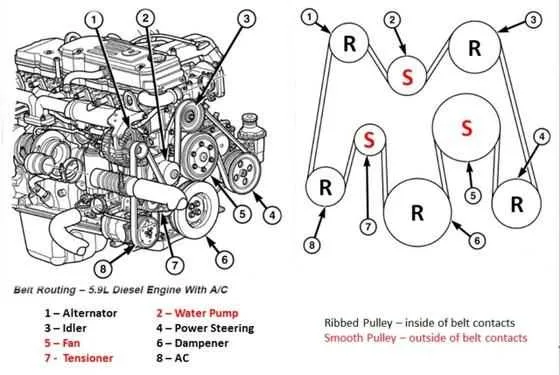

2012 Cummins Belt Diagram
To replace or inspect the belt system in a 2012 Cummins engine, start by identifying the correct routing of the belts. The primary drive belt runs through the alternator, air conditioning compressor, power steering pump, and the water pump. Ensuring the proper tension is crucial for preventing premature wear.
Follow these steps for belt maintenance:
- Locate the tensioner: Use a wrench or socket to relieve tension on the belt, allowing for easy removal.
- Check for damage: Inspect the belt for cracks, fraying, or glazing, which could indicate wear or misalignment.
- Verify alignment: Ensure the belt runs parallel to the pulleys, adjusting the tensioner if necessary.
- Reinstall the belt: Carefully loop the new or inspected belt through all pulleys, ensuring the routing matches the diagram. Tighten the tensioner to the specified pressure.
Use a tension gauge to check the belt tension after installation. The correct tension prevents slippage, reducing the risk of engine damage.
Refer to the specific 2012 Cummins service manual for torque settings and additional troubleshooting tips when adjusting or replacing the belt system.

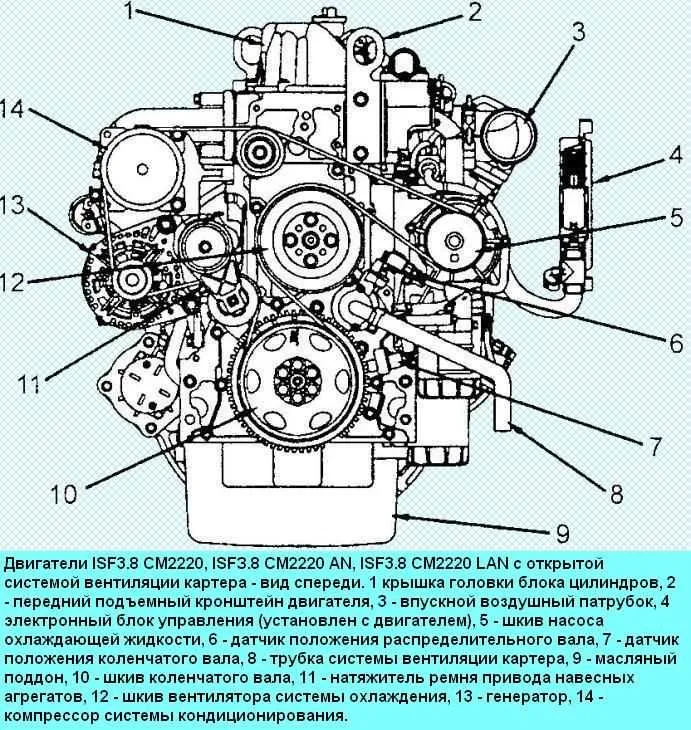

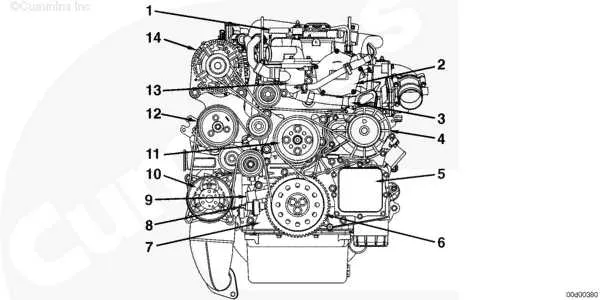

Identifying Belt Layout in 2012 Cummins Engines
To identify the belt layout in a 2012 Cummins engine, begin by locating the serpentine belt. This belt typically drives several key components, including the alternator, power steering pump, water pump, and air conditioning compressor. Carefully inspect the path of the belt and check for any visible tensioners or idler pulleys that guide its route.
The layout can be easily confirmed by consulting the engine’s belt routing diagram, usually found on the engine block or inside the engine bay. If the diagram is not available, follow the general path, ensuring that the belt passes over the crankshaft pulley first, then loops around the various components in sequence.
For accurate belt installation, make sure the belt is properly tensioned. A loose belt will slip, while an overly tight belt can cause premature wear on both the belt and its components. Use a belt tension gauge to ensure proper tension as per the manufacturer’s recommendations.
Replace the belt if it shows signs of excessive wear such as cracking, fraying, or glazing. Always use a replacement belt that matches the OEM specifications for the 2012 Cummins engine to avoid misalignment or premature failure of other engine parts.

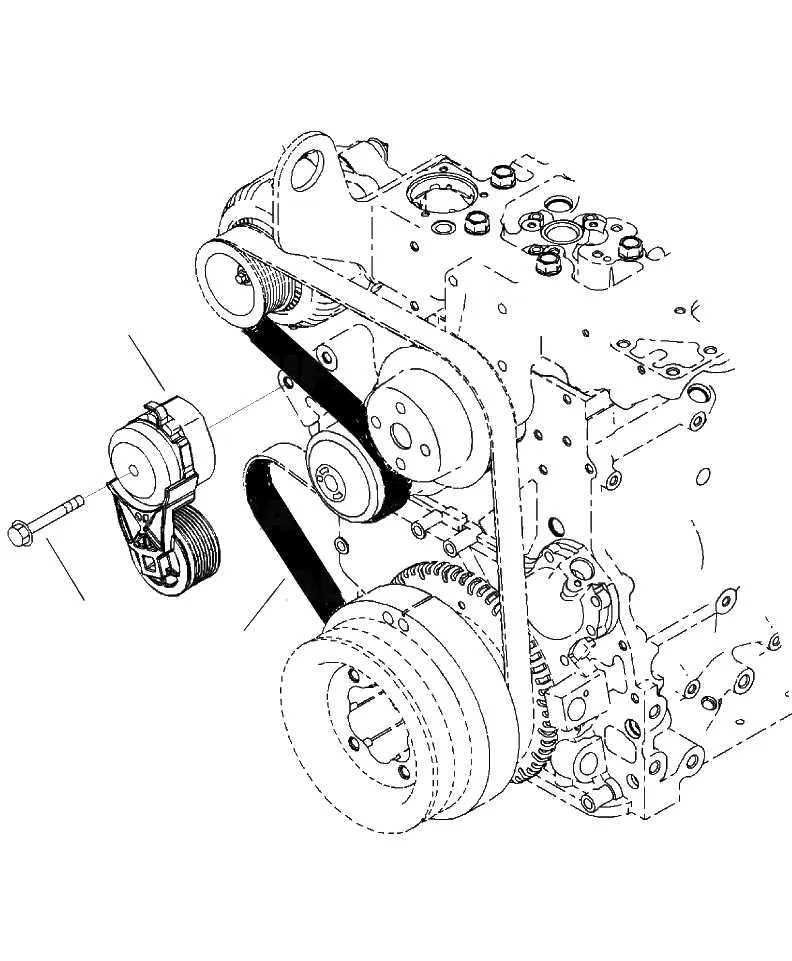

Step-by-Step Process for Replacing the Belt on a 2012 Cummins
Begin by locating the belt tensioner. Use a wrench or a ratchet with a socket to relieve tension on the belt. Rotate the tensioner clockwise to release the belt from the pulleys. Remove the belt from the tensioner and the other components it wraps around.
Next, inspect the new belt. Ensure it matches the old one in size and tooth design. Lay the new belt next to the old one for comparison. If everything matches, proceed to the next step.
Route the new belt around the pulleys following the same path as the old one. Make sure the belt is properly seated in each groove of the pulleys. Pay attention to the direction of rotation on each pulley to ensure correct installation.
Once the belt is in place, slowly release the tensioner, allowing it to apply tension to the belt. Double-check the belt alignment on all pulleys to ensure it sits correctly and is not off-center.
Start the engine and verify the belt is running smoothly. Listen for any unusual noises and check for any signs of slipping or misalignment. If the belt operates as expected, the replacement is complete.
Common Belt Issues and Troubleshooting for 2012 Cummins
Inspect the belt tension regularly. A loose or worn-out belt can slip, causing loss of power in accessories or engine overheating. Tighten or replace the belt if needed.
Check for visible cracks or wear. If the belt shows signs of fraying or surface damage, replace it immediately. Damaged belts are prone to failure and can cause engine misalignment.
Monitor squealing or whining noises. These sounds typically indicate a misaligned belt or a failing pulley. Inspect all pulleys and replace any worn or damaged ones. If the belt itself is the issue, consider replacing it to prevent further complications.
Examine the pulleys and tensioners. If the belt is still intact but slips or has abnormal wear patterns, check the pulleys for proper alignment and function. A damaged or malfunctioning tensioner can cause improper belt tension.
If the engine experiences overheating, verify that the water pump and fan belt are functioning properly. A malfunctioning belt system can lead to poor cooling performance, increasing the risk of engine damage.
Examine the belt routing. Incorrect routing can cause excessive wear and premature failure. Ensure the belt follows the exact configuration as indicated in the service manual.
Check for fluid leaks. Oil or coolant leaks can deteriorate the belt, causing premature failure. If there is evidence of a leak, fix the source before replacing the belt to avoid future issues.
