2011 Toyota Camry Serpentine Belt Routing Diagram for Accurate Engine Maintenance

Check the serpentine belt routing immediately if your 2011 Toyota Camry exhibits squealing noises or accessory malfunctions. The belt drives the alternator, power steering pump, water pump, and air conditioning compressor, so accurate alignment prevents premature wear and engine strain.

The diagram for this model shows a single serpentine belt looping around five main pulleys: crankshaft, alternator, power steering, water pump, and A/C compressor. Tension is maintained by an automatic tensioner located near the water pump, which requires careful handling during replacement to avoid injury or belt misalignment.

Use the diagram as a visual guide to position the belt correctly. Misrouting can cause slipping, overheating, or battery charging issues. Place the belt on the crankshaft pulley first, then follow the sequence around the accessory pulleys, ensuring each ribbed side fits snugly into the pulley grooves.

Inspect the belt for cracks, fraying, or glazing while following the diagram. Replacing a worn belt on schedule, typically every 60,000 to 100,000 miles, maintains engine reliability. Confirm pulley alignment and tension before starting the engine to prevent belt skipping and unnecessary repairs.

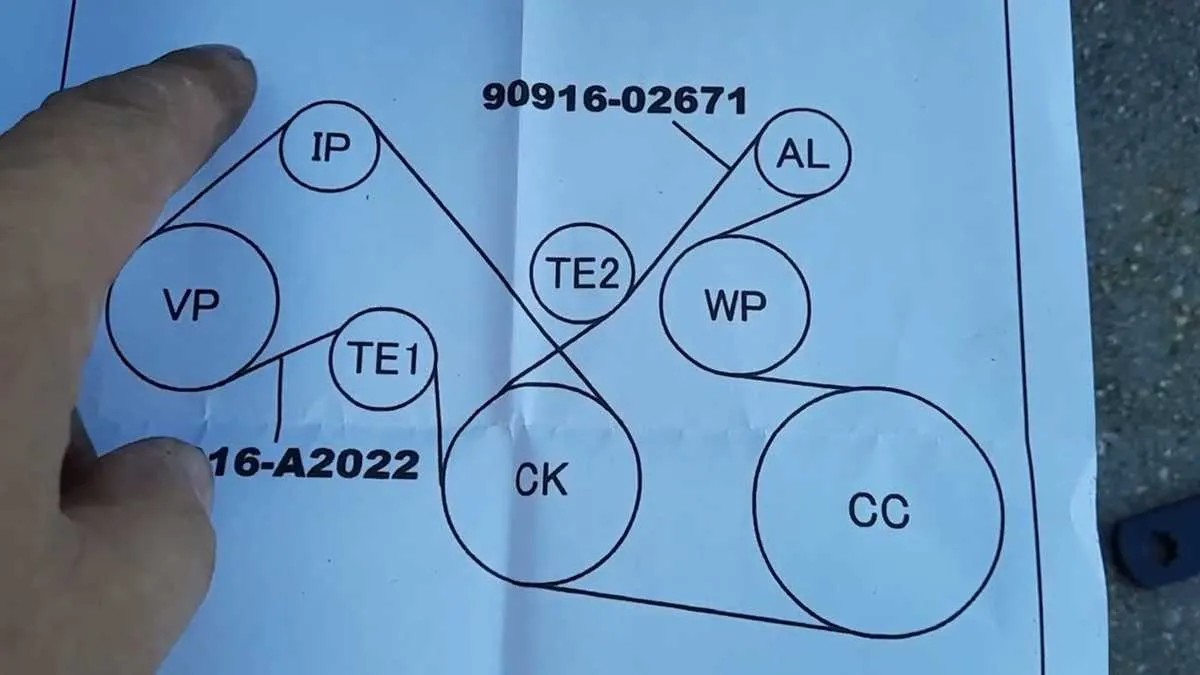

2011 Toyota Camry Serpentine Belt Diagram

Refer to the diagram to route the serpentine belt correctly on a 2011 Toyota Camry. The belt wraps around the crankshaft pulley, alternator, power steering pump, air conditioning compressor, and tensioner pulley. Ensure the belt sits properly in each pulley groove to prevent slippage or premature wear.

Check the belt path: starting at the crankshaft pulley, it moves clockwise to the alternator, then to the tensioner pulley, down to the power steering pump, over to the AC compressor, and returns to the crankshaft. Follow the diagram for correct tensioner positioning.

Inspect pulleys for misalignment or damage before installing the belt. Use a wrench to rotate the tensioner pulley and slip the belt into place. Release the tensioner slowly to apply proper tension. After installation, rotate the crankshaft manually two full turns to verify smooth operation and correct seating on all pulleys.

Replace the serpentine belt every 60,000 to 100,000 miles or if cracks, fraying, or glazing appear. Keep the diagram accessible for reference during maintenance or replacement to avoid routing errors that could affect engine accessories.

Identifying Components in the 2011 Camry Serpentine Belt Layout

Locate the serpentine belt at the front of the engine, wrapping around multiple pulleys. The belt first contacts the crankshaft pulley, which drives the rest of the system. Immediately above, the alternator pulley maintains electrical output for the battery and vehicle electronics. Adjacent to the alternator, the idler pulley guides the belt, keeping proper tension along its path.

The power steering pump pulley sits on the driver’s side, supplying hydraulic pressure for steering assistance. Near the passenger side, the air conditioning compressor pulley engages when cooling is activated. Between these major components, the tensioner pulley applies continuous pressure, preventing the belt from slipping or jumping off its grooves.

Trace the belt path carefully: from the crankshaft to the alternator, down to the tensioner, around the power steering pulley, and across the A/C compressor. Double-check that each ribbed side aligns with its matching pulley groove. Correct alignment ensures smooth rotation, reduces noise, and prolongs belt life. Marking or photographing the routing before removal helps during reinstallation.

Inspect each pulley for wear or wobble while the belt is off. Replace any component showing cracks, excessive play, or damage. Ensuring each pulley spins freely and the tensioner functions properly keeps the belt system operating reliably without unexpected breakdowns.

Step-by-Step Method to Trace the Belt Path

Locate the serpentine belt diagram printed on the radiator shroud or inside the hood panel. Compare it with the actual pulleys to confirm orientation. Start at the crankshaft pulley, as it drives all other components. Wrap the belt around the crankshaft pulley first, ensuring it sits properly in the grooves.

Move to the alternator pulley next, guiding the belt along the correct side according to the diagram. Keep tension on the belt while routing it around the idler pulley, checking alignment with each groove. Follow the diagram closely for the power steering pump and water pump, confirming that the belt contacts each pulley fully.

Pass the belt over the air conditioning compressor pulley, making sure it does not twist. Loop the belt around the tensioner last. Use a wrench to rotate the tensioner and slip the belt into place, then release the tensioner slowly to apply proper tension. Inspect every pulley to verify the belt sits evenly without any slack or misalignment.

Run the engine briefly and watch the belt movement. If it tracks smoothly with no wobble, the installation is correct. Recheck the diagram and make minor adjustments if necessary to maintain consistent groove seating on each pulley.

Replacing the Serpentine Belt Without Misrouting

Consult the serpentine belt diagram specific to the 2011 Toyota Camry before loosening the old belt. Position a wrench on the tensioner pulley to relieve tension and carefully slide the belt off the pulleys. Keep the belt’s routing visible or take a clear photo to reference during installation.

Follow these steps to prevent misrouting:

• Identify each pulley: crankshaft, alternator, power steering, water pump, and A/C compressor.
• Check the diagram for the exact path, noting which pulleys the belt wraps over and under.
• Loop the belt around the smaller idler pulleys first; leave the tensioner pulley for last to make installation easier.
• Ensure the belt sits fully in the pulley grooves without twisting. Misalignment can cause squealing or premature wear.
• Release the tensioner slowly, letting it apply proper tension to the belt.

After installation, rotate the engine by hand using a socket on the crankshaft pulley to verify smooth movement. Inspect all pulley contacts and belt alignment. Adjust if any pulley shows signs of slipping or the belt rides unevenly. Confirming correct routing before starting the engine prevents damage to accessories and extends belt life.
