2007 5.9 Cummins engine belt routing and layout diagram guide

Locate the correct belt routing immediately: for the 2007 5.9 Cummins, the serpentine belt wraps around the crankshaft pulley, water pump, alternator, and A/C compressor in a specific sequence. Using the proper diagram prevents misalignment that can lead to premature wear or accessory damage.

Inspect tensioner placement carefully: the automatic tensioner must maintain optimal tension. Positioning it incorrectly can cause the belt to slip or create uneven wear patterns. Check the tensioner orientation against the diagram for a precise fit.

Follow pulley identification: the crankshaft, alternator, power steering, and A/C pulleys all have unique diameters affecting belt routing. Matching the belt path exactly as illustrated avoids unnecessary stress on bearings and improves accessory performance.

Confirm routing before tightening: trace the belt along each pulley visually and adjust alignment as needed. Small deviations can increase noise and reduce belt lifespan. Keep the belt snug but allow the tensioner to absorb normal engine movement.

Maintain replacement intervals: belts on the 5.9 Cummins show wear after 60,000–100,000 miles depending on driving conditions. Use the diagram during every replacement to ensure consistent performance and prevent engine accessory failures.

2007 5.9 Cummins Belt Diagram Guide

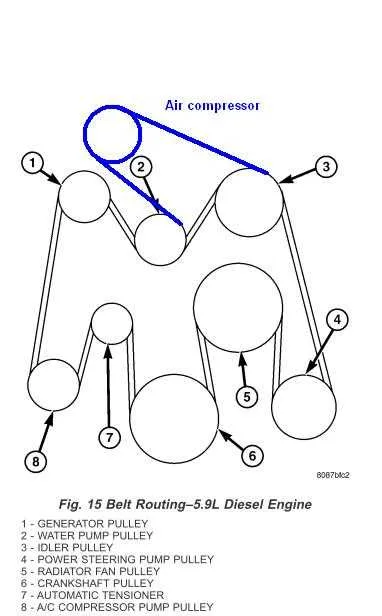

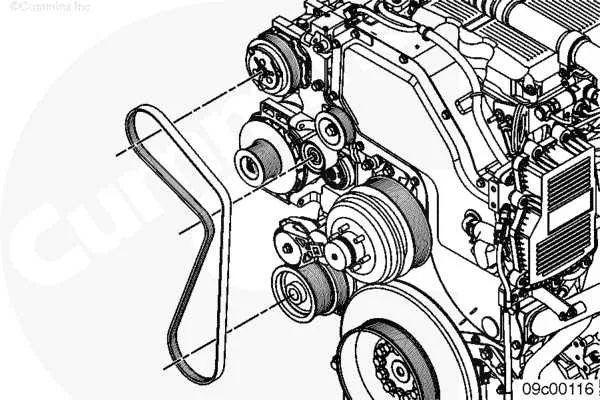

Locate the serpentine belt routing clearly to ensure proper installation on a 2007 5.9 Cummins. The belt wraps around the alternator, water pump, power steering pump, and crankshaft pulley in a precise sequence to maintain correct tension and accessory function.

• Start at the crankshaft pulley at the bottom center of the engine.
• Route the belt upward to the water pump pulley on the passenger side.
• From the water pump, guide the belt to the alternator pulley on the top passenger side.
• Continue to the power steering pump pulley located on the driver side.
• Wrap the belt around the idler pulley and tensioner to maintain proper tension.

Check the tensioner for smooth operation before placing the belt. A worn or stuck tensioner can cause slipping or squealing noises. Confirm all pulleys spin freely to prevent premature wear.

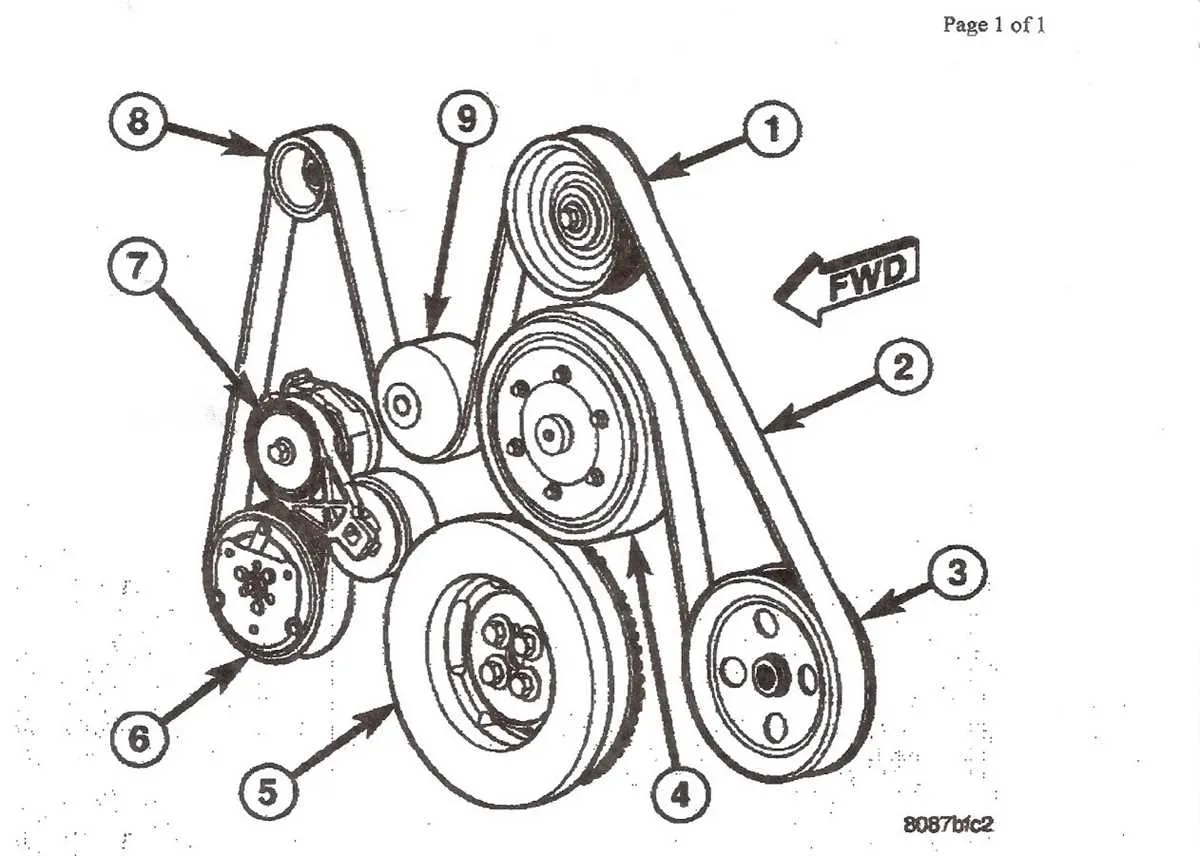

Use a diagram specific to the 2007 5.9 Cummins for reference. Mark the routing on paper or take a photo before removal. This helps avoid misalignment during installation.

Inspect the belt for cracks, fraying, or glazing. Replace the belt if any damage appears. Torque all mounting bolts according to manufacturer specifications to secure components.

After installation, run the engine at idle and observe belt tracking. Adjust if necessary to prevent lateral movement or contact with other engine parts.

Locating and Identifying Each Belt on the 5.9 Cummins Engine

Begin by identifying the serpentine belt at the front of the engine. This belt drives the alternator, water pump, and power steering pump. Trace the belt from the crankshaft pulley upward to the tensioner; the tensioner allows easy removal and installation.

Next, locate the air conditioning (A/C) belt if equipped. It runs from the crankshaft pulley to the A/C compressor. The A/C belt sits slightly above the main serpentine belt and requires loosening the compressor bracket to adjust tension.

Inspect the fan belt, positioned at the top front of the engine. On the 2007 5.9 Cummins, it connects the crankshaft pulley to the water pump and the engine-driven fan. Check the belt routing diagram stamped on the fan shroud for precise alignment.

For the alternator-only setups, identify the smaller alternator belt. It runs directly between the crankshaft and alternator pulleys, bypassing other accessories. Use a wrench to relieve tension from the idler pulley for removal.

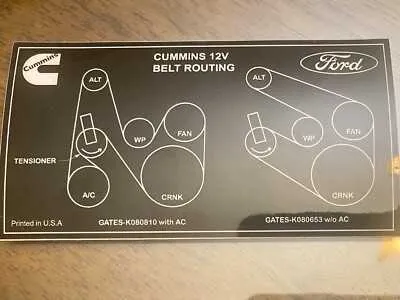

Finally, verify each belt’s routing using the engine’s label or printed diagram inside the engine bay. Ensure that all belts sit correctly in the pulley grooves, and check tension by pressing mid-span; a ½ inch deflection is typical for most pulleys.

Step-by-Step Instructions for Removing and Reinstalling Belts

Loosen the tensioner pulley using a 1/2-inch drive ratchet or breaker bar. Rotate the tensioner clockwise to relieve tension on the serpentine belt.

Slide the belt off the alternator pulley first, then carefully work it off the remaining pulleys, following the belt routing diagram specific to the 2007 5.9 Cummins engine.

Inspect each pulley for wear or damage while the belt is removed. Check for wobbling, corrosion, or rough rotation and replace any defective components.

To reinstall, route the belt according to the diagram, starting with the crankshaft pulley. Loop the belt around the accessories in the correct order, leaving the tensioner pulley for last.

Apply force to the tensioner with the ratchet, slip the belt over the tensioner pulley, and release the tool slowly to apply tension evenly.

Manually rotate the crankshaft pulley two full turns to verify correct alignment and seating of the belt on all pulleys. Ensure no part of the belt rides on pulley edges or is twisted.

Double-check the belt path against the diagram and confirm the tensioner is functioning properly before starting the engine. Listen for smooth operation and absence of squeaks during the initial run.

Troubleshooting Common Belt Alignment and Tension Issues

Check the serpentine belt for visible wear patterns such as fraying, glazing, or uneven edges. Misaligned pulleys often cause rapid belt deterioration and produce squealing noises during engine operation. Measure tension with a calibrated gauge: for a 2007 5.9 Cummins, the recommended deflection is typically 1/2 inch under moderate thumb pressure. Excessive slack can slip under load, while over-tightening stresses bearings and shortens belt life.

Inspect each pulley using a straightedge or laser alignment tool. Even a slight deviation of 2-3 mm can lead to premature belt failure. Adjust the alternator or idler pulley mounting bolts incrementally, checking alignment after each adjustment. Tighten bolts to manufacturer torque specifications to prevent movement under engine vibration.

Listen for tonal changes during startup and acceleration. A high-pitched chirp usually indicates misalignment, while a deep rumble points to tension imbalance. Rotate the belt manually to feel for binding or resistance at each pulley. Replace worn tensioners immediately, as a weak tensioner cannot maintain consistent pressure and contributes to misalignment issues.

Lubricate pulley bearings only if specified in the service manual; improper lubrication can degrade the belt surface. Recheck alignment after 500 miles or post-maintenance, since vibration and thermal expansion may shift pulley positions. Document any adjustments to track recurring patterns and determine if component replacement is necessary.

Use OEM belts matched to the 2007 5.9 Cummins specifications. After installation, run the engine for five minutes and inspect for tracking errors. Correct any lateral drift by loosening and repositioning the belt. Reassess tension one final time before completing service, ensuring smooth operation without slippage or noise.
