Ej25 Timing Belt Marks Diagram for Accurate Engine Alignment and Maintenance

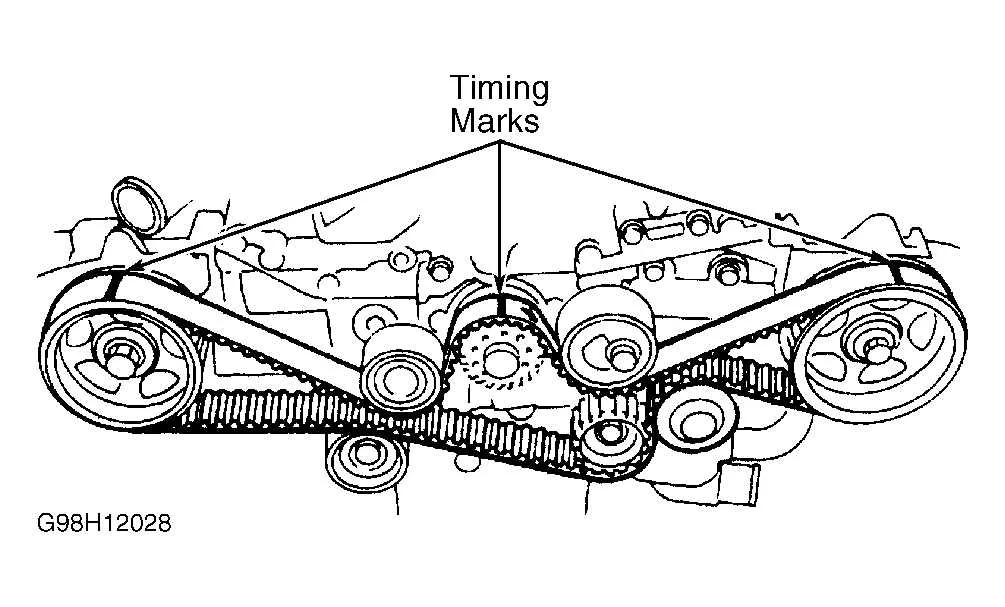

If you’re working on the timing belt replacement for the Subaru EJ25 engine, understanding the proper alignment of the timing marks is crucial. The correct positioning ensures your engine runs smoothly and avoids potential damage. The diagram below shows exactly where each mark should align to set the timing properly, helping you avoid costly mistakes during installation.
The key marks to focus on include the crankshaft, camshaft, and the timing belt itself. Ensure the crankshaft mark is aligned with the mark on the timing gear. The camshaft marks should line up with their respective reference points. A mistake in the alignment could cause engine misfires or, in the worst case, valve-to-piston contact. Keep a close eye on these marks to ensure precise placement of the belt.
Once the timing belt is in place, double-check all the marks before reassembling the components. It’s also a good practice to rotate the engine manually after installation to verify everything is properly aligned and there are no interference issues. Using a timing diagram as a visual guide significantly reduces the chance of errors.
Ej25 Timing Belt Marks Diagram
To align the timing belt on the Subaru EJ25 engine, first ensure the engine is at top dead center (TDC) on cylinder 1. This is crucial for accurate timing and prevents potential engine damage. The timing marks on the crankshaft, camshaft, and the timing belt itself should align precisely.
The crankshaft pulley has a mark that should align with the timing mark on the engine block. This is usually a small notch or indentation. Ensure this mark points to the correct position on the block, often marked as TDC or a similar designation.
The camshaft pulleys also have specific timing marks, typically small dots or lines. These marks must be aligned with the reference marks on the cylinder head. It’s common for each camshaft pulley to have an arrow or line that lines up with a mark on the timing cover or cylinder head.
Before installing the timing belt, ensure the belt’s markings line up with the corresponding pulley marks. The belt has several notches or teeth that should mesh precisely with the cam and crankshaft pulleys to maintain correct timing.
After installing the timing belt, rotate the engine by hand a few times to double-check that the timing marks stay in place. This will help you confirm the engine is in proper timing before starting it up.
Incorrect timing belt alignment can result in engine misfire, poor performance, or even engine damage. Be sure to double-check all marks before proceeding with any further assembly or startup.
Locating and Identifying Timing Marks on the Ej25 Engine
Locate the timing marks by carefully inspecting the timing components of your EJ25 engine. The crankshaft, camshaft, and auxiliary components each have specific marks to align during timing belt replacement or adjustments.
The crankshaft pulley typically features a mark indicating the “0” position, which aligns with the engine’s TDC (Top Dead Center). This mark is crucial for ensuring proper alignment with the camshaft sprockets. Check for a corresponding mark on the timing cover or adjacent components to confirm the crankshaft’s position.
Next, inspect the camshaft pulleys. The intake and exhaust camshaft pulleys will each have a mark. These marks align with notches or references on the timing cover, which are used to position the camshaft relative to the crankshaft. If your engine uses a dual cam setup, both camshaft pulleys must be in sync to avoid engine damage.
Look for additional timing marks on the timing belt tensioner, which often includes reference points for correct belt installation and tension adjustment.
To confirm alignment, rotate the crankshaft clockwise and verify that all marks stay aligned as the engine reaches the TDC. If any marks are off, adjust the components as needed to avoid misfiring or damage.
Step-by-Step Guide to Aligning Timing Belt Marks on EJ25
Aligning timing belt marks on the EJ25 is straightforward if you follow each step carefully. Here’s a clear process to help you get it right.
- Ensure the Engine is at Top Dead Center (TDC)
- Locate the Timing Marks
- Align the Crankshaft Pulley
- Set the Camshaft Timing Marks
- Install the Timing Belt
- Double-Check the Alignment
- Secure the Timing Belt
Before starting, rotate the crankshaft until the engine reaches TDC. This means the number one piston is at its highest point in the cylinder. The TDC mark on the crankshaft pulley should align with the pointer on the engine block.
The timing marks are typically visible on the camshaft sprockets and the crankshaft pulley. You’ll find two small marks or notches that need to be aligned properly. The crankshaft pulley has a TDC mark, and the cam sprockets have specific notches that correspond with timing marks on the engine’s timing cover.
Turn the crankshaft pulley to line up the TDC mark with the pointer. Make sure this is done carefully as an improper alignment can throw off the entire timing sequence.
Next, align the camshaft sprocket marks with the timing cover or other reference points. The intake camshaft sprocket should align with the mark on the timing cover, and the exhaust camshaft sprocket should do the same. If the marks do not align, adjust the sprockets until they do.
Place the timing belt around the camshafts and crankshaft. Ensure the belt is taut but not overly tight. The teeth on the belt should match the teeth on the sprockets. Pay attention to any tensioner or idler pulley components that may need to be adjusted.
Before securing the belt, rotate the crankshaft manually two full rotations. After two rotations, check the timing marks again to confirm that they still align. If any marks have shifted, adjust the timing belt accordingly.
Once the alignment is confirmed, secure the timing belt by tightening the tensioner and reassembling any components that were removed.
By following these steps carefully, you’ll have properly aligned timing marks on your EJ25 engine, ensuring optimal performance and avoiding any potential engine issues.
Common Mistakes When Setting Timing Marks and How to Avoid Them
Misaligning the timing marks is the most common mistake when setting up the EJ25 timing belt. Ensure the camshaft and crankshaft sprockets align perfectly with their respective marks on the engine block. If even slightly off, the engine will misfire or perform poorly.
Don’t skip verifying the alignment after installing the timing belt. Double-check the position of the camshaft and crankshaft marks with a socket wrench before tensioning the belt. A missed step here can lead to costly repairs if the engine is turned over with misaligned timing.
Another common issue is installing the belt with the wrong tension. Too tight or too loose can cause the engine to skip timing or cause unnecessary wear. Use the proper tensioning tools to make sure the belt has just the right amount of slack.
Be cautious with the crankshaft timing mark. The mark on the crankshaft pulley can sometimes be hard to spot. Make sure it’s not obscured by dirt or debris. A blurry mark will lead to an incorrect setup, causing performance issues.
Lastly, don’t forget to rotate the engine by hand after installing the timing belt. Turn the crankshaft pulley a few full revolutions to check that all the timing marks remain aligned. If they shift, reset the timing and try again. This simple step can save you a lot of time and effort down the road.
