Husqvarna YTH20K46 Belt Diagram and Maintenance Guide

To replace or maintain the belt on your Husqvarna YTH20K46, refer to the belt diagram for the correct routing and part numbers. The diagram provides a clear guide to identify each part, including the path the belt takes over pulleys and spindles. Ensuring the proper routing will prevent wear and misalignment, which can cause operational issues.

The main drive belt on the Husqvarna YTH20K46 connects the engine to the transmission, powering the mower’s movement. This belt also drives the deck, so regular checks for wear or damage are necessary. Refer to the specific part numbers for replacement to maintain proper functionality and ensure the best fit.

When replacing the belt, make sure to adjust the tension according to manufacturer specifications. Incorrect tension can result in the belt slipping or failing prematurely. Always use the correct replacement parts to avoid complications and ensure your mower performs at its best.

Husqvarna YTH20K46 Belt Diagram

The Husqvarna YTH20K46 lawn tractor features a precise belt configuration for optimal performance. Understanding the belt diagram is crucial for maintaining the mower’s functionality and ensuring smooth operation. The diagram clearly illustrates the routing of the drive, mower, and other belts that are integral to the machine’s operation.

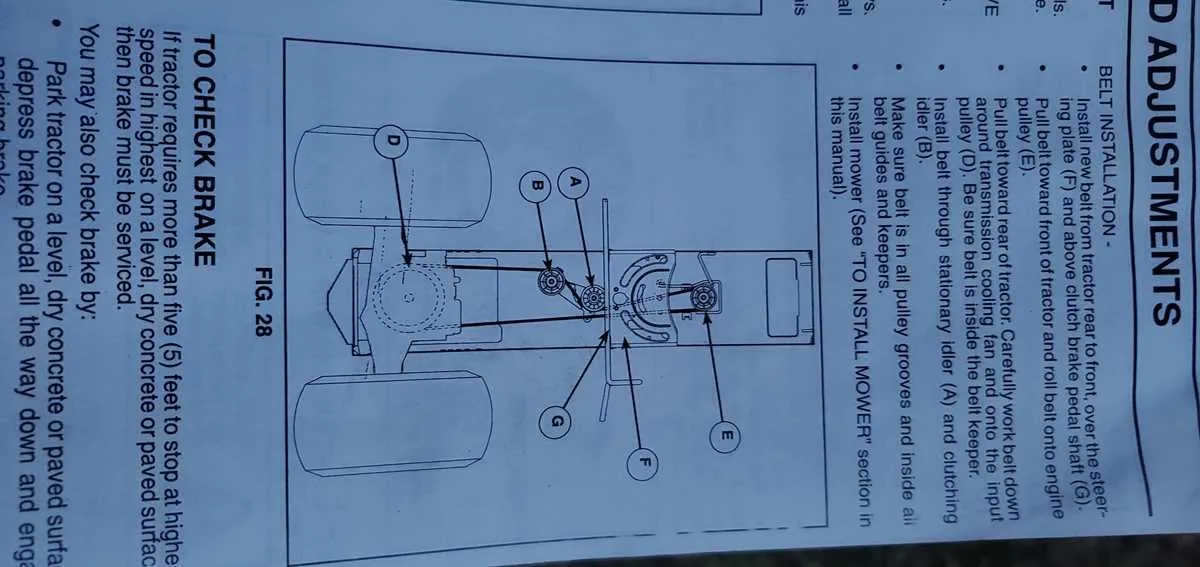

The primary drive belt runs from the engine’s crankshaft pulley to the transmission, powering the wheels. It must be aligned properly to avoid excessive wear. If the belt is too loose or too tight, it can result in slippage or premature wear. Regular inspection for cracks, frays, and signs of wear is recommended to avoid malfunction.

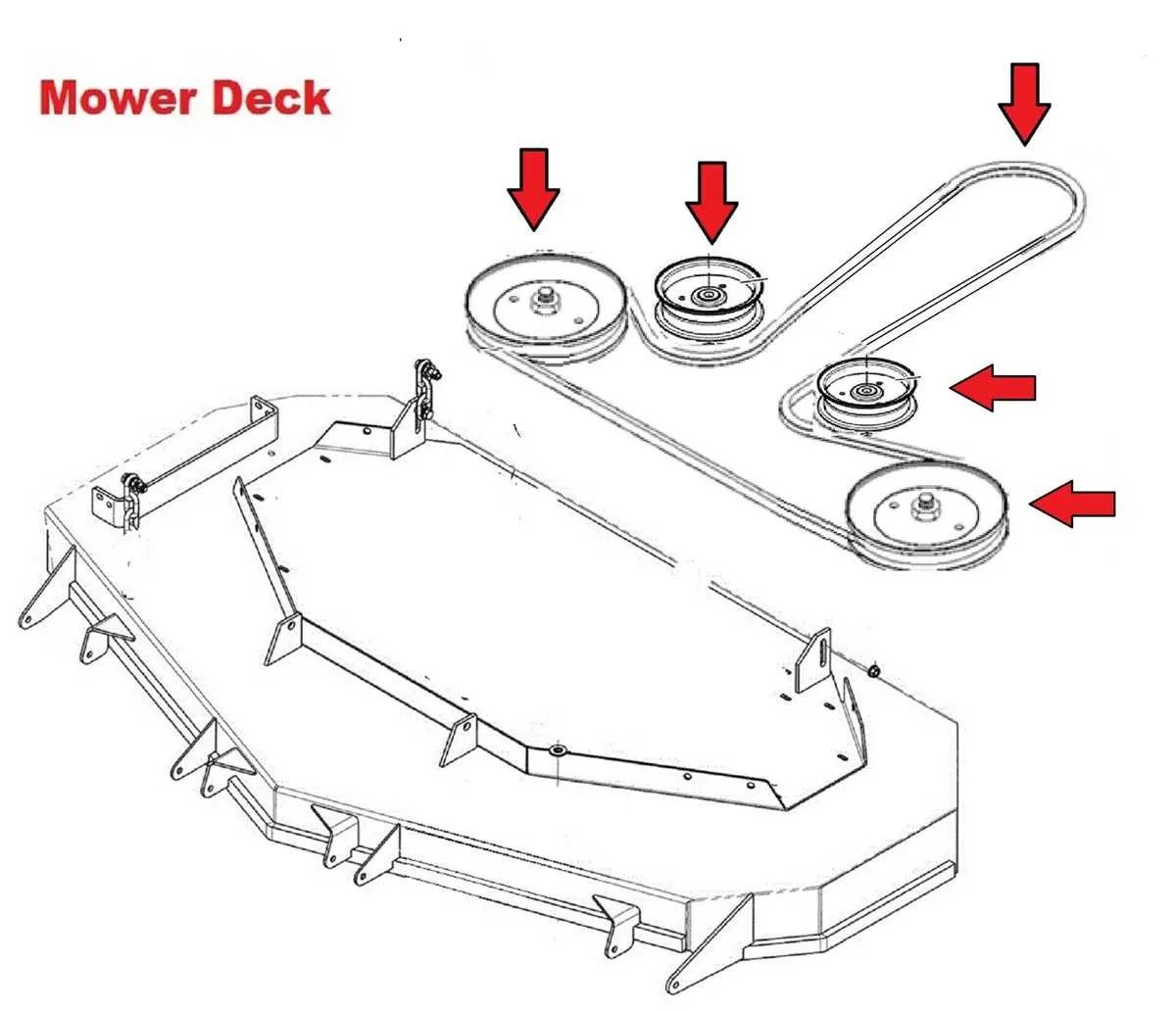

The mower deck belt transfers power from the engine to the blades. This belt is critical for cutting performance. Inspect it regularly for proper tension, especially after long periods of use. A worn mower deck belt can lead to uneven cuts or reduced power to the blades.

The idler pulleys play a significant role in maintaining tension and guiding the belts. Check these components for proper movement and absence of rust or wear. Replace any damaged pulleys to maintain optimal performance.

For accurate belt replacement, always refer to the Husqvarna YTH20K46 belt diagram. Ensure that you follow the exact routing to avoid misalignment. Misalignment can cause belt failure or even damage to other components, reducing the lifespan of the machine.

How to Interpret the Husqvarna YTH20K46 Belt Diagram

To correctly interpret the Husqvarna YTH20K46 belt diagram, follow these steps:

1. Locate the belt routing path: The diagram provides a clear representation of how the belt moves around the pulleys. Identify the tensioner, idler pulleys, and main drive components. Understanding the path ensures the correct installation of the belt.

2. Understand the pulley designations: The diagram labels each pulley with numbers or letters. These labels correspond to specific components such as the engine pulley, deck pulley, or transmission pulley. Cross-reference the labels with your machine’s manual to verify their positions.

3. Check belt length and type: The diagram often indicates the specific belt size required for optimal performance. Ensure that the belt in use matches the one specified in the diagram to avoid slipping or premature wear.

4. Review tensioning instructions: The diagram may highlight the required tension for the belt. Improper tension can lead to belt slippage or damage. Follow the tensioning guidelines provided to maintain consistent performance.

5. Follow step-by-step installation: The diagram often provides directional arrows or stepwise instructions for belt installation. Pay close attention to these details to avoid mistakes and ensure the belt is installed correctly from start to finish.

By adhering to the details in the diagram, you can avoid common issues such as incorrect routing or improper tension, ensuring the Husqvarna YTH20K46 runs smoothly.

Step-by-Step Process for Replacing the Belt on the Husqvarna YTH20K46

1. Disconnect the spark plug to prevent accidental starting while working on the mower.

2. Lift the mower using a jack or support stands to access the underside. Make sure it is stable before proceeding.

3. Remove the cutting deck by unscrewing the bolts and detaching the deck from the mower body. This will provide clear access to the belt system.

4. Locate the drive belt and carefully remove any covers that protect it. Use a wrench to loosen the bolts holding the belt tensioner in place.

5. Release the belt tension by pushing or rotating the tensioner arm. This will allow the belt to slide off the pulleys easily.

6. Inspect the belt for wear and damage. If the belt is worn, replace it with a new one. Ensure that the new belt matches the specifications of the Husqvarna YTH20K46 model.

7. Install the new belt by following the same path as the old belt. Refer to the diagram for proper routing of the belt around the pulleys and tensioners.

8. Once the belt is in place, reattach the tensioner and tighten the bolts to secure it. Check that the belt has the correct tension before proceeding.

9. Reassemble the cutting deck, ensuring that all bolts are tightened securely.

10. Reconnect the spark plug, lower the mower, and test the new belt by starting the mower. Ensure everything is running smoothly and there is no unusual noise.

Common Issues with the Belt System on the Husqvarna YTH20K46

Slipping Belt – A common issue is the belt slipping, often caused by wear or incorrect tension. Ensure the belt is properly tightened, as too much slack can result in inefficient performance and potential damage. Check for signs of wear and replace the belt if necessary.

Damaged Belt – Over time, belts may become cracked or frayed. Inspect the belt regularly for visible signs of damage. If you notice any damage, replace the belt immediately to prevent further complications.

Misalignment – Misaligned pulleys can cause the belt to wear unevenly, leading to premature failure. If you notice the belt running off-track, check the pulleys for alignment and adjust them as needed. Proper pulley alignment is crucial for extending the life of the belt system.

Worn Pulleys – Pulleys that are worn or damaged can cause unnecessary friction and affect the belt’s performance. Inspect pulleys for wear and replace them if you detect any grooves or cracks. Properly functioning pulleys ensure smooth belt operation.

Incorrect Belt Size – Using the wrong size belt can lead to improper tension and cause premature wear. Always use the manufacturer-recommended belt size to avoid unnecessary strain on the system.

Debris Build-Up – Grass, dirt, and other debris can accumulate around the belt and pulleys, causing friction and reducing belt life. Regularly clean the area around the belt system to prevent debris from interfering with the belt’s operation.
