Craftsman LT 1500 Drive Belt Diagram and Maintenance Guide

The Craftsman LT 1500 drive belt is an essential component of the lawn tractor’s functionality, powering the mower deck and transmission. Ensuring the correct routing and installation of this belt is key to avoiding damage and maintaining smooth operation. A misaligned or worn belt can lead to inefficient mowing and even engine failure.

Begin by consulting the drive belt diagram to identify the correct path and tension for the belt. Proper alignment of the belt ensures that it stays in place and functions effectively, providing optimal performance. Regular inspection of the belt for wear, cracks, or fraying is highly recommended to prevent unexpected breakdowns.

For ease of replacement, always refer to the specific Craftsman LT 1500 diagram for belt routing. This will give you a clear step-by-step guide, making the replacement process straightforward. Make sure to use a high-quality replacement belt designed for the LT 1500 to maintain performance and avoid frequent replacements.

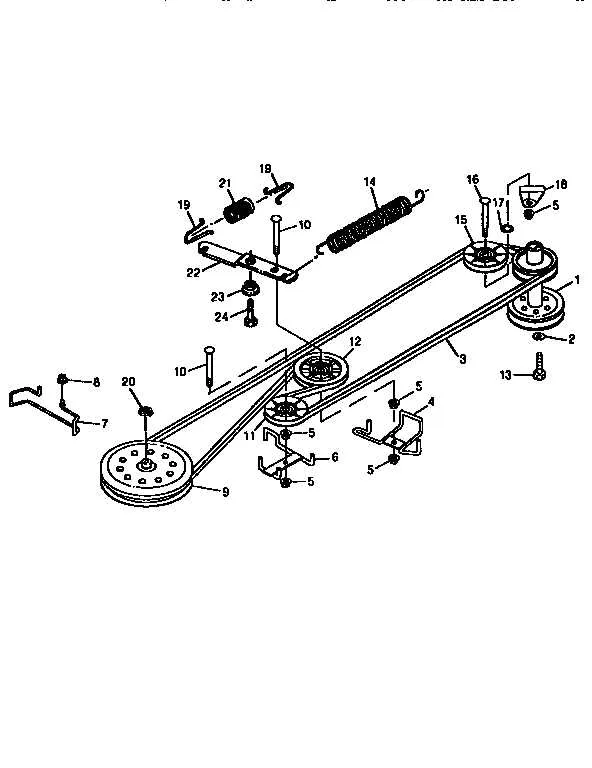

Craftsman LT 1500 Drive Belt Diagram

The Craftsman LT 1500 drive belt diagram provides a clear layout of the belt’s path and the components it interacts with. The drive belt system is crucial for transferring power from the engine to various moving parts, including the mower deck and the transmission. Understanding the diagram can simplify the process of replacement or troubleshooting.

Ensure the correct routing of the belt through the pulleys and idlers as indicated in the diagram. The belt should be positioned precisely to avoid slippage or premature wear. Pay attention to the direction of the belt and ensure it is not twisted during installation. A properly routed belt ensures smooth operation and reduces strain on the engine.

For maintenance, inspect the belt for cracks, fraying, or signs of wear. If the belt has noticeable damage, replace it immediately. Use the diagram to verify that the new belt is installed correctly. Regularly checking the tension of the drive belt will prevent excessive wear and maintain optimal performance of the LT 1500 mower.

How to Properly Route the Drive Belt on a Craftsman LT 1500

Ensure the mower is powered off, and the ignition key is removed before working on the drive belt.

1. Lift the front of the mower deck using a jack or lift, providing enough space to access the drive system.

2. Locate the drive belt, typically running from the engine pulley to the transmission pulley. Note the existing routing to serve as a reference.

3. Begin by threading the belt around the engine pulley, ensuring it sits firmly in place. The belt should follow the path over the tensioner pulley next, which helps regulate the belt’s tightness.

4. Carefully route the belt over any idler pulleys in its path. These pulleys guide the belt’s movement and prevent slack. Ensure the belt is positioned properly on each pulley, paying close attention to the direction of rotation.

5. Check the alignment of the belt with the pulleys. It should be seated properly without any visible slack or tension issues. If the belt is misaligned, it can lead to premature wear or operational failure.

6. After securing the belt around all pulleys, check that the tensioner pulley is exerting adequate pressure on the belt. This ensures the belt remains taut during operation.

7. Lower the mower deck back to its original position and test the system by turning the ignition key and running the mower briefly. Observe if the belt operates smoothly without slipping or unusual noise.

8. If the belt shows signs of wear or does not operate correctly, repeat the routing process or replace the belt as needed.

Common Issues with the Drive Belt on Craftsman LT 1500 and How to Fix Them

If your Craftsman LT 1500’s drive belt is slipping or broken, it can lead to poor performance or even engine failure. The most common issues you may encounter include belt wear, incorrect belt tension, and improper routing.

First, check for wear and tear. If the belt appears frayed, cracked, or glazed, it’s time for a replacement. A worn belt won’t grip the pulleys properly and can cause the mower to lose power or stop working altogether. Always use a genuine Craftsman belt for optimal performance.

Next, inspect the belt tension. A loose or too-tight belt can cause the mower to malfunction. Adjust the tension by adjusting the tensioner spring to the manufacturer’s specifications. You should be able to push the belt down with light pressure but not excessively. If the tensioner is faulty, replace it to ensure proper belt alignment.

Incorrect belt routing is another issue that often arises. If the belt is installed incorrectly, it can slip off or cause friction that leads to damage. Double-check the diagram to ensure the belt is routed correctly around the pulleys and idler arms.

Finally, ensure all pulleys are in good condition. Damaged or misaligned pulleys can cause the belt to slip or become damaged prematurely. Check the pulleys for cracks, rust, or wobbling. If necessary, replace the damaged pulleys to avoid further issues.

Step-by-Step Guide to Replacing the Drive Belt on a Craftsman LT 1500

Lift the front of the mower using a jack or lift to ensure clear access to the underside. Secure it in place to prevent any movement during the process.

Remove the mower deck. Start by disconnecting the deck lift links and the PTO (Power Take-Off) cable. Then, use a wrench to unscrew the deck bolts. Carefully slide the deck out from under the mower.

Locate the drive belt on the underside of the mower deck. Take note of its routing pattern to avoid confusion during reinstallation. This step will be helpful when you install the new belt.

Release the tension on the old drive belt by removing the tension spring or using a wrench to loosen the belt tensioner. Once the tension is released, carefully slide the old belt off the pulleys.

Check all pulleys for any signs of damage or wear. Replace any components that are cracked or corroded to prevent future issues.

Place the new belt over the pulleys, following the exact routing pattern of the old one. Ensure the belt is properly seated on all pulleys, with no slack or misalignment.

Reattach the tension spring or tighten the belt tensioner to restore the correct tension on the new belt. Check the belt’s alignment and adjust if necessary.

Reinstall the mower deck by reversing the steps used during removal. Attach the PTO cable and secure the deck with bolts and lift links.

Lower the mower back to the ground and test the belt by running the mower at a slow speed. Listen for any abnormal noises and verify that the belt is operating smoothly.

If everything is functioning correctly, you have successfully replaced the drive belt on your Craftsman LT 1500.
