John Deere 214 Drive Belt Diagram and Installation Guide
If you’re replacing or adjusting the drive belt on your John Deere 214, a detailed diagram will save you time and frustration. A well-maintained drive belt ensures smooth operation of your mower’s transmission and cutting systems. Follow the steps closely, referring to the diagram for correct routing and alignment of each component.
The drive belt is a critical component in transferring power from the engine to the mower’s transmission. To keep it functioning properly, you’ll need to follow the diagram to install the belt in the correct position. Pay attention to the tension and alignment as described in the manual, which will help prevent slippage or premature wear.
Make sure to replace the belt if it shows signs of wear or damage, such as cracks, fraying, or stretching. A worn-out belt can lead to a loss of power and inefficiency. Refer to the John Deere 214 drive belt diagram for accurate details on routing and component positions, ensuring you get the best performance from your machine.

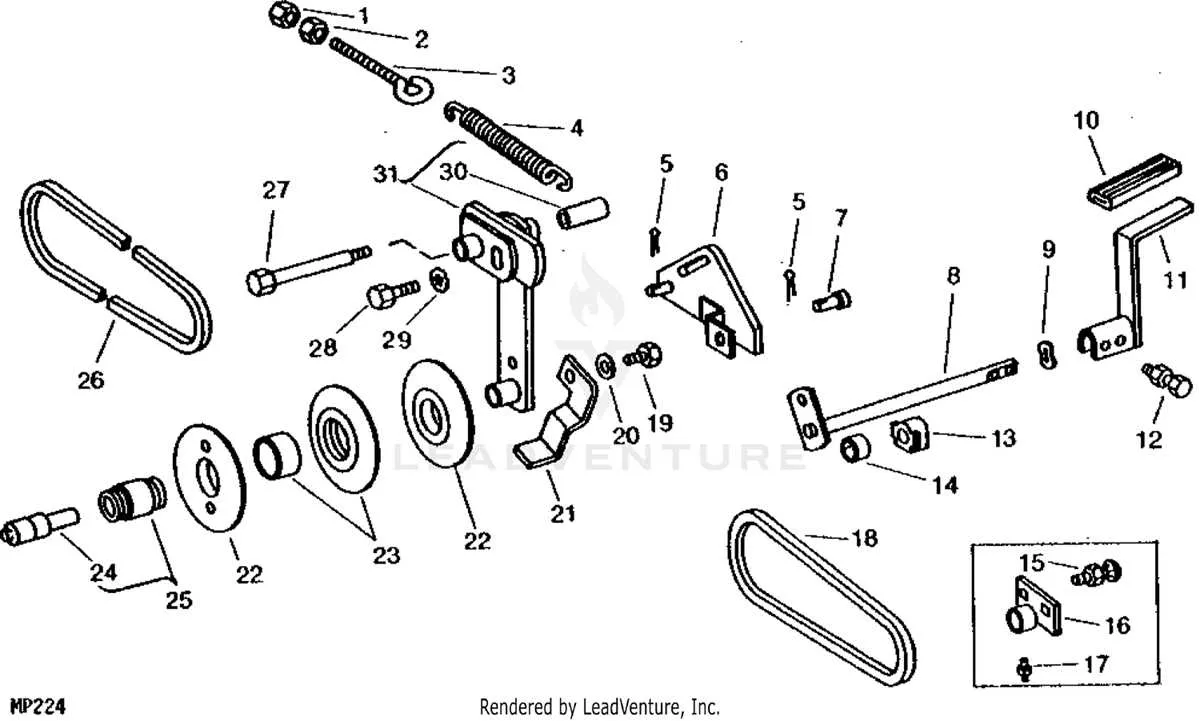

John Deere 214 Drive Belt Diagram
For replacing or adjusting the drive belt on the John Deere 214, follow the diagram closely to ensure a smooth operation. The drive belt connects the engine’s pulley system to the transmission, transmitting power to the wheels and mower blades. Accurate installation is key to proper performance.
The belt path on the John Deere 214 is designed to go over a series of pulleys, including the engine pulley, the transmission pulley, and the deck pulleys. Ensure that the belt runs over each pulley in the exact order shown in the diagram. Pay attention to the tensioner pulley that keeps the belt tight during operation. If the tension is too loose, the belt can slip or cause improper functioning of the mower deck.
Before beginning the replacement, make sure to lift the mower deck to access the pulleys easily. Use a socket wrench to remove any covers or guards blocking your way. Once you have access to the pulleys, remove the old belt by releasing the tension on the tensioner pulley.
When installing the new belt, double-check that it is routed according to the diagram. Make sure the belt sits properly on all pulleys, especially the idler pulleys, which can cause alignment issues if not installed correctly. After the belt is in place, manually rotate the engine pulley to ensure the belt moves smoothly along its path.
If the belt does not stay tight, inspect the tensioner and adjust as needed. A worn or damaged tensioner will need to be replaced to maintain proper belt tension and prevent slippage.
Regular maintenance of the drive belt includes checking for wear, cracking, or fraying. Replacing a damaged belt early can save you time and prevent further damage to other components. Always refer to the owner’s manual for the correct part number and any additional instructions related to your specific model of the John Deere 214.
How to Identify and Locate the Drive Belt on John Deere 214
To locate the drive belt on a John Deere 214, first lift the seat and remove the battery cover. You’ll find the belt near the engine, running from the crankshaft pulley to the transmission pulley. Make sure to inspect both pulleys for any signs of wear or damage.
Next, follow the belt path from the engine to the mower deck. Check for any obstructions or debris that could be blocking the belt’s movement. The belt runs along a series of idler pulleys and guides, which should be smooth and free of rust or corrosion.
If you need to remove the belt for replacement, start by loosening the tensioner pulley, which keeps the belt taut. This will allow you to slip the belt off easily. Be careful not to force any parts as this can cause damage to the pulleys or the belt itself.
Inspect the belt for any cracks, fraying, or significant wear. If the belt is damaged, replacing it with the correct part number will ensure your mower runs smoothly.
Step-by-Step Guide to Replacing the Drive Belt on a John Deere 214
First, ensure your John Deere 214 is turned off, the engine is cool, and the ignition key is removed.
Begin by lifting the front end of the mower using a jack or suitable lifting equipment to access the underside. Secure the mower to prevent any movement.
Remove the mower deck by loosening the bolts and detaching it from the tractor. Set the deck aside in a safe place.
Next, locate the old drive belt. It runs through the pulleys that power the mower’s blade system. You may need to remove the belt cover, depending on the model, by unscrewing the retaining bolts.
Release the tension on the belt by loosening the tensioner pulley. Use a wrench to slowly reduce the tension, which will allow you to remove the belt more easily.
Once the tension is released, carefully remove the old drive belt from the pulleys. Take note of its path, as you will need to route the new belt in the same way.
Install the new belt by following the same path as the old one. Make sure the belt fits properly into the grooves of each pulley. Be mindful of belt alignment, as incorrect installation can cause wear or malfunction.
Reapply tension to the belt by adjusting the tensioner pulley. Ensure the belt is tight but not overly stretched.
Reattach the mower deck by aligning it with the mounting points and tightening the bolts securely.
Finally, test the mower to ensure everything is functioning correctly. Engage the drive system and check for smooth operation of the belt and pulleys.
Common Issues with John Deere 214 Drive Belts and Troubleshooting Tips
If your John Deere 214 is showing signs of drive belt issues, the cause is likely one of the following common problems:
1. Worn or Cracked Belt: Over time, the drive belt can wear down from constant friction and exposure to the elements. If the belt is cracked or shows visible signs of fraying, it may slip or fail to transfer power efficiently. Inspect the belt regularly for signs of wear. Replace it if it shows damage.
2. Incorrect Belt Tension: A loose or overly tight drive belt can lead to poor performance or belt slippage. Check the belt tension by pressing down in the middle of the belt. It should deflect about half an inch. Adjust the tension using the tensioner if necessary.
3. Misaligned Pulley: A misaligned pulley can cause the belt to wear unevenly, leading to premature failure. If the belt isn’t tracking straight across the pulleys, inspect the pulleys for alignment. You may need to adjust or replace the pulley to ensure proper alignment.
4. Belt Slipping: Slipping usually occurs when the belt is not properly tensioned or when the pulleys are worn. If the belt slips while operating, tighten the belt tensioner and replace any worn pulleys. Check the condition of the belt too–sometimes it needs replacing even if it appears functional.
5. Dirty or Lubricated Pulleys: Accumulation of dirt, debris, or grease on the pulleys can reduce belt friction, causing it to slip. Clean the pulleys thoroughly using a degreaser, and ensure they are free of contaminants before reassembling the parts.
6. Overheating: Continuous operation in hot conditions can cause the belt to expand and become less effective. If your drive belt overheats, ensure the engine cooling system is functioning correctly and that air is circulating freely around the drive belt area.
7. Faulty Belt Tensioner: A faulty or worn-out belt tensioner can prevent proper belt tension, leading to slipping or stretching. If the tensioner isn’t maintaining the correct tension, it should be replaced with a new one to restore performance.
Regular inspection and proper maintenance can extend the life of your John Deere 214’s drive belt. Replace worn components promptly and adjust settings as necessary to avoid costly repairs or breakdowns.
