Buick Enclave Serpentine Belt Diagram and Routing Guide
Understanding the serpentine belt system in your Buick Enclave is crucial for maintaining the vehicle’s performance. The serpentine belt drives several essential components like the alternator, power steering pump, and air conditioning compressor. If any part of this system fails, it can lead to a complete loss of functionality in critical vehicle systems.
Inspecting the belt regularly helps prevent unexpected breakdowns. Look for signs of wear such as cracking, fraying, or glazing. If the belt is loose or shows signs of slipping, it may need tightening or replacement. A well-maintained belt ensures that all components run smoothly and efficiently.
Replacement guidelines should follow the manufacturer’s recommended intervals. Typically, the serpentine belt in the Buick Enclave should be replaced every 60,000 to 100,000 miles. However, it’s important to always check for visible damage and listen for any unusual noises coming from the engine area as a signal that the belt may need attention sooner.

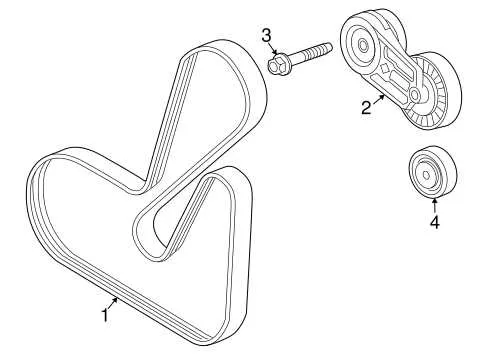

Buick Enclave Serpentine Belt Diagram

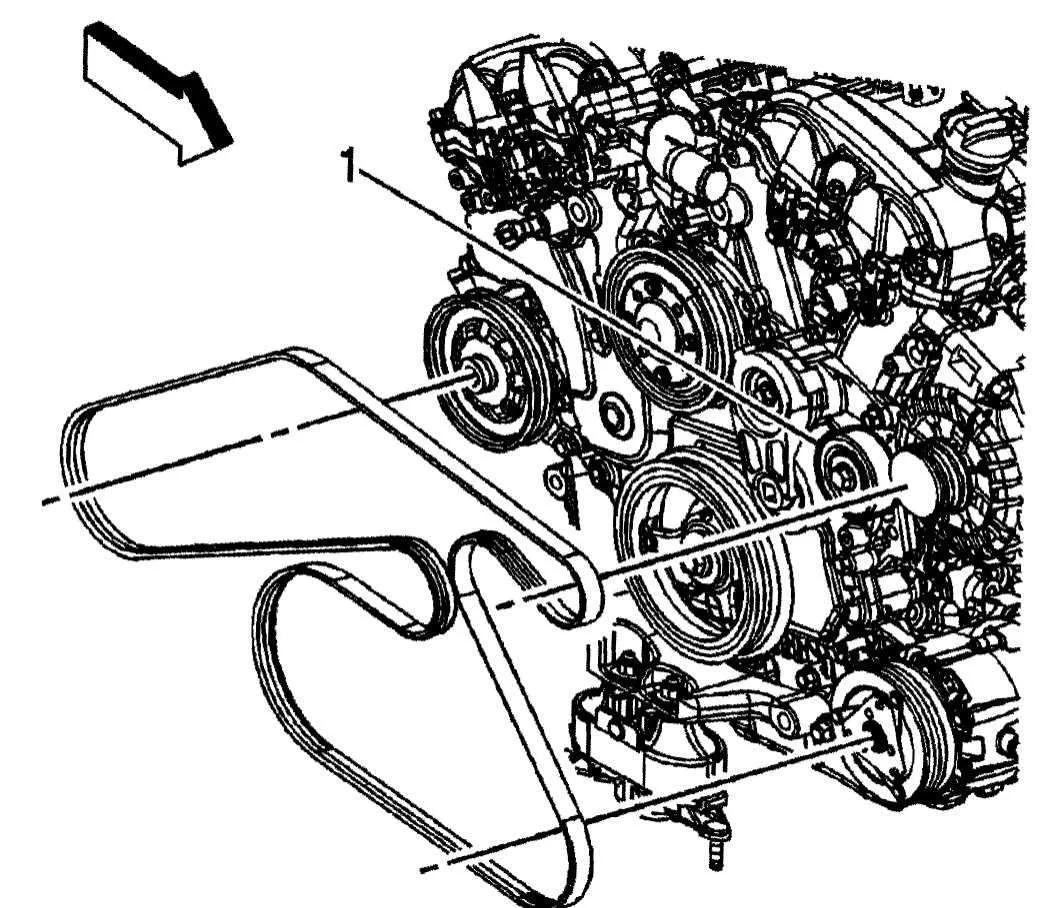

The serpentine belt in a Buick Enclave is crucial for powering several engine components, including the alternator, air conditioning compressor, power steering pump, and the water pump. Understanding its layout can help with troubleshooting and maintenance tasks. The diagram illustrates how the belt is routed around the pulleys, ensuring the smooth operation of these essential parts.
To replace or inspect the serpentine belt, follow these steps:
- Locate the serpentine belt tensioner, which is responsible for maintaining proper tension in the belt.
- Use a wrench or socket to relieve tension on the belt by rotating the tensioner, then remove the belt from the pulleys.
- Check the condition of the belt for cracks, wear, or fraying. Replace if necessary.
- Before installing the new belt, refer to the diagram to ensure proper routing around the pulleys.
- Install the new belt by following the same routing, making sure it is seated correctly on all pulleys.
For optimal performance, replace the serpentine belt every 60,000 to 100,000 miles or sooner if you notice signs of wear. Always double-check the belt’s tension after installation to prevent slippage or excessive wear.
How to Locate the Serpentine Belt on a Buick Enclave
To locate the serpentine belt on your Buick Enclave, open the hood and locate the engine. The serpentine belt runs along the front of the engine, connecting various components such as the alternator, power steering pump, and air conditioning compressor. It’s usually visible when you look directly at the front of the engine bay, on the driver’s side.
The belt is typically routed around pulleys and tensioners. Look for a diagram on the engine cover or near the radiator support, which shows the exact routing of the serpentine belt. If the diagram is not visible, check your owner’s manual for reference.
For easier access, remove any components or covers that might obstruct the belt’s visibility, such as the engine cover or splash shield. If the belt is difficult to see, use a flashlight to get a better view of the area.
To confirm you’ve found the serpentine belt, it will be a single, continuous belt, unlike timing belts, which are usually located inside the engine and are not visible without disassembly.
Steps for Inspecting the Condition of the Serpentine Belt

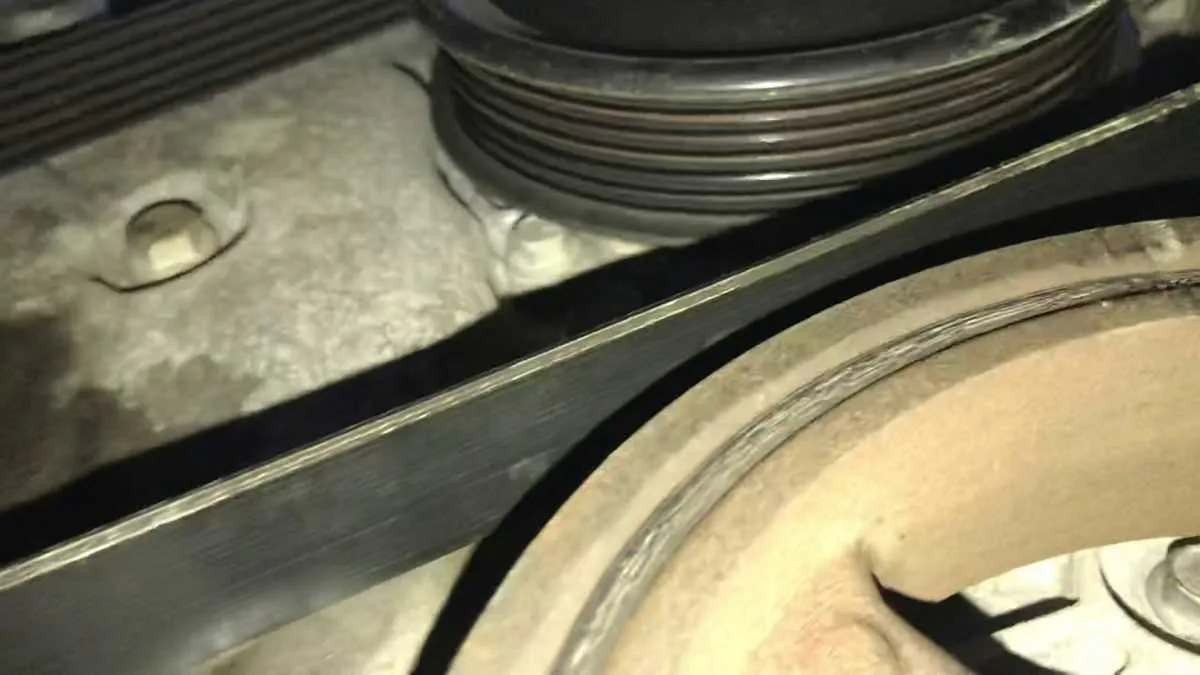

Begin by visually inspecting the serpentine belt for cracks, fraying, or any signs of wear. Pay close attention to the belt’s surface; deep cracks or abrasions indicate that the belt should be replaced.
Check for any glazing or shiny spots on the belt. This often suggests that the belt is slipping, which can reduce its efficiency and lead to further damage. If the belt looks too smooth, it may be time to replace it.
Ensure the belt is properly aligned on the pulleys. Misalignment can cause the belt to wear unevenly, leading to premature failure. If the belt is off-track, adjust the tensioner to correct the position.
Verify the tension of the belt by pressing down on it. The belt should not move excessively. If the belt is too loose, the tensioner may need to be adjusted or replaced.
Listen for any unusual noises such as squeaking or squealing, which could indicate friction between the belt and pulleys. These noises often suggest that the belt needs to be replaced or that the pulleys require lubrication.
Inspect the pulleys for any damage or wear. Damaged pulleys can cause the belt to degrade faster. If any pulley appears worn, replace it along with the belt.
Common Issues with the Serpentine Belt and How to Fix Them
One common issue with the serpentine belt is visible wear, such as cracking or fraying. If you spot cracks or frays along the belt, it’s a clear sign that the belt is deteriorating. Replacing the belt is the only solution. Delaying replacement can lead to a complete failure of the belt, potentially damaging other components such as the alternator or power steering pump.
Another problem is belt slippage, which may cause squealing or whining noises. This happens when the belt becomes loose or the tensioner fails. To fix this, inspect the tensioner for proper tension. If it’s faulty, replace the tensioner and tighten the belt accordingly.
Improper alignment of the belt can also lead to issues. Misalignment can cause the belt to wear unevenly or fall off entirely. Check the pulleys and ensure they are properly aligned. If misalignment is found, you may need to replace the affected pulley or the entire assembly.
Lastly, contamination with oil or coolant can cause the serpentine belt to slip or degrade. If you find oil or coolant residue on the belt, identify and fix the leak first. Afterward, clean the affected area and replace the belt if necessary.
