2013 Chevy Impala 3.6 Serpentine Belt Routing and Diagram Guide

The serpentine belt in a 2013 Chevy Impala 3.6 is crucial for driving multiple engine components like the alternator, water pump, and air conditioning compressor. Understanding how the belt routes through these parts ensures your engine runs smoothly. Use this diagram to identify the proper path of the belt and avoid unnecessary issues.

To replace or inspect the serpentine belt, start by finding the tensioner. Use a socket wrench to relieve tension and remove the old belt. Make sure to check the diagram before installation, as incorrect routing can lead to misalignment or component damage.

Ensure the new belt is the correct size and matches the diagram exactly. Once the belt is properly aligned, check for any resistance as you rotate the components it powers. A properly installed serpentine belt helps prevent wear and tear on the engine and prolongs its lifespan.

2013 Chevy Impala 3.6 Serpentine Belt Diagram

The serpentine belt in the 2013 Chevy Impala 3.6 is crucial for powering various engine components such as the alternator, power steering pump, and air conditioning compressor. Ensuring the belt is properly routed helps avoid unnecessary wear and damage to these components. Refer to the diagram to ensure the correct alignment and tensioning.

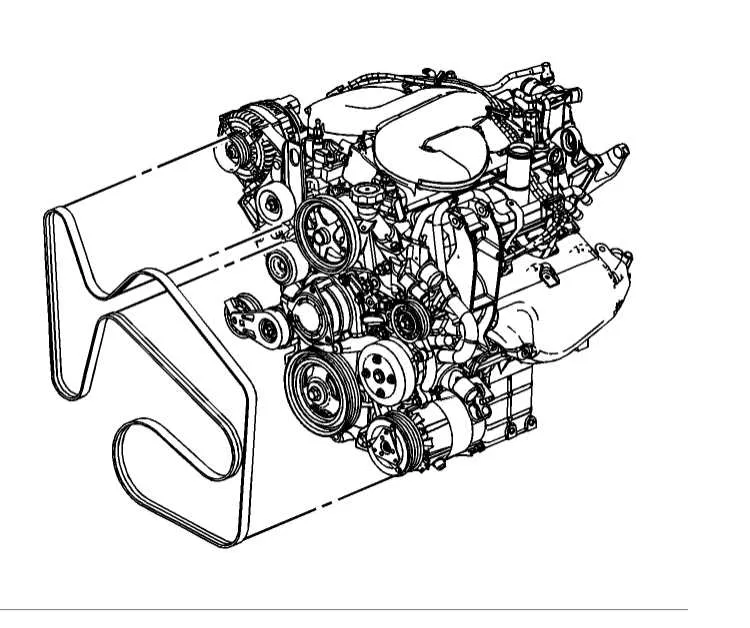

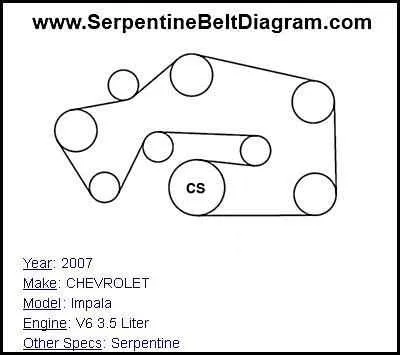

The diagram shows the path of the serpentine belt around the engine’s pulleys. The key components include the crankshaft pulley, tensioner, alternator, water pump, power steering pump, and AC compressor. The belt should run smoothly without any twists or misalignments. If the belt is worn or damaged, it is recommended to replace it promptly to avoid potential engine failure.

Inspect the tensioner regularly to ensure it is providing proper pressure on the belt. A failing tensioner can cause the belt to slip or come off entirely, leading to engine damage. If the belt shows signs of fraying, cracks, or excessive wear, replacement is necessary.

When replacing the serpentine belt, always ensure the new belt matches the manufacturer’s specifications for size and type. Incorrect installation or an improper belt can result in poor performance or engine overheating.

Identifying Key Components in the Serpentine Belt Layout

The serpentine belt on a 2013 Chevy Impala 3.6 is responsible for powering multiple components in the engine. Key components in this layout include the alternator, power steering pump, air conditioning compressor, water pump, and the tensioner pulley. Identifying each part is critical for diagnosing belt wear or failure.

Start with the alternator, which is typically located on the front of the engine. The belt is routed around the alternator pulley to generate electrical power. The power steering pump, found near the alternator, helps provide hydraulic pressure for the steering system. Be sure to check the condition of the pulley, as wear here can cause belt slippage.

The air conditioning compressor is another critical component in the serpentine system. It is responsible for circulating refrigerant through the A/C system. The belt runs over the compressor’s pulley, ensuring that the air conditioning operates smoothly when needed. Any misalignment in this part could lead to improper cooling performance.

The water pump, driven by the serpentine belt, circulates coolant through the engine. A faulty water pump will cause overheating, so it’s essential to inspect its condition. Look for signs of leaks or noise from the pump pulley.

The tensioner pulley maintains the proper tightness of the serpentine belt. If the tensioner fails, the belt can become loose, leading to slippage or even complete failure. Keep an eye on the pulley for signs of wear, such as cracking or difficulty maintaining tension.

To ensure the serpentine belt operates without issue, regularly inspect each of these components for signs of wear, damage, or misalignment. This will help maintain engine performance and prevent more costly repairs down the line.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 Chevy Impala 3.6

1. Disconnect the vehicle’s battery to prevent any electrical issues during the process.

2. Locate the serpentine belt. On the 2013 Chevy Impala 3.6, it runs over the alternator, power steering pump, water pump, and air conditioning compressor.

3. Find the tensioner pulley, which keeps the belt tight. Use a 3/8″ drive ratchet or a serpentine belt tool to relieve tension on the belt by rotating the tensioner counterclockwise.

4. With the tension released, slip the belt off the pulleys. Make sure to note the belt’s routing for correct installation of the new one. It’s helpful to take a picture or refer to the diagram under the hood.

5. Inspect the pulleys for any signs of wear or damage, such as cracks or misalignment. If needed, replace them before installing the new belt.

6. Install the new serpentine belt, following the exact routing from the diagram or your reference. Start by fitting the belt over the alternator and power steering pump, making sure it sits correctly on each pulley.

7. Once the belt is in place, rotate the tensioner pulley again with your ratchet or tool, and slide the belt onto the tensioner pulley last. Double-check that the belt is properly aligned on all pulleys.

8. Reconnect the vehicle’s battery. Start the engine to ensure the belt is running smoothly without any noise or slipping. If everything looks good, you’re done!

Common Issues with Serpentine Belt and Troubleshooting Tips

Look for wear and tear on the serpentine belt as the most frequent issue. Cracks, frays, or glazing indicate it’s time for a replacement. If the belt looks shiny and smooth, the rubber has hardened, reducing its grip on pulleys.

Listen for squealing noises, which often suggest a loose belt or a misaligned pulley. Tighten the belt and check the alignment to see if this resolves the sound. If the noise persists, inspect the tensioner for proper function.

Another sign of trouble is erratic steering or electrical system failures. If the serpentine belt is slipping or broken, it won’t drive the power steering pump or alternator properly. This can lead to loss of power steering or a dead battery.

If the engine overheats, check the water pump. The serpentine belt drives the water pump, and if it’s slipping or broken, coolant circulation stops, causing the engine to overheat.

Examine the tensioner pulley. If it’s faulty, it can cause the belt to slip, leading to poor performance or further damage to the components the belt drives. Test the pulley by hand; it should rotate smoothly without wobbling.

When troubleshooting, ensure the belt is installed correctly, following the diagram for your specific model. Misrouting the belt can cause it to rub against surfaces or cause excessive wear.
