2007 Toyota Tacoma Belt Diagram and Belt Routing Guide for Maintenance and Repair
For anyone maintaining a 2007 Toyota Tacoma, understanding the belt system and its layout is key to avoiding unnecessary repairs. The serpentine belt, along with auxiliary belts, powers essential engine components like the alternator, power steering pump, and air conditioning compressor. Having a clear belt diagram for your Tacoma ensures you know where every component connects, helping you with efficient maintenance or troubleshooting.
The 2007 Toyota Tacoma typically features a 4-cylinder or V6 engine, each with a different configuration for the belt routing. The serpentine belt layout for the 4-cylinder engine includes a single continuous belt, while the V6 configuration requires additional attention due to more complex routing. For both engines, the belt tensioner plays a crucial role in maintaining the proper tension for optimal performance.
Checking the belt periodically for signs of wear, cracks, or fraying is crucial to prevent failure. If any belt-related issues arise, consult the diagram to reattach or replace the belt properly. Ensure the tensioner is also functioning correctly to maintain proper tension and avoid misalignment. Keep the diagram handy, whether for belt replacement or a quick inspection, to keep your Tacoma running smoothly.

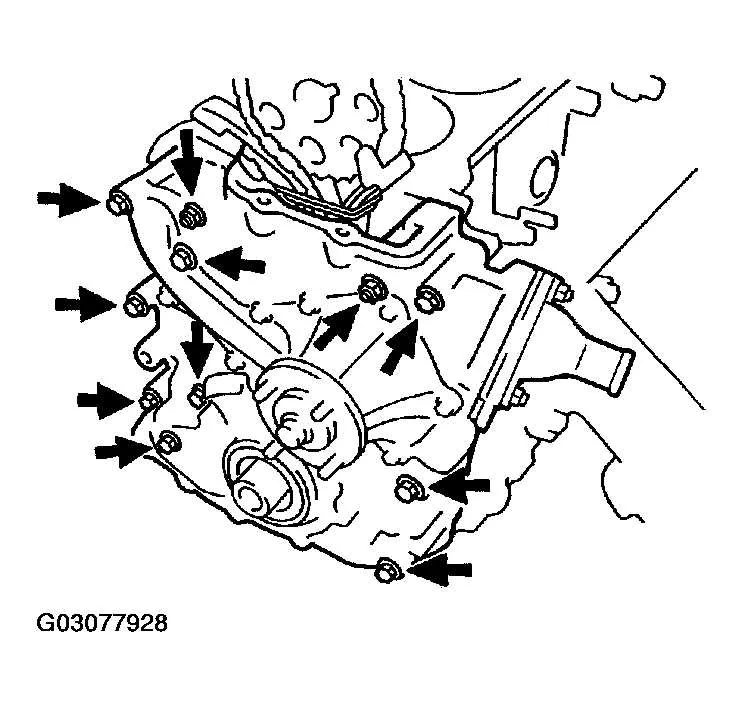

2007 Toyota Tacoma Belt Diagram
The 2007 Toyota Tacoma uses a serpentine belt system that drives several critical components of the engine. To ensure proper maintenance and avoid issues like belt slippage or wear, it’s vital to have an accurate diagram for reference. The serpentine belt in this vehicle typically powers the alternator, power steering pump, air conditioning compressor, and water pump, depending on the engine configuration.
For the 4-cylinder models, the diagram shows a single belt running over several pulleys, including the crankshaft pulley, tensioner, idler pulley, and accessory pulleys. The V6 models, on the other hand, feature a slightly more complex setup with additional pulleys. Make sure to follow the routing directions carefully to prevent belt misalignment.
If the belt shows signs of cracking, fraying, or glazing, it’s time to replace it. Always check the tension regularly, as a loose or overly tight belt can lead to premature wear or failure of components. A quick inspection can help prevent costly repairs.
For a visual guide, you can refer to the belt diagram located on the radiator support or under the hood of the Tacoma. It’s a helpful reference for ensuring proper belt routing and maintaining optimal engine performance.

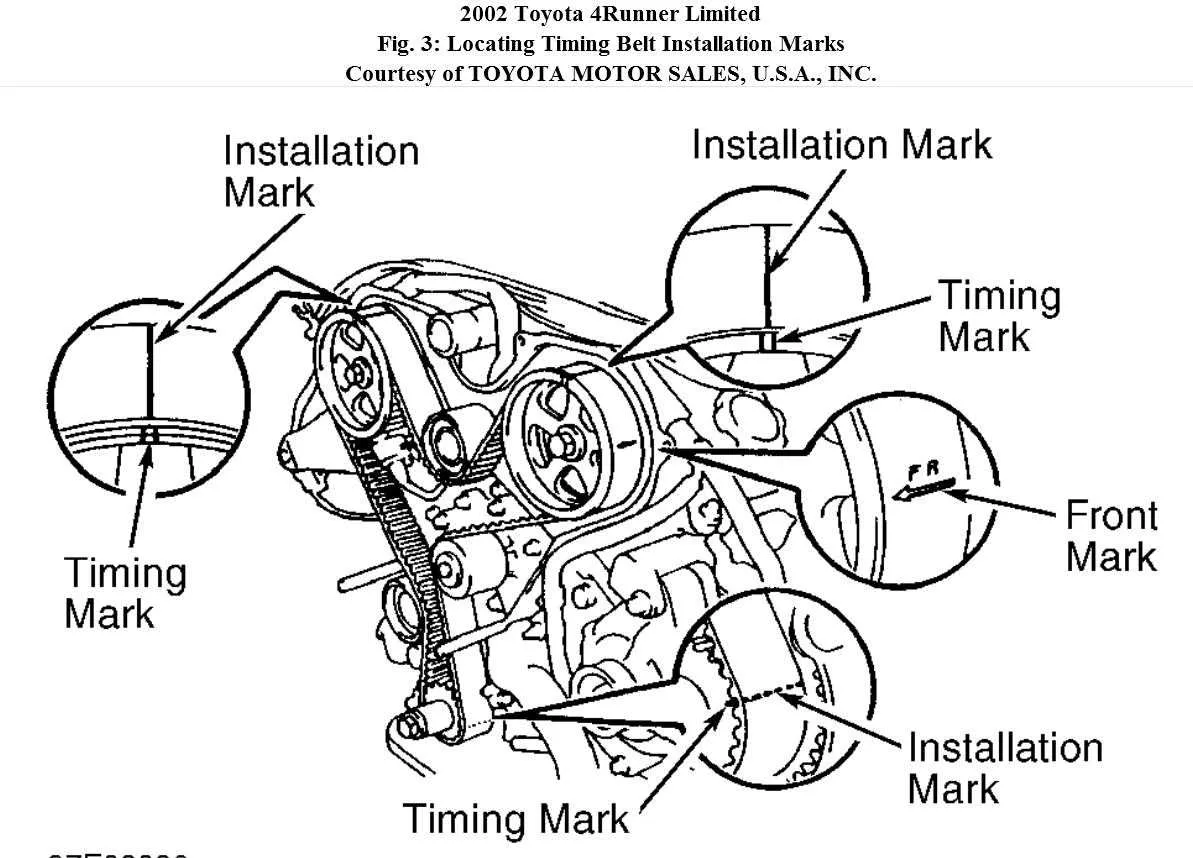

How to Read the 2007 Toyota Tacoma Serpentine Belt Diagram

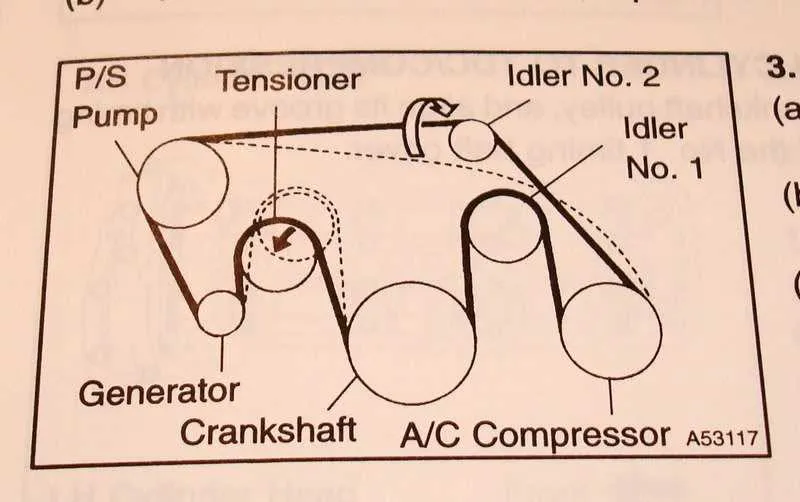

Locate the serpentine belt diagram on your 2007 Toyota Tacoma. It’s typically found on a sticker near the engine bay, often on the radiator support or engine cover. This diagram shows how the serpentine belt routes around the various pulleys in the engine system.
Understand the layout: the diagram illustrates the sequence of pulleys, including the alternator, power steering pump, AC compressor, idler pulley, and tensioner. The belt needs to loop around each one in the correct order to ensure proper functioning of all components.
Pay attention to the direction of rotation. Arrows on the diagram indicate the correct way the belt should move around the pulleys. The diagram will also show any optional pulleys or additional components, so make sure you follow the main route and ignore extras unless necessary.
Identify the tensioner pulley, which adjusts the belt’s tension. This component is often marked with a small arrow or label showing which way to rotate the tensioner in order to release the belt. If replacing the belt, take note of the tensioner’s position relative to the rest of the pulleys for easier installation.
If the diagram is missing or unclear, refer to the repair manual for additional details or check online resources for a clearer version. Proper belt routing is critical–incorrect installation can lead to engine damage or malfunctioning systems.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Toyota Tacoma
Replacing the serpentine belt on a 2007 Toyota Tacoma is a manageable task that can be completed in a few simple steps. Follow these instructions for a smooth process.
- Gather Tools and Parts
- New serpentine belt
- Socket set
- Wrench or ratchet
- Torque wrench
- Breaker bar (optional, for extra leverage)
- Automotive gloves (optional)
- Locate the Serpentine Belt Diagram
Before removing the old belt, find the belt routing diagram. This is typically found on a sticker in the engine bay, near the radiator or on the hood. Make sure you take a clear look at how the belt is routed for accurate installation.
- Release Tension from the Belt
The serpentine belt is held under tension by an idler pulley. Use a wrench or ratchet to rotate the tensioner pulley. This will loosen the belt, allowing you to slide it off the pulleys. Be sure to release the tension slowly to avoid injury.
- Remove the Old Belt
With the tension released, slide the belt off the pulleys. Start from the alternator pulley and work your way around. Keep the belt intact so you can compare its size with the new one.
- Check the Pulleys
Before installing the new belt, inspect the pulleys. Look for signs of wear or damage, such as cracks or roughness in the bearings. Replace any damaged pulleys to ensure the new belt operates smoothly.
- Install the New Belt
Begin by threading the new belt around the pulleys according to the diagram. Be sure it sits properly in each pulley groove. Ensure the belt is aligned correctly before moving to the next step.
- Reapply Tension
Once the new belt is in place, use the wrench or ratchet to rotate the tensioner pulley again, allowing the belt to tighten. Double-check the belt’s alignment and ensure it sits securely on all pulleys.
- Test the Belt
Start the engine and observe the belt while it’s running. Check for any unusual noises or misalignments. If everything looks good, turn off the engine.
- Final Check
With the engine off, give the belt a final visual inspection. Ensure it is securely placed in the grooves and is not too loose. Tighten the tension if necessary.
Now your 2007 Toyota Tacoma should be good to go with a new serpentine belt! Be sure to check the belt regularly for wear and replace it as needed.
Common Issues with the Serpentine Belt System on the 2007 Toyota Tacoma
The serpentine belt system on the 2007 Toyota Tacoma is prone to wear and tear over time. A common issue is belt cracking, which occurs when the belt becomes dry and brittle. This can lead to snapping or slipping, affecting engine performance and causing components like the alternator or power steering pump to stop functioning. Inspect the belt regularly for signs of cracks or fraying, especially in hot climates where the rubber can degrade faster.
Another frequent problem is belt misalignment. If the pulleys or tensioner are not properly aligned, it can cause the belt to wear unevenly, resulting in a squealing noise or erratic engine performance. In many cases, the tensioner or idler pulleys need replacing to correct the alignment.
Belt slippage is another concern, usually due to a worn-out tensioner or a loose belt. Slipping can lead to a decrease in engine power and poor charging performance. If the tensioner can no longer maintain the correct tension, it’s essential to replace it before it leads to further damage to the system.
Seized pulleys also cause issues within the serpentine system. If any pulley freezes up, it can stop the belt from turning properly, leading to engine overheating or electrical system failure. Listen for unusual noises that could indicate a seized pulley, and check each one for smooth movement when you rotate it by hand.
Lastly, dirt or debris buildup on the belt or pulleys can contribute to premature wear. Contaminants on the serpentine belt may cause it to slip or even break. Keep the engine bay clean and inspect the belt for dirt regularly to prevent this issue.
