2006 Jeep Wrangler 4.0 Serpentine Belt Diagram and Installation Guide
To maintain the 2006 Jeep Wrangler 4.0 engine, a correct understanding of the serpentine belt diagram is necessary. This diagram shows the exact path the serpentine belt follows, ensuring the proper functioning of engine accessories like the alternator, power steering pump, and air conditioning compressor.
The serpentine belt system in the 2006 Jeep Wrangler 4.0 is a crucial component that drives multiple engine accessories. It is essential to inspect the belt for wear, cracks, or other damage to avoid sudden breakdowns. Follow the belt routing diagram closely to ensure correct installation and avoid costly repairs.
Ensure you are familiar with the pulley locations and their specific alignment. Replacing or adjusting the belt requires proper tension, which should match the manufacturer’s recommended specifications. Use a belt tensioner tool for accurate adjustment and check the tension regularly to maintain optimal performance.

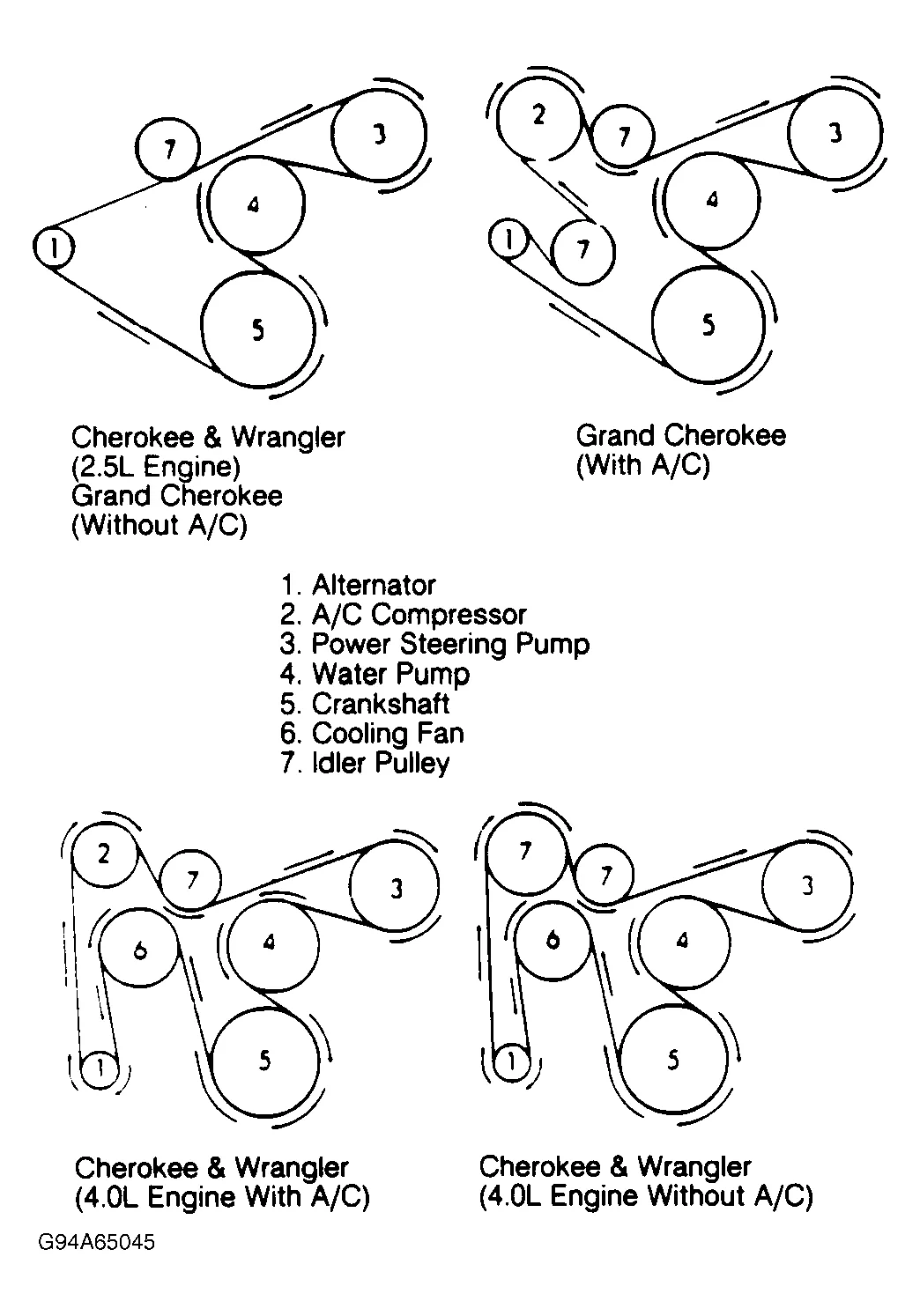

2006 Jeep Wrangler 4.0 Belt Diagram
The serpentine belt in the 2006 Jeep Wrangler 4.0 plays a critical role in driving multiple engine accessories such as the alternator, power steering pump, and air conditioning compressor. A clear understanding of the belt routing is vital for maintaining these systems in proper working order.
The belt diagram for the 2006 Jeep Wrangler 4.0 can be found on a label attached to the radiator support or inside the engine compartment. The diagram outlines the correct routing path, ensuring the serpentine belt is installed correctly to avoid premature wear or misalignment. Be sure to compare the diagram with the physical layout before starting any replacement work.
If the serpentine belt becomes damaged or worn out, it should be replaced immediately. Check for cracks, fraying, or visible damage to ensure the belt is functioning properly. Also, verify that the tensioner and pulleys are in good condition to prevent further issues.
Follow the diagram precisely when installing a new belt. Misrouting the belt can cause it to slip, resulting in poor performance or failure of engine accessories. If you’re unsure about the replacement process, consult a service manual or seek professional assistance to avoid complications.
Understanding the Serpentine Belt Routing for the 2006 Jeep Wrangler 4.0
To properly route the serpentine belt on a 2006 Jeep Wrangler 4.0, follow these steps:
- The belt should loop around the crankshaft pulley, which is the primary driver for the system.
- From the crankshaft, move the belt upward towards the water pump pulley.
- Ensure the belt wraps around the power steering pump pulley, followed by the alternator pulley.
- The belt should pass over the idler pulley located near the top of the engine bay.
- Wrap the belt around the tensioner pulley, making sure the tensioner is in a relaxed position when installing the belt.
- Finish by looping the belt around the AC compressor pulley if equipped with air conditioning.
Make sure the belt is properly aligned with all pulleys, as misalignment can cause premature wear and noise. Tighten the tensioner after installation to ensure the proper belt tension.
If the belt is difficult to install, use a serpentine belt tool to relieve tension on the tensioner pulley and provide more slack in the belt.
How to Diagnose Common Belt Issues in the 2006 Jeep Wrangler 4.0
Check for visible damage or wear on the serpentine belt. Cracks, fraying, or glazing can indicate the need for replacement. If you notice any of these signs, inspect the belt carefully for signs of tension imbalance or misalignment.
Listen for unusual noises while the engine is running. Squealing sounds often signal a loose or worn-out belt. If the noise persists after tightening, the belt may need replacing.
Inspect the belt tensioner. A faulty tensioner can cause the belt to slip or lose proper tension, affecting engine performance. Test the tensioner by applying moderate pressure with a wrench and check if it maintains its position. If it moves or doesn’t hold the correct tension, replace it.
Test the alternator, power steering, and other components driven by the serpentine belt. If you notice any issues with charging, steering, or air conditioning, the belt may not be turning the associated pulleys properly due to wear or misalignment.
Check for pulley misalignment. A misaligned pulley can cause the belt to slip off or wear unevenly. Examine each pulley to ensure they are aligned properly and in good condition.
If you experience reduced engine performance, it could be due to a slipping or damaged belt. In some cases, this can trigger a check engine light. Scan the vehicle for any trouble codes related to belt-driven components.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Jeep Wrangler 4.0
To replace the serpentine belt on your 2006 Jeep Wrangler 4.0, start by locating the belt tensioner. Use a socket wrench to rotate the tensioner counterclockwise, releasing tension on the belt. Carefully slide the belt off the pulleys. Keep track of the belt’s routing for reinstallation, either by taking a photo or referring to the vehicle’s manual.
Next, inspect the new belt to ensure it matches the old one in size and configuration. Begin by threading the new belt around the pulleys, following the correct routing as per the diagram. Make sure the belt sits properly in the grooves of each pulley to avoid misalignment.
Once the belt is in place, use the socket wrench to rotate the tensioner counterclockwise again and slide the belt under the tensioner pulley. Slowly release the tensioner, allowing it to apply the correct tension to the belt.
Finally, double-check the belt’s alignment on each pulley. Turn the engine over briefly by hand to ensure the belt moves smoothly and doesn’t slip off any pulleys. If everything is aligned, start the engine to confirm the belt is functioning properly.
