2013 Chevy Equinox Belt Diagram and Maintenance Guide

The 2013 Chevy Equinox belt diagram is crucial for understanding the configuration and routing of the serpentine belt, a vital component in the vehicle’s engine. The diagram provides an essential roadmap for replacing or repairing the belt when necessary. Begin by inspecting the diagram for the specific path of the belt, paying attention to the tensioner and idler pulleys, as they play key roles in maintaining the belt’s proper tension.

When replacing the serpentine belt, ensure that the routing matches the diagram exactly to prevent misalignment, which can lead to poor engine performance or damage. Start with the tensioner pulley; it will need to be released before removing the old belt. Once the new belt is in place, verify the alignment by rotating the engine by hand to ensure the belt moves smoothly without slipping or misrouting.

For anyone working on their 2013 Chevy Equinox, this diagram serves as an invaluable reference. Regular maintenance of the serpentine belt ensures the smooth functioning of various engine components, including the alternator, power steering, and air conditioning compressor.

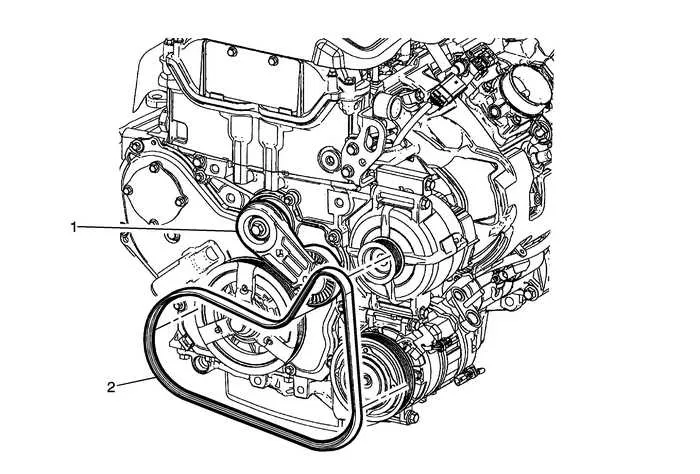

2013 Chevy Equinox Belt Diagram

To replace the serpentine belt on the 2013 Chevy Equinox, begin by locating the belt tensioner. Use a wrench or socket to relieve tension, allowing you to slide the old belt off the pulleys. Make sure to note the belt routing before removal for accurate installation of the new one. The diagram for the 2.4L engine model typically shows the serpentine belt looping around the crankshaft pulley, water pump, alternator, power steering pump, and air conditioning compressor. Pay attention to the direction of the belt’s grooves and ridges to ensure proper alignment.

Before installing the new belt, compare it with the old one to verify the correct size and length. Check the belt tensioner for any signs of wear, as it plays a key role in maintaining proper tension. Once the new belt is in place, use the wrench to release the tensioner back into position, securing the belt. Rotate the crankshaft manually to confirm that the belt is properly seated on all pulleys without slipping.

If you encounter any issues with the belt slipping or making noise after installation, double-check the routing. Misalignment can cause premature wear or failure. If the belt continues to malfunction, inspect the pulleys for any damage, such as cracks or worn bearings, which may require replacement.

How to Identify the Correct Belt Routing for 2013 Chevy Equinox

To identify the correct belt routing for your 2013 Chevy Equinox, first, locate the belt diagram typically found on the engine bay, near the front of the engine or on the radiator support. If the diagram is not visible, refer to the vehicle’s owner manual or service manual for an accurate diagram.

Next, ensure the engine is off and completely cool before proceeding. Using a belt tensioner tool or a wrench, loosen the tension on the serpentine belt. Carefully remove the belt from its position. Once removed, you can compare the old belt’s routing with the diagram for confirmation. Pay close attention to the direction the belt travels around each pulley, ensuring it matches the diagram’s routing path.

If replacing the belt, align the new one according to the correct routing path. Make sure the belt fits snugly on each pulley, without slack or misalignment. Tighten the tensioner to secure the belt in place, then manually rotate the engine a few times to ensure the belt runs smoothly.

For further verification, check the pulley grooves and the belt’s alignment. If you notice uneven wear on the old belt or pulleys, it could indicate that the routing is incorrect, and adjustments may be necessary.

Step-by-Step Instructions for Replacing the Belt on a 2013 Chevy Equinox

1. Begin by lifting the hood of the vehicle and securing it. Ensure the engine is completely cool before starting any work.

2. Locate the serpentine belt routing diagram. This is usually found near the front of the engine bay or on the radiator support. Take a clear picture or note the belt’s path.

3. Use a wrench or ratchet to relieve tension from the belt tensioner. Rotate the tensioner counterclockwise to release pressure on the belt.

4. Once the tension is released, carefully remove the serpentine belt from the pulleys. Keep track of the belt’s position for reference when installing the new one.

5. Inspect the old belt for signs of wear such as cracks, fraying, or glazing. If the belt shows any of these signs, it’s time for a replacement.

6. Install the new serpentine belt, following the diagram to ensure it runs in the correct path. Begin at the bottom pulley and work your way up to make sure the belt fits snugly on each pulley.

7. Once the belt is in place, rotate the tensioner again to apply tension to the new belt. Double-check that the belt is properly aligned and that it sits correctly on each pulley.

8. Start the engine and observe the belt in motion. Ensure there is no unusual noise, and that the belt is running smoothly over the pulleys.

9. If everything appears to be functioning correctly, close the hood and your work is complete.

Troubleshooting Common Belt Tension Issues on 2013 Chevy Equinox

If the serpentine belt on your 2013 Chevy Equinox seems loose or squeaks, the issue may be with the tensioner. The tensioner is responsible for maintaining the correct belt tension. First, check for any visible damage to the tensioner pulley or spring mechanism. If the pulley is misaligned or the spring is worn, it may not maintain proper tension, leading to slipping or wear on the belt.

Another common issue is the tensioner not applying enough pressure to the belt. This could be due to a faulty tensioner arm or spring. To verify this, use a tool to test the tensioner’s spring resistance. If it doesn’t provide consistent pressure, replacing the tensioner is recommended.

In some cases, the belt itself could be stretched or damaged, causing it to slip or make noise. Inspect the belt for cracks, fraying, or other signs of wear. If the belt appears damaged, replacing it with a new one is the best solution. Make sure the replacement belt is the correct size and type for the Equinox to ensure proper fit and tension.

Check the pulleys for alignment and wear. Misaligned pulleys can cause uneven tension on the belt, leading to slippage. If any pulleys are damaged, replace them immediately to prevent further tension issues.

If none of the above steps resolve the issue, consider inspecting the harmonic balancer and alternator pulley. These components, if worn or loose, can affect belt tension as well.
