2010 Fusion Serpentine Belt Diagram and Installation Guide
The serpentine belt on the 2010 Ford Fusion plays a key role in powering various components such as the alternator, air conditioning compressor, power steering pump, and more. Understanding its routing and maintenance is essential for vehicle longevity and performance.
Start by identifying the correct belt path. The 2010 Fusion uses a specific configuration to ensure that the belt engages properly with each pulley. Regularly check for wear signs like cracking, fraying, or slipping, which could indicate that a replacement is needed.
Ensure the tension of the serpentine belt is correct. Too much tension can cause unnecessary strain on components, while too little tension can lead to slippage. Use a belt tension gauge to measure the force required to maintain the correct tension, preventing premature wear.

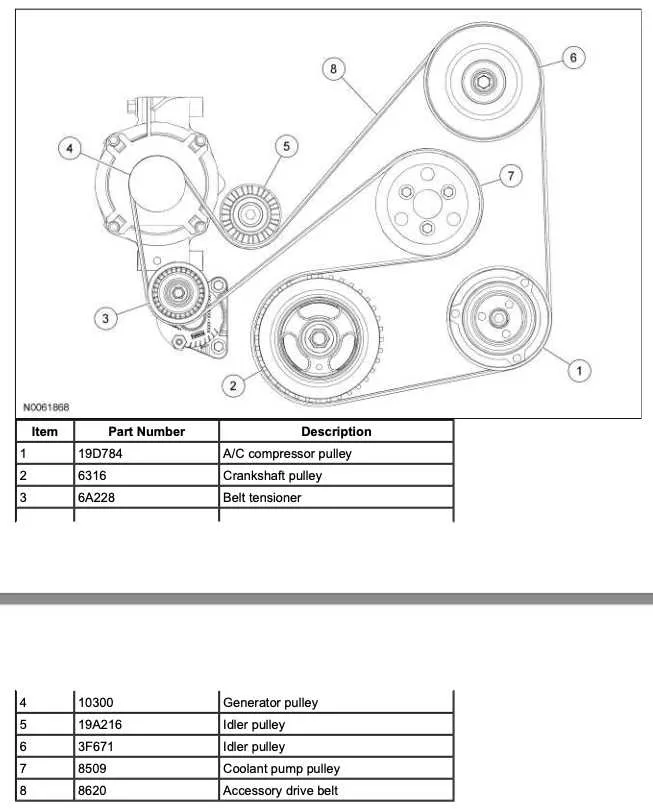

Lastly, refer to the official 2010 Ford Fusion serpentine belt diagram for visual guidance. This diagram simplifies the routing process, providing clear step-by-step instructions to prevent mistakes during installation or replacement.

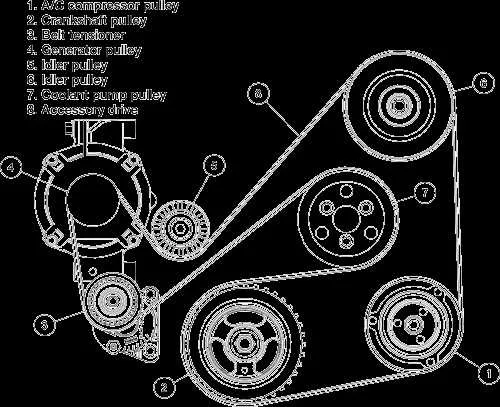

2010 Fusion Serpentine Belt Diagram
The 2010 Ford Fusion’s serpentine belt system powers multiple components of the engine, including the alternator, power steering pump, air conditioning compressor, and water pump. It is essential to know the correct routing and tensioning of the belt to maintain optimal engine performance.
To inspect or replace the serpentine belt on the 2010 Fusion, follow these steps:
- Locate the belt routing diagram, typically found on the radiator support or under the hood. This diagram shows the correct path the belt must follow.
- Ensure the engine is turned off, and the tensioner is relieved to remove any excess tension from the belt.
- Carefully remove the belt, checking for wear or any cracks that may indicate the need for a replacement.
- Install the new serpentine belt following the routing diagram, ensuring it is seated correctly in all pulleys.
- Re-tension the belt using the tensioner pulley, and check the belt’s tension according to the manufacturer’s specifications.
Check the belt regularly for signs of wear, especially if the engine makes unusual noises or experiences poor performance. Replacing the serpentine belt on time can prevent more serious engine problems and improve overall vehicle reliability.
How to Identify the Correct Serpentine Belt Routing for 2010 Ford Fusion
Begin by locating the belt routing diagram. For the 2010 Ford Fusion, this diagram is often found near the front of the engine compartment, usually on a label attached to the radiator support or the engine cover. If you can’t find the diagram, refer to the owner’s manual or consult a repair guide specific to the vehicle model.
Next, inspect the belt’s path. The serpentine belt on the 2010 Fusion runs around the alternator, power steering pump, water pump, and air conditioning compressor. The belt is routed in a specific sequence to ensure all components are driven correctly. Take note of the belt tensioner, which is responsible for maintaining proper tension. The tensioner should be aligned to the diagram with the right amount of slack in the belt.
Check the belt itself for wear or damage. If the belt shows signs of cracking, fraying, or glazing, it needs replacing. When installing a new belt, ensure the grooves on the belt are properly aligned with the pulleys to avoid slippage. Double-check the routing to confirm it matches the diagram exactly, with no misalignment or twists.
If you’re unsure, using a belt routing tool or taking a picture before removal can help you accurately reinstall the new belt. Once installed, manually rotate the engine to ensure the belt moves smoothly across all pulleys. This will confirm the routing is correct and functional.
Common Serpentine Belt Problems in 2010 Ford Fusion and How to Solve Them
A common issue with the serpentine belt in the 2010 Ford Fusion is premature wear caused by improper tension. If the belt is too tight or too loose, it can lead to excessive friction, causing cracks or fraying. To solve this, inspect the belt tension regularly and adjust it according to the manufacturer’s recommendations using a tension gauge.
Another frequent problem is misalignment of the belt, often caused by a worn-out pulley or tensioner. This misalignment can result in the belt slipping or squealing. Inspect all pulleys for damage or wear, and replace the faulty components. Ensure that the new parts are installed correctly to prevent further issues.
Belt slippage due to oil or coolant contamination is also a known issue. Fluids leaking from engine components can weaken the belt, leading to loss of grip. If you notice oil stains or fluid residue on the serpentine belt, immediately address the source of the leak and clean the belt thoroughly before replacing it if necessary.
Lastly, cold temperatures can cause the serpentine belt to contract, making it harder to operate, especially in older belts. If you experience difficulty starting the engine in colder weather, check the belt for signs of wear or cracking. Replacing it before the weather worsens can prevent future failures.
Step-by-Step Guide to Replacing the Serpentine Belt on 2010 Ford Fusion
1. Prepare the Tools and Safety Gear: Before starting, gather the following tools: a wrench set, a socket set, a serpentine belt tool, and safety gloves. Ensure the engine is off and has cooled down to prevent injury.
2. Locate the Serpentine Belt: Open the hood and find the serpentine belt. It’s typically located at the front of the engine, near the crankshaft pulley. Refer to the 2010 Ford Fusion diagram for precise belt routing.
3. Release Tension on the Belt: Use a serpentine belt tool or a socket wrench to relieve tension from the tensioner pulley. This allows you to remove the belt easily. Slowly release the tension to avoid snapping the pulley back.
4. Remove the Old Belt: Once the tension is relieved, slide the serpentine belt off the pulleys. Take note of its routing, as you will need to install the new belt in the same pattern.
5. Inspect the Components: Before installing the new belt, inspect the pulleys, tensioner, and other components for wear or damage. Replace any parts that show signs of wear to prevent future issues.
6. Install the New Serpentine Belt: Begin installing the new belt by following the correct routing pattern. Ensure the belt is properly aligned on each pulley. Use the tensioner pulley to apply the necessary tension once the belt is in place.
7. Check the Belt Alignment: After installation, double-check the belt’s alignment on all pulleys. The belt should sit evenly and securely on each one.
8. Test the Engine: Start the engine and observe the new serpentine belt in action. Listen for any unusual noises and ensure the belt runs smoothly. If everything is working correctly, turn off the engine and double-check the belt tension.
9. Reassemble and Close the Hood: Once you’re satisfied with the installation, close the hood and secure all components. Dispose of the old belt properly.
