Cub Cadet LT1018 Deck Belt Diagram and Maintenance Guide

To replace or maintain the deck belt on your Cub Cadet LT1018, refer to a clear and accurate diagram to avoid unnecessary confusion. The deck belt plays a critical role in driving the mower blades and ensuring smooth operation. A quick reference to the belt diagram saves time during installation, offering a straightforward path to get your mower back in action.

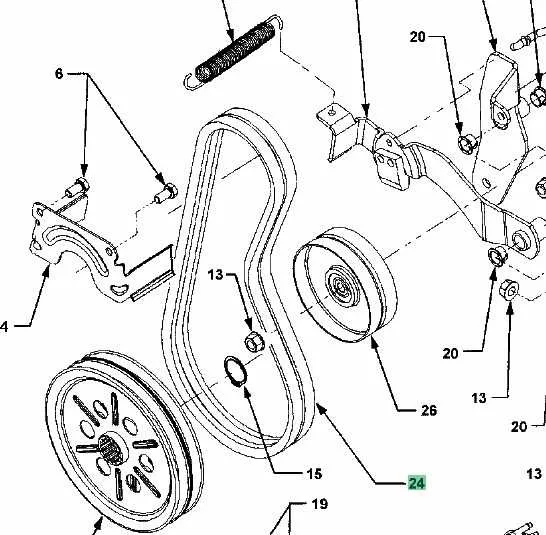

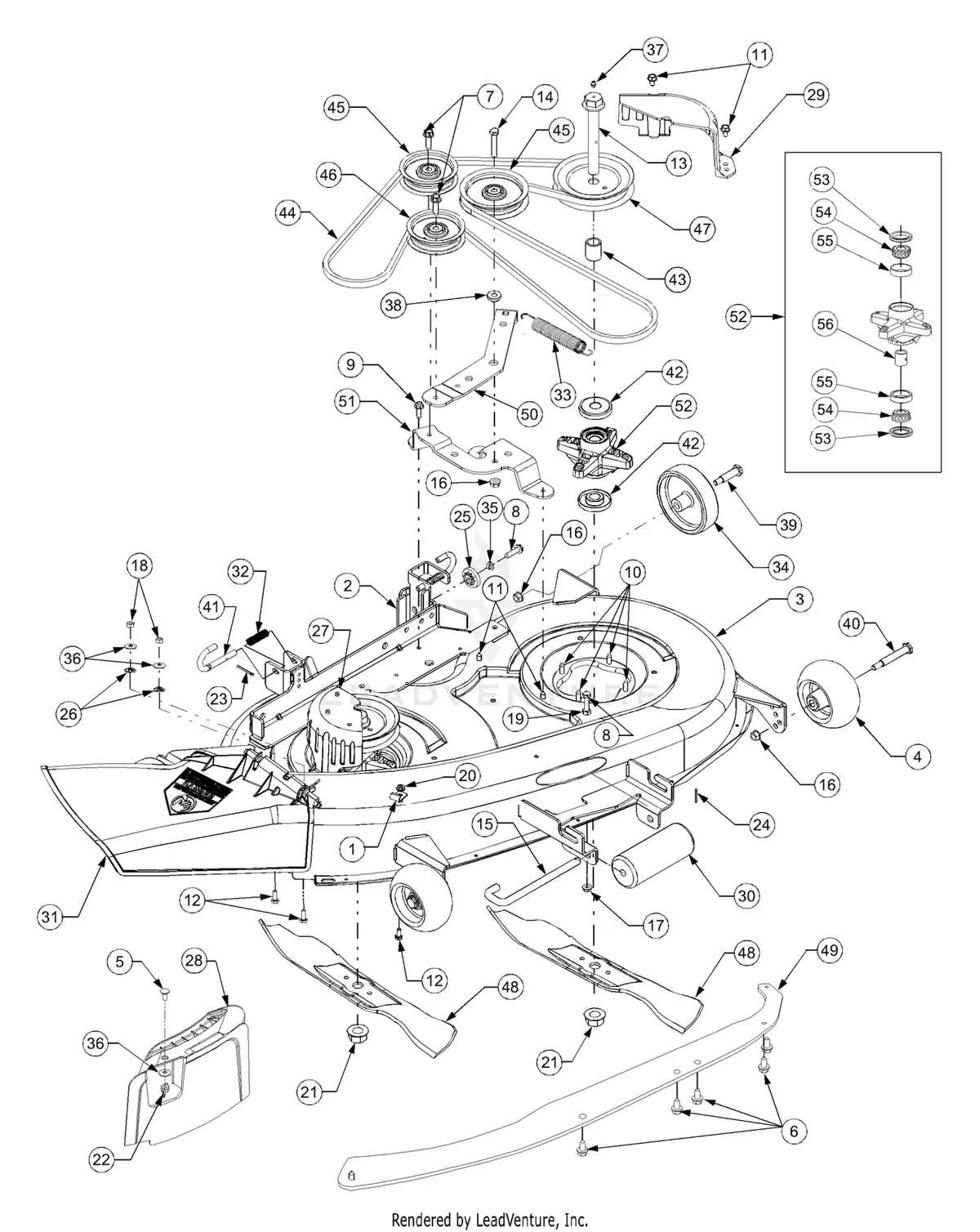

The diagram outlines the exact routing of the belt, showing its path through the pulleys and tensioner. This clarity helps you avoid the frustration of misaligned belts or incorrect tension. Pay attention to any specific notations regarding the pulley sizes and belt orientation, as these details are key to achieving optimal performance.

If you’re replacing an old or worn belt, double-check its condition before installation. A worn-out belt can affect both performance and the longevity of your mower. Once the new belt is in place, make sure the tension is set according to manufacturer guidelines. Incorrect tension can lead to premature wear or ineffective operation.

With the right diagram in hand and careful attention to detail, the process becomes a simple task. Keep your Cub Cadet LT1018 running smoothly by following the diagram closely for an efficient belt replacement or adjustment every time.

Cub Cadet LT1018 Deck Belt Diagram: Practical Guide

For replacing or adjusting the deck belt on a Cub Cadet LT1018, follow this precise diagram. The belt is responsible for transferring power from the engine to the mower deck, driving the blades to cut grass efficiently. If the belt is worn or damaged, replacing it ensures smooth operation of the mower.

Start by lifting the mower deck with the lift lever and securing it in place. Then, disconnect the negative battery cable to prevent any accidental starts. The belt routing for the Cub Cadet LT1018 follows a specific pattern that must be adhered to for proper operation.

First, remove the deck belt from the engine pulley and idler pulleys. Pay attention to the direction in which the belt is routed before removing it, as you’ll need this reference when installing the new belt. The belt travels from the engine pulley, around an idler pulley, to the mower deck pulleys, and finally around the blades themselves.

To install the new belt, start by positioning it around the engine pulley. Move the belt along the path, threading it over each idler pulley and making sure it is seated correctly in the grooves. When the belt is routed correctly, check the tension. The belt should have adequate tension, but not be too tight to avoid strain on the pulleys.

Reattach the deck, reconnect the battery cable, and test the mower to ensure proper belt operation. Make sure the deck moves smoothly and blades rotate without any slipping or excessive noise.

Use the diagram to double-check each step and ensure proper alignment. A correctly installed deck belt will keep your mower running at peak performance without unnecessary wear or damage to the components.

How to Identify the Correct Deck Belt for Cub Cadet LT1018

To find the right deck belt for your Cub Cadet LT1018, always check the model and serial number of your mower. These details are located on the machine’s data plate, usually under the seat or near the engine. Once you have this, you can cross-reference it with the official manual or online resources to confirm the exact part number for your deck belt.

Here’s how to proceed:

• Measure the Old Belt: If the belt is still intact, measure its length and width. This will help you find a matching replacement if you’re unable to access the original part number.
• Check the Belt Routing Diagram: The Cub Cadet LT1018 has a specific belt routing system. Make sure to verify the routing path to avoid installation errors. You can usually find this diagram on the deck or in the mower’s manual.
• Consult the Manual: The owner’s manual lists the exact specifications for the deck belt, including its size, material, and part number. This ensures you choose a compatible replacement.
• Visit an Authorized Dealer: If you’re unsure, an authorized Cub Cadet dealer can assist you in identifying the correct belt based on your mower’s details.

For the LT1018, the deck belt typically measures 1/2″ in width and is designed to fit a 38-inch cutting deck. Make sure to double-check your specific deck configuration as variations exist.

Step-by-Step Process to Replace the Deck Belt on Cub Cadet LT1018

To replace the deck belt on your Cub Cadet LT1018, follow these simple steps for a smooth and quick repair.

1. Prepare the Lawn Tractor

Before beginning, park the tractor on a flat surface. Turn off the engine and remove the key. For safety, disconnect the negative terminal of the battery to prevent accidental starts.

2. Raise the Mower Deck

Use the deck lift lever to raise the mower deck to its highest setting. This will give you ample space to work underneath the tractor.

3. Remove the Deck Belt Guard

Locate the belt guard on the left side of the deck. It is held in place by a few bolts. Use a wrench to remove them and take off the guard.

4. Disconnect the Old Deck Belt

Trace the old belt’s path around the pulleys. Note how it is routed, as you’ll need to install the new belt in the same manner. Carefully slip the belt off the pulleys. If the belt is still intact, keep it for reference during installation.

5. Inspect Pulleys

While the belt is off, check the pulleys for any signs of wear or damage. Spin them to make sure they move freely and are not seized. If needed, replace any damaged pulleys before proceeding.

6. Install the New Deck Belt

Take the new deck belt and route it around the pulleys, following the same path as the old one. Make sure it sits properly on each pulley and is correctly aligned to avoid slipping or excessive wear.

7. Reattach the Belt Guard

Once the belt is in place, reattach the belt guard to secure the belt. Tighten the bolts to hold the guard firmly in place.

8. Lower the Mower Deck

Lower the deck back to its original position using the deck lift lever. This will allow you to check the tension of the new belt.

9. Test the New Belt

Start the engine and engage the blades to test the belt. Listen for any unusual sounds and ensure the blades are operating smoothly. If all seems fine, you’re good to go!

By following these steps, you’ll have your Cub Cadet LT1018 running smoothly again with a new deck belt in no time.

Common Issues with the Deck Belt and How to Troubleshoot Them

If your Cub Cadet LT1018 mower’s deck belt isn’t working correctly, check for common issues that could be causing the problem. Start by inspecting the belt for visible signs of damage such as cracks, frays, or wear. A worn belt can slip or fail to engage the blades properly.

One of the most common causes of deck belt problems is misalignment. Check if the belt is properly routed around the pulleys and tensioner. If it’s off track, it won’t provide the necessary tension to spin the blades. Reinstalling the belt according to the manufacturer’s diagram should fix this.

Another issue could be debris buildup on the pulleys or under the deck. Grass, dirt, or even small twigs can obstruct the belt’s movement, causing slipping or a loss of power. Clean the deck and pulleys thoroughly, removing any blockages that might interfere with the belt’s operation.

If the belt seems too loose or too tight, adjust the tensioner spring. A loose belt won’t generate enough power to rotate the blades, while an overly tight belt can cause premature wear. Ensure the tensioner is functioning properly and the spring provides adequate tension without excessive strain.

Lastly, inspect the pulleys for damage or wear. Worn or bent pulleys can prevent smooth movement of the belt. Replace any faulty pulleys to ensure smooth operation and prevent further damage to the belt.
