2021 Duramax 6.6 Belt Diagram and Engine Component Layout
If you’re working on a 2021 6.6 Duramax engine, having the correct belt diagram is a must. This diagram shows the exact routing of the serpentine belt, ensuring the engine operates smoothly without causing unnecessary wear. Be sure to use the correct belt length and routing to avoid damaging the components.
Understanding the placement of the serpentine belt can save you time during maintenance or repairs. Pay attention to the tensioner location and how the belt interacts with the alternator, AC compressor, and power steering pump. If any component seems to have a misalignment or is out of place, it could cause the belt to slip or wear prematurely.
Refer to the diagram when replacing the serpentine belt. It’s essential to route the belt correctly around all pulleys, as even a small misstep can lead to belt failure or engine malfunction. Ensure the tension is appropriate before completing the installation to guarantee optimal performance.

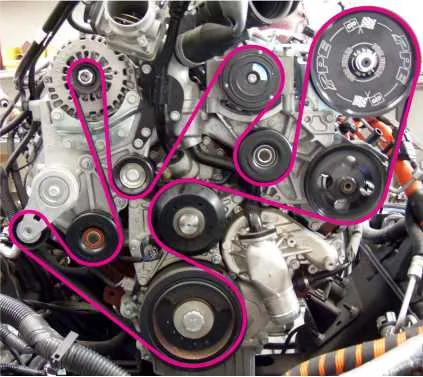

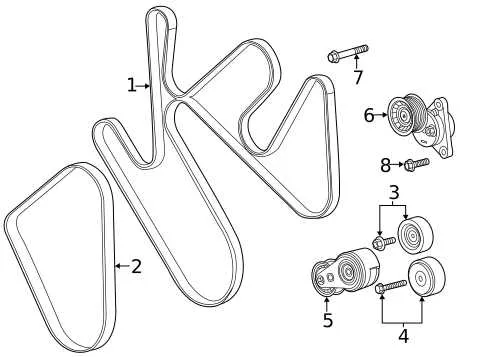

2021 6.6 Duramax Belt Diagram
For smooth engine operation, the belt routing on your 2021 6.6 Duramax is crucial. Ensure the serpentine belt is installed correctly to prevent unnecessary wear or damage to engine components. The diagram of the belt’s path is available for reference, showing the correct routing over the alternator, idler pulley, water pump, power steering pump, and air conditioning compressor. This ensures optimal performance across all systems powered by the belt.
The belt tensioner plays a key role in maintaining the proper tension on the serpentine belt. If your tensioner shows signs of wear or failure, it may cause the belt to slip or become misaligned. Regular inspection of the belt and tensioner for any signs of cracks, fraying, or misalignment can save you from major repairs down the line.
When replacing the belt, refer to the diagram to ensure the correct orientation. The tensioner should be moved to release tension before the belt is removed, and the new belt should be routed exactly as shown. The belt should have a snug fit, but not be over-tightened to avoid stressing the components it powers.
Be mindful that improper installation can lead to belt failure or damage to critical engine parts. If you’re unsure about the belt replacement process, consulting a service manual or a professional mechanic is advised for best results.
How to Read the 2021 6.6 Duramax Belt Diagram for Engine Maintenance
Check the belt routing diagram before performing any maintenance on your 2021 6.6 Duramax. Locate the diagram on the engine bay or in the owner’s manual for a clear reference. It shows the exact path of the serpentine belt around the pulleys, helping to avoid mistakes during replacement.
Start by identifying the main components: the alternator, AC compressor, power steering pump, and water pump. These are usually the main pulleys you’ll encounter in the belt system. The diagram clearly shows the belt’s orientation around each component and the direction it should move.
When reading the diagram, focus on the tensioner pulley. It’s responsible for maintaining belt tension, and the diagram will often show how it adjusts. If you see arrows on the diagram, they indicate the rotation direction of the belt, which is crucial to avoid incorrect installation.
Before removing the belt, ensure that the engine is off and the tensioner pulley is fully relaxed. Use a wrench or specialized tool to release tension and carefully remove the belt from the pulleys. Refer to the diagram throughout the process to ensure you are following the correct routing.
Once the belt is replaced, verify that the alignment matches the diagram. The belt should sit properly in each groove without any slack or misalignment. Start the engine and inspect the belt’s movement to ensure it runs smoothly along the pulleys.
Step-by-Step Guide to Replacing the Serpentine Belt on 2021 6.6 Duramax
First, gather the necessary tools: a ratchet, a serpentine belt tool or a 3/8-inch drive ratchet, and a new serpentine belt. Make sure you have the correct replacement belt for the 2021 6.6 Duramax model.
1. Begin by locating the serpentine belt routing diagram, which is often printed under the hood. This diagram will show the exact path the belt takes around various pulleys and components.
2. Use the serpentine belt tool or a 3/8-inch ratchet to release tension from the tensioner pulley. This will loosen the belt enough to remove it. Be careful when releasing tension to avoid sudden movements.
3. Once the belt is loose, slide it off the pulleys carefully, starting with the one nearest to the tensioner. Keep track of the belt’s routing for reinstallation.
4. Compare the old belt to the new one to ensure they are the same size and configuration. Make sure the new belt matches the routing diagram before installation.
5. Position the new belt over the pulleys, following the routing diagram carefully. Start by looping it around the lower pulleys and working your way up. Ensure it fits snugly into the grooves of each pulley.
6. Once the belt is in place, use the ratchet to relieve tension on the tensioner pulley. This will allow the belt to fit securely into place. Double-check the alignment of the belt on all pulleys to confirm it sits properly.
7. After installation, rotate the crankshaft by hand using a socket and ratchet to ensure the belt runs smoothly without any skips or misalignment.
8. Start the engine and observe the belt’s operation. Listen for any unusual noises or vibrations, and verify that the belt is moving freely without any signs of slippage or misalignment.
9. Finally, dispose of the old belt responsibly and clean up any tools used during the process.
Troubleshooting Common Belt Issues in 2021 6.6 Duramax Engines
If your 2021 6.6 Duramax engine is experiencing belt-related issues, start by checking for wear and tear. The serpentine belt can show signs of cracking, fraying, or stretching over time, reducing its ability to perform efficiently. Replacing a worn belt will restore tension and prevent slippage.
Pay attention to any unusual squealing or chirping noises from the engine. These sounds often indicate that the belt is either too loose or misaligned. Check the tensioner pulley and idler pulley for smooth operation. If either is faulty or not applying enough tension, replace it immediately.
If the engine is overheating or power steering performance is poor, inspect the belt routing and ensure everything is aligned correctly. A misaligned belt could cause undue stress on the system, leading to overheating or insufficient fluid pressure.
Check for any oil or coolant leaks around the belt and pulleys. Contaminants on the belt can degrade its material and reduce its lifespan. If there’s evidence of fluid leaks, address those issues first, as they could cause more severe damage to the belt over time.
| Symptom | Potential Cause | Suggested Action |
|---|---|---|
| Squealing Noise | Loose or misaligned belt | Check tensioner and pulleys; adjust or replace as needed |
| Overheating Engine | Slipping or misaligned belt | Inspect and adjust belt alignment |
| Poor Power Steering | Insufficient belt tension | Inspect and replace the belt or tensioner if worn |
| Belt Cracking | Wear from age or environmental factors | Replace belt before it fails |
Finally, when replacing the serpentine belt, always double-check the routing diagram to ensure the new belt is installed correctly. Incorrect routing can lead to premature belt failure or engine damage.
