John Deere Z435 Drive Belt Diagram and Installation Guide

When replacing or inspecting the drive belt on your John Deere Z435, understanding the exact routing is key. This diagram shows the belt’s path through the pulleys and guides, ensuring smooth operation of the mower’s drive system. The diagram is easy to follow and gives you the precise order for belt installation.

Follow the correct sequence: Starting from the engine pulley, the belt should loop around the idler pulleys and then onto the mower deck pulleys. Ensuring each step is done correctly will avoid potential damage to the system and ensure longevity of the belt. If you need help locating any specific pulleys, the diagram will provide the correct positioning for each one.

Proper tension is key: After securing the belt, check the tension to prevent slippage or wear. Make sure there’s no slack in the belt, as too much play can cause it to slip or break prematurely. Keeping the tension consistent will prolong the lifespan of the drive belt and maintain smooth operation during mowing.

By referencing this diagram, you ensure that all parts align properly, preventing unnecessary wear and tear. Regular checks and maintenance of your drive belt will help you avoid costly repairs and keep your mower running smoothly.

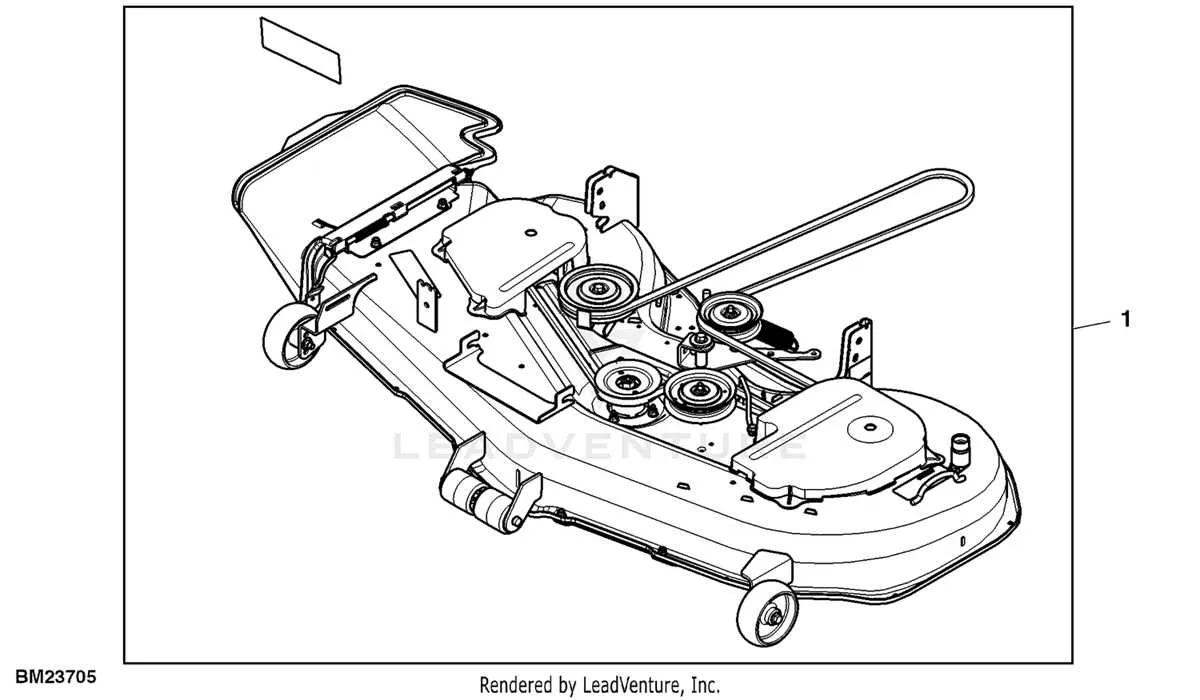

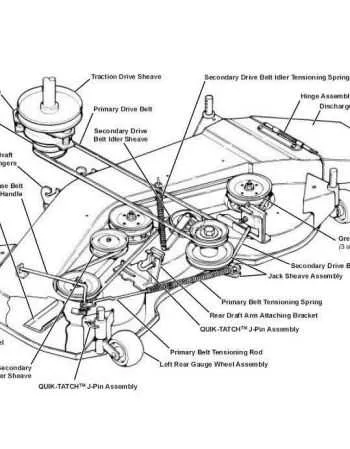

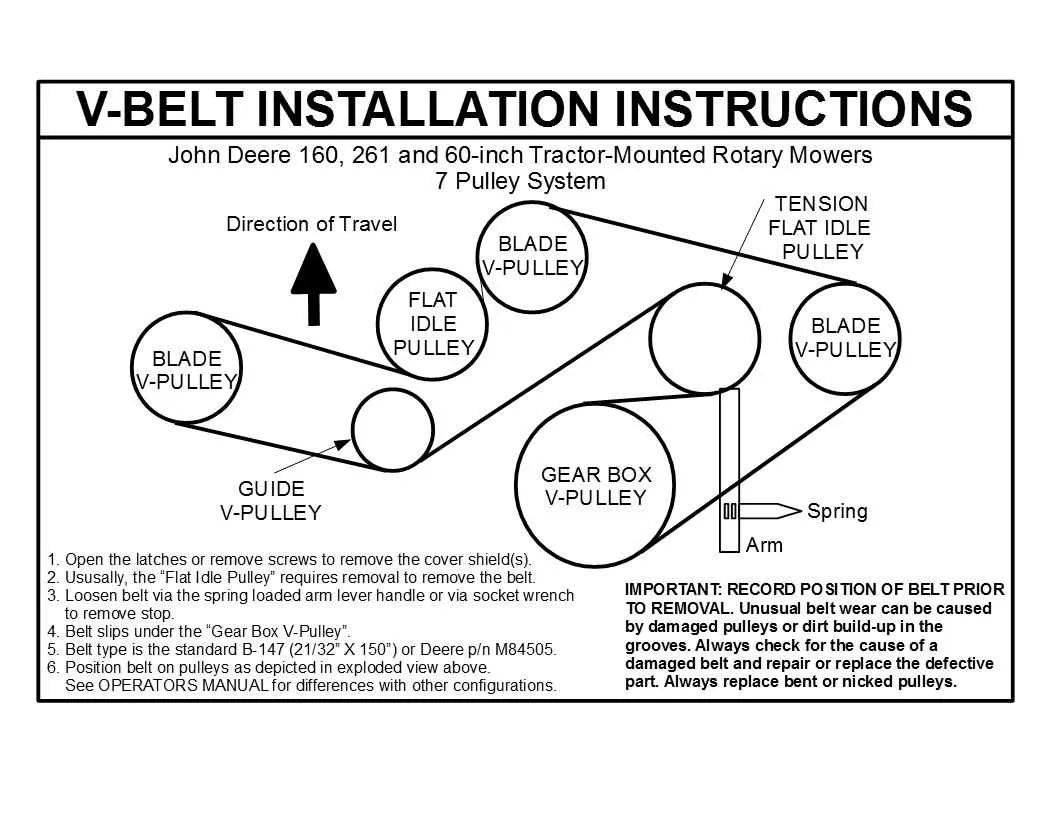

John Deere Z435 Drive Belt Diagram

The John Deere Z435 drive belt system consists of several key components. Start by identifying the belt routing, ensuring the belt is correctly placed over the pulleys and tensioner. Refer to the specific diagram for this model, where the drive belt loops around the engine pulley, idler pulleys, and transmission. Pay close attention to the belt’s orientation, especially its path around the clutch, as this affects performance and longevity.

When replacing the belt, release the tension from the spring-loaded idler pulley. This can be done by using a socket wrench to move the tensioner arm, allowing enough slack to remove the old belt. Lay the new belt along the same path as shown in the diagram, making sure each pulley groove is properly aligned to avoid damage to both the belt and the pulleys.

If you notice any signs of wear on the belt, such as fraying or cracking, it’s crucial to replace it immediately to prevent further damage to other parts of the system. After installation, verify the belt’s tightness by checking for any slack. Too much slack can lead to slippage and inefficiency in power transfer.

Consult the John Deere Z435 manual for a detailed diagram and step-by-step instructions, as variations in model year may slightly affect the routing or part specifications.

How to Identify the Drive Belt Components in John Deere Z435

Begin by locating the engine and the deck of your John Deere Z435. The drive belt connects these two parts, transferring power from the engine to the deck’s pulleys. Look for the main drive belt running from the engine’s crankshaft pulley. It’s typically a thick, rubber belt with grooves that fit into corresponding pulleys.

Next, identify the tensioner pulley, which maintains the belt’s tightness. This pulley is usually spring-loaded and located near the engine. It’s important to check this component for wear or loss of tension, as it can cause the belt to slip or come off entirely.

The idler pulleys guide the belt along its path and maintain proper routing. You will find them positioned strategically along the sides of the deck. Inspect these pulleys for any signs of damage or obstruction, which could hinder the belt’s movement.

Lastly, inspect the deck’s drive pulley. This pulley is larger and connected to the blades, which means any issues with it can directly impact cutting performance. Look for cracks or rust that might interfere with smooth belt operation.

Step-by-Step Instructions for Replacing the Drive Belt on John Deere Z435

1. Secure the mower: Park the John Deere Z435 on a level surface. Engage the parking brake and turn off the engine. Disconnect the spark plug wire to prevent accidental starts.

2. Lift the mower deck: Use a jack or lift to raise the mower deck. Secure it with safety stands or blocks to prevent it from dropping while you work.

3. Remove the deck: Start by loosening the bolts or pins securing the deck to the mower frame. Carefully slide the deck out from under the mower.

4. Locate the drive belt: Identify the belt routing diagram on the deck or refer to the user manual. The drive belt runs between the engine pulley and the deck pulleys, powering the blades.

5. Release tension on the belt: Locate the tension pulley and use a wrench to relieve tension. This will allow you to remove the drive belt without excessive force.

6. Remove the old drive belt: Carefully slip the old belt off the pulleys. If it’s too tight or stuck, rotate the pulleys or use a rubber mallet to gently tap the belt free.

7. Install the new belt: Refer to the routing diagram. Position the new belt around each pulley, ensuring it’s seated correctly in the grooves. Make sure the belt is aligned with the pulleys and not twisted.

8. Reapply tension: Once the belt is in place, adjust the tension pulley to restore proper tension on the belt. It should be tight enough to avoid slipping but not so tight as to strain the system.

9. Reinstall the deck: Slide the mower deck back under the mower and secure it with the bolts or pins. Ensure everything is firmly in place.

10. Test the mower: Reconnect the spark plug wire. Start the engine and test the mower by engaging the blades. Check for any unusual noises or issues with belt movement.

By following these steps, you’ll have your John Deere Z435 running smoothly with a new drive belt in no time.

Common Issues with John Deere Z435 Drive Belt and How to Fix Them

If your John Deere Z435 mower isn’t performing as expected, the drive belt might be the issue. Here are the most common problems and solutions:

1. Belt Slipping

A slipping drive belt causes poor performance or the mower failing to move. Check if the belt is too loose or worn. Tighten the belt by adjusting the tension on the idler pulley. If the belt is worn or cracked, replace it with a genuine John Deere part for optimal performance.

2. Broken or Frayed Belt

If the belt is frayed or snapped, inspect the pulleys for sharp edges or debris. Clear any obstructions and replace the damaged belt. Ensure the belt is properly routed according to the diagram to avoid misalignment and further damage.

3. Squeaking or Grinding Noises

Persistent squeaking or grinding sounds often mean the belt is not aligned correctly or is damaged. Check the belt for wear and ensure it’s aligned with the pulleys. If necessary, replace the belt and lubricate the pulleys to reduce friction.

4. Belt Derailing

A derailed belt usually occurs due to improper installation or pulley misalignment. Double-check the belt routing, making sure it’s correctly placed on each pulley. Inspect the pulleys for wear or damage and replace any defective parts.

5. Reduced Mowing Performance

If the mower is cutting unevenly or struggling to move, the drive belt might be loose or stretched. Tighten the belt and check the tensioners. If the problem persists, replace the belt as it may no longer provide proper tension to the drive system.

Regularly inspect the belt, pulleys, and tensioners to maintain peak performance and prevent costly repairs.
