Toyota 3.4 Belt Diagram Detailed Guide and Instructions for Proper Installation
When working with the Toyota 3.4 engine, understanding the belt system is critical for ensuring smooth performance and preventing unnecessary wear. The timing belt and accessory belts are responsible for powering several vital components of the engine, such as the alternator, water pump, and power steering pump. A clear belt diagram can help you identify the correct routing and tension for each belt, minimizing potential issues and prolonging the life of your engine.
The Toyota 3.4 engine uses a timing belt that synchronizes the crankshaft and camshaft, ensuring proper valve timing. Pay special attention to the alignment marks on both the crankshaft and camshaft gears. This precise alignment is essential for optimal engine performance. Alongside the timing belt, accessory belts drive key components, each with its own routing path, which varies slightly depending on the year and model. Always check the diagram for the exact configuration specific to your vehicle.
Having access to a clear, detailed belt diagram will save time during maintenance and repairs. If you’re replacing the belts, make sure the new ones are properly tensioned, as incorrect tension can lead to premature wear or even failure. For any part replacement, also confirm that the pulleys are in good condition to avoid causing damage to the new belts. Refer to the Toyota 3.4 belt diagram often, and you’ll ensure reliable engine performance for years to come.

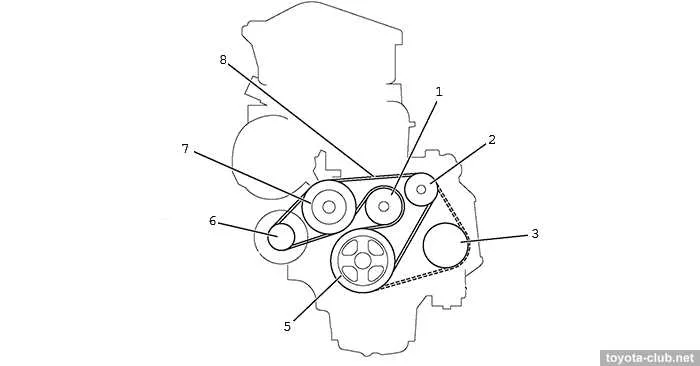

Toyota 3.4 Belt Diagram
For proper maintenance of your Toyota 3.4L engine, understanding the belt system layout is key. Refer to the belt diagram to identify the correct routing for all belts involved. The diagram provides clear guidance on the position of the serpentine belt, timing belt, and accessory belts for efficient engine operation.
First, ensure the engine is cool before starting any work. The serpentine belt typically drives multiple accessories, including the alternator, power steering pump, and air conditioning compressor. The timing belt connects the crankshaft to the camshaft and is vital for maintaining proper valve timing. If any part of the belt system shows signs of wear or cracking, replace them promptly to avoid engine damage.
The belt tension should be checked periodically to prevent slipping or excessive wear. The diagram includes important details such as the placement of tensioners and idlers, which keep the belts in proper alignment. These components play a significant role in maintaining the correct tension and preventing belt slippage or premature wear.
It’s important to follow the specified torque settings for any bolts removed during belt replacement. This ensures that all components are securely fastened and operate without issues. After reassembling, check the belt’s alignment once more to confirm everything is in its correct position.
Use high-quality replacement belts to guarantee a longer lifespan and better performance. For accuracy, always cross-check the diagram against your vehicle’s model year to ensure compatibility. Regular inspections and maintenance will keep your Toyota running smoothly.
How to Interpret the Toyota 3.4 Belt Diagram for Engine Maintenance

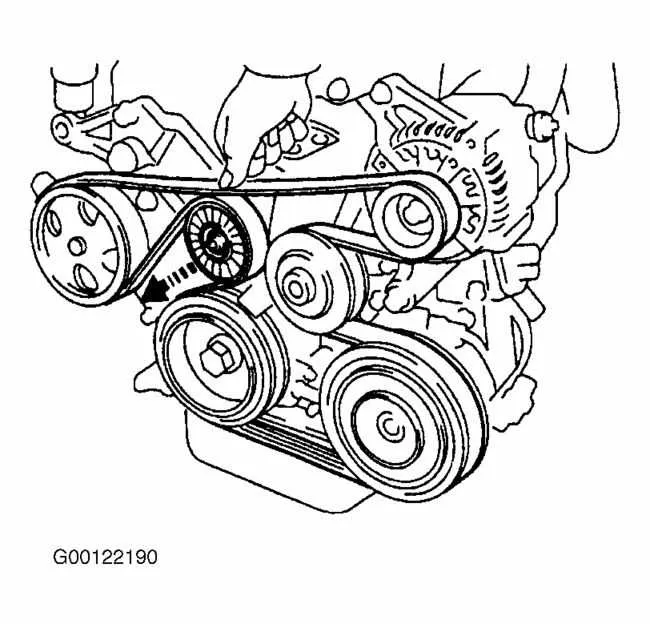

Examine the belt diagram carefully to understand the routing and tensioning requirements for each belt in the Toyota 3.4 engine. Start by identifying the main components: alternator, power steering pump, water pump, and air conditioning compressor. The diagram shows the correct path for each belt and indicates which pulleys should be used. Pay attention to any arrows, as they typically mark the direction of belt movement and assist in proper installation.
Ensure that the belts are properly aligned with the pulleys. Misalignment can cause premature wear and decrease the efficiency of the engine. The diagram often includes references to specific tensioning points. These must be followed closely to maintain optimal performance and avoid belt slippage.
If the diagram includes a notation for automatic or manual tensioners, check whether your engine uses a spring-loaded tensioner or a fixed manual one. This difference will determine how you apply the correct tension to the belt.
Next, inspect the wear patterns on the belts. A worn or cracked belt may need replacing. The diagram helps you recognize the specific path of each belt, preventing mix-ups when you are replacing parts.
After replacing or adjusting the belts, verify that each one runs smoothly and the tension is correct. Check the belt periodically to avoid future issues. Refer to the diagram each time you perform maintenance, as it ensures accuracy and prevents unnecessary repairs.
Step-by-Step Guide to Installing the Timing Belt on a Toyota 3.4 Engine
Make sure to gather all the necessary tools before you begin: socket set, torque wrench, timing belt kit, and replacement components. Having everything at hand will save time during the process.
1. Disconnect the Battery: Start by removing the negative terminal from the battery to avoid accidental electrical contact.
2. Remove the Front Wheels and Accessory Components: Jack up the front of the vehicle and remove the wheels. Then, remove any components blocking access to the timing belt, such as the alternator, power steering pump, and accessory belts.
3. Remove the Timing Belt Covers: Unscrew the bolts securing the timing belt covers. Carefully remove them to expose the timing belt and pulleys.
4. Align the Crankshaft and Camshaft Pulley: Rotate the crankshaft pulley clockwise until the timing marks align. Ensure the camshaft pulley aligns with its respective timing mark as well. This is crucial to avoid misalignment of the valves and pistons.
5. Loosen the Tensioner: Use a wrench to loosen the timing belt tensioner. This will relieve the tension from the belt, allowing for its removal. Remove the timing belt carefully, noting the direction of the teeth on the old belt to install the new one in the same orientation.
6. Install the New Timing Belt: Position the new timing belt around the crankshaft, camshaft, and intermediate pulleys. Ensure that the teeth fit into the grooves and that the timing marks stay aligned. Avoid twisting or bending the belt while installing it.
7. Tighten the Tensioner: Reinstall the timing belt tensioner and use a wrench to tighten it to the manufacturer’s specified torque. This will ensure the belt is taut and positioned correctly.
8. Rotate the Engine by Hand: Before reassembling everything, rotate the crankshaft by hand two full rotations. Check the alignment of the timing marks to ensure that the belt is correctly installed and that no interference occurs between the valves and pistons.
9. Reassemble the Components: Reinstall the timing belt covers, accessory components, and front wheels. Double-check that all fasteners are torqued correctly to prevent any issues during operation.
10. Reconnect the Battery: Finally, reconnect the negative terminal of the battery and start the engine. Listen for any unusual sounds and verify that the engine runs smoothly with no signs of misalignment or belt slippage.
Common Issues with the Toyota 3.4 Belt System and How to Solve Them
If your Toyota 3.4 engine experiences issues with the belt system, check these common problems and solutions:
- Belt Slippage: This often occurs when the tensioner loses pressure or the belt wears out. Check the tensioner for wear, and ensure the belt is not too loose. Replace the tensioner or the belt as necessary. If the belt is in good condition but slipping, adjust the tensioner or check for any misalignment in the pulleys.
- Worn or Cracked Belts: Over time, belts can develop cracks, fray, or even snap. Inspect the belt regularly for signs of damage. If any cracks are visible, it’s time to replace the belt. Make sure to use the correct replacement part for the Toyota 3.4 engine.
- Incorrect Belt Routing: If the belt has been installed incorrectly, it may cause misalignment or undue stress on components. Ensure the belt is routed according to the factory diagram for the Toyota 3.4 engine. Double-check the tension on all pulleys after installation.
- Faulty Tensioner: A malfunctioning tensioner can cause improper belt tension, leading to squeaks or poor engine performance. Check the tensioner for any signs of wear or failure, and replace it if necessary.
- Contaminated Belt: Oil, coolant, or other fluids leaking onto the belt can reduce its effectiveness, leading to slippage or wear. Inspect the surrounding components for leaks, and clean or replace the belt if contamination occurs.
- Noisy Belts: Squealing or chirping sounds often indicate that the belt is either too loose or that it is misaligned. Adjust the tension or inspect the pulleys for damage or wear.
Regular maintenance, proper installation, and immediate repairs when necessary will keep your Toyota 3.4 belt system running smoothly and prevent further damage to engine components.
