2013 Mercedes C250 Serpentine Belt Diagram and Installation Guide
The serpentine belt in the 2013 Mercedes C250 plays a crucial role in powering multiple engine components, including the alternator, air conditioning compressor, and power steering pump. Understanding its route and placement can help you diagnose any issues and ensure smooth operation of your vehicle. Below, you’ll find a detailed diagram and step-by-step guide to help you identify the correct serpentine belt routing for your C250.
The serpentine belt on the 2013 C250 runs across various pulleys, and it’s important to follow the proper sequence to avoid misalignment or damage to any components. The diagram clearly shows the path, with the belt starting from the crankshaft pulley and winding around the tensioner, alternator, power steering pump, and more. Make sure the tensioner is set at the correct tension to prevent slipping or squealing sounds while driving.
Before replacing or adjusting the serpentine belt, double-check the belt’s condition. Look for any signs of wear such as cracks, fraying, or glazing. Replacing the belt in a timely manner can prevent more costly repairs down the road. Refer to the diagram for exact placement, and use a tool to release tension on the tensioner before removing the old belt. After installing the new one, make sure it runs smoothly over all the pulleys without any interference.

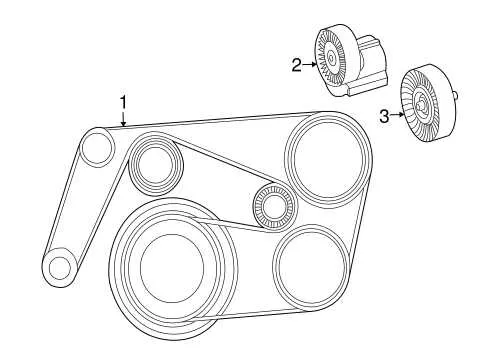

2013 Mercedes C250 Serpentine Belt Diagram
The serpentine belt on the 2013 Mercedes C250 drives multiple engine components, including the alternator, power steering pump, and air conditioning compressor. To replace or inspect the belt, follow the routing diagram specific to the C250’s engine configuration.

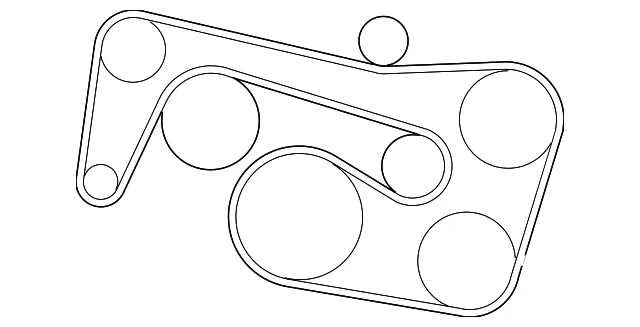

The diagram shows the belt running around various pulleys, starting from the crankshaft pulley. The belt travels up to the tensioner pulley, which maintains the required tension. It then moves to the alternator pulley, the power steering pulley, and the air conditioning compressor pulley. Pay close attention to the path, ensuring the belt follows this exact order to avoid misalignment or damage.
Check the belt for wear, cracks, or signs of fraying. Any visible damage warrants replacement. If you’re replacing the serpentine belt, make sure the new belt matches the original length and width specifications. The replacement should also follow the same routing pattern as shown in the diagram to ensure proper function and avoid unnecessary wear.
After installation, test the belt tension using a belt tension gauge or by manually checking the tensioner. Proper tension ensures optimal performance and prevents slippage, which can lead to overheating or engine damage. If unsure about the belt’s condition or installation, consult a professional mechanic for assistance.
Identifying the Components in the Serpentine Belt System of the 2013 Mercedes C250
Inspect the serpentine belt of your 2013 Mercedes C250 to ensure proper function and longevity. The system consists of a series of components that work together to power essential engine accessories.
The serpentine belt is driven by the engine’s crankshaft pulley and runs over several key components: the alternator, power steering pump, water pump, air conditioning compressor, and the tensioner pulley. It is critical to identify these parts correctly to avoid performance issues.
Crankshaft Pulley: Located at the front of the engine, this pulley serves as the primary drive for the serpentine belt. It transmits power from the engine to the belt system.
Alternator: Positioned to the side of the engine, the alternator generates electrical power for the vehicle’s systems. The serpentine belt drives it continuously to maintain battery charge and support electrical components.
Power Steering Pump: This component uses power from the serpentine belt to assist in steering. If the belt is loose or worn, steering may become difficult.
Water Pump: This pump circulates coolant through the engine. If the belt fails, overheating can occur, leading to engine damage.
Air Conditioning Compressor: The AC compressor operates the vehicle’s cooling system. The serpentine belt powers it, keeping the cabin comfortable during hot weather.
Tensioner Pulley: The tensioner maintains proper tension on the serpentine belt, preventing it from slipping or becoming too tight. If the tensioner fails, the belt may lose tension, resulting in a loss of power to the components it drives.
Regularly check for wear and tear, misalignment, or damage in these components. A damaged belt or faulty pulley can lead to poor performance or even a complete breakdown of the accessory system. Replace worn-out parts promptly to keep your Mercedes C250 running smoothly.
Step-by-Step Guide to Replacing the Serpentine Belt on the 2013 Mercedes C250
Before starting, make sure you have the correct replacement serpentine belt for the 2013 Mercedes C250. You’ll also need a few tools: a socket set, a serpentine belt tool, and a car jack with jack stands for safety.
- Lift the Car
Use the jack to lift the front of the vehicle. Secure it with jack stands to ensure stability while you work. - Locate the Serpentine Belt
The serpentine belt is located at the front of the engine. You’ll need to remove any covers or components obstructing access, such as the engine cover or the air intake tube. - Release Tension from the Belt
Use a serpentine belt tool or a socket wrench to rotate the tensioner pulley. This will loosen the tension on the belt, allowing you to remove it easily. Carefully slip the belt off the pulleys. - Inspect the Old Belt
Before discarding the old belt, check for wear or damage. Make sure the new belt matches the old one in size and routing. - Install the New Serpentine Belt
Begin by routing the new belt over the pulleys according to the belt diagram specific to the 2013 Mercedes C250. Ensure the belt sits properly on each pulley, especially around the tensioner. - Apply Tension to the Belt
Rotate the tensioner pulley again to apply tension to the new belt. Double-check that the belt is aligned and properly seated on all pulleys. - Check Belt Routing
After installation, visually inspect the belt’s routing to make sure it matches the diagram. Ensure there are no twists or misalignments. - Lower the Car
Carefully lower the vehicle from the jack stands, making sure everything is securely tightened before starting the engine. - Test the New Belt
Start the engine and watch the belt in motion. Listen for any unusual sounds or vibrations. If everything looks good, you’re done!
Common Issues with the Serpentine Belt in the 2013 Mercedes C250 and How to Address Them
The serpentine belt in the 2013 Mercedes C250 can experience wear and tear over time. One of the most common problems is cracking or fraying of the belt due to age or exposure to heat. If the belt shows visible signs of damage, it should be replaced immediately to prevent it from snapping, which could lead to engine damage or failure of critical components.
Another issue is improper tension. A loose or overly tight serpentine belt can cause squealing noises or poor performance in the vehicle’s accessories, such as the alternator or air conditioning. If you notice such noises, inspect the tensioner pulley and replace it if it is worn or malfunctioning. Adjusting the tension should be done carefully to avoid over-tightening, which could cause excessive wear.
Friction between the belt and the pulleys may also lead to slipping. This can result in poor charging, reduced AC performance, or power steering issues. Slipping belts are often caused by a worn-out tensioner or misaligned pulleys. Replacing the tensioner and ensuring proper alignment of the pulleys will resolve this issue.
Sometimes, a squealing or chirping sound may come from a misaligned belt path. This occurs when the belt isn’t sitting correctly on the pulleys due to wear or a malfunctioning component. A quick inspection of the belt’s alignment and replacing any misaligned or damaged pulleys will prevent further noise and ensure smooth operation.
For any of these issues, regular inspection of the serpentine belt every 30,000 miles or so will help catch problems early. If you notice any signs of damage or inefficiency, don’t wait–take care of it promptly to avoid further complications with your 2013 Mercedes C250’s performance.
