2011 Toyota Camry 2.5 Serpentine Belt Diagram and Routing
To maintain your 2011 Toyota Camry 2.5 engine in optimal condition, understanding the serpentine belt routing is crucial. A properly installed and functioning serpentine belt ensures the smooth operation of various components, including the alternator, power steering pump, and air conditioning compressor.
Refer to the official belt diagram for accurate routing information. Ensure the belt follows the correct path around pulleys to avoid any misalignments or premature wear. If the belt appears cracked, frayed, or damaged, replacing it immediately will prevent further issues.
For replacing the serpentine belt, always use the diagram to guide you through the correct steps. This will help you prevent unnecessary errors and guarantee proper tension. Also, check the belt’s condition periodically to avoid unexpected breakdowns.

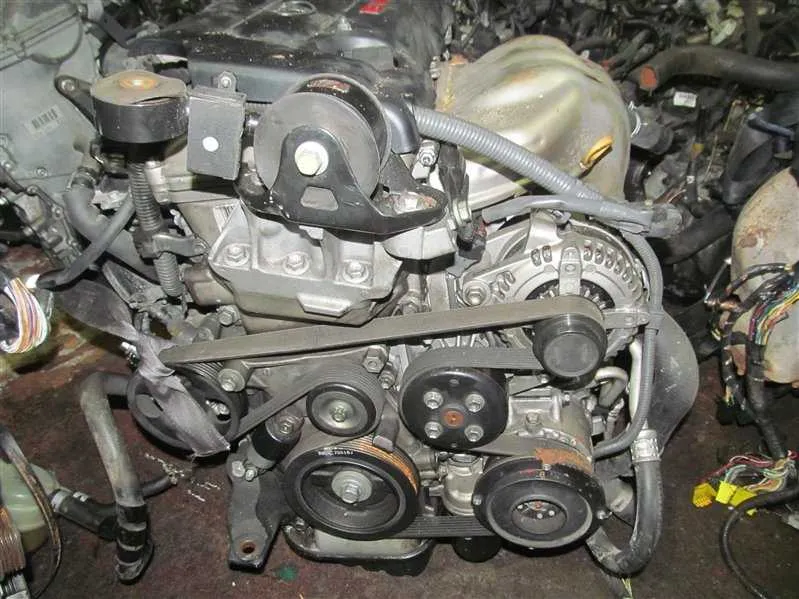

2011 Toyota Camry 2.5 Belt Diagram
The serpentine belt on the 2011 Toyota Camry 2.5 plays a critical role in driving various engine components like the alternator, power steering pump, and air conditioning compressor. Ensuring it’s properly routed and tensioned is key to smooth engine operation. Here’s the correct routing diagram to guide you in replacing or checking your belt.
The serpentine belt should be routed over the alternator, power steering pump, water pump, and air conditioning compressor. It runs around the crankshaft pulley and wraps around the tensioner pulley to maintain the proper tightness. The belt must follow a precise path to avoid damage to components or loss of power. If you’re replacing the belt, make sure to use a proper belt tensioner tool to avoid over-tightening, which can lead to premature wear.
Important steps: Ensure the engine is off and the battery disconnected before working on the belt. Examine the belt for signs of wear, such as cracks or fraying. If the belt appears damaged or worn out, replace it immediately to avoid potential engine damage.
The diagram for the 2011 Toyota Camry 2.5 is available in the vehicle’s manual or can be found online through reputable automotive websites. Always double-check the routing and tension specifications before starting the engine after installation.
Identifying the Serpentine Belt Routing on 2011 Toyota Camry 2.5
The serpentine belt on the 2011 Toyota Camry 2.5 follows a specific routing pattern that ensures all engine accessories operate correctly. To identify the correct routing, first locate the tensioner pulley on the engine. The belt should pass over the alternator, power steering pump, water pump, and air conditioning compressor.
Start by positioning the belt around the crankshaft pulley. From there, the belt moves upwards to the alternator pulley. Make sure it runs clockwise from the crankshaft to the alternator. After the alternator, the belt routes to the power steering pump, ensuring it wraps around the pulley without any slack.
The belt then moves down to the water pump. Ensure it is securely positioned over the water pump pulley, aligning correctly with the grooves. From the water pump, the belt heads towards the air conditioning compressor and wraps around it. Lastly, the belt should return to the tensioner pulley, completing the cycle.
When routing the serpentine belt, check for proper tension to avoid slipping or damage. Use the belt diagram specific to the 2011 Toyota Camry 2.5 to verify the correct path and ensure each pulley is engaged without excess movement or misalignment.
Common Issues with the Serpentine Belt and How to Fix Them
If your 2011 Toyota Camry 2.5 serpentine belt is slipping or showing signs of wear, it may cause performance issues. The belt could wear out due to friction, heat, or misalignment, leading to problems with engine components such as the alternator, power steering, and air conditioning. Here’s how to address some common issues:
Belt Slippage: Slipping occurs when the belt is loose or worn. It can cause squealing noises and poor power delivery to accessories. To fix this, inspect the belt for wear or cracks. If the belt is damaged, replace it immediately. Check the tensioner to ensure it’s applying the right amount of tension.
Cracks or Fraying: Over time, the belt can develop cracks or start fraying, leading to failure. Examine the belt for visible signs of damage. If cracks or fraying are noticeable, replace the belt as soon as possible to prevent complete breakdown.
Misalignment: Misalignment of the pulleys can cause the serpentine belt to run unevenly, resulting in wear and damage. Use a straight edge to check the alignment of the pulleys. If they’re misaligned, adjust or replace the affected components to correct the issue.
Noise Issues: Squeaking or squealing noises often indicate a worn or loose belt. This noise can also be caused by contaminated pulleys. Inspect the belt and pulleys for dirt, oil, or other debris. Clean or replace the affected parts to reduce noise and improve performance.
Overheating: If the serpentine belt becomes overheated, it can lose its effectiveness, leading to system failure. Keep the engine cooling system in good condition to prevent excessive heat buildup. If overheating occurs, check the belt for signs of melting or discoloration, and replace it if necessary.
Addressing these issues early will help maintain the performance of your vehicle’s accessory systems and prevent more costly repairs down the road.
Step-by-Step Guide to Replacing the Serpentine Belt on 2011 Toyota Camry 2.5
To replace the serpentine belt on your 2011 Toyota Camry 2.5, follow these clear steps:
- Prepare the Vehicle: Park the car on a flat surface, engage the parking brake, and turn off the engine. Disconnect the negative terminal of the battery to prevent any electrical accidents.
- Locate the Serpentine Belt: Open the hood and locate the serpentine belt on the front of the engine. The belt should be visible on the engine components like the alternator, power steering pump, and air conditioning compressor.
- Release the Tension: Use a 3/8-inch drive ratchet or serpentine belt tool to release tension on the belt. Locate the tensioner pulley and rotate it counterclockwise to loosen the belt. This will allow you to remove the belt easily.
- Remove the Old Belt: Once the tension is released, carefully remove the serpentine belt from the pulleys. Take note of the routing path of the belt for reference when installing the new one.
- Inspect the Components: Before installing the new belt, check all pulleys, the tensioner, and the idler pulley for any signs of wear or damage. If any of these components are faulty, replace them before proceeding.
- Install the New Belt: Begin routing the new serpentine belt over the pulleys following the exact path of the old belt. Make sure the belt is properly seated in all grooves of the pulleys.
- Reapply Tension: Rotate the tensioner pulley clockwise using the ratchet or serpentine belt tool to apply tension to the new belt. Ensure the belt is taut and correctly aligned.
- Double-Check the Installation: Verify that the belt is properly installed on all pulleys and that it’s seated correctly in all grooves. Check for any slack or misalignment.
- Reconnect the Battery: Reconnect the negative terminal of the battery and start the engine. Observe the belt in operation to ensure it runs smoothly without any unusual noises.
- Test Drive: Drive the vehicle for a short distance and check again for any belt-related issues. Listen for any squealing sounds or irregular performance, which could indicate improper installation.
By following these steps, you can replace the serpentine belt on your 2011 Toyota Camry 2.5 safely and efficiently. If any complications arise, seek professional assistance to avoid engine damage.
