Troy Bilt Pony 42 Inch Deck Belt Diagram and Troubleshooting Guide

The Troy Bilt Pony 42-inch deck belt is a key component for maintaining proper mower function. Ensuring the belt is routed correctly not only extends the lifespan of your mower but also optimizes its performance. Misrouting can lead to slippage or premature wear, which can disrupt operation.

Start by identifying the correct belt size for your mower. For the 42-inch deck, the standard belt length is typically 95 inches, but always confirm with your owner’s manual. Once you have the right belt, you can proceed with routing it through the correct pulleys to avoid tension loss and ensure smooth operation.

Refer to the belt diagram specific to the Troy Bilt Pony model for precise guidance. The diagram highlights key pulleys and how the belt should be threaded around them. Follow the diagram carefully to avoid mistakes. Pay attention to any tensioners or guides that may need adjustment to maintain the right belt tension.

Finally, regularly inspect the belt for signs of wear or damage. A well-maintained belt ensures your mower operates at full capacity, preventing unnecessary repairs and downtime.

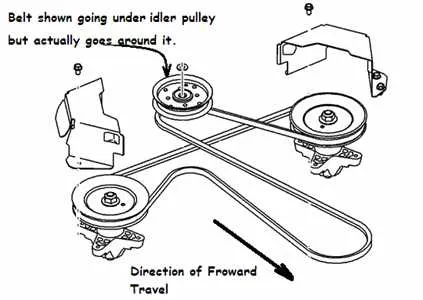

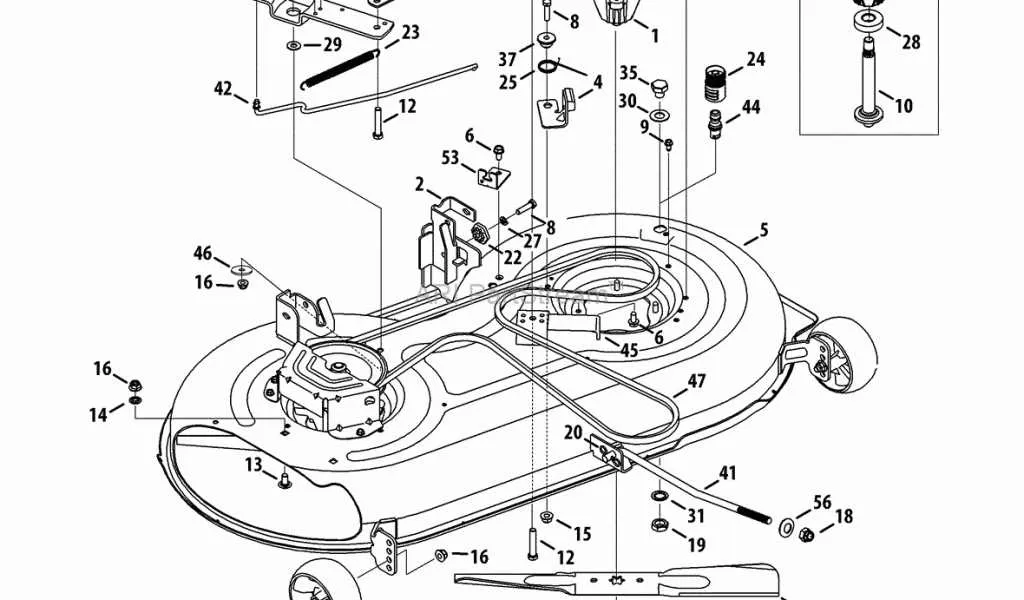

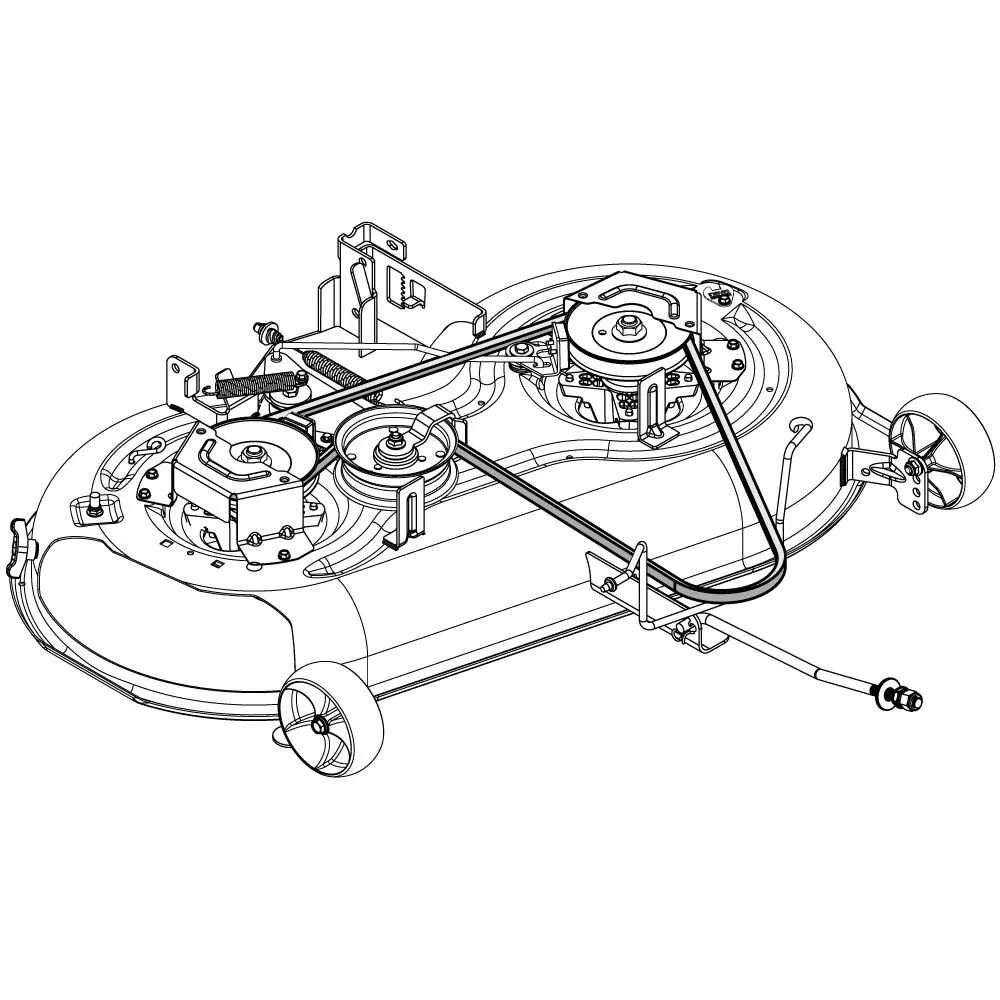

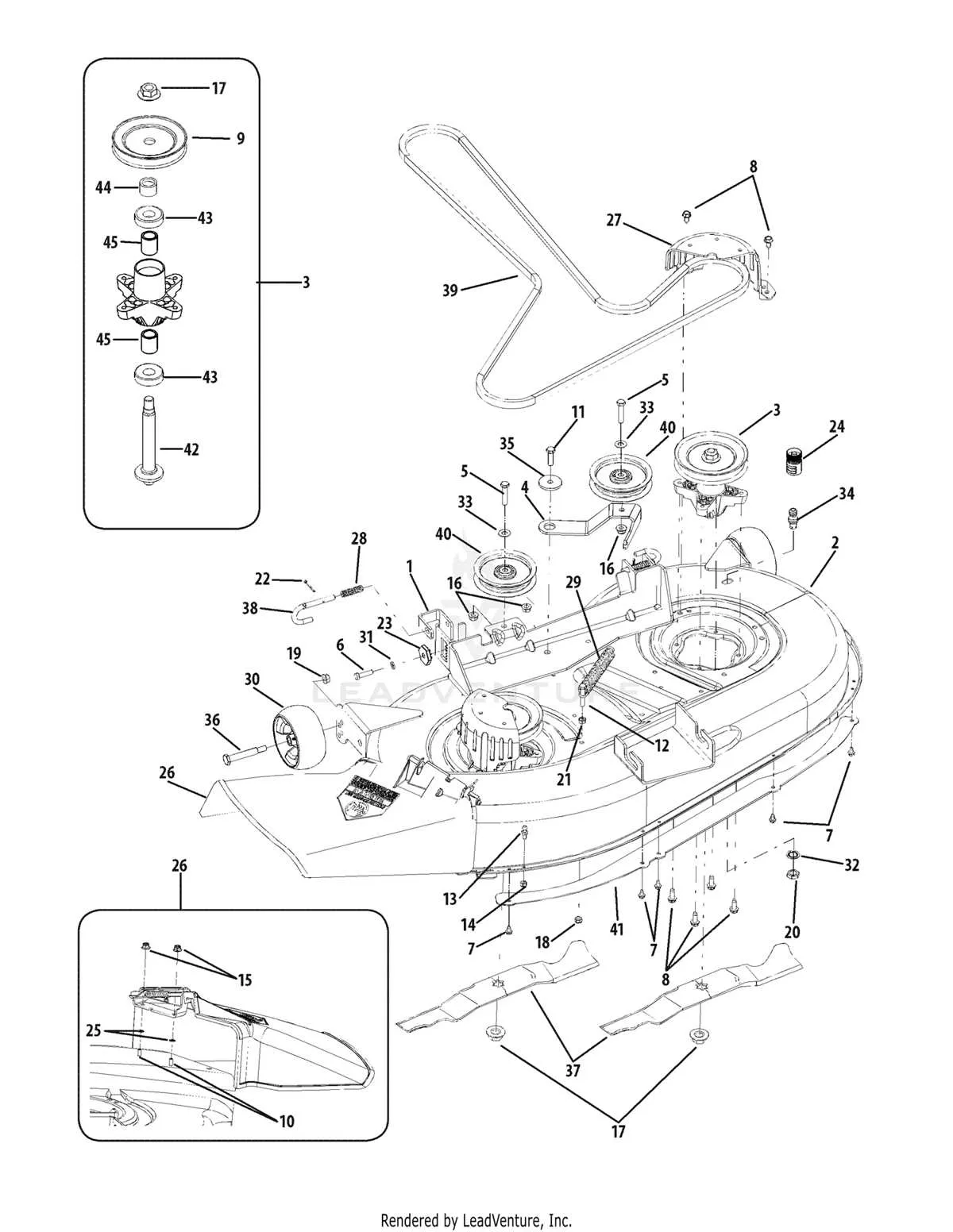

Troy Bilt Pony 42 Inch Deck Belt Diagram

To replace the deck belt on your Troy Bilt Pony 42-inch mower, follow the diagram for proper belt routing. This diagram provides the exact path the belt should follow, ensuring optimal performance. Carefully observe the pulleys and tensioner system. Ensure the belt is securely positioned around each pulley to avoid slipping or damage during operation.

Begin by locating the tensioner pulley, which is responsible for keeping the belt tight. Next, examine the guide pulleys that help direct the belt around the deck. The belt should run smoothly along these pulleys without twisting or overlapping. Pay attention to the routing around the spindle pulleys, which control the blades’ movement. Improper routing may lead to inefficiency and premature wear on the belt.

For the best results, always replace the belt with one recommended by Troy Bilt. Non-compatible belts may affect the mower’s cutting performance and cause unnecessary wear on the deck components. After replacing the belt, check the tension. A belt that is too tight or too loose can damage the mower’s drive system.

Refer to the manual for torque specifications and additional instructions for reinstalling the deck. Following the diagram ensures the belt is installed properly, reducing the risk of mechanical issues and improving mower performance.

Understanding the Components of the Troy Bilt Pony 42 Inch Deck Belt System

The Troy Bilt Pony 42-inch deck belt system consists of several key components that work together to drive the mower’s cutting deck. The primary components include the deck belt, idler pulleys, tension springs, and the blade spindle. Each part plays a critical role in ensuring smooth and efficient operation.

The deck belt is the central element, connecting the engine to the deck pulleys, transferring power to the blades. It is essential to inspect the belt regularly for signs of wear, such as cracks or fraying. Replace the belt if it appears damaged to maintain optimal performance.

Idler pulleys are responsible for guiding the deck belt and maintaining tension. These pulleys help keep the belt properly aligned and prevent it from slipping. Ensure that the pulleys are free from debris and that their bearings are in good condition. A faulty pulley can cause belt misalignment or premature wear.

Tension springs keep the proper tension on the deck belt, allowing it to operate smoothly. Over time, springs may lose their elasticity, leading to a loose or slack belt. Inspect the springs periodically, and replace them if they show signs of weakness to prevent belt slippage.

The blade spindle is connected to the belt through the pulleys, enabling the blades to spin. Regularly check the spindle for signs of wear or damage. A worn spindle can affect the performance of the deck and lead to uneven cuts.

Each component is interconnected and requires regular maintenance to ensure the mower functions correctly. Regular inspection and timely replacement of any damaged parts will help extend the life of the Troy Bilt Pony mower and keep it running at its best.

Common Issues with the Troy Bilt Pony 42 Inch Deck Belt and How to Resolve Them

If the Troy Bilt Pony 42-inch deck belt is not functioning properly, it’s often due to common issues like wear and tear, misalignment, or debris buildup. Regularly inspecting and maintaining the deck belt can prevent most of these problems.

One common issue is belt slippage. If the belt slips off the pulleys, inspect the tension spring. A weak or broken spring will cause the belt to lose tension and slip. Replace the tension spring if necessary to maintain proper belt tension.

Another issue is premature wear. If the belt is showing signs of fraying or cracking, it could be due to a misaligned pulley or too much tension on the belt. Check for any misalignment and ensure that the belt is running smoothly over the pulleys. Adjust or replace any worn-out pulleys.

Debris build-up on the pulleys or belt can also cause performance issues. Clean the pulleys and belt thoroughly to remove any grass, dirt, or debris that may be interfering with their function. Keeping the deck clean will reduce unnecessary strain on the belt.

If the belt is making unusual noises, it may be rubbing against something it shouldn’t. Inspect the belt path for any obstacles or areas where the belt might be rubbing against the deck or other parts. Correcting any obstructions will stop the noise and improve the belt’s efficiency.

Lastly, a loose or stretched belt can result in poor cutting performance. Replacing the belt when it starts showing signs of stretching is crucial to maintaining optimal mower operation. Always replace with a belt of the correct size and specification to avoid any further issues.

Step-by-Step Guide to Replacing the Deck Belt on a Troy Bilt Pony Mower

To replace the deck belt on a Troy Bilt Pony mower, follow these steps carefully to ensure proper installation and function of the belt system.

1. Prepare the mower: Park the mower on a flat surface and turn off the engine. Remove the ignition key to prevent accidental start-ups.

2. Lift the mower deck: Use a jack or lift to raise the front of the mower, ensuring you have clear access to the deck components.

3. Remove the old belt: Locate the belt guide and pulley system. Release the tension by loosening the idler pulley or spring that holds the belt tight. Once tension is released, slide the old belt off the pulleys.

4. Inspect the pulleys: Check the pulleys for wear or damage. If any pulleys are worn out or damaged, replace them before installing the new belt.

5. Install the new belt: Place the new deck belt over the pulleys in the same configuration as the old one. Ensure the belt is properly aligned with the pulleys and the deck is positioned correctly.

6. Reattach the idler pulley: Tighten the spring or tension mechanism to apply tension to the new belt, ensuring it is securely in place.

7. Lower the mower deck: After the belt is installed, carefully lower the deck back into its normal position.

8. Test the mower: Start the mower and run it for a few minutes to check that the belt operates smoothly without slipping or making noise.

By following these steps, you will successfully replace the deck belt on your Troy Bilt Pony mower and restore its functionality.
