2009 Toyota Corolla Serpentine Belt Diagram and Configuration

The 2009 Toyota Corolla belt diagram is a key resource for anyone working on the vehicle’s maintenance. It clearly outlines the positioning and routing of the serpentine and accessory belts, which are vital for the functioning of systems such as the alternator, power steering pump, and air conditioning compressor. A precise diagram will ensure that the belts are correctly installed and aligned, preventing wear and ensuring smooth operation.

When replacing or adjusting the belts, always double-check the tension. A belt that is too tight can cause unnecessary strain on the components, while a loose belt can slip or cause inadequate performance. Refer to the 2009 Corolla owner’s manual for the recommended belt tensioning procedure and use proper tools to avoid damaging the components.

The diagram should also help identify any specific routing steps for different engine configurations. Make sure to pay attention to the exact routing for the engine model you are working with, as improper belt alignment can lead to increased wear or malfunction.

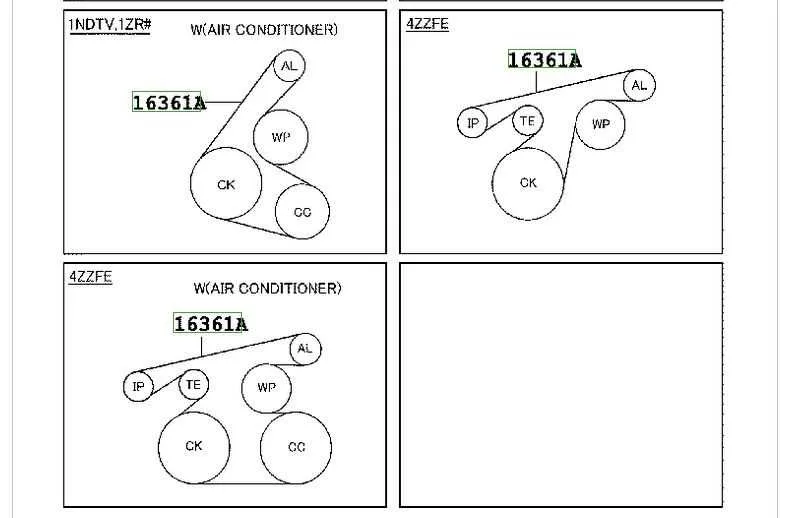

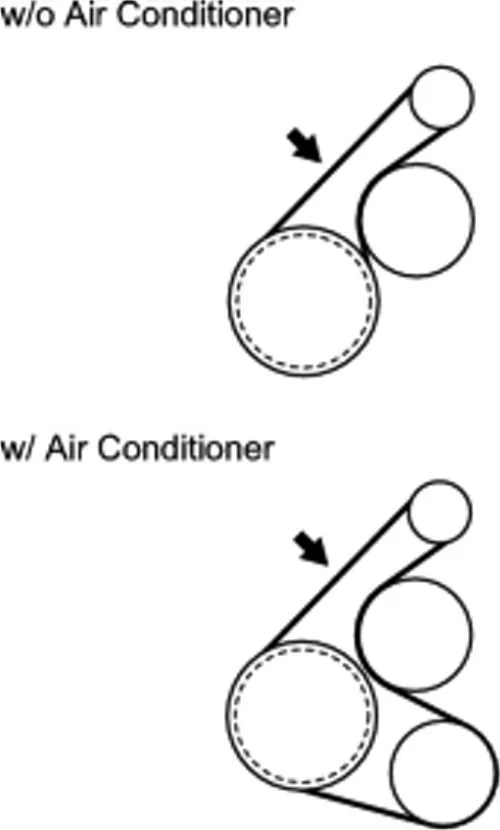

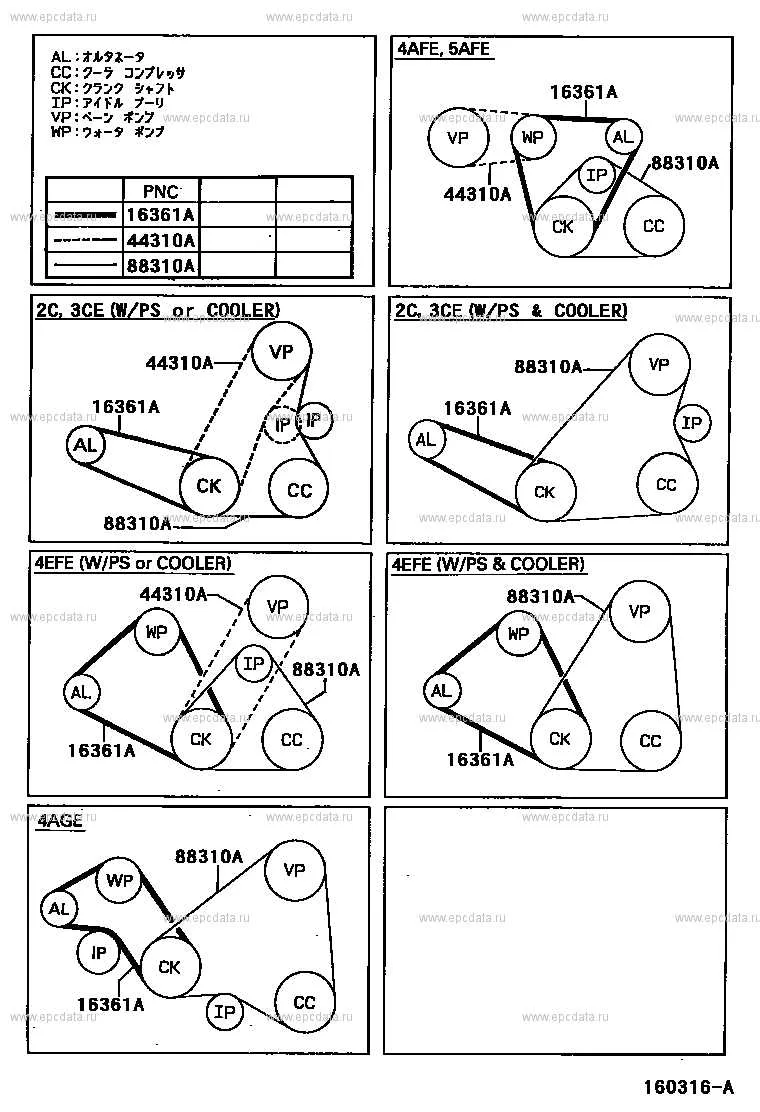

2009 Toyota Corolla Belt Diagram

The 2009 Toyota Corolla uses multiple belts for different functions. These include the serpentine belt, the timing belt, and the alternator belt. Each has a specific route and plays a key role in the proper operation of the engine and various accessories.

Serpentine Belt: This belt drives several components, including the alternator, power steering pump, and air conditioning compressor. The diagram clearly shows how the serpentine belt runs over pulleys and tensioners. Ensure proper tension to prevent slipping or wear. The recommended replacement interval is around 60,000 to 100,000 miles, depending on your driving habits.

Timing Belt: The timing belt in the 2009 Corolla is critical for maintaining engine synchronization. It controls the opening and closing of the engine’s valves. If this belt fails, the engine may suffer significant damage. Replacing the timing belt is vital between 90,000 and 100,000 miles, as recommended by the manufacturer. The belt should be replaced in a timely manner to prevent costly repairs.

Alternator Belt: This belt works to ensure the alternator operates efficiently, supplying power to the battery and electrical system. Any signs of cracking or squealing could indicate a need for immediate attention. It is best to inspect it during regular maintenance checks.

Always refer to the detailed diagram in the vehicle’s manual when inspecting or replacing any of the belts. Accurate installation is crucial to avoid damage to engine components. Ensure that the correct tension is applied to avoid premature wear or breakage.

Identifying the Different Belts in the 2009 Toyota Corolla

Start by familiarizing yourself with the main belts in the 2009 Toyota Corolla: the serpentine belt, the timing belt, and the accessory belts. Each belt plays a specific role in the vehicle’s operation and requires regular inspection for wear and tear.

• Serpentine Belt: This long, continuous belt drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. It’s located at the front of the engine and is the most visible belt. Inspect for cracks or signs of wear, especially if the belt squeals or slips during operation.
• Timing Belt: This belt connects the crankshaft and camshaft, ensuring the engine’s valves and pistons operate in sync. It is located behind the engine covers and requires more attention, as it can wear out over time. Timing belts in the Corolla typically need replacement every 90,000 to 100,000 miles. Replace it before it breaks to avoid serious engine damage.
• Accessory Belts: These smaller belts operate specific systems like the power steering and the water pump. Unlike the serpentine belt, they are often separate and may need to be checked individually for signs of fraying or damage.

To identify a belt problem, listen for squealing noises, check for any cracks, and inspect the belt’s tension. If the belt appears worn or shows any significant damage, replace it immediately to avoid potential engine failure.

How to Properly Replace the Serpentine Belt in Your 2009 Toyota Corolla

First, gather the necessary tools: a new serpentine belt, socket wrench, tensioner tool, and a jack. Begin by raising the front of your Corolla with the jack and securing it with jack stands for safety.

Locate the serpentine belt. It runs over several pulleys, including the alternator, power steering pump, and air conditioning compressor. Check the belt routing diagram, which can be found near the engine bay, to understand the exact path the belt takes.

Next, use the socket wrench to release tension on the serpentine belt by turning the tensioner pulley counterclockwise. Once the tension is released, remove the old belt by carefully sliding it off the pulleys. Keep note of its routing for the installation of the new belt.

Now, place the new serpentine belt on the pulleys, following the original routing diagram. Ensure the belt sits properly in each groove and runs smoothly over all pulleys. Once the belt is in position, use the tensioner tool to reapply tension to the belt. Double-check that the belt is correctly aligned with all pulleys.

Finally, test the new belt by turning the engine on. Observe if the belt runs quietly and smoothly. If the belt is making noise or slipping, you may need to recheck its installation or adjust the tension slightly.

Troubleshooting Common Issues with the Belt System in the 2009 Toyota Corolla

If the serpentine belt in your 2009 Toyota Corolla is making noise, check for signs of wear, such as cracks or fraying. These issues usually point to the belt needing replacement. It’s important to inspect the belt for tension as well. If it’s too loose, it can slip off the pulleys or cause squealing sounds. You can adjust the tension using the tensioner pulley, but if the tensioner is worn, it may need replacement.

Another issue could be the alternator or power steering pump, both of which are driven by the serpentine belt. If either is not functioning correctly, it could be due to a misalignment or a failed bearing. Inspect the pulleys for wear and smooth movement. If you notice any irregularities, replace the affected part immediately.

A belt slipping off the pulleys could also be caused by damaged pulleys or incorrect routing. Double-check the belt routing diagram to ensure the belt is correctly installed. Misalignment can cause the belt to come off or wear out prematurely, leading to more serious engine issues.

If you notice any vibrations or poor performance from accessories powered by the belt, it may be a sign that the belt is not tracking properly or has become stretched. Replacing the belt when these symptoms occur will prevent further damage to the components it drives.

Lastly, an illuminated check engine light can sometimes point to a problem with the belt system. If the alternator or another accessory isn’t running properly due to a belt issue, the car’s computer may detect it and trigger the light. Be sure to scan the vehicle’s system for trouble codes to pinpoint the problem.
