2007 Ford F150 4.6 Serpentine Belt Diagram for Accurate Installation and Maintenance

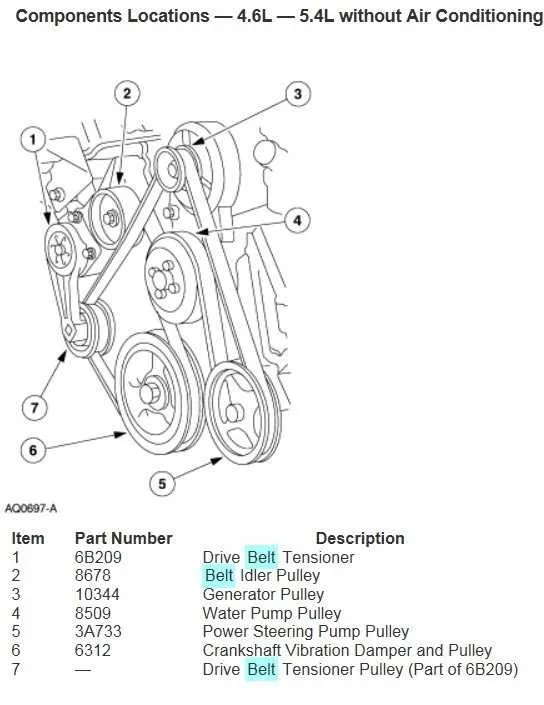

Locate the serpentine belt routing diagram on your 2007 Ford F150 4.6 engine before removing the old belt. This diagram is usually found on a sticker under the hood or in the owner’s manual, showing the exact path over the alternator, power steering pump, water pump, and crankshaft pulley.
Check belt tension and alignment while inspecting the diagram. The tensioner pulley must maintain proper tension; loose belts can slip, causing accessory malfunctions, while overtightened belts may damage bearings.
Follow the specific sequence when installing a replacement belt. Start by looping the belt over the pulleys indicated on the diagram, leaving the tensioner pulley for last. Use a wrench or a serpentine tool to release the tensioner and slide the belt into place securely.
Inspect pulleys and accessories for wear during installation. Misaligned or damaged pulleys can shorten belt life and reduce engine performance. Replace any worn components before finalizing the installation.
Test the belt after installation by running the engine briefly. Listen for unusual noises, and visually confirm that the belt moves smoothly along all pulleys as indicated in the diagram. Adjust tension if necessary to ensure optimal performance.
2007 Ford F150 4.6 Serpentine Belt Diagram Practical Guide

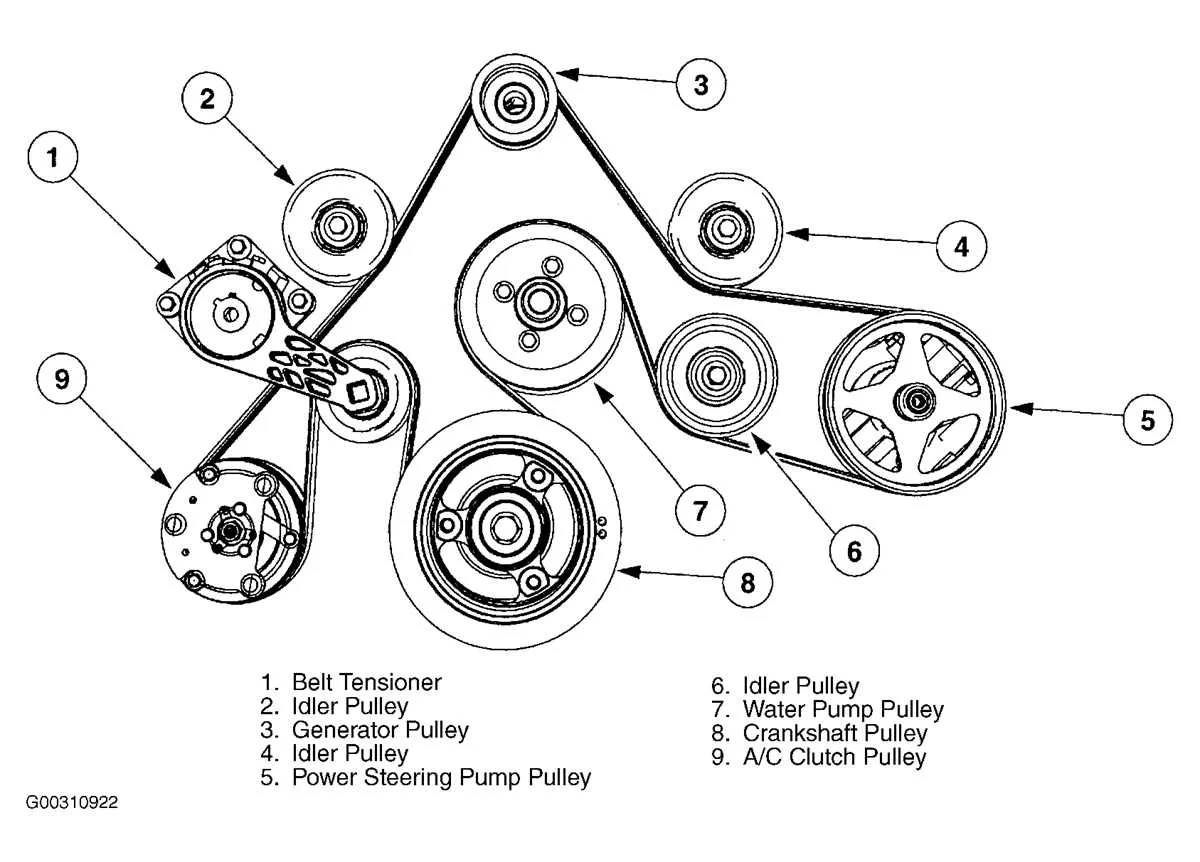

Locate the serpentine belt routing diagram on the engine cover or inside the driver-side fuse box to ensure accurate alignment. For the 4.6L V8 engine, the belt wraps around the crankshaft pulley, alternator, power steering pump, idler pulley, water pump, and air conditioning compressor in a specific sequence. Follow the diagram precisely to prevent misalignment that could cause premature wear or accessory failure.
Before removing the old belt, release tension using the tensioner pulley with a suitable wrench. Note the tensioner position to maintain proper belt tension during installation. Inspect each pulley for smooth rotation and check for any signs of damage, corrosion, or wobbling that could compromise belt performance.
Install the new belt according to the diagram, ensuring each ribbed side fits correctly into the grooves of each pulley. Rotate the crankshaft manually to verify the belt seats properly without twisting. Confirm the tensioner applies correct pressure and that the belt maintains alignment across all pulleys.
After installation, start the engine and observe the belt in motion. Listen for unusual noises such as squealing or chirping, which indicate misalignment or insufficient tension. Adjust the belt routing or tensioner position if necessary to maintain smooth operation.
Maintain a replacement schedule of 60,000 to 100,000 miles for the serpentine belt and monitor accessory components regularly. Keeping the belt in optimal condition ensures reliable operation of the alternator, water pump, power steering, and A/C system on the 2007 Ford F150 4.6.
Locating and Identifying Components on the 4.6 Serpentine Belt
Begin by positioning yourself in front of the engine bay with the hood fully open. Locate the serpentine belt on the passenger side of the engine, wrapping around multiple pulleys.
The crankshaft pulley sits at the bottom center and drives the belt. Directly above it, identify the alternator pulley on the passenger side, which supplies electrical power. The power steering pump pulley is typically on the driver’s side, slightly above the crankshaft, providing hydraulic pressure for steering.
The air conditioning compressor pulley lies near the lower driver’s side and includes a clutch mechanism. Locate the water pump pulley in the central upper area; it circulates coolant through the engine. The tensioner pulley is mounted near the middle of the belt path and applies constant pressure to maintain proper tension. Additionally, the idler pulley, found adjacent to the tensioner, redirects the belt for optimal alignment.
Trace the belt along each pulley to confirm the path matches the factory diagram. Use a flashlight if necessary to spot smaller components and pulley bolts. Ensure all pulleys rotate freely without wobble or unusual noise before proceeding with maintenance or replacement.
Step-by-Step Instructions for Replacing the Serpentine Belt on a 2007 Ford F150 4.6
Loosen the tensioner to relieve pressure on the serpentine belt. Use a 3/8-inch ratchet or breaker bar on the tensioner pulley bolt, rotating it clockwise to release tension.
Slide the belt off the pulleys, starting with the easiest to reach, usually the alternator or power steering pulley. Avoid forcing the belt, as it may damage surrounding components.
Compare the old belt with the new one to ensure correct length and rib alignment. Verify that all pulleys match the belt’s grooves.
- Position the new belt around the crankshaft pulley first, then follow the serpentine belt routing diagram for the F150 4.6 engine. Ensure each rib sits properly in the pulley grooves.
- Wrap the belt around the accessory pulleys in sequence: alternator, power steering, A/C compressor, and idler pulleys. Double-check the routing before applying tension.
- Rotate the tensioner with the ratchet and slip the belt over the final pulley. Slowly release the tensioner, allowing it to apply proper tension to the belt.
- Inspect the belt to confirm correct alignment on all pulleys. Check that the ribs are fully seated and there are no twists.
- Start the engine and observe the belt operation for several seconds. Ensure smooth movement and correct tracking across all pulleys.
If any misalignment or slipping occurs, shut off the engine immediately and readjust the belt. Regular inspection every 12,000 miles helps maintain optimal performance and prevents premature wear.
Troubleshooting Common Belt Alignment and Tension Issues
Check the serpentine belt routing against the factory diagram before inspecting tension. Misalignment often occurs when pulleys are worn or bolts loosened. Examine all pulleys for wobble or lateral play and replace any showing irregular movement.
Use a belt tension gauge to verify tension. The 2007 Ford F150 4.6 requires approximately 160–200 lbs of deflection force at the midpoint of the longest span. Belts that are too loose can slip, causing squealing and uneven wear, while overtight belts can damage bearings and the alternator.
Inspect the belt surface for glazing, cracks, or fraying. Worn belts can appear aligned but still fail under load. Replace any belt showing these signs immediately, even if tension appears correct.
Check the idler and tensioner pulleys for smooth rotation. A sticking tensioner can create inconsistent tension, leading to misalignment. If the tensioner exhibits noise or jerky movement, replace it rather than adjusting the belt repeatedly.
Confirm all accessory brackets are secure. Loose brackets can shift pulleys, causing tracking issues. Retighten bolts to factory torque specifications and verify belt alignment visually, ensuring it sits fully within pulley grooves.
After adjustments, run the engine at idle and observe the belt. Listen for squeals and watch for lateral movement. Recheck tension and alignment after a short drive, as the belt may settle into proper positioning once fully engaged under load.
