2008 Toyota Camry 2.4 Serpentine Belt Routing Diagram and Installation Guide

If you’re looking to replace or inspect the serpentine belt on your 2008 Toyota Camry 2.4, the first step is understanding its layout. The serpentine belt powers multiple components in the engine, including the alternator, power steering pump, and air conditioning compressor. Accurate routing is crucial to ensure all systems run smoothly without strain on the engine.

The diagram for the 2008 Camry 2.4 serpentine belt is straightforward but needs to be followed precisely. The belt wraps around the crankshaft pulley, the water pump, the tensioner, and other key pulleys. Keep the following in mind: the tensioner pulley maintains the necessary tension for the belt, and the diagram should show the direction of rotation and any guides or grooves on the pulleys.

Important tip: Before removing the old serpentine belt, note the direction of the belt’s travel. Use a diagram or take a photo to help you reinstall the new one. Make sure the new belt matches the size and length of the original to avoid over-tightening or improper fitting.

Once installed, check the belt for tightness and smooth operation. Ensure the pulleys are aligned correctly, and if you notice any unusual noise or wear, it’s a sign to inspect the components further. With proper installation, your 2008 Toyota Camry will run efficiently, and the serpentine belt will support the engine’s vital systems effectively.

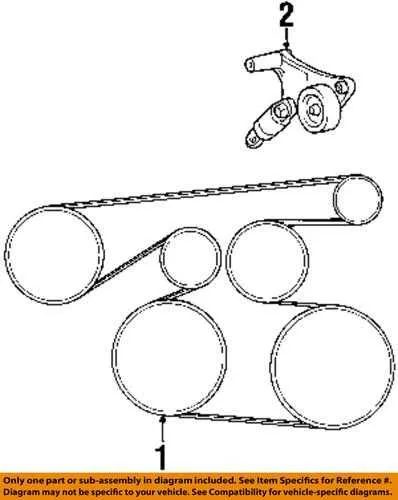

2008 Toyota Camry 2.4 Serpentine Belt Diagram

The serpentine belt on the 2008 Toyota Camry 2.4 engine powers several vital components, including the alternator, air conditioning compressor, power steering pump, and water pump. To ensure proper function, the belt must be installed correctly and have the right tension. Below is a basic guide for understanding the serpentine belt path for this vehicle.

First, ensure that the engine is off, and disconnect the battery to avoid any electrical issues. Using a 14mm socket, remove the tension from the belt by turning the tensioner pulley clockwise. Once the tension is released, carefully slide the belt off the pulleys. Make sure you follow the exact routing order to ensure smooth operation when installing the new belt.

The serpentine belt diagram for the 2008 Toyota Camry 2.4 follows this path:

• The belt begins at the crankshaft pulley, moving clockwise.
• It goes to the alternator pulley, then to the power steering pump pulley.
• Next, it loops around the AC compressor pulley.
• Then, it wraps around the water pump pulley before returning to the crankshaft pulley via the tensioner.

Ensure the belt is routed around all pulleys in the proper order. Double-check for any misalignments before securing the new belt. Once installed, use the tensioner to adjust the belt’s tightness and ensure it’s not too loose or tight. An improperly tightened belt can cause wear and premature failure.

If the belt is worn or damaged, replacing it on time prevents more significant issues like overheating or power loss to critical systems. Keep an eye on the belt for any cracks, fraying, or signs of wear, especially around the edges.

How to Read the 2008 Toyota Camry 2.4 Serpentine Belt Routing Diagram

To properly read the serpentine belt routing diagram for the 2008 Toyota Camry 2.4, start by identifying the major components in the system: the crankshaft pulley, the alternator, the power steering pump, the air conditioning compressor, and the tensioner. These components are clearly labeled on the diagram, often with arrows indicating the belt’s path.

Look for the belt’s entry and exit points. The diagram will show the direction the belt should follow, starting from the crankshaft pulley and routing through each of the accessories. Pay attention to how the belt wraps around the idler and tensioner pulleys, as these are key to maintaining correct belt tension.

Check for any special notations on the diagram, such as belt length or routing variations based on specific engine configurations. These notes ensure that the belt fits correctly and functions as intended. If you’re replacing the belt, double-check the diagram to avoid incorrect routing that could lead to malfunction or damage.

Once you’ve identified all components and the belt’s routing, follow the arrows and pulleys to ensure proper installation. Ensure the tensioner is in the correct position before securing the belt to avoid misalignment.

Common Serpentine Belt Issues in the 2008 Toyota Camry 2.4

Several issues can arise with the serpentine belt in the 2008 Toyota Camry 2.4, leading to noticeable performance problems. Regular inspection is key to addressing these before they affect the car’s operation.

• Worn or Cracked Belt: Over time, the serpentine belt can wear out or develop cracks due to continuous exposure to heat and friction. These signs indicate the belt may need replacing.
• Squealing Noises: A common symptom of a loose or worn belt is a high-pitched squeal, especially when starting the engine. This occurs when the belt loses tension or the grooves begin to wear away.
• Belt Slipping: If the belt slips off the pulleys, it can cause accessories like the alternator and air conditioning to stop working. A loose or improperly routed serpentine belt often causes this problem.
• Power Loss: A damaged serpentine belt can disrupt the operation of vital components such as the alternator, power steering pump, and air conditioning compressor, leading to reduced vehicle performance.
• Excessive Vibration: When the serpentine belt is misaligned or has become stretched, it can cause vibrations in the engine. This might also lead to uneven wear on other parts like pulleys.

Ensure the serpentine belt is properly maintained by checking its condition at regular intervals and replacing it at the recommended intervals. Inspect the tensioner and pulleys to avoid secondary issues like misalignment or excessive wear.

Steps to Replace the Serpentine Belt on the 2008 Toyota Camry 2.4

Lift the car and secure it on jack stands for safety. Remove the front passenger-side wheel to gain better access to the engine bay.

Locate the serpentine belt routing diagram. It’s typically found on a sticker near the engine or on the radiator support. This will guide you in the correct installation path.

Release tension from the belt by using a socket wrench on the tensioner pulley. Rotate the tensioner clockwise and carefully slide the serpentine belt off the pulleys.

Inspect the new belt for any defects before installation. Place the new serpentine belt over the pulleys following the diagram, ensuring it sits properly in the grooves.

Once the belt is in place, release the tensioner slowly, allowing it to apply tension to the new belt.

Double-check the alignment of the belt on all pulleys to ensure it’s correctly positioned and tightly secured. Reinstall the wheel and lower the car back to the ground.

Start the engine and verify that the belt operates smoothly, without noise or slippage. If everything looks good, the replacement is complete.
