Cub Cadet 50 Deck Belt Diagram and Installation Guide

If you’re replacing or repairing the deck belt on your Cub Cadet 50, it’s important to follow the correct diagram to ensure proper installation. Start by identifying the belt’s route, from the engine to the pulleys on the deck.

The first step is to remove any obstructions around the mower deck to gain clear access to the belt. Use the diagram to align the belt with the correct pulleys, ensuring it runs smoothly along the designated paths. Pay close attention to tensioners and the direction of belt rotation to avoid issues down the line.

Once the belt is in place, check for proper tension. Too much slack can cause slipping, while too tight a belt may cause wear. Follow the diagram’s guidance for adjustments if needed, and confirm the belt is seated correctly on all pulleys before reassembling the mower.

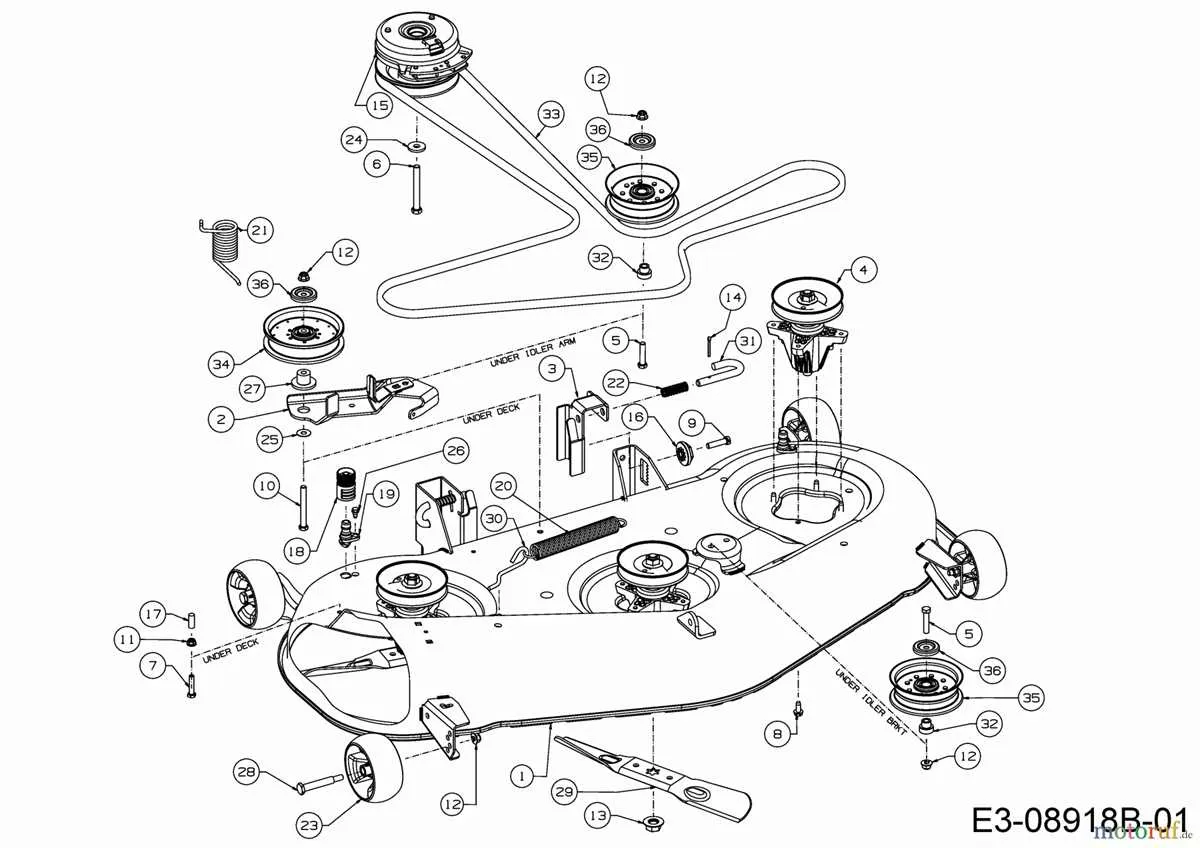

Cub Cadet 50 Deck Belt Diagram

To replace or troubleshoot the Cub Cadet 50 deck belt, it is important to follow the correct path of the belt as indicated in the diagram. This guide will help you ensure the proper routing and smooth operation of the belt system.

First, disconnect the battery to prevent any accidental starts while working on the machine. Next, lift the mower deck to gain access to the belt and check the routing as shown in the diagram. The belt should run smoothly around the pulleys without twisting or rubbing against any parts of the machine.

Here is the typical configuration for the Cub Cadet 50 deck belt:

• The belt starts from the engine pulley, running toward the deck pulleys.
• The belt wraps around the main drive pulley located on the mower deck.
• Ensure the belt is positioned correctly on the tensioner pulley to maintain the right tension.
• Check that the belt runs under the idler pulleys and around the blade spindles without any slack or overlap.

After confirming the belt’s path, inspect the condition of the belt for any signs of wear, such as cracks, fraying, or excessive stretching. If necessary, replace the belt with a new one designed specifically for the Cub Cadet 50 model.

Once the new belt is installed, ensure that the tension is adequate and that the belt is correctly aligned with the pulleys. Test the mower by running it briefly to check for smooth operation and listen for any unusual noises. If the belt slips or if the machine doesn’t run properly, double-check the routing and tension.

How to Properly Install the Deck Belt on Cub Cadet 50

Begin by lifting the deck of the Cub Cadet 50 using a jack or similar support to create enough space for belt installation. Ensure the deck is stable and secure before proceeding.

Next, locate the existing belt path. If replacing an old belt, remove it by loosening the tensioner pulley and detaching the belt from the deck spindles. Inspect the new belt for correct length and size before installation.

Place the new deck belt around the pulleys, starting from the engine pulley and routing it through the deck’s pulleys according to the manufacturer’s diagram. Ensure that the belt sits evenly on all pulleys without twisting.

Once the belt is in place, adjust the tensioner pulley to maintain appropriate tension. Ensure the belt is neither too tight nor too loose, as this could affect performance and lead to premature wear.

Finally, check the belt alignment and make sure the deck operates smoothly by engaging the blades and observing the movement. If any slipping or abnormal noise occurs, recheck the installation for any misalignment or incorrect tension.

Common Issues with the Cub Cadet 50 Deck Belt and How to Fix Them

Slipping Belt: A slipping deck belt often occurs when the tension is too loose. To fix this, check the tensioner spring and adjust it to apply the proper amount of tension to the belt. If the spring is worn, replace it to ensure consistent belt pressure.

Worn or Frayed Belt: Inspect the belt for any visible signs of wear or fraying. A damaged belt should be replaced immediately to avoid further damage to the deck. Use the model-specific replacement belt and follow the manufacturer’s instructions for installation.

Belt Off the Pulley: If the belt comes off the pulley, it could be due to incorrect alignment or worn pulleys. Inspect the pulleys for any misalignment or wear. If any pulleys appear worn out, replace them. Ensure that all pulleys are properly aligned to keep the belt on track.

Excessive Vibration: Excessive vibration while the mower is in use can indicate that the belt is misaligned or that one of the pulleys is malfunctioning. Inspect the belt routing and check for any loose or damaged components. Tighten or replace as needed.

Weak or Broken Tensioner Spring: The tensioner spring is responsible for maintaining belt tension. If it is weak or broken, the belt will not function correctly. Inspect the spring for damage and replace it if necessary to maintain proper belt tension.

Understanding the Components of the Cub Cadet 50 Deck Belt System

The Cub Cadet 50 deck belt system consists of several key components that work together to ensure proper function. The main elements include the deck belt, pulleys, idler arms, and tensioner springs. Each component plays a specific role in maintaining tension and facilitating smooth movement of the belt.

The deck belt is the primary part that drives the cutting blades. It loops around the pulleys attached to the deck and engine, transferring power from the engine to the blades. Over time, the belt may wear out, leading to reduced performance or failure to engage the blades.

Pulleys guide the belt and determine the direction of movement. They come in various sizes to control the speed at which the blades rotate. The larger pulleys typically drive the blades, while the smaller ones support tension adjustments.

Idler arms and tensioner springs work together to maintain the correct tension on the belt. The idler arms guide the belt around the pulleys, and the springs provide necessary pressure to prevent slack. An improperly adjusted tensioner can cause the belt to slip or break.

Maintaining the integrity of these components is crucial for smooth operation. Regular inspections and replacements of worn parts will help prevent costly repairs and ensure the mower functions effectively.
