2008 Toyota Camry 2.4 Engine Belt Diagram Layout and Routing Guide
Consult the belt diagram before attempting any replacement on a 2008 Toyota Camry 2.4L engine. The serpentine belt routes around the alternator, power steering pump, water pump, and A/C compressor. Follow the tensioner carefully to release and reapply tension without damaging components.
Verify the belt condition for cracks, fraying, or glazing. Replace the belt immediately if wear signs appear. Correct routing prevents slippage and ensures proper function of engine accessories. Cross-reference part numbers to match OEM specifications precisely.
Use a wrench on the tensioner pulley to ease belt installation. Ensure the belt sits fully in all pulley grooves and aligns evenly. After installation, rotate the engine manually two revolutions to check for misalignment or interference, preventing premature wear or failure.
Maintain a record of belt replacement intervals. The 2008 Camry 2.4L typically requires a new belt every 60,000 miles, but visual inspection should guide timing more accurately. Proper attention extends component life and preserves engine performance.
2008 Toyota Camry 2.4 Belt Diagram Practical Guide
Locate the serpentine belt routing on the front of the 2.4L engine. The belt wraps around the crankshaft pulley, alternator, water pump, power steering pump, and tensioner. Verify the tensioner position before removing the old belt to prevent slack or misalignment.

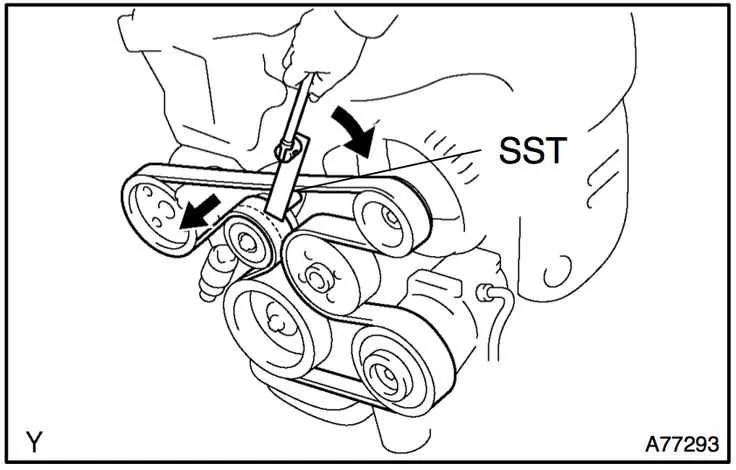

Use a 14mm or 15mm wrench to rotate the tensioner counterclockwise, releasing pressure on the belt. Carefully slide the belt off each pulley in sequence. Compare the removed belt to the replacement to confirm correct length and rib alignment.
Follow the diagram closely during installation: the belt should contact all pulleys smoothly, with the ribbed side engaging the grooved pulleys. Ensure the tensioner returns to its position and maintains proper belt tension. Rotate the crankshaft manually two full turns to confirm correct seating and alignment.
Inspect all pulleys for wear or wobble while the belt is off. Replace any pulley that shows grooves, cracks, or misalignment to avoid premature belt failure. Keep the routing diagram accessible for reference during future maintenance.
Locate and Identify All Engine Belts on a 2008 Toyota Camry 2.4
Begin by opening the hood and securing it. Locate the front of the engine where the accessory components are mounted. The 2008 Toyota Camry 2.4 uses a serpentine belt to drive most accessories and a separate timing chain inside the engine, which does not require routine inspection.
Follow these steps to identify all visible belts:
- Serpentine Belt: Runs across the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Look for a single, continuous belt looping around all these pulleys.
- Accessory Belt Routing: Check the diagram printed on the radiator support or near the engine. It shows the exact path over each pulley and the belt’s tensioner location.
- Tensioner Identification: Locate the spring-loaded tensioner pulley that maintains proper tension on the serpentine belt. Press the tensioner arm with a wrench to relieve belt tension for removal or inspection.
Inspect each pulley for wear marks, cracks, or misalignment. Ensure the belt sits properly in the grooves without twisting or fraying.
There are no additional external belts on this engine. All accessory-driven components are managed by the single serpentine belt, while the timing mechanism operates internally, requiring no visual inspection.
Always cross-check belt routing before removal. Use the diagram to confirm correct installation and maintain proper tension when reinstalling.
Step-by-Step Visual Reference for Routing the Serpentine Belt
Position the 2008 Toyota Camry 2.4 engine at idle with the ignition off. Locate the serpentine belt routing diagram on the radiator support or under the hood; if missing, follow the engine accessory layout carefully.
Identify the crankshaft pulley at the bottom center. Loop the belt around the crankshaft pulley, ensuring it seats fully in the groove. Next, guide the belt upward and wrap it around the alternator pulley on the upper left side of the engine.
Pass the belt down to the tensioner pulley, keeping it tight along the grooves. Rotate the tensioner clockwise with a wrench to allow the belt to slide over the pulley smoothly, then release the tensioner so it holds the belt in place.
Route the belt around the power steering pump pulley, keeping alignment consistent. Pull the belt over the air conditioning compressor pulley if equipped, confirming it fits in all pulley grooves.
Finally, trace the belt along the water pump pulley and ensure it aligns correctly across all components. Double-check that each pulley groove is fully engaged and the belt is not twisted. Run the engine briefly and observe the belt movement to confirm proper installation.
Troubleshoot and Replace Worn or Damaged Belts Safely
Inspect the serpentine belt for cracks, fraying, or glazing along the ribs. Use a flashlight to check areas hidden by pulleys. Any visible damage indicates the belt must be replaced immediately.
Listen for squealing or chirping sounds while the engine runs. High-pitched noises often signal misalignment or wear. Verify tension using a belt tension gauge: for the 2008 Toyota Camry 2.4, the deflection should be about 10-15 mm under moderate pressure.
Before removing the belt, disconnect the battery to prevent accidental engine start. Release tension using the tensioner pulley by turning it clockwise with a wrench. Slide the belt off pulleys carefully, noting the routing for reinstallation.
Compare the new belt to the old one to confirm length, rib count, and width. Route the new belt according to the belt diagram, ensuring it sits squarely in pulley grooves. Rotate the tensioner back and check for proper tension across all pulleys.
After installation, start the engine and observe the belt at idle. Check for smooth movement, absence of slipping, and correct alignment. Recheck tension after the first 50-100 miles to maintain optimal performance.
