2007 Toyota Tacoma Serpentine Belt Diagram and Routing Guide

The serpentine belt system in the 2007 Toyota Tacoma is vital for the proper operation of various engine components, including the alternator, air conditioning compressor, and power steering pump. Understanding its layout and proper routing is key for maintaining your vehicle’s performance. The belt should be checked regularly for wear, cracks, and proper tension.

To ensure smooth functioning, always replace a damaged serpentine belt as soon as any signs of wear are noticed. The belt can be easily replaced by following the routing diagram provided in the owner’s manual. Make sure to verify the belt’s path and check the tensioner for any issues before installing a new one.

If you are experiencing any unusual noises or a drop in performance, it could be due to a misaligned or damaged serpentine belt. Inspect the belt’s condition and replace it if needed to prevent further damage to the engine components. Keeping a close eye on this system will save you time and money in the long run.

2007 Toyota Tacoma Serpentine Belt Diagram

The serpentine belt in the 2007 Toyota Tacoma plays a key role in driving multiple engine components. To replace or troubleshoot the serpentine belt, it is essential to follow the correct routing diagram. Below is the correct belt routing for the 2007 model, ensuring smooth operation of critical components such as the alternator, power steering pump, and air conditioning compressor.

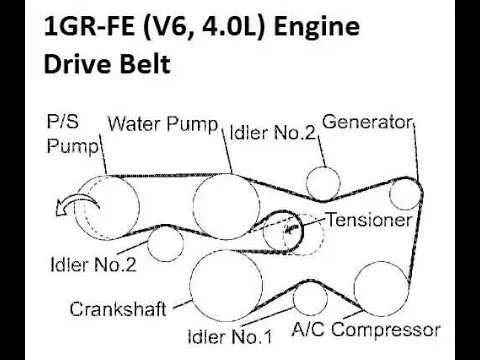

Here is the belt routing diagram for the 2007 Toyota Tacoma with a 4.0L V6 engine:

• Start at the crankshaft pulley, wrapping the belt clockwise.
• Route the belt around the tensioner pulley, then move it around the idler pulley.
• Guide it over the power steering pump and the alternator pulley.
• Make sure the belt loops around the air conditioning compressor pulley.
• Finally, ensure the belt ends back at the crankshaft pulley, providing tension through the tensioner pulley.

For accurate replacement, carefully check the belt’s condition and replace it if you notice cracks or excessive wear. A properly installed belt ensures the reliability of your vehicle’s engine accessories.

Understanding the Serpentine Belt Layout on 2007 Toyota Tacoma

The serpentine belt on a 2007 Toyota Tacoma is a critical component that powers several key systems in the engine. It routes through pulleys to drive the alternator, power steering pump, water pump, and air conditioning compressor. Understanding its layout can help you diagnose issues and perform maintenance more effectively.

To check the serpentine belt configuration, first ensure the belt is routed correctly according to the diagram. The belt typically loops around multiple pulleys, following a precise path that ensures all connected accessories receive power. Pay close attention to the tensioner pulley, as it helps maintain the right tension, ensuring smooth operation.

If you notice any visible damage on the belt, such as cracks or fraying, it may be time for a replacement. A damaged belt can slip or break, leading to a loss of power to important engine systems. In addition, check the pulleys for any signs of wear or misalignment, as these could cause premature belt damage.

When replacing the belt, use the diagram to ensure correct routing. Misrouting the belt can cause it to slip off or damage engine components. Always verify that the belt is properly aligned with all pulleys before starting the engine.

Common Issues with the Serpentine Belt in 2007 Toyota Tacoma

The serpentine belt in the 2007 Toyota Tacoma is prone to wear and tear over time. A common issue is cracking, which typically occurs due to age or exposure to extreme temperatures. If the belt appears cracked, it should be replaced immediately to avoid system failure.

Another frequent problem is belt slipping, which can result in squeaking noises. This happens when the belt loses its grip on the pulleys. Slipping can reduce the belt’s effectiveness, affecting components like the alternator and air conditioning. Check the belt tensioner to ensure proper tension.

Glazing is a problem where the surface of the belt becomes shiny and smooth. This happens when the belt becomes too tight or the pulleys are misaligned. Glazed belts don’t grip well, leading to poor performance. If you notice a glazed appearance, replacing the belt is necessary.

Misalignment of pulleys can also cause uneven wear on the belt. If pulleys are not aligned properly, they will cause the belt to track unevenly, leading to premature wear or damage. Inspect the pulleys regularly to ensure they’re in good condition and aligned correctly.

In rare cases, the serpentine belt can snap, usually due to significant damage or extreme wear. If this happens, it can cause a complete loss of power to vital systems like the alternator and water pump, potentially leading to engine overheating. Always replace a worn belt before it breaks to avoid engine damage.

Step-by-Step Guide to Replacing the Serpentine Belt on 2007 Toyota Tacoma

To replace the serpentine belt on your 2007 Toyota Tacoma, gather the necessary tools: a ratchet wrench, socket set, serpentine belt tool, and the new belt. Ensure the vehicle is off and the keys are removed from the ignition.

First, locate the serpentine belt. It runs across the engine, connecting various components like the alternator, power steering pump, and air conditioning compressor. You’ll find the belt routing diagram on the radiator support or under the hood.

Next, use the serpentine belt tool or a ratchet wrench to relieve tension from the tensioner pulley. Turn the tensioner counterclockwise to loosen the belt. Carefully slide the belt off the pulleys, taking note of its routing for proper installation of the new belt.

Examine the old serpentine belt for signs of wear, like cracks or fraying. If any damage is visible, it’s time to replace the belt. Compare the old belt to the new one to ensure proper length and width.

Position the new belt according to the routing diagram. Start by fitting it onto the pulleys, making sure it sits snugly in each groove. Use the serpentine belt tool or ratchet wrench to apply tension to the tensioner pulley, allowing the belt to slip into place.

Once the belt is in place, double-check the alignment to make sure it sits correctly on all pulleys. If necessary, rotate the engine by hand to confirm the belt moves smoothly without slipping or misaligning.

Finally, start the engine and visually inspect the belt’s operation. Listen for any unusual noises or squeaks that could indicate improper installation or tension. If everything looks good, close the hood and dispose of the old belt properly.
