2016 6.7 Cummins Belt Diagram and Maintenance Guide
When replacing or maintaining the belt system in a 2016 6.7 Cummins engine, following the correct routing is key to ensure proper function. Start by identifying all belt components such as the tensioner, idler pulleys, and the drive pulley. Knowing where each part fits is crucial for minimizing wear and tear.
Before starting the installation process, check the condition of all pulleys and the belt itself. Replace any worn-out parts to avoid future breakdowns. For a smooth process, use a socket wrench to remove the old belt, keeping track of the routing for easier reinstallation.
Ensure the new belt is properly tensioned by using the tensioner tool. Over-tightening or under-tightening the belt can lead to premature failure. Refer to the manufacturer’s guidelines for the specific torque values and adjustments to keep the system running efficiently.

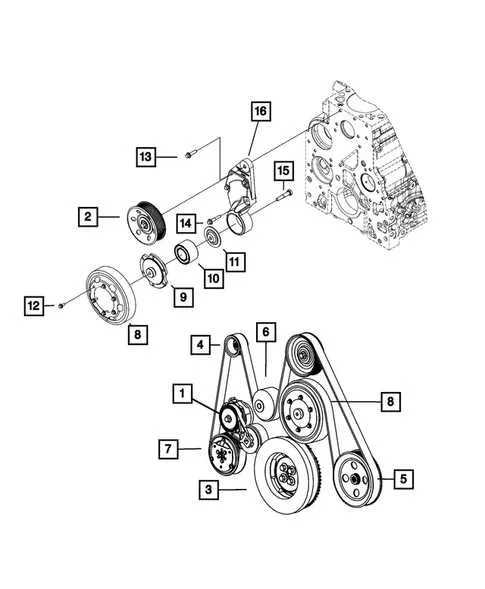

2016 6.7 Cummins Belt Diagram
The 2016 6.7 Cummins engine utilizes a serpentine belt to power multiple components. Ensure the belt is properly aligned and tensioned to avoid premature wear or failure. Refer to the diagram to identify the exact routing of the belt around pulleys, idlers, and tensioners.
Inspect the belt regularly for signs of wear such as cracks, fraying, or glazing. Replace the belt if any damage is found. When installing a new belt, double-check the alignment to ensure it follows the proper path as outlined in the diagram.
Pay attention to the tensioner spring’s condition. A worn-out tensioner can cause the belt to slip or become misaligned. Test the tensioner by pressing on it to ensure it maintains appropriate tension. If the tensioner is weak, replace it promptly.
The diagram also indicates the locations of key components like the alternator, water pump, and air conditioning compressor. Each part requires a specific amount of tension for optimal performance, which the diagram will guide you through.
For a smoother operation, make sure all pulleys are aligned and the bearings are in good condition. A misaligned pulley can lead to unnecessary stress on the belt, shortening its lifespan.
How to Identify the Correct Belt Routing for 2016 6.7 Cummins
Start by locating the belt routing diagram on the engine bay. It is typically found on a sticker or metal plate near the radiator fan or on the engine cover.
Next, inspect the components the belt interacts with: the alternator, water pump, power steering pump, and AC compressor. Each of these components has a designated pulley, and the belt must loop through them in a specific order to ensure proper operation.
To identify the correct routing, follow these steps:
- Align the belt with the crankshaft pulley, which should be the first point of contact.
- Guide the belt towards the tensioner pulley and ensure it is correctly tensioned before moving to other components.
- Continue along the belt path, ensuring it wraps around the power steering, alternator, and AC compressor pulleys in the correct order. Refer to the diagram for specifics.
- Double-check the direction of the belt: ensure it moves in the correct direction to avoid improper functioning of the components.
- Ensure the belt is securely placed in each groove on the pulleys. Misalignment can lead to premature wear or failure.
If the diagram is unreadable or missing, consult the vehicle’s service manual for the precise routing path.
Step-by-Step Process for Replacing the Belt on 2016 6.7 Cummins
Begin by disconnecting the negative terminal of the battery to ensure safety throughout the procedure.
Locate the serpentine belt tensioner on the front of the engine. Use a suitable tool to relieve tension from the belt by rotating the tensioner pulley. Carefully remove the belt from the pulleys, noting the belt routing for reinstallation.
Inspect the belt for signs of wear or damage. If replacing, compare the new belt with the old one to ensure proper size and fit. Place the new belt over the pulleys, following the exact routing path of the old belt.
Ensure the belt is seated correctly on each pulley, paying attention to grooves and edges. Re-engage the tensioner pulley to apply tension to the belt. Verify the belt is properly aligned and not twisted.
Reconnect the negative terminal of the battery. Start the engine and observe the belt to ensure it is running smoothly without slipping or making noise. Turn off the engine and recheck the belt’s alignment and tension.
Common Issues with Belt Alignment and Tension in 2016 6.7 Cummins
Misalignment in the belt system can cause significant wear and premature failure of components in the 2016 6.7 Cummins engine. Common causes include worn-out pulleys or tensioners, improper installation, or damage to the belt itself.
Check the pulleys for visible signs of wear, cracking, or misalignment. A misaligned pulley can pull the belt off track, leading to slippage or damage. Replace any damaged or worn pulleys immediately to prevent further damage.
Another common issue is improper belt tension. A belt that is too tight or too loose can cause the system to operate inefficiently. Tight belts can strain the engine components, while loose belts may slip, causing inconsistent power transfer. Adjust the tensioner to ensure the belt is at the correct tension. This can be done by using the proper tools to check the deflection and tension levels according to the manufacturer’s specifications.
Regular inspection of the tensioner is recommended. Over time, the spring mechanism in the tensioner can lose its ability to maintain the correct tension, leading to belt slippage. If the tensioner shows signs of wear, it should be replaced to maintain proper system function.
Finally, pay attention to the alignment of the belt’s routing. Any deviation from the correct alignment can put additional strain on the belt and surrounding components, leading to accelerated wear. Refer to the official belt routing diagram for your engine model to verify proper installation.
