2006 Toyota Tacoma 4.0 Serpentine Belt Routing Diagram and Repair Guide

If you’re looking to replace or inspect the serpentine belt on a 2006 Toyota Tacoma 4.0, the first step is understanding how the belt runs across the various components in your engine. The diagram for this model can help you visualize the exact routing, ensuring the belt aligns correctly and functions optimally. A properly routed serpentine belt ensures smooth operation of critical engine accessories like the alternator, power steering pump, and air conditioning compressor.

On the 2006 Tacoma, the serpentine belt runs across several pulleys in a specific order. Start by identifying the tensioner pulley, which is responsible for keeping the belt tight. The belt loops around the crankshaft, alternator, power steering pump, idler pulley, and the air conditioning compressor. Ensure you are following the exact path shown in the diagram to avoid any misalignment that can cause wear or damage over time.

Before replacing the belt, always double-check the condition of each pulley and the tensioner. A worn pulley or misaligned component can cause the new belt to fail prematurely. Also, be mindful of the recommended belt tension and the proper torque for each pulley to prevent slippage or overheating, which can shorten the lifespan of the serpentine belt.

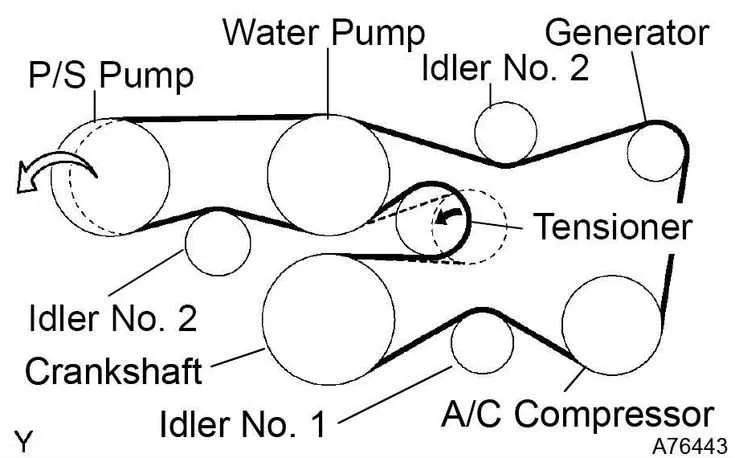

2006 Toyota Tacoma 4.0 Serpentine Belt Diagram

For the 2006 Toyota Tacoma with the 4.0L engine, the serpentine belt follows a specific routing pattern. Ensure the belt is properly installed to prevent issues with the alternator, power steering pump, air conditioning compressor, and water pump.

The serpentine belt should route from the crankshaft pulley, passing over the tensioner, alternator, power steering pump, and air conditioning compressor pulleys. The belt then loops back around the water pump pulley before returning to the crankshaft pulley. The tensioner maintains the required belt tension for smooth operation.

Before installation, inspect the belt for wear, cracks, or damage. If the belt is worn or damaged, replace it with a new one to prevent further engine damage. Check the belt’s alignment and ensure it seats properly in all grooves to avoid slippage and premature wear.

For proper installation, align the belt as shown in the diagram. Start at the crankshaft pulley, ensuring the belt sits firmly in the grooves of each pulley. Use the tensioner to apply the correct tension and secure the belt. Double-check the routing to avoid misalignment that could cause belt failure.

How to Read the 2006 Toyota Tacoma 4.0 Serpentine Belt Diagram

Check the diagram carefully to identify each component the serpentine belt runs around. Focus on the main pulleys, including the crankshaft, alternator, power steering pump, and water pump. Each pulley will be labeled, and the arrows show the direction the belt moves. Follow the arrows to understand the correct routing and tensioning path.

Start by locating the tensioner pulley, usually shown with a small spring-loaded mechanism. This pulley is adjustable, allowing the belt to maintain proper tension. If the diagram shows an auto-tensioner, it will indicate that the belt tension is automatically maintained by the pulley itself.

Next, look for any idler pulleys. These are non-driven pulleys used to guide the belt. Make sure to note their placement as it will affect the belt routing and ensure the belt doesn’t skip or slip off the pulleys. Idler pulleys are marked differently than the main driven pulleys, so keep an eye on their specific location.

Finally, check for the proper belt routing across the components. Ensure the belt runs in a consistent direction across all pulleys, following the arrows to avoid any misrouting. The belt must fit tightly around all pulleys without excess slack. Misrouting or incorrect placement can lead to slipping, wear, and potential damage to the engine components.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Toyota Tacoma 4.0

Start by locating the serpentine belt routing diagram, which is often found on the radiator support or the engine bay. If it’s not visible, search for a service manual to reference the correct path of the belt.

Lift the hood and secure it. Use a jack to lift the front of the vehicle for easier access, if needed. Ensure the vehicle is on a stable surface, and engage the parking brake. It’s best to wear gloves for protection against dirt and debris.

Next, remove any components obstructing the belt, such as the air intake or engine covers. This gives you clear access to the serpentine belt and pulleys.

Find the tensioner pulley, which keeps the belt tight. Use a ratchet and a socket to rotate the tensioner counterclockwise, relieving pressure on the belt. Once the tension is released, slide the belt off the pulleys.

Inspect the belt for signs of wear or damage. Check for cracks, fraying, or glazing. If the old belt is in poor condition, replace it with a new one that matches the specifications for your 2006 Toyota Tacoma 4.0.

Before installing the new belt, double-check the routing diagram to ensure you’re installing it correctly. Start by placing the belt around the largest pulleys, then work your way around to the smaller ones, making sure it fits snugly in the grooves.

Once the belt is properly in place, use the ratchet to move the tensioner pulley again. As the tensioner tightens, the belt will be secured. Ensure the belt is seated correctly on each pulley, with no twists.

Reinstall any parts you removed earlier, such as the air intake or engine covers. Double-check that all components are secure and nothing is left loose.

Start the engine and observe the belt’s movement. Listen for any unusual noises and watch for any signs of slippage or misalignment. If everything looks good, you’re done.

Common Issues with the Serpentine Belt System in the 2006 Toyota Tacoma 4.0

Check the serpentine belt regularly for signs of wear, such as cracks, fraying, or glazing. These can cause the belt to slip or break, leading to power loss to essential components like the alternator and power steering pump.

A misaligned pulley can cause premature belt wear. Ensure the pulleys are properly aligned to avoid uneven stress on the belt. If the belt squeaks or makes unusual noises, inspect the tensioner and pulleys for any issues.

The tensioner itself may lose tension over time. If the belt becomes loose or falls off, the tensioner might need replacement. This can also cause engine overheating if the water pump fails to turn effectively due to insufficient belt tension.

• Cracked or worn belt
• Misaligned pulleys
• Failed tensioner

Consider replacing the serpentine belt and components as a set, since worn pulleys can shorten the lifespan of a new belt. Checking the belt system during regular maintenance intervals can save time and repair costs later.
