2006 5.7 Hemi Belt Diagram and Proper Installation Guide
To correctly identify the belt routing for your 2006 5.7 Hemi engine, you must follow the precise diagram that indicates the position of each belt component. The serpentine belt is crucial for powering multiple engine accessories, such as the alternator, water pump, and power steering pump. A wrong setup can lead to belt slippage, overheating, or even failure of important engine components.
Make sure to check the alignment of the tensioner, idler pulleys, and all other parts listed in the belt diagram. The 2006 5.7 Hemi engine requires careful attention to detail when installing or replacing the belt, ensuring proper fitment and tension. If you have misplaced your factory diagram, there are plenty of resources available online or in service manuals that provide the accurate routing sequence.
It’s important to verify the condition of the belt before installation. A worn belt should be replaced immediately to avoid engine damage. The routing diagram ensures that every part moves in harmony, reducing wear and prolonging the life of your engine’s accessories. Refer to the specific diagram for your model year for optimal performance.

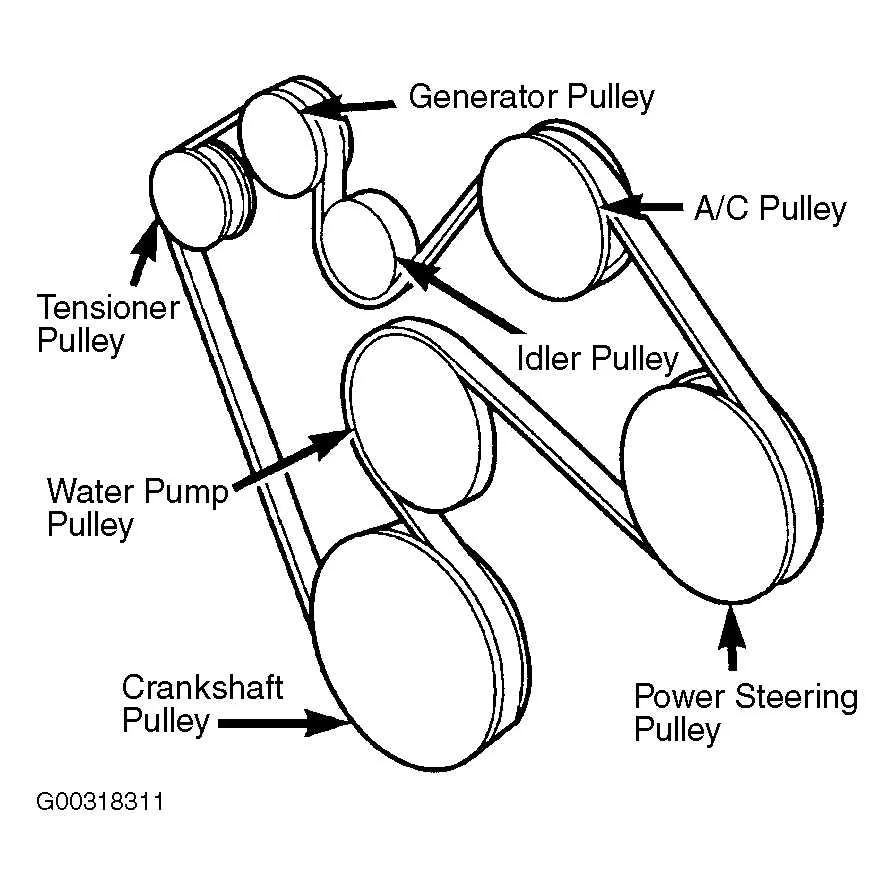

2006 5.7 HEMI Belt Diagram
For the 2006 5.7 HEMI engine, ensuring proper installation and tension of the accessory belt is vital for engine performance. Below is a simplified diagram and step-by-step guide to help you achieve correct alignment and avoid unnecessary wear.
- The serpentine belt routes through various pulleys, including the alternator, power steering pump, and air conditioning compressor.
- Verify the correct routing by referencing the tensioner pulley, as it is the primary component for belt tensioning.
- Ensure the belt fits snugly without excessive slack or tightness, as this can impact engine function and component life.
- Look for any noticeable wear or damage on the belt before installation. Replace any worn or frayed sections immediately to avoid malfunction.
The following steps will help you ensure proper belt installation:
- Release tension from the tensioner pulley using a suitable tool.
- Carefully remove the old belt, making sure to note the routing sequence for reinstallation.
- Route the new belt over the pulleys, ensuring all grooves and teeth align properly with the components.
- Double-check the alignment and ensure the belt sits correctly on each pulley before releasing the tensioner.
- Test the belt by rotating the engine by hand to verify proper movement without slipping.
By following these instructions and confirming correct belt routing, your 2006 5.7 HEMI engine will continue running smoothly and reliably.
Understanding the Belt Routing for 2006 5.7 HEMI Engine
The 2006 5.7 HEMI engine requires precise belt routing to ensure smooth operation. Follow this guide to properly install or replace the serpentine belt.
Start with the crankshaft pulley. Position the belt over it, ensuring that it runs clockwise to the tensioner pulley. From the tensioner, route the belt around the idler pulley, then up to the water pump pulley. From there, move the belt towards the alternator pulley, keeping it tight along the path.
The belt then wraps around the power steering pump pulley, moving down to the A/C compressor. Finally, bring the belt back towards the crankshaft pulley, confirming the path is correct along all pulleys.
Ensure that the belt is properly tensioned. A loose or misaligned belt can lead to premature wear or engine malfunction. Double-check the alignment against the diagram to avoid unnecessary stress on the engine components.
Replace the belt if it shows signs of wear, cracking, or stretching. It’s also a good idea to inspect the tensioner and idler pulleys regularly to avoid any complications during operation.
Common Issues with Belt Tension and Alignment in 2006 5.7 HEMI
When dealing with the 2006 5.7 HEMI, misaligned or improperly tensioned belts are common causes of performance issues. First, check the belt tensioner. A worn-out or failing tensioner can result in slack, which may lead to belt slippage, causing the engine to overheat or malfunction. Replacing the tensioner when signs of wear appear is crucial to avoid further damage.
The alignment of the pulleys should also be inspected regularly. A misaligned pulley can cause uneven belt wear, leading to premature failure. Make sure the idler pulleys and alternator pulleys are positioned correctly. Any deviation in their alignment will disrupt the belt’s path, affecting engine performance and fuel efficiency.
Improper belt installation can sometimes go unnoticed during a routine repair. Ensure the belt routing follows the diagram exactly, and that it is seated firmly within all the grooves of each pulley. A misrouted belt can cause excessive noise or erratic behavior in the accessories driven by the belt.
Lastly, always inspect the belt itself for signs of cracking or fraying. A damaged belt, regardless of tension, cannot function as intended. Regular visual checks are an effective way to identify wear before it leads to more severe issues.
Step-by-Step Guide to Replacing the Serpentine Belt on 2006 5.7 HEMI
Start by locating the serpentine belt tensioner. You’ll need a ratchet or breaker bar with the appropriate size socket to rotate the tensioner pulley and relieve tension on the belt. This allows you to easily remove the belt from the pulleys.
Next, examine the belt routing diagram. The routing guide, typically found near the radiator support or on the engine bay, will show the exact path the serpentine belt follows over the pulleys. Note this before removing the old belt so you can install the new one correctly.
Once the tension is released, remove the serpentine belt carefully, taking note of its condition. If it appears cracked, worn, or frayed, replace it with a new one. Compare the old belt with the new one to ensure they are the same length and width.
Begin the installation by placing the new belt on the pulleys following the routing diagram. Pay close attention to the direction of the grooves, ensuring the belt fits snugly in each pulley groove.
After the belt is positioned correctly, use your tool to release tension on the tensioner pulley again, and slip the belt over the final pulley. Check the alignment of the belt on all pulleys to make sure it’s properly seated.
Finally, inspect the belt tension. The belt should have a slight amount of slack but should not feel loose. If necessary, adjust the tensioner to achieve the correct tension.
Start the engine and verify that the belt is running smoothly without any unusual noises. If everything sounds good, you’ve successfully replaced the serpentine belt on your 2006 5.7 HEMI.
